KERL AJS
511275
- LC 300 daN
- L min = 140 mm
Base article no.: 511265
Lashing straps with 35 mm strap width
Robust load securing for medium loads
The allsafe lashing strap with a width of 35 mm is the ideal solution for the safe transport of medium-sized loads in large transporters and small trucks. Thanks to its high load capacity, it ensures reliable fastening and complies with the certified requirements of DIN EN 12195-2 – for maximum safety on every journey. Flexibly adaptable: The strap can be customized with individual printing on the tape and label to perfectly suit your needs. The tape can be customized with your logo, while the label contains important manufacturer information and product-specific properties for compliance with standards, such as load capacity. For individual customization, the manufacturer information, item number, and logo on the label are interchangeable. Guaranteed compatibility with allsafe tracks, shoring elements, and fittings allows it to be easily integrated into existing securing systems. Design your custom lashing strap: Choose from a wide range of end fittings, fasteners, lengths, and colors to get a solution that fits your transport requirements perfectly.
Albert's tip
Want your company name or logo printed on the webbing? No problem. Want the print on the label too? We can do that! And all this from just one piece.
Configuration options
End fittings
Lmin indicates the minimum fixed end length for this fitting. The hook position can be selected at the top or bottom.
KERL AJS 1000
511242
- 1000 daN nach EN 12640
- Galvanized steel, plastic
KERL 1000
511228
- BC 1000 daN nach ISO 12640
- Stahl verzinkt, Kunststoff
KERL 2000
511227
- BC 2000 daN according to ISO 12640
- Galvanized steel, plastic

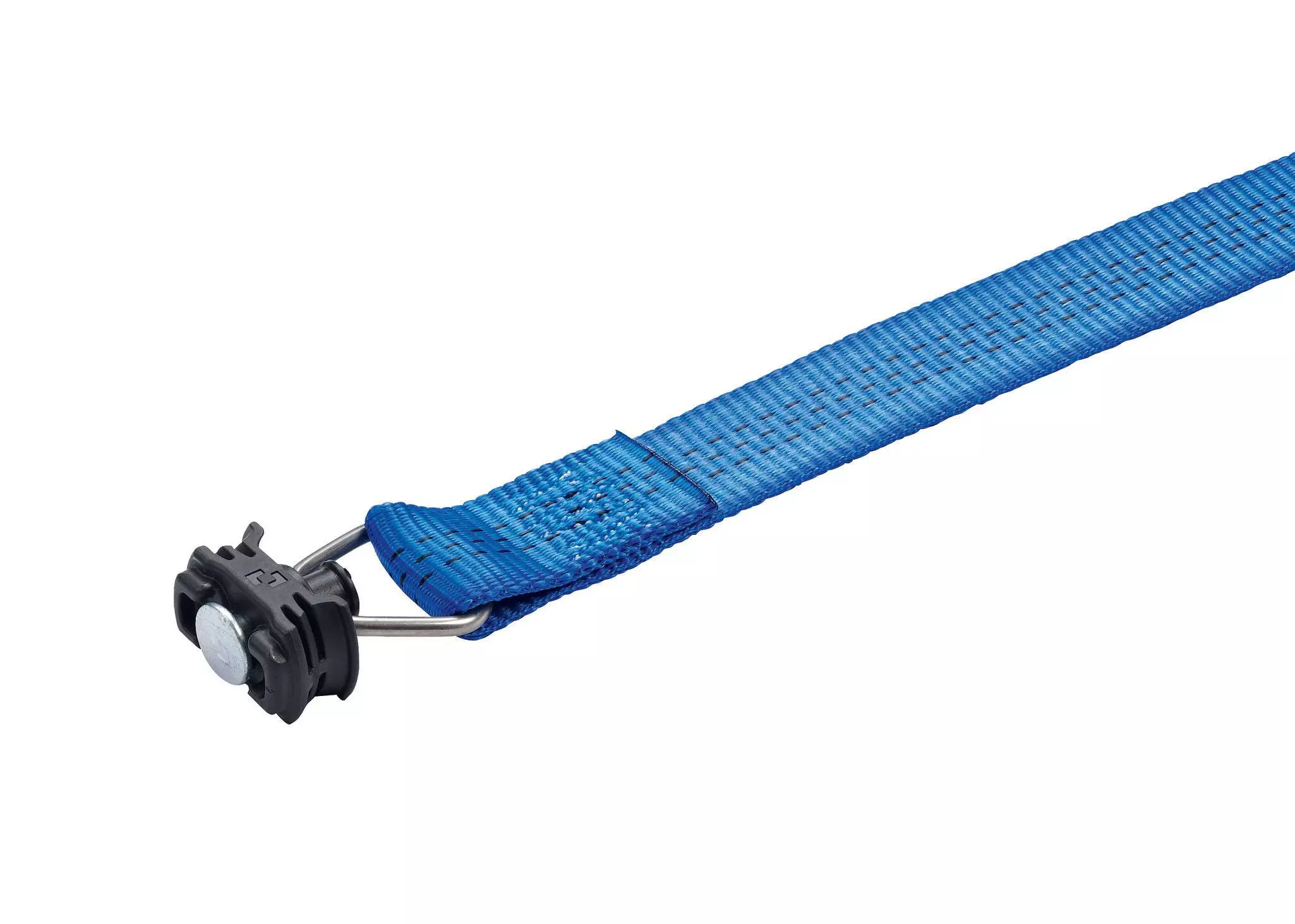

Lashing rail fitting
71022
- LC 750 daN

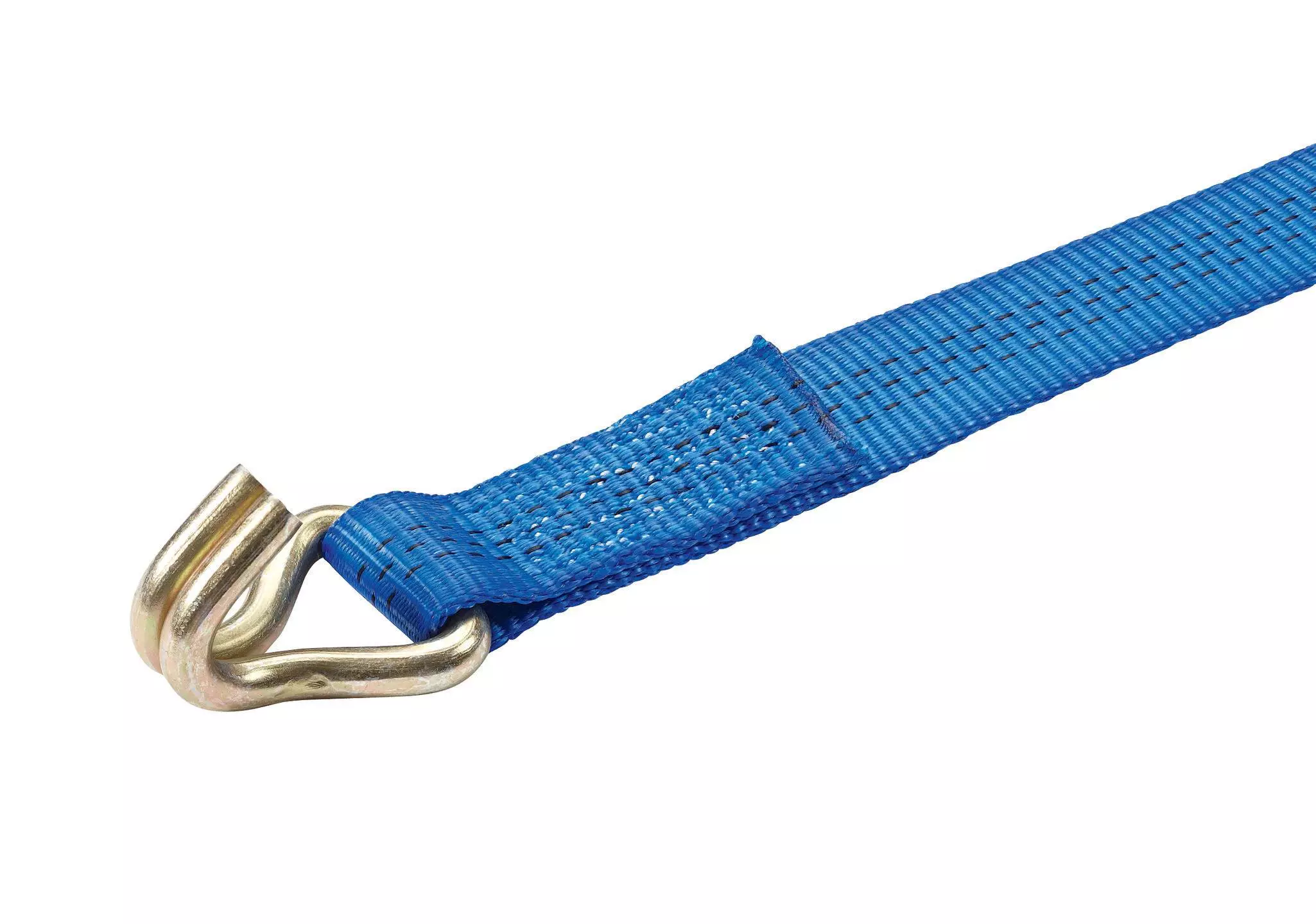

Hook
71664-10
- LC 1250 daN

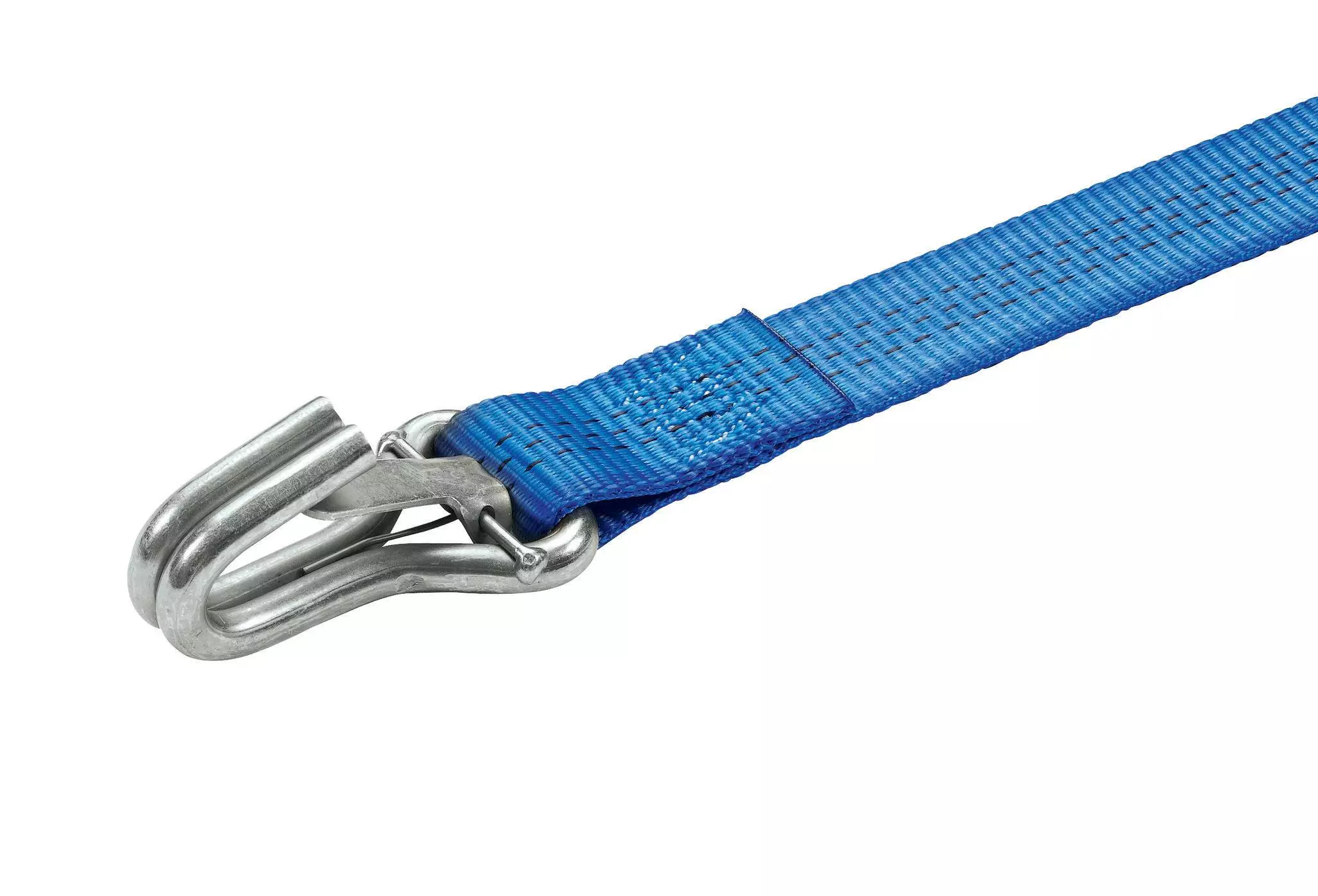

Closed wire hook
71662
- LC 1500 daN
Closed wire hook
71668
- LC 2500 daN

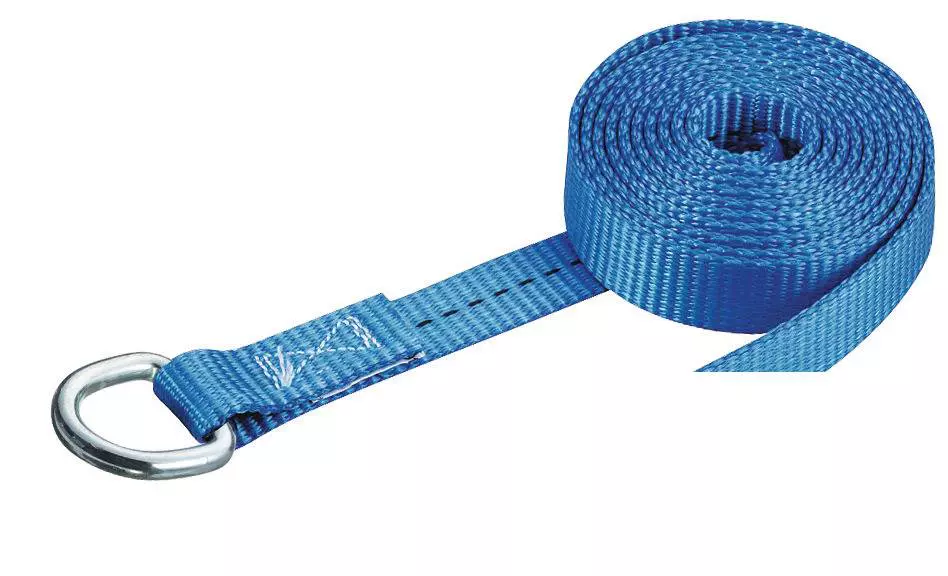

D-loop
71326
- LC 800 daN
Loop
71756
- Loop 200 mm
Locks

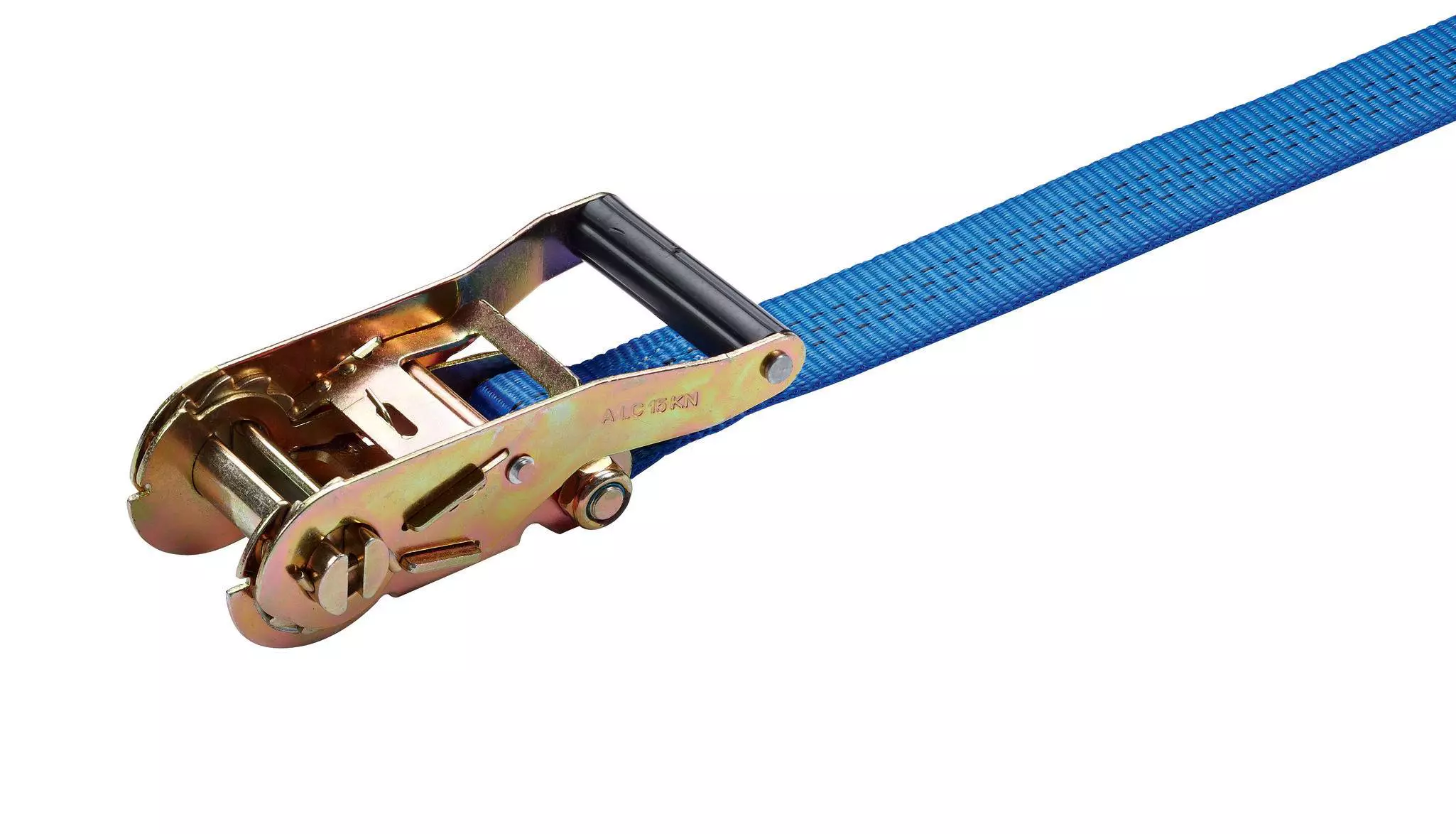

Ratchet lock
77131
- LC 3000 daN, STF 450 daN

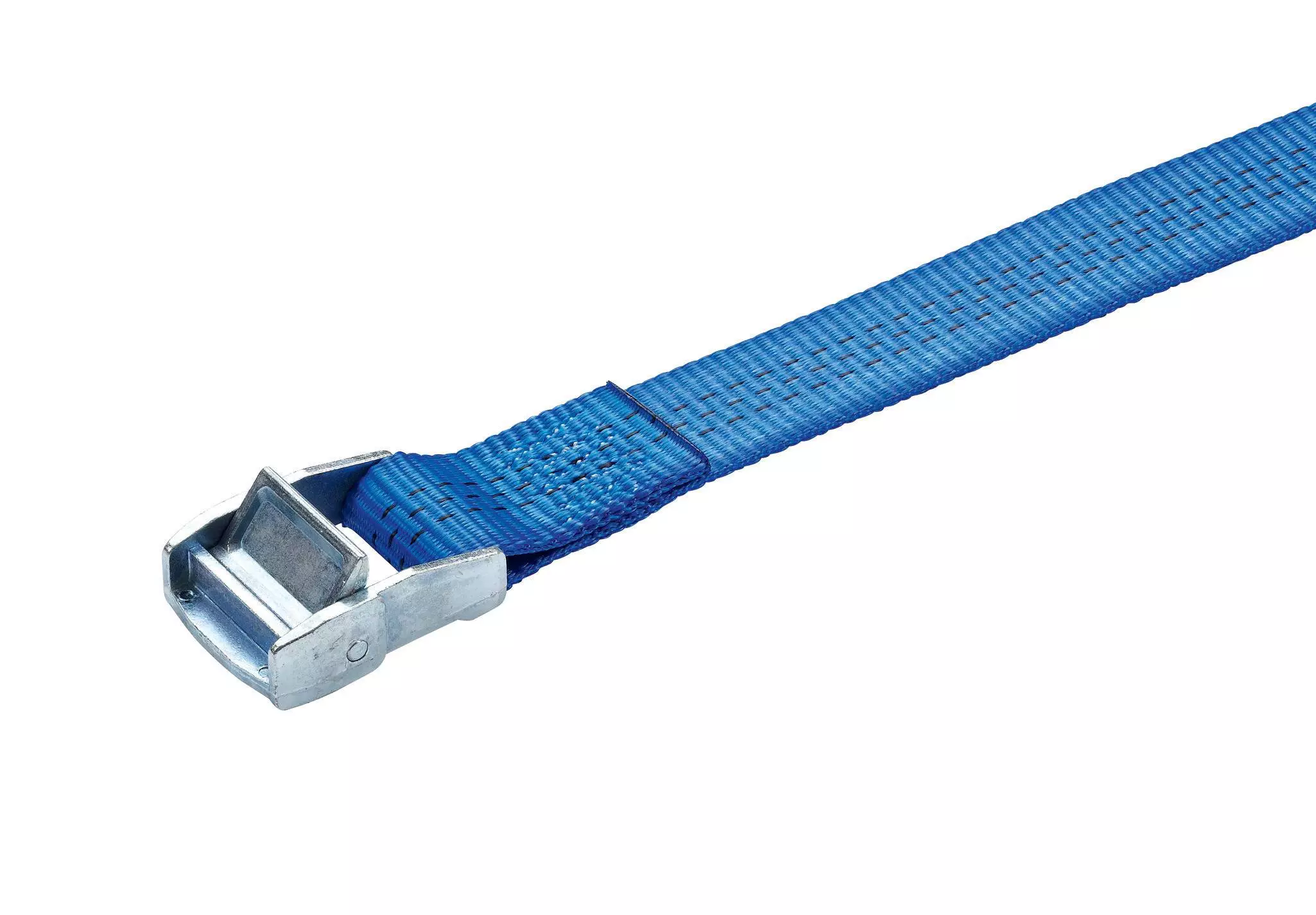

Clamp lock
71039
- LC 450 daN
Webbing color
Not all colors are available for individual locks.
Color
Blue
Color
Red
Color
Olive
Color
Orange
Length and pressure
Total length
Enter the total length in mm.
- 25 mm strap width: From a fixed end length of 300 mm, the length can be freely selected.
- 35 mm strap width: From a fixed end length of 400 mm, the length can be freely selected.
- 45/50 mm strap width: From a fixed end length of 500 mm, the length can be freely selected.
Strap printing
On request, we can print your belt according to your specifications.
Label printing
Print your individual logo on the label.
special equipment
Protective pad on the lock
Label protection fixed length
From fixed length 400 mm
Label protection open length
Fold-back
Prevents unthreading from the lock.
Abrasion protection hose made of fabric, purple
Abrasion protection hose for heavy-duty applications, white
Accessories
Downloads
Order the 35 mm lashing strap now
Configure our products according to your requirements. Custom-made and delivered ready for installation.
