Base article no.: 511110

KIM 44 Profi | Telescopic locking bar

allchange-compatibility
Made in Germany

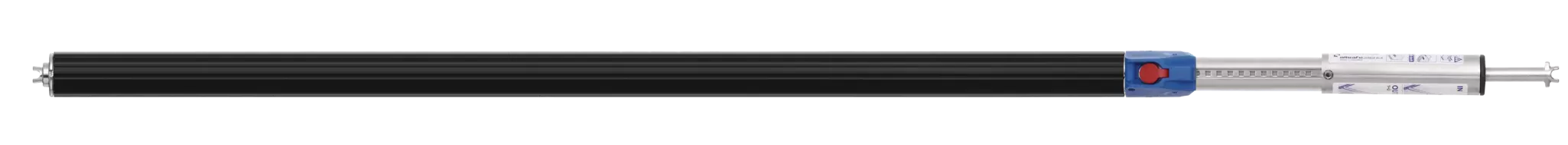

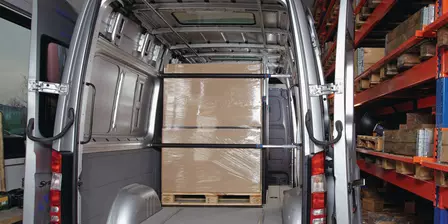

The locking bar that can be flexibly adjusted at the push of a button for transporters, box and curtainsider vehicles

The KIM 44 Profi configurable locking bar offers safety and flexibility when securing loads. This locking bar is ideal for vans, box vehicles and curtainsiders, making it a real all-rounder. Made of lightweight and robust aluminum, the round locking bar enables effortless handling and saves valuable time in daily use. Thanks to the variable adjustment range, the KIM 44 Profi can be precisely adjusted to the inner dimensions between the rails at the push of a button and reliably holds your load in place. An optional protective hose protects sensitive loads from damage. Its low weight also increases the payload.

Albert's tip

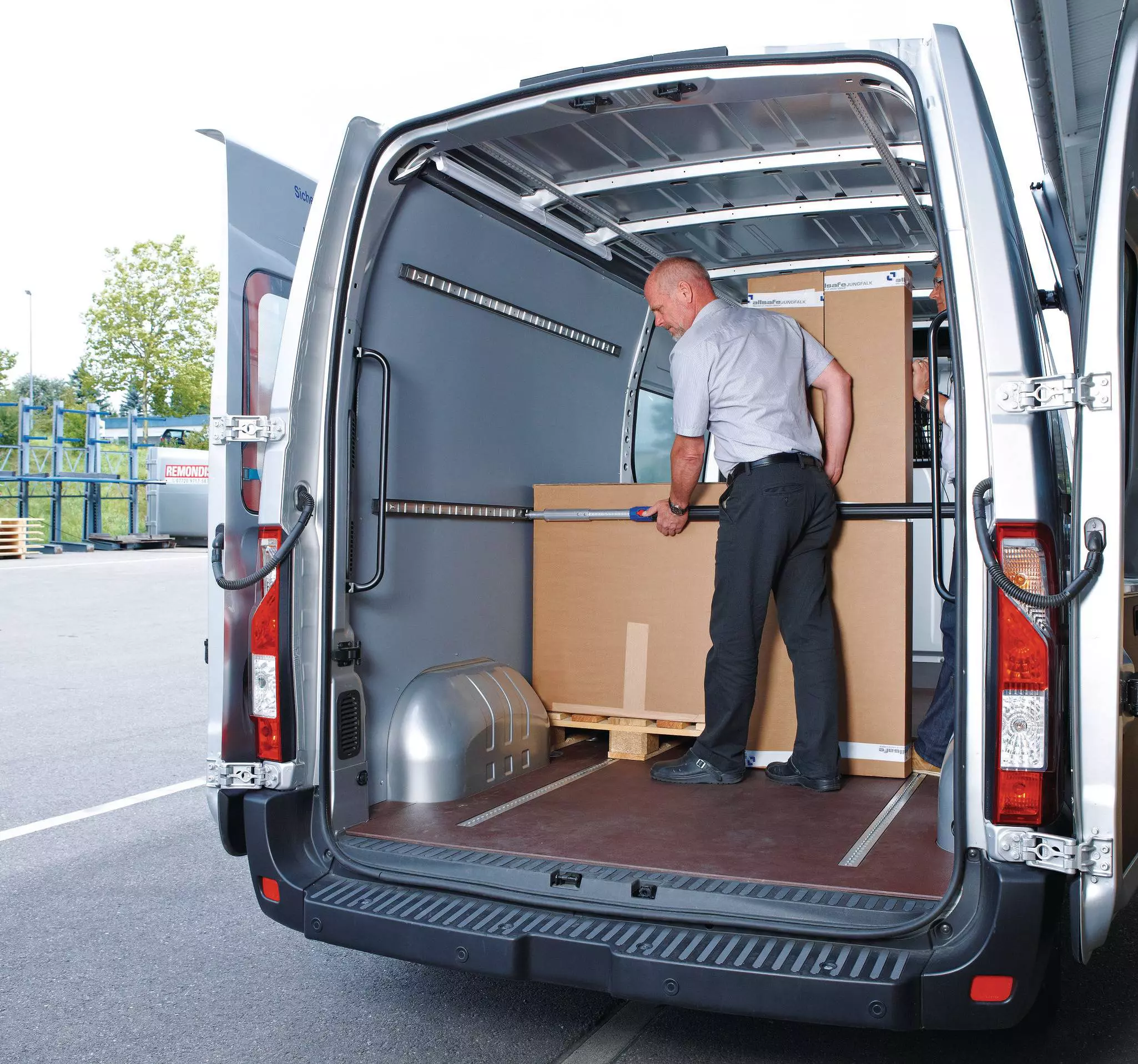

With an adjustment range of up to 500 mm, the KIM 44 Profi can be used flexibly and, whether horizontally or vertically, the correct length is set in seconds and unlocked at the push of a button for removal.

Technical specifications

At a glance

  • Round locking bar
  • Ideal for use in transporters
  • Ergonomically adjustable with push button
  • Weight: approx. 2.5–4.0 kg depending on length

Area of application

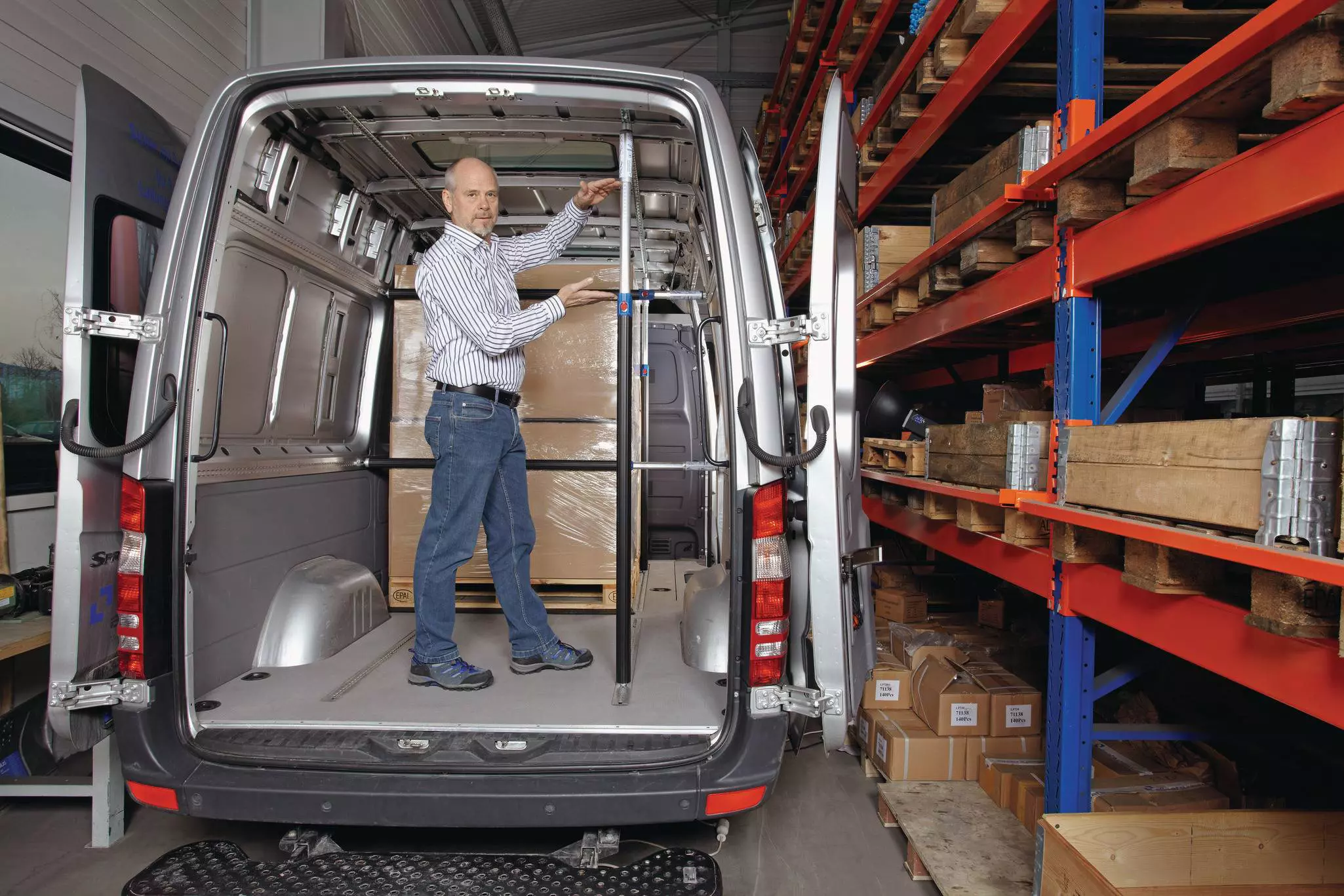

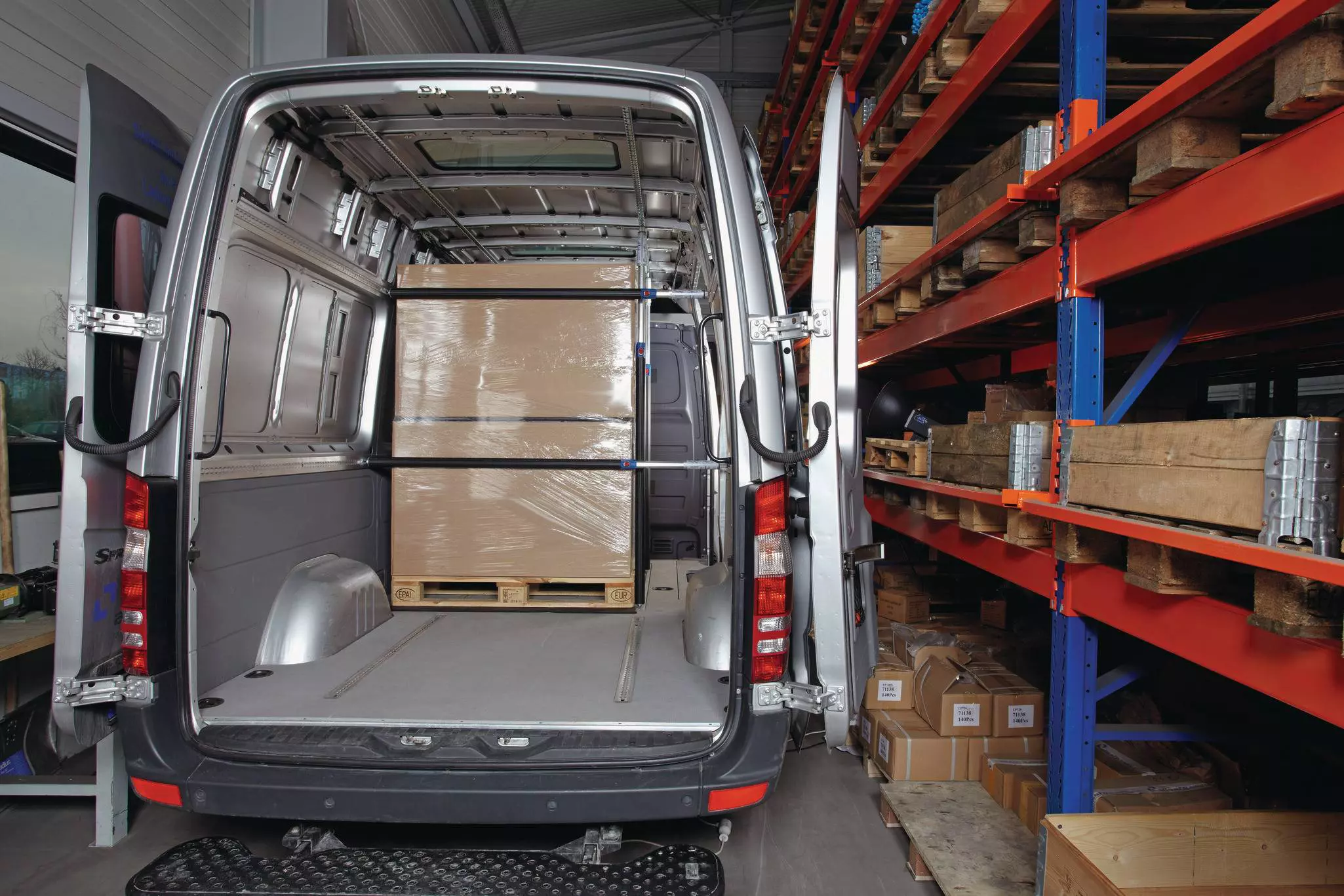

The KIM 44 Profi can be used horizontally and vertically to secure loads. There are two application areas with different adjustment ranges to choose from:

End pieces

End pieces at top

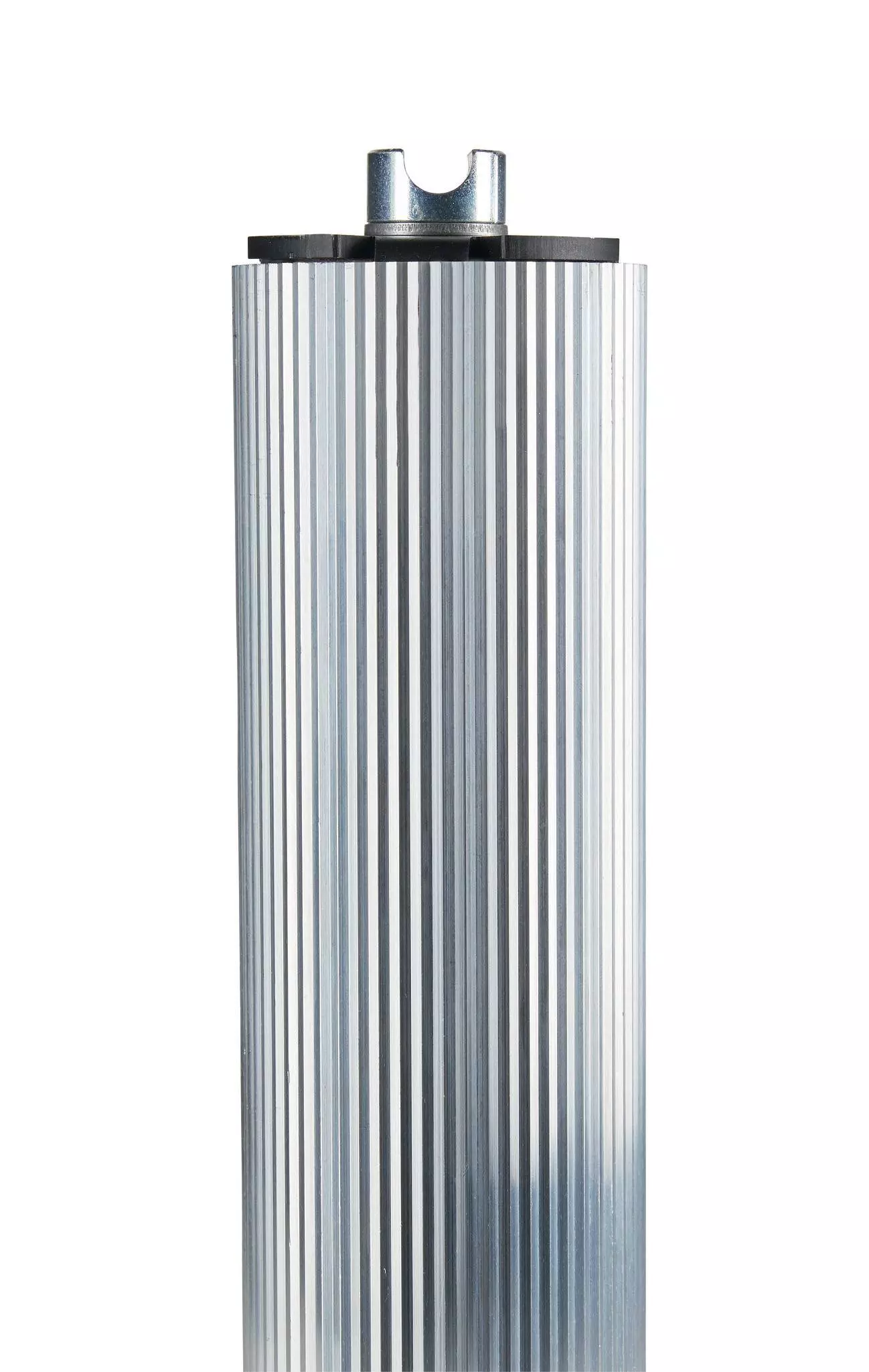

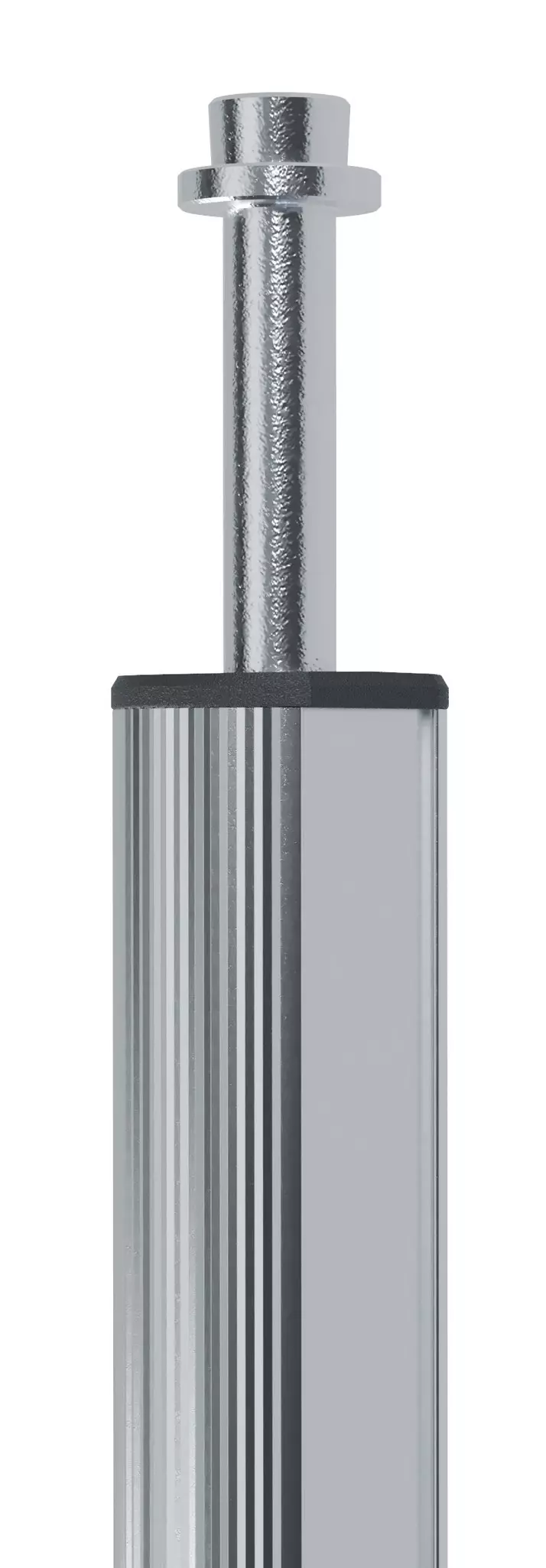

Solid bolt Ø 24 mm, top

Compatible with Airline tracks / Round hole tracks / Combi tracks Ø 25 mm

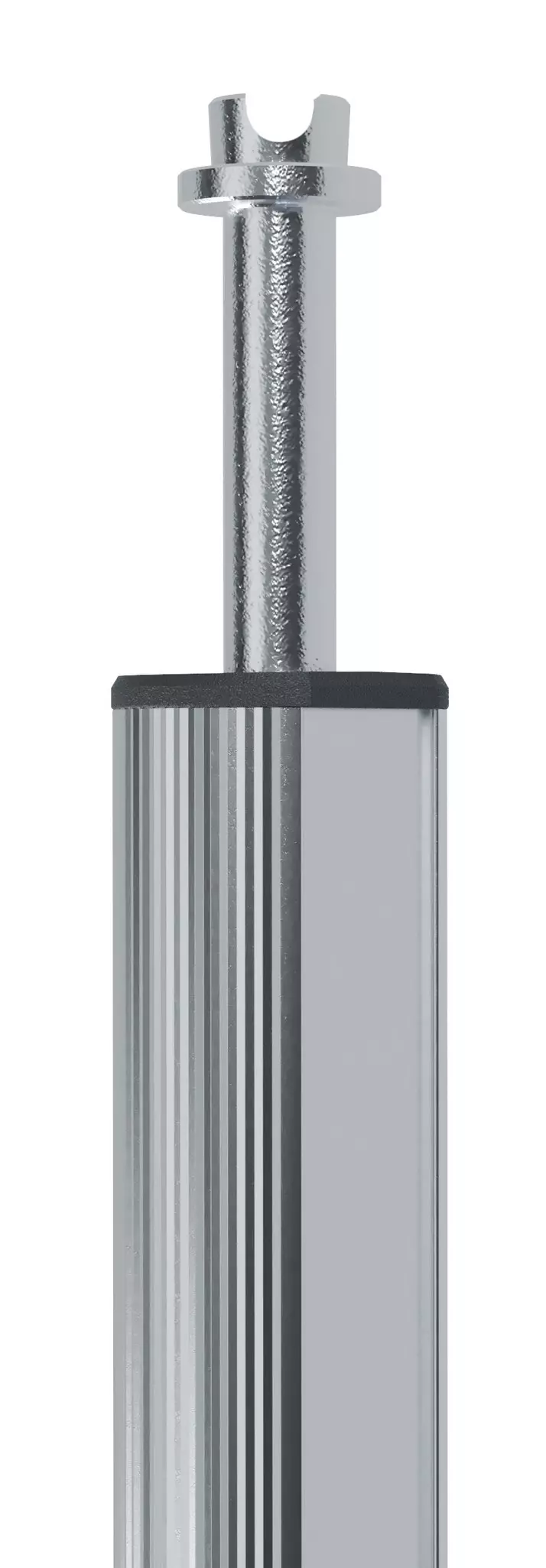

Slotted bolt Ø 19 mm, top

Compatible with Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm

Solid bolt Ø 19 mm, bottom

Compatible with Airline tracks / Round hole tracks / Combi tracks Ø 20 mm

End pieces at bottom

Solid bolt Ø 24 mm, bottom

Compatible with Airline tracks / Round hole tracks / Combi tracks Ø 25 mm

Slotted bolt Ø 19 mm, bottom

Compatible with Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm

Solid bolt Ø19 mm, bottom

Compatible with Airline tracks / Round hole tracks / Combi tracks Ø 20 mm

Configuration options

Label printing

All allsafe Factor 4 products can be fitted with a customized product type label.

Protective hose

The protective sleeve can be ordered separately and protects your goods from scratches.
