Base article no.: 512076

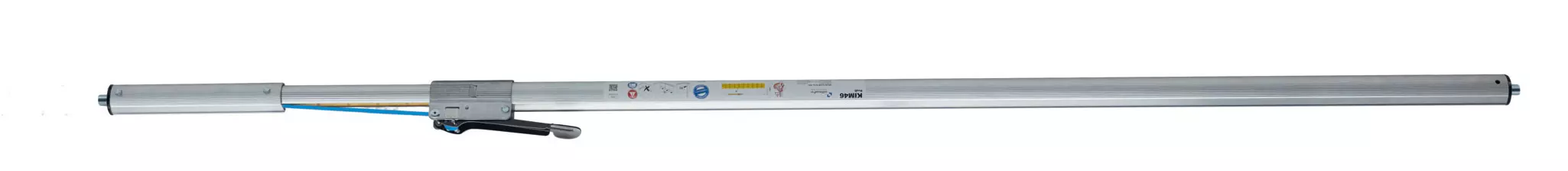

KIM 46 Profi | Telescopic locking bar

allchange-compatibility
Made in Germany

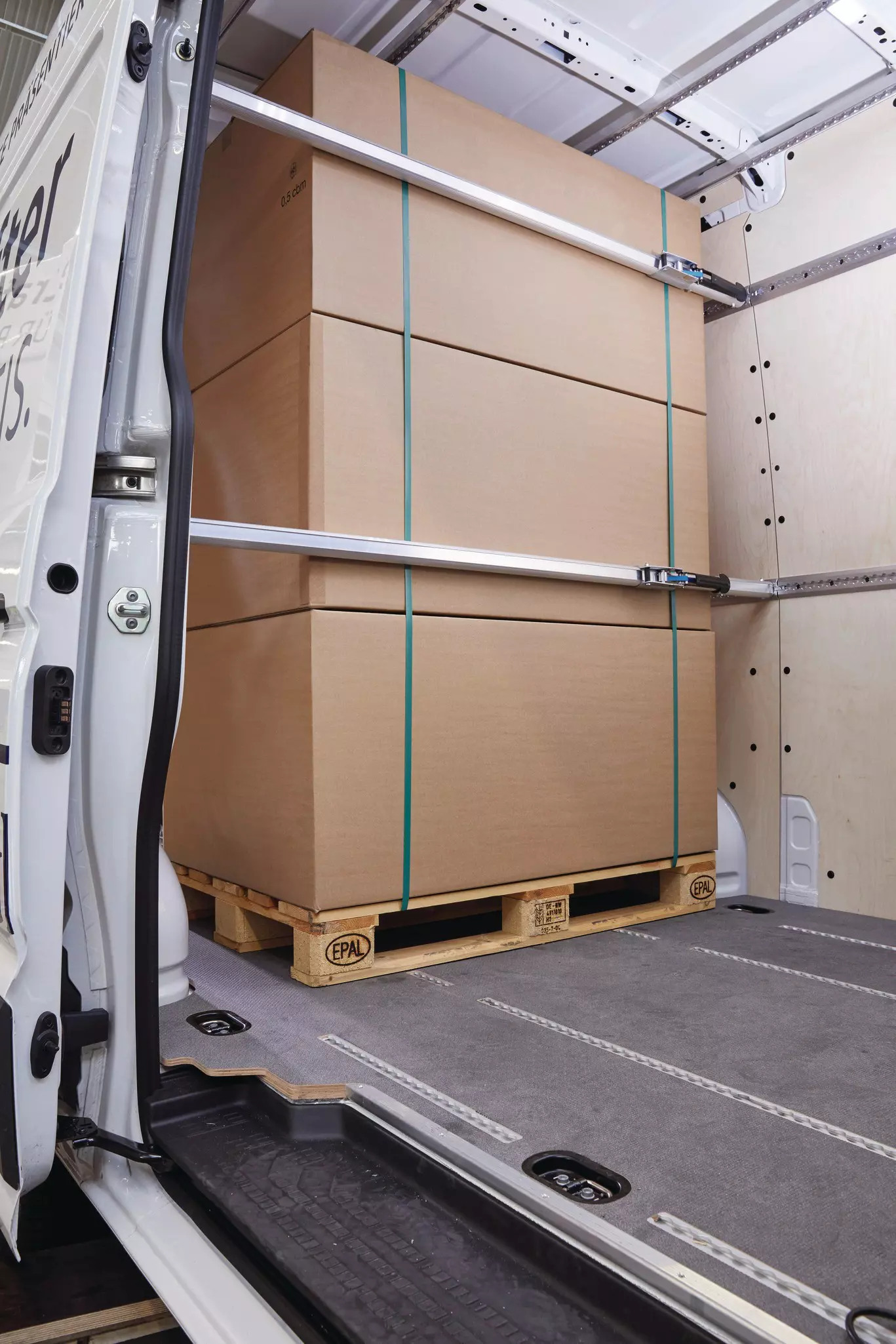

Easily positioned and flexibly adjustable locking bar for panel vans and box vehicles

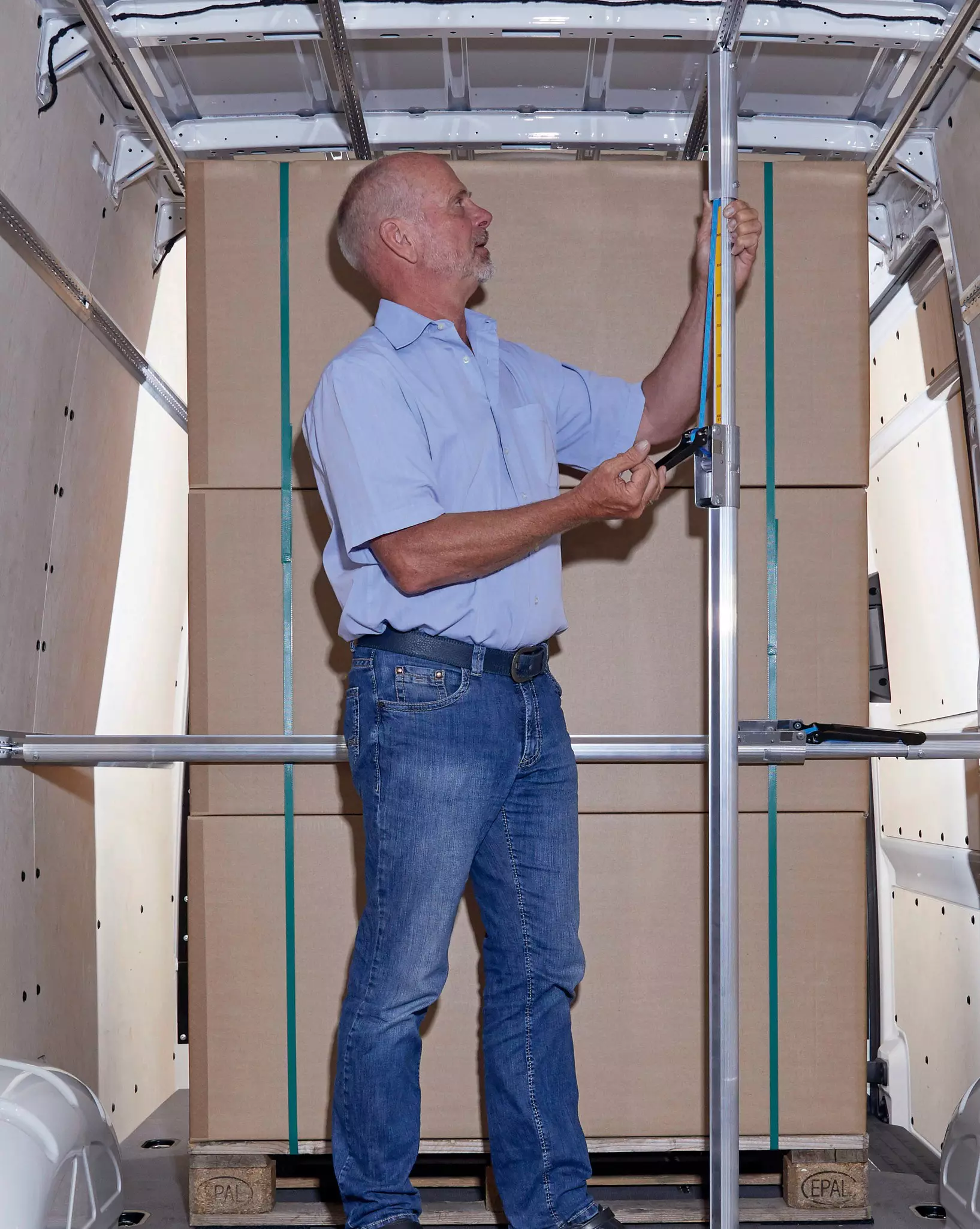

The KIM 46 Profi locking bar offers maximum comfort for effortless and flexible load securing. The convenient lever mechanism makes attaching and releasing particularly user-friendly and is easy on the user – perfect for efficient and injury-free work. Made in Germany, the KIM 46 Profi locking bar stands for the highest product quality and durability in daily transportation. Available in three versions.

Albert's tip

Do you need a larger operating range? No problem with the KIM 55 Profi!

Technical specifications

At a glance

  • Round locking bar
  • Ideal for use in transporters
  • Up to 350 daN BC

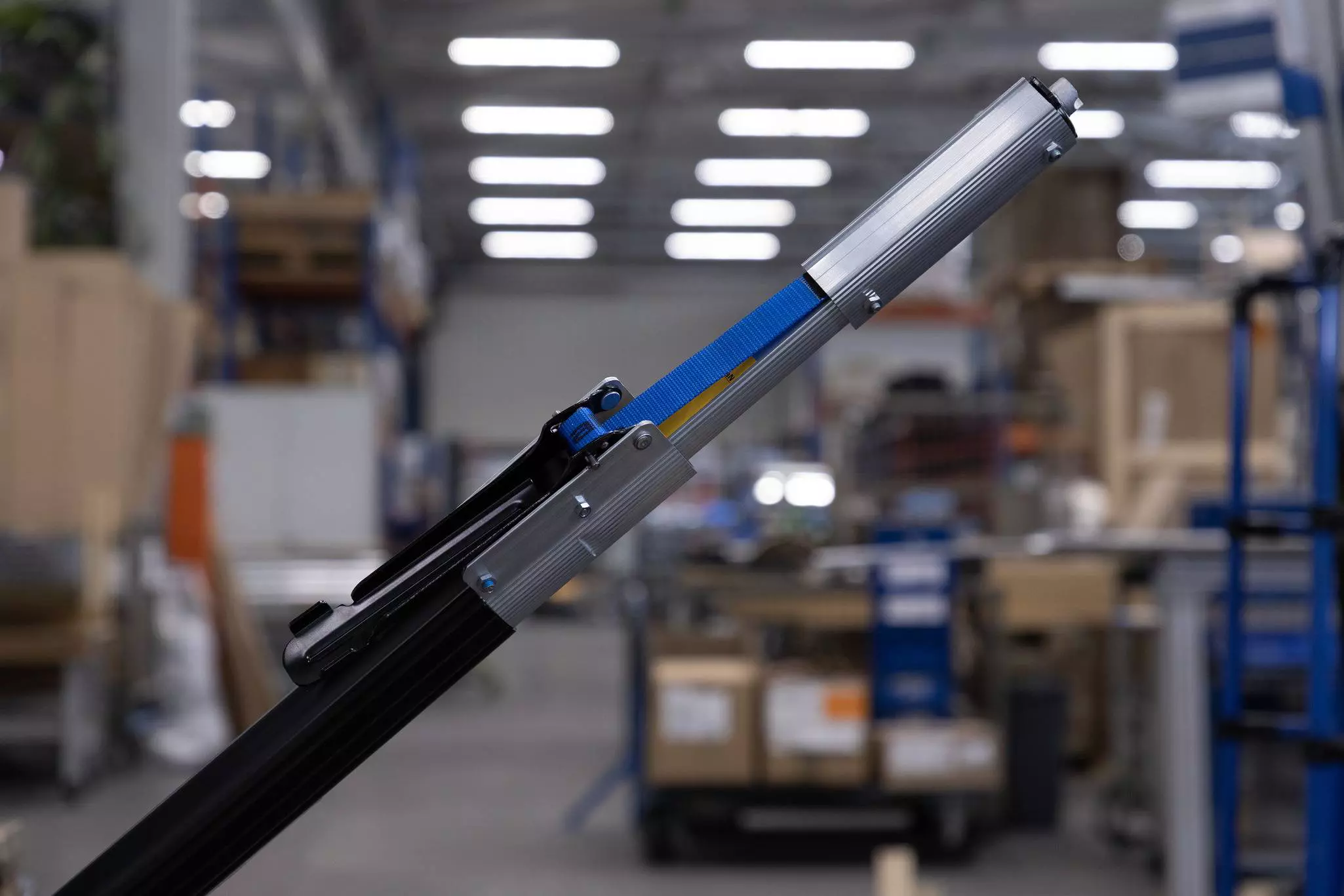

  • Ergonomically adjustable with lever
  • Weight: approx. 2.3–4.0 kg depending on length

area of application

Available in three application ranges:

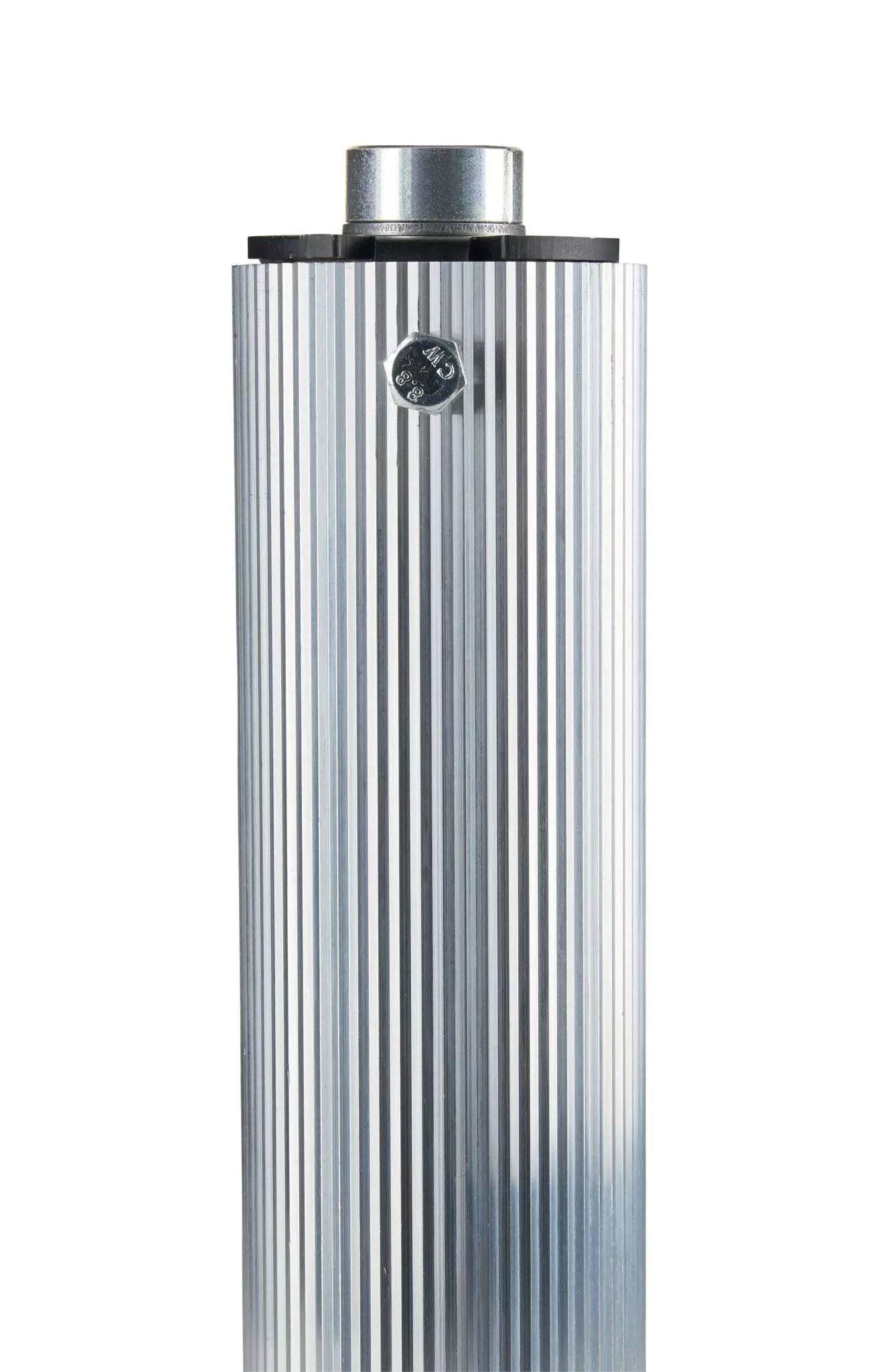

End pieces KIM 46 Profi

End pieces at top

Solid bolt Ø 24 mm, top

Suitable for Airline tracks and Round hole tracks Ø 25 mm

Slotted bolt Ø 19 mm, top

Suitable for Airline tracks, Round hole tracks Ø 20/25 mm and Pin tracks Ø 8/10 mm

Slotted bolt Ø 24 mm, top

Suitable for Airline tracks, Round hole tracks Ø 20/25 mm and Pin tracks Ø 8/10 mm

Solid bolt Ø 19 mm, top

Suitable for Airline tracks and Round hole tracks Ø 20 mm

End pieces at bottom

Bolt Ø 24 mm, bottom

Compatible with Airline and round hole tracks Ø 25 mm

Full bolt, long, Ø 19 mm, bottom

Suitable for Airline tracks and Round hole tracks Ø 20 mm

Full bolt, long, Ø 24 mm, bottom

Suitable for Round hole tracks Ø 25 mm

Slotted bolt Ø 19 mm, bottom

Suitable for Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm

Slotted bolt Ø 24 mm, bottom

Suitable for Airline tracks, Round hole tracks Ø 25 mm and Pin tracks Ø 10 mm

Solid bolt, short, Ø 19 mm, bottom

Suitable for Airline tracks and Round hole tracks Ø 20 mm

Configuration options

Properties

Label printing

All allsafe Factor 4 products can be fitted with a customized product type label.

Protective hose

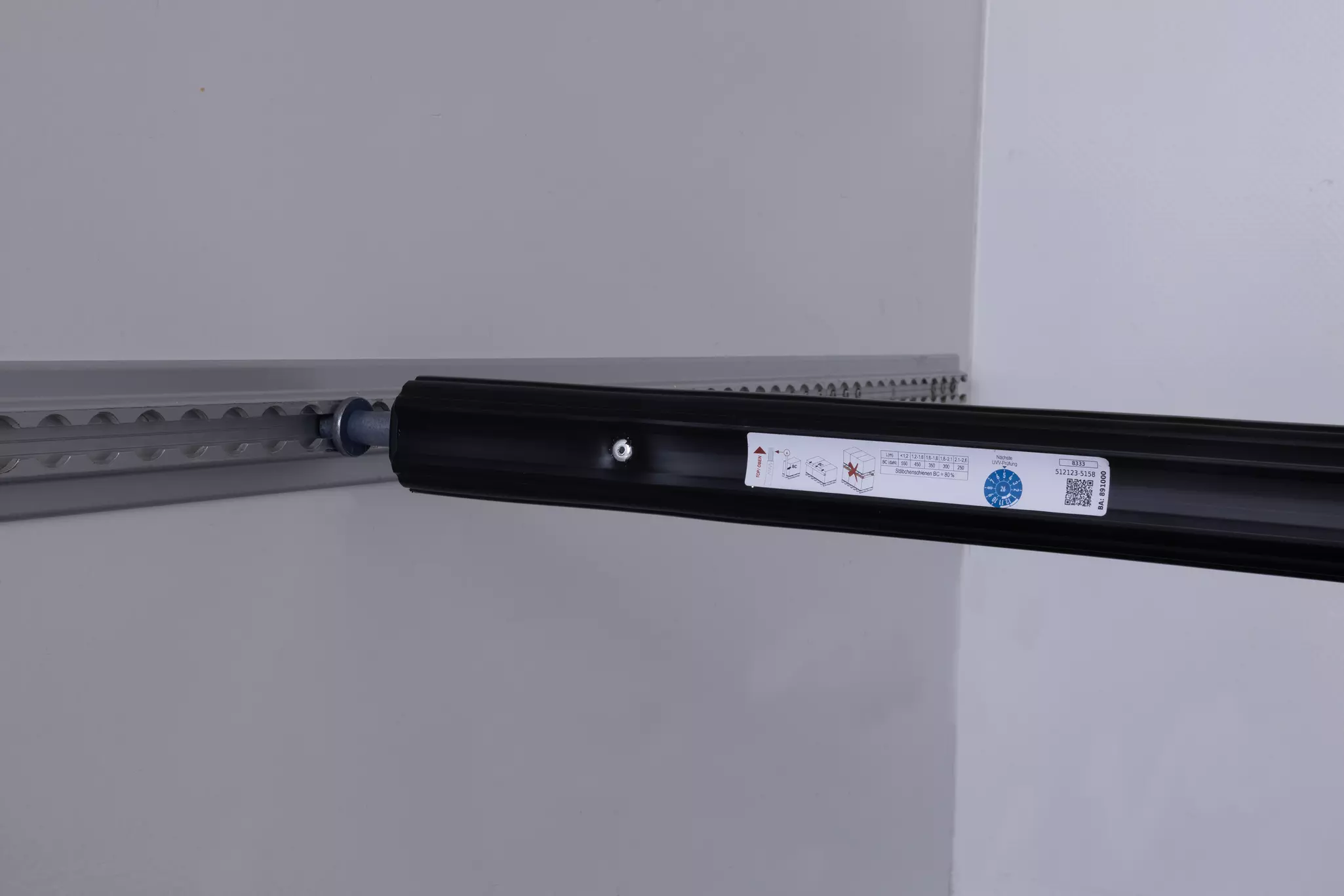

The protective sleeve can be ordered separately and protects your goods from scratches.
