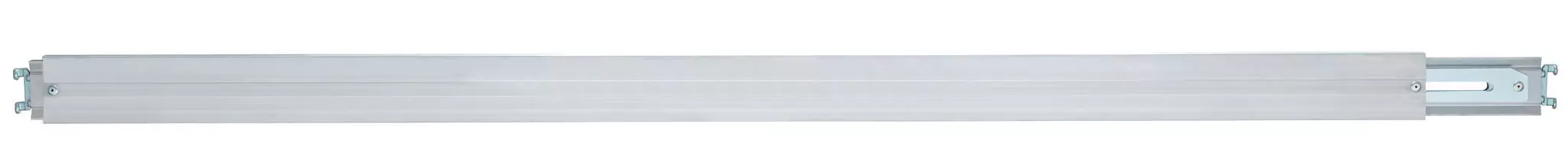

Decking beams CTD
Base article no. 510800
CTD | Decking beams
More loading area and form-fitting securing in curtainsiders

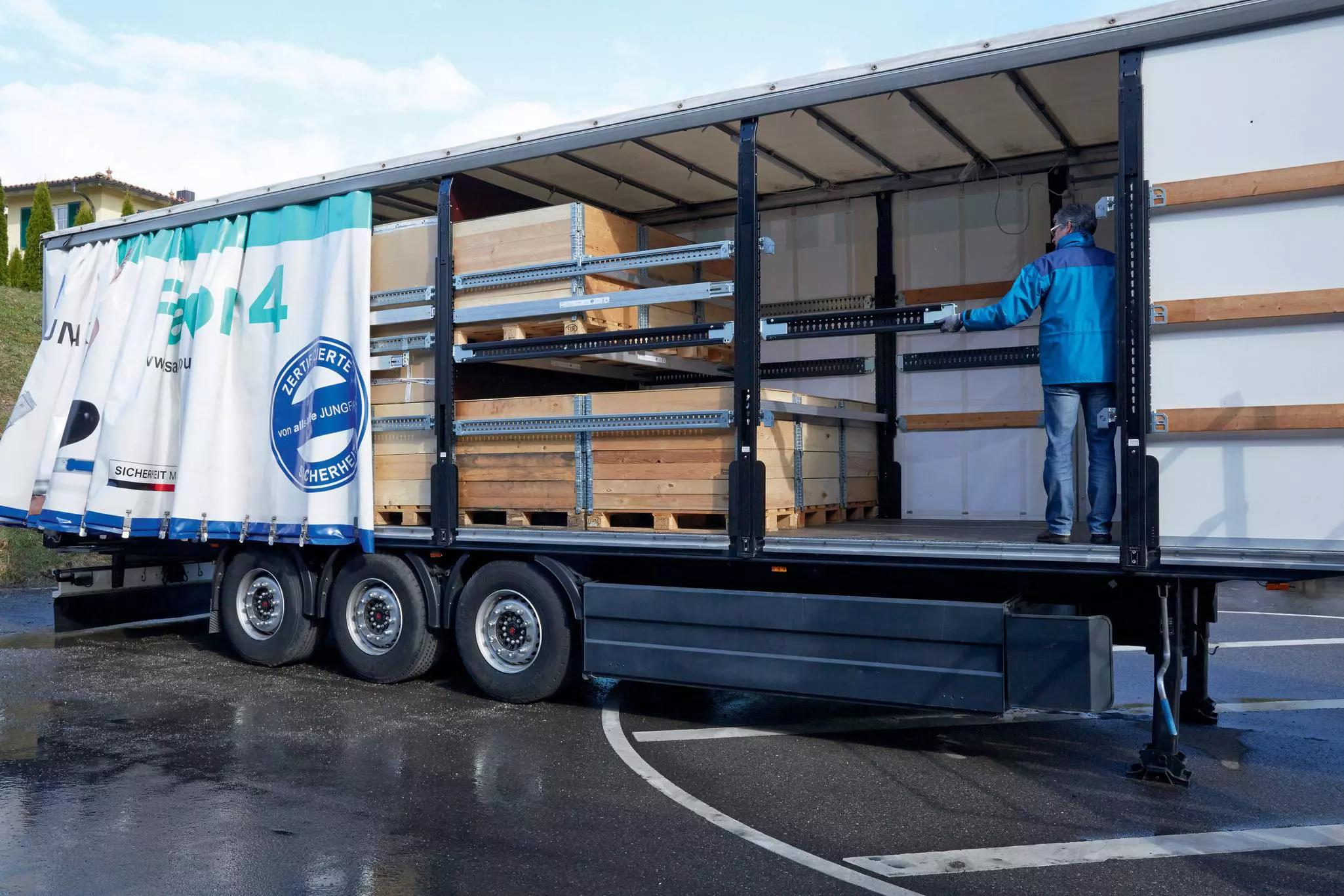

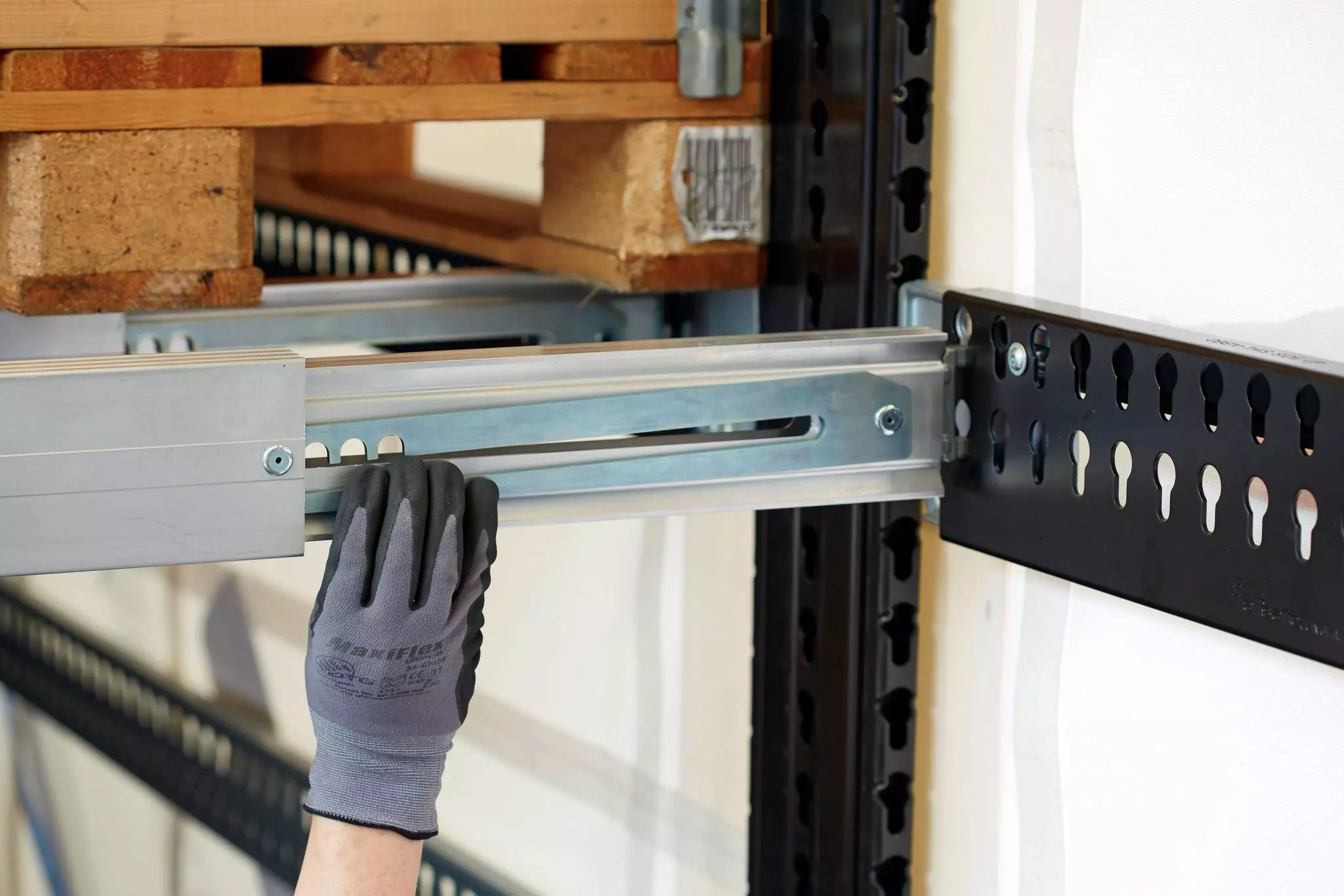

The CTD decking beams maximize the loading space in tarpaulin bodies. On a second loading level, you can load up to 13 tons or – when loading with Euro pallets – double the number of pallet spaces in the semi-trailer from 33 to 66. The robust CTD decking beams can also be used for form-fitting load securing and can be easily stowed between the stanchions to save space when not in use. The CTD system can be installed or retrofitted in sheet-body superstructures in conjunction with stanchions suitable for double-deck loading.
Technical specifications
At a glance
- Ideal for use in medium and large curtainsiders
- Suitable for double-deck loading
- BC 800 daN
Load Capacity
| X=bis2499mm | X=2500mm–2999mm | X=3000mm–3500mm |
|---|---|---|
| PL400kg | PL300kg | PL200kg |
*The max. loading capacity of this decking beam depends on the length of the side beams (x dimension).
