Order the KERL AJS 25 fitting now
Configure our products according to your requirements. Custom-made and delivered ready for installation.

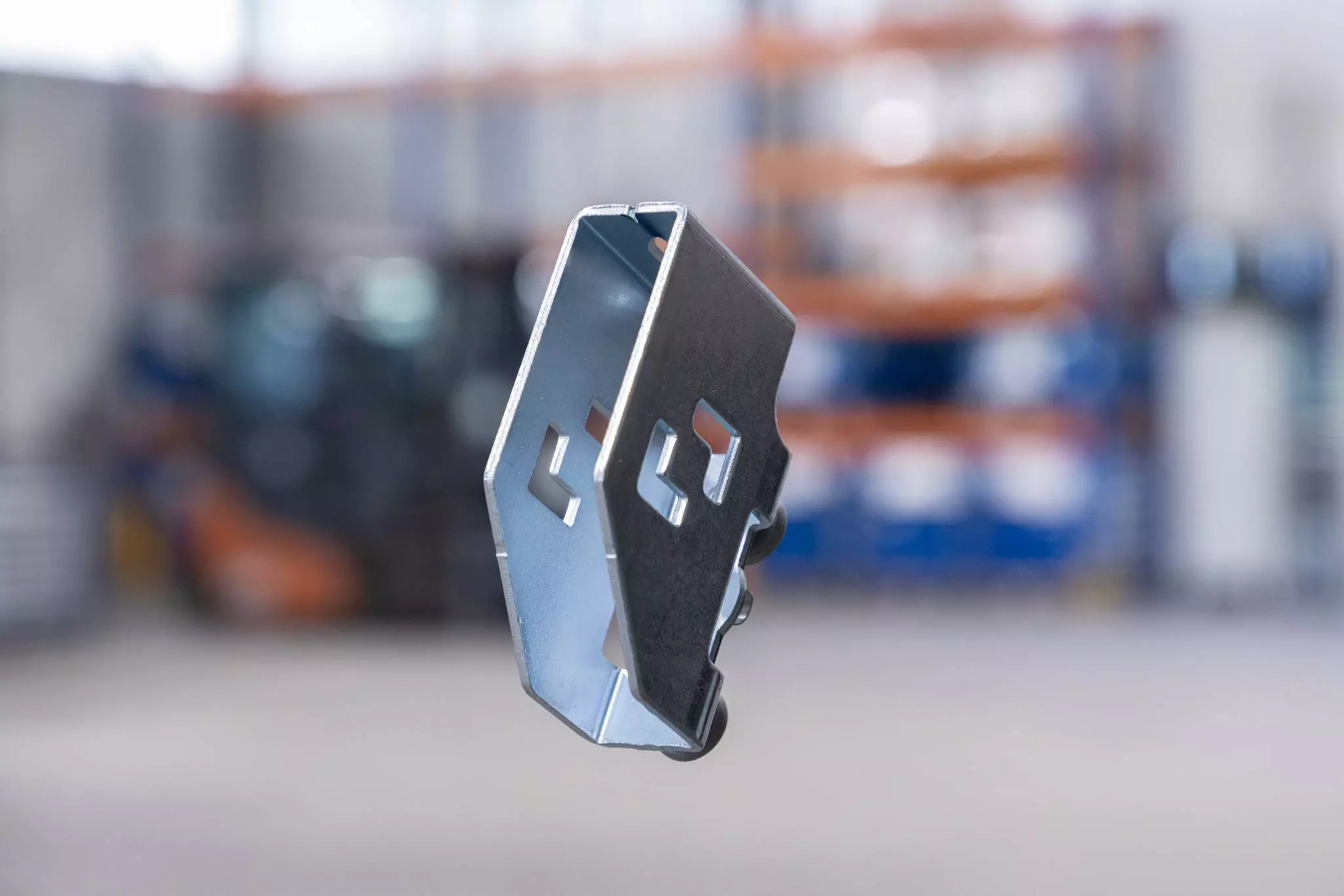

KERL AJS 25 fitting as holder
allchange-compatibility
Made in Germany
Secure locking for slats and lashing rails
The KERL AJS 25 fitting is the ideal solution for stable and form-fitting load securing in the allsafe CTD system and AJS lashing rails. It accommodates all standard 25 mm thick slats made of wood, aluminium or steel and enables them to be securely locked in place. Made of galvanized steel, the KERL AJS 25 fitting holder impresses with its high load capacity of 1000 daN in the Z direction and 400 daN in the Y direction. It can be inserted into and removed from the track with just one hand and allows flexible fastening of AJS lashing rails or CTD stanchions side beams – for maximum safety and easy handling.
Technical specifications
*Indication of the maximum value for the fitting. The usable load capacity depends on the track used and the installation situation.
At a glance
- BC 1000 daN* in Z direction
- BC 400 daN* in Y direction
- Galvanized steel
- Compatible with airline tracks with a pitch of 25 mm
- Suitable for AJS lashing bars and CTD stanchions
