Airline tracks Special for special applications
Customized solutions for exceptional requirements

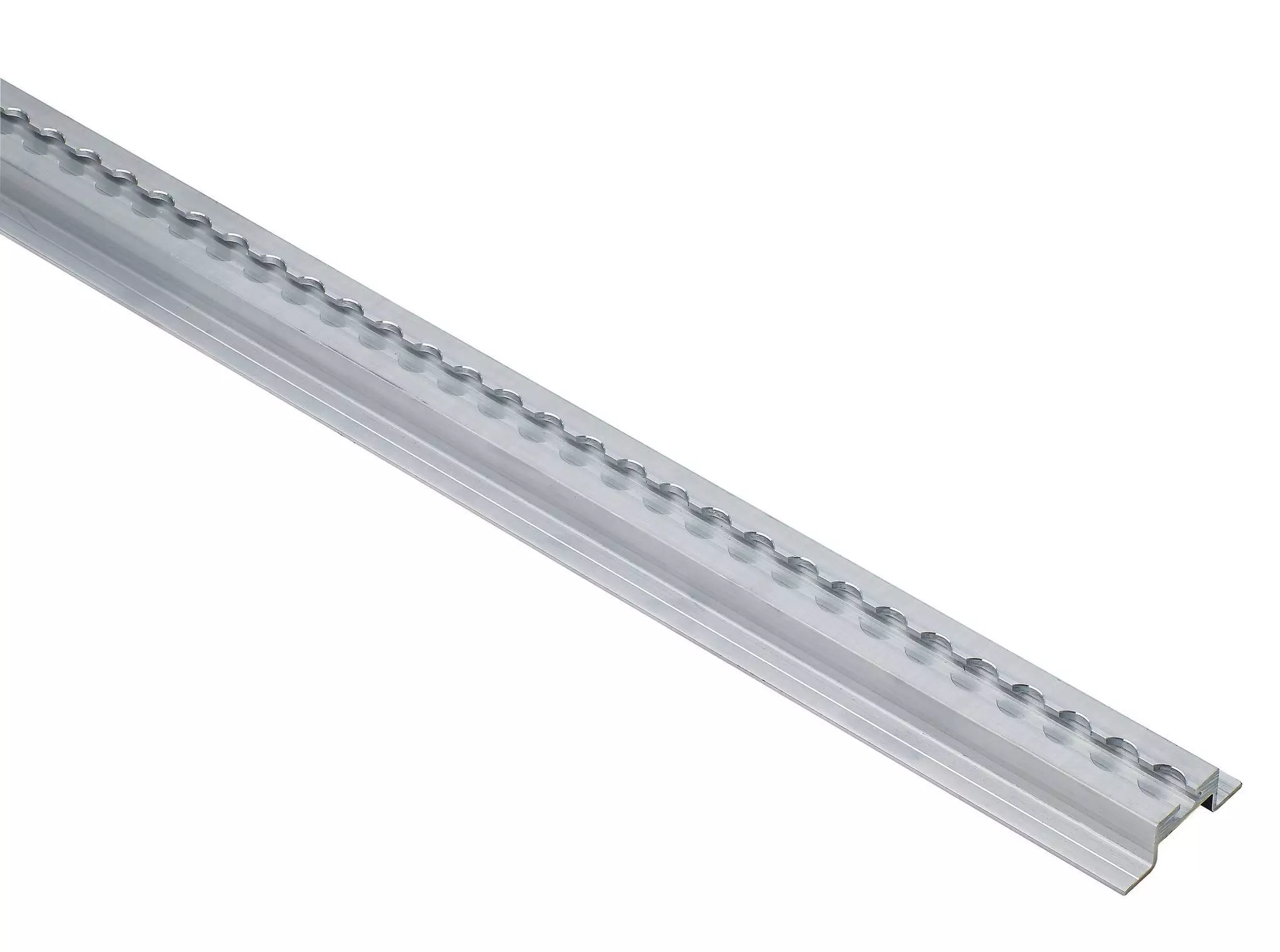

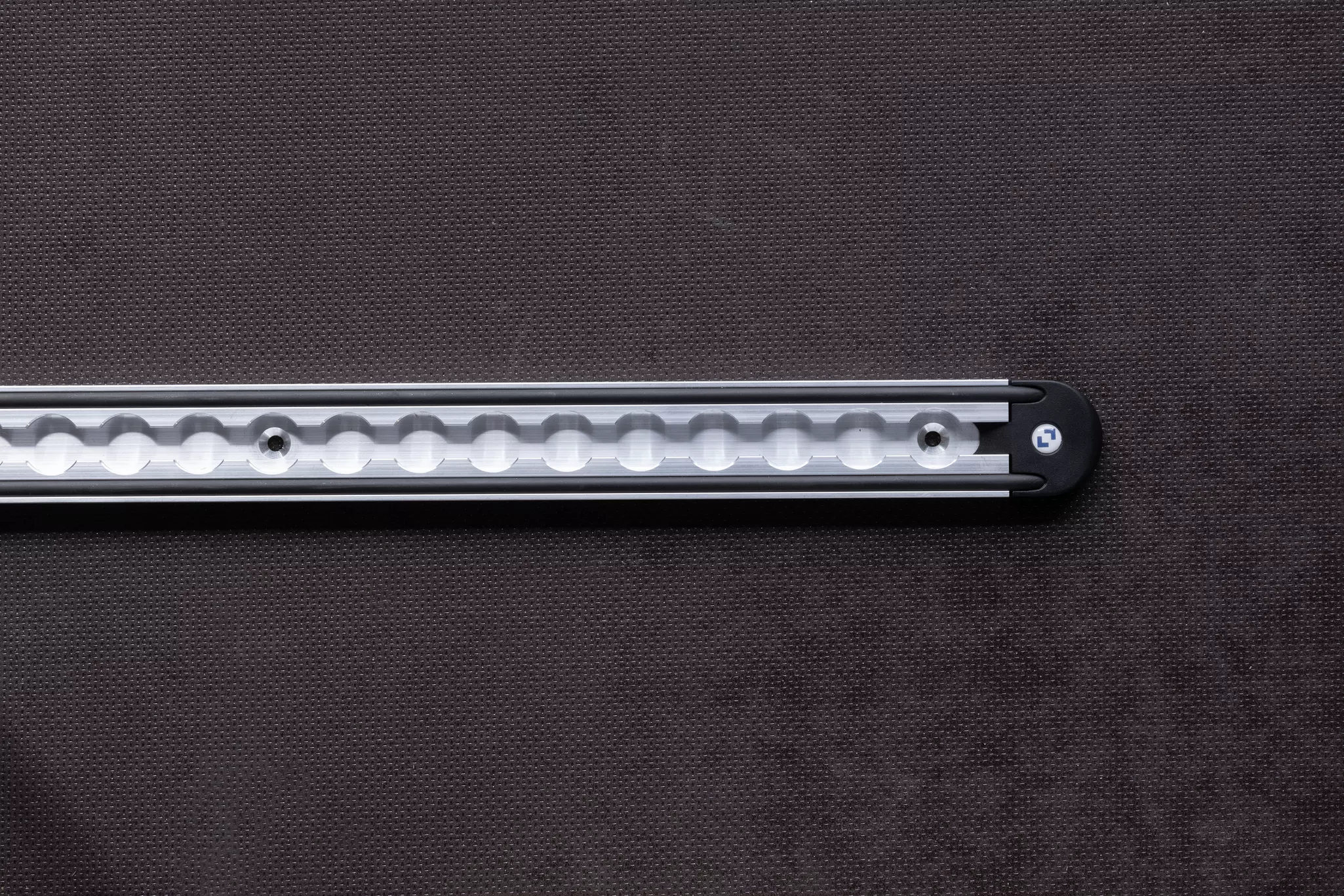

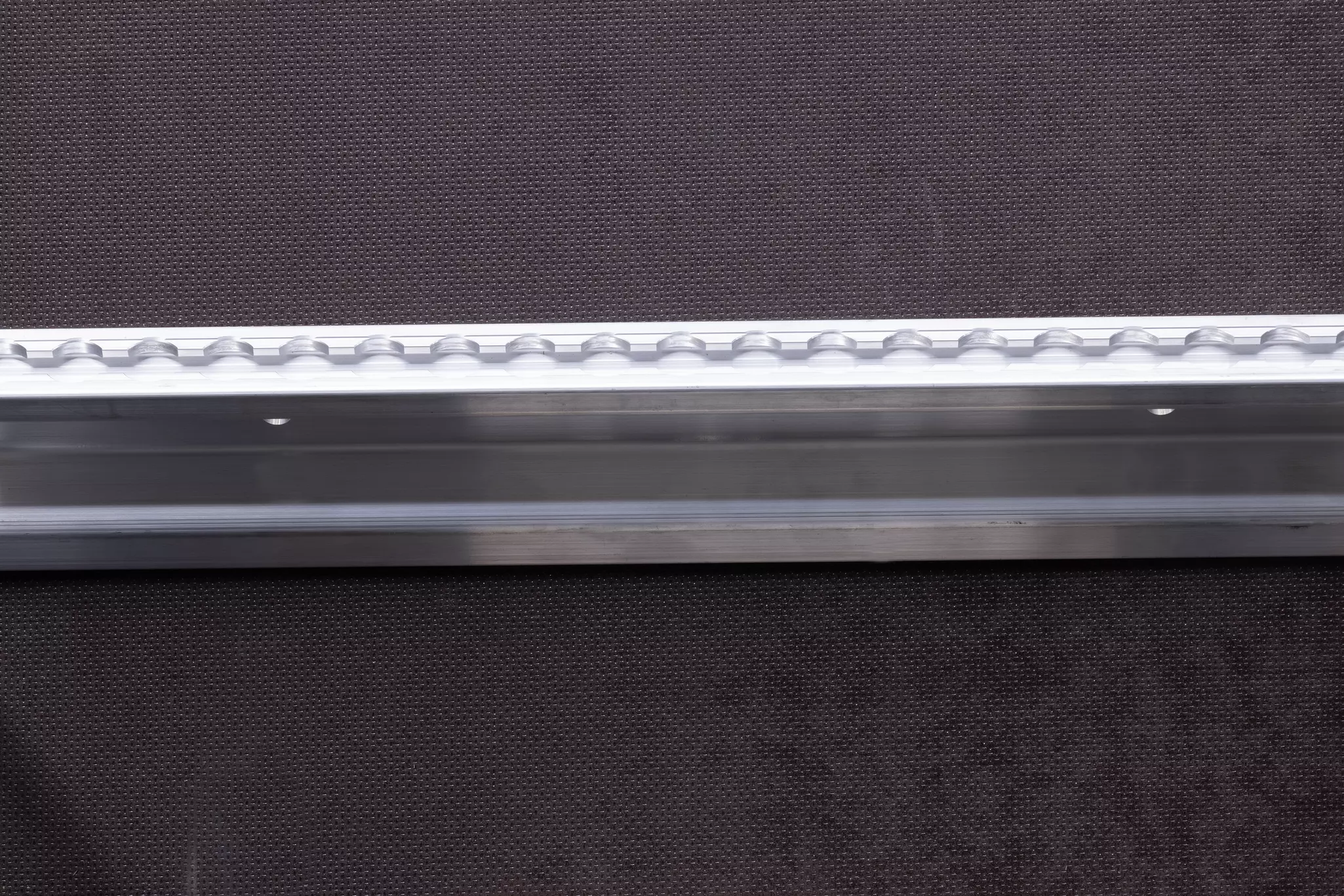

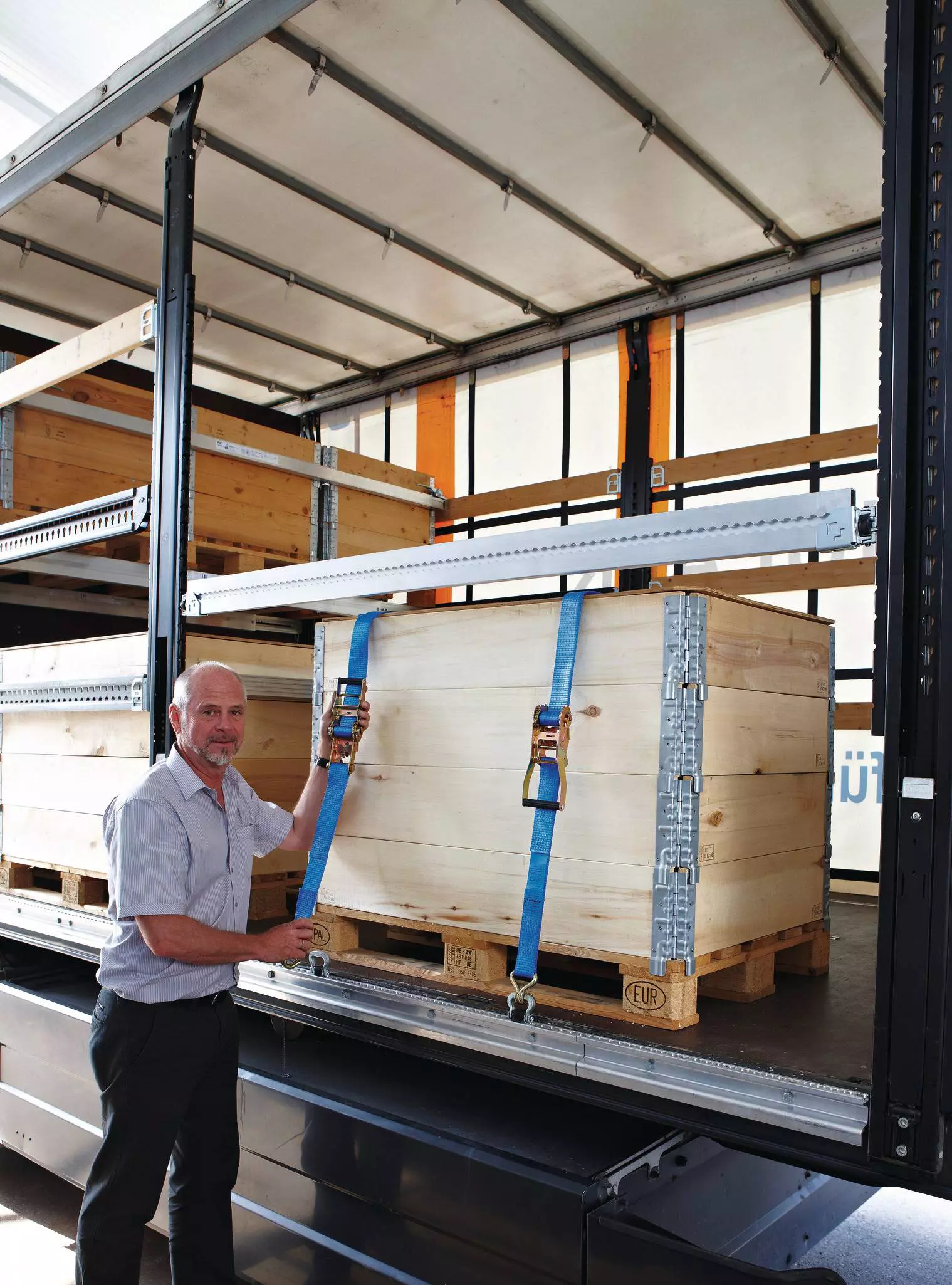

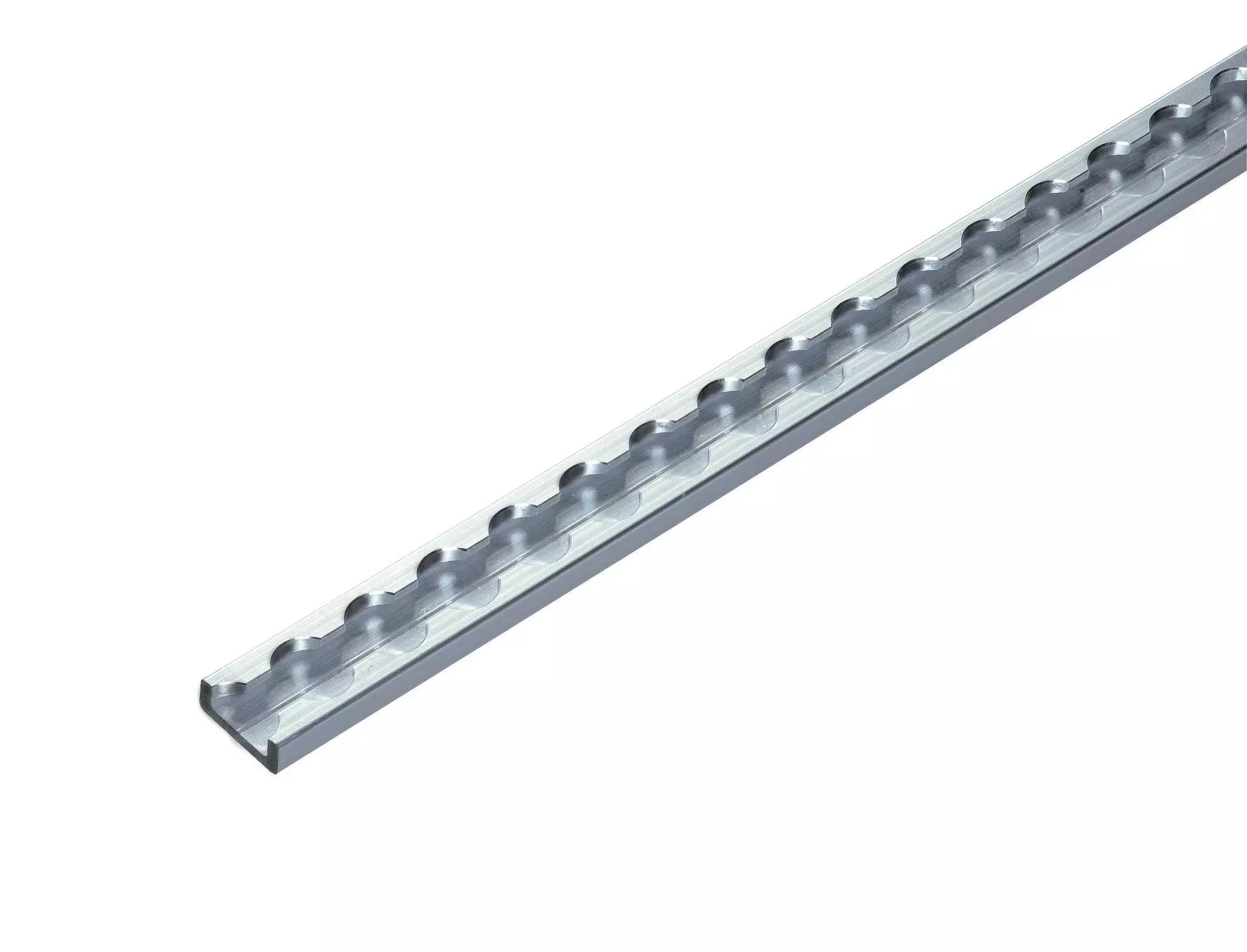

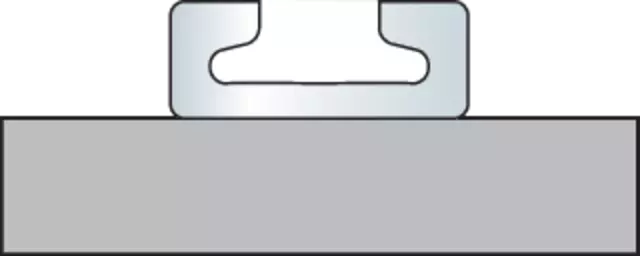

The allsafe airline tracks Special were developed specifically for special designs and demanding areas of application. Their individual profile shape offers tailor-made solutions for various applications. The Exterior track is perfect for off-road and leisure use and is ideal for the exterior of vehicles. The airline lashing rail can replace classic lashing rails and ensures optimum load securing. The Airline floor track was designed for high floor thicknesses and offers maximum stability. The Airline side board profiles are suitable for mounting on side boards and serve as reliable lashing points over their entire length.

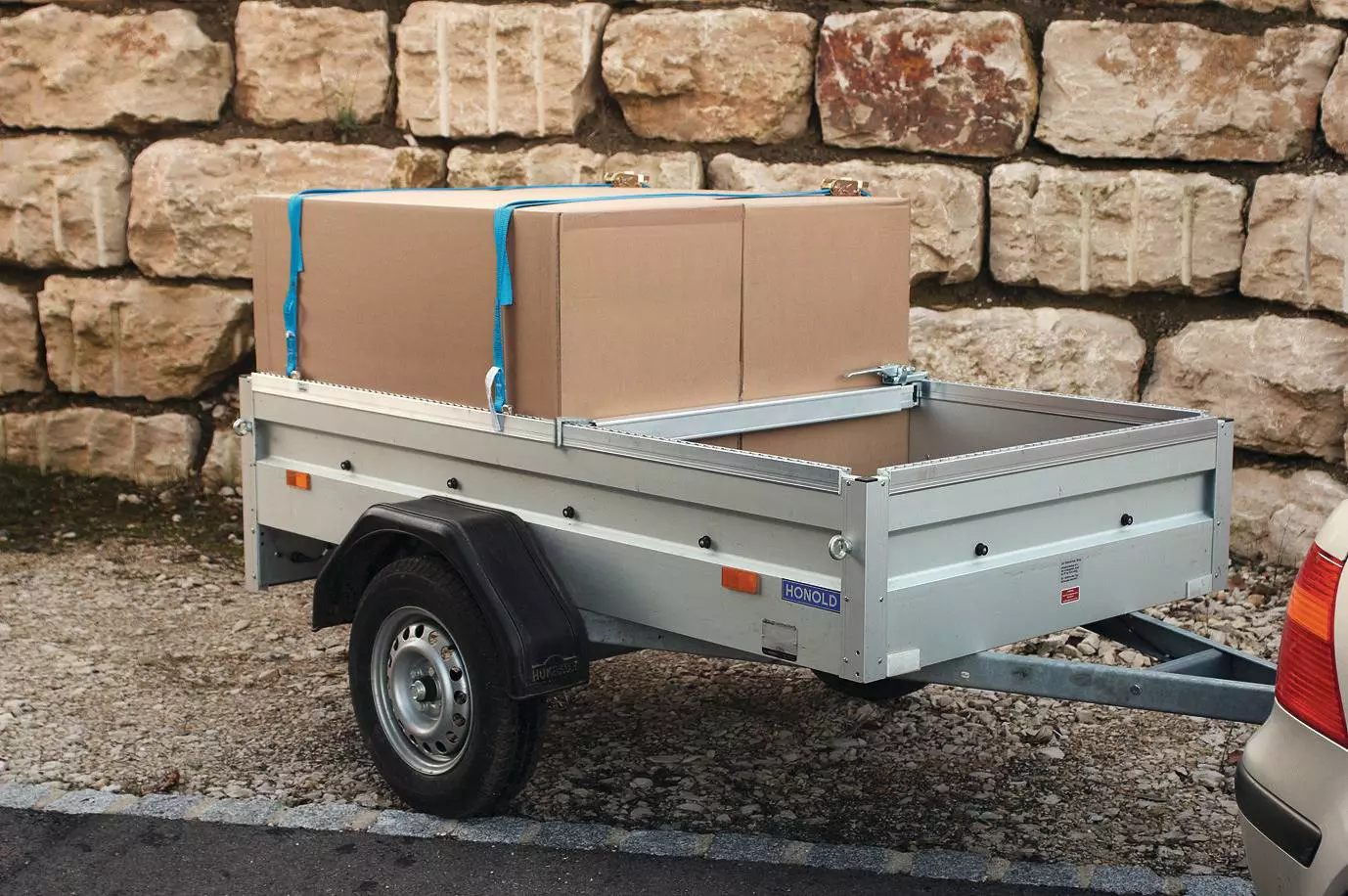

Whether for curtainsiders, cars, off-road transporters or trucks – the airline tracks Special are available in screw- and rivet-fastened versions and offer a wide range of mounting options.
Technical specifications
At a glance
- Made of aluminum
- Delivered to measure from 100 to 6000 mm
- Variants for screwing and riveting available
- Ideal for car trailers and medium to large curtainsiders
Load capacity
The Airline tracks can be qualified by the installer in conjunction with the KERL as lashing points in accordance with ISO 27955 (passenger cars), ISO 27956 (panel vans), DIN 75410-1 (flatbed trucks up to 3.5 t) or EN 12640 (intermodal loading units and commercial vehicles). The permissible load capacities listed below are achieved under the following conditions:
Load capacity in conjunction with lashing points
| KERL500 | KERL1000 | KERL2000* | KERL2000** | |
|---|---|---|---|---|
| ISO27955 | 350daN | |||
| ISO27956 | 500daN | 800daN | 800daN | 800daN |
| EN12640 | 400daN | 1000daN | 1000daN | 2000daN |
*Except for lashing rail 71203. *For Airline tracks Special outer frame (520531), Airline tracks Special 24 mm base (521453) fastened with M8 screws 10.9, Airline tracks Special lashing rail (71203)
Load capacity in combination with screw fittings
| KERLM8 | KERLM10 | |
|---|---|---|
| X | 200daN | 500daN |
| Y | 200daN | 500daN |
| Z | 1000daN | 2000daN |
*Except for lashing rail 71203.
Configuration options
Please note that not all configuration options are available for all products.
Mounting holes
| S4 | S5 | S6 | S8 | |
|---|---|---|---|---|
| W | 90° | 90° | 90° | 90° |
| D | 9 | 11 | 13 | 17,2 |
| d | 4,6* | 5,5* | 6,6* | 9,0* |
*The dimension d* may be greater than specified for airline tracks with low material thickness.
Properties
Pitch
Unless otherwise specified, the pitch is P = 25.0 mm.
Position of the drilling
2-piece
Start/End
2-piece
Profiles

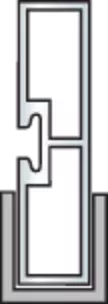

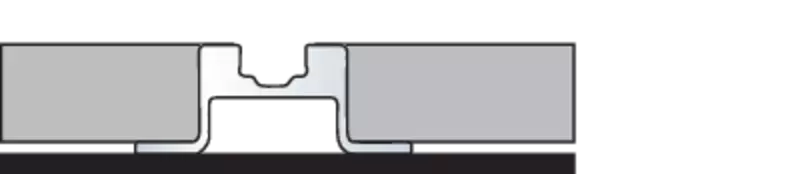

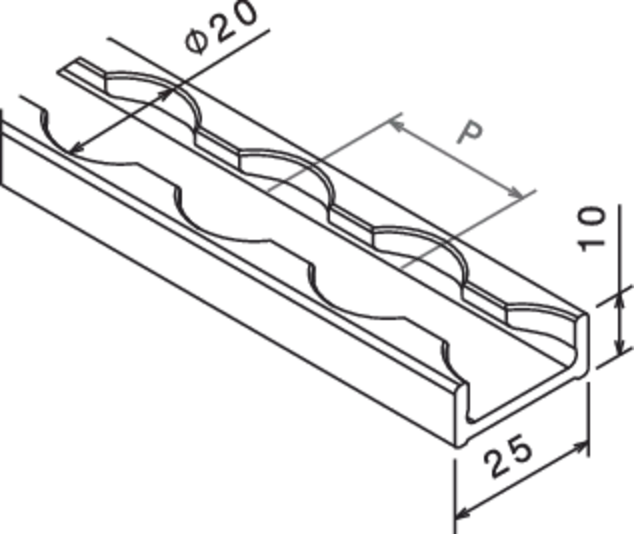

Airline tracks Ultra light square
Base article no. 522914

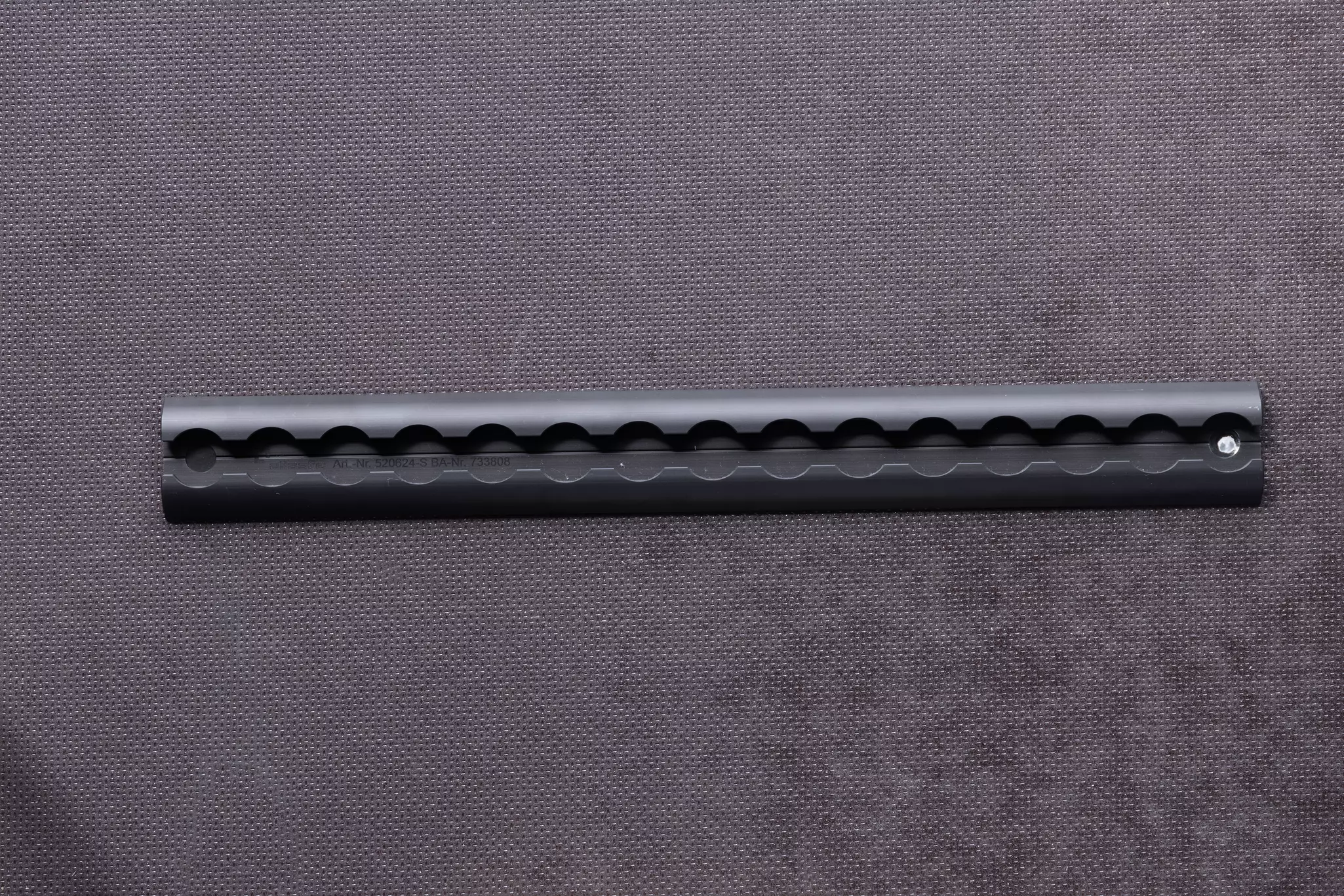

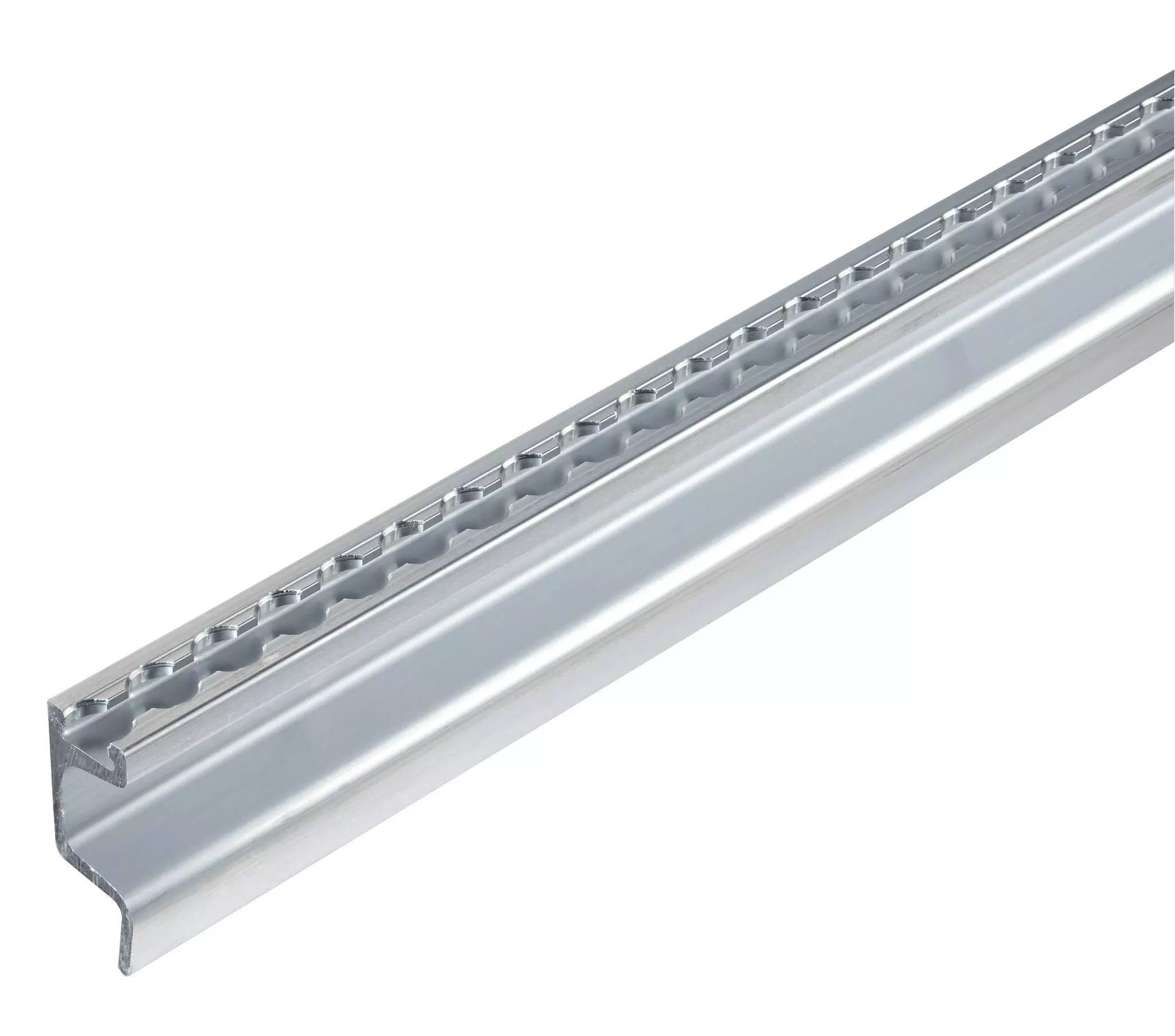

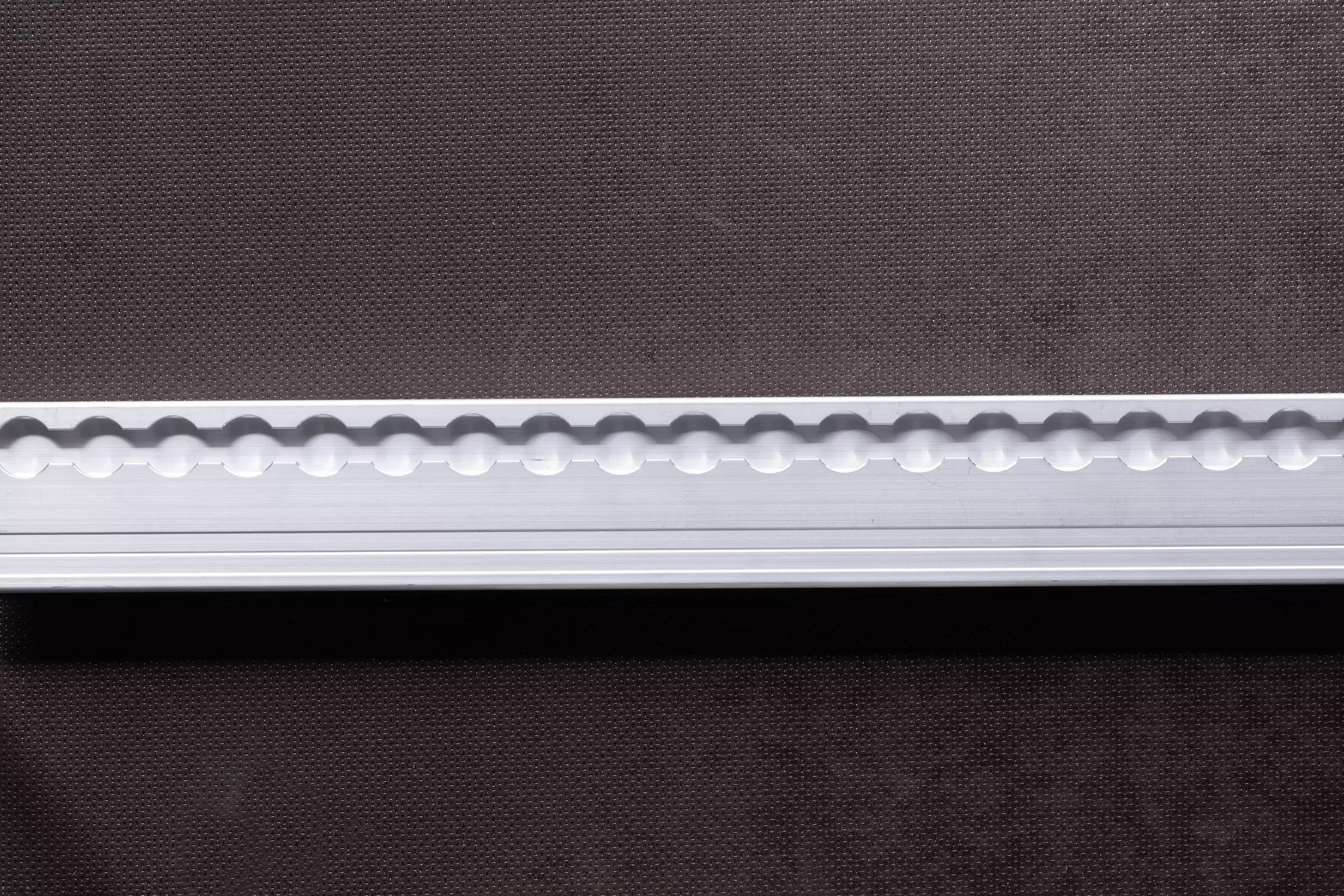

Airline track Special EXTERIOR semicircular
Base article no. 322138S
Not available in the webshop
This product is currently not available in our shop. To purchase, please contact us by email or give us a call.

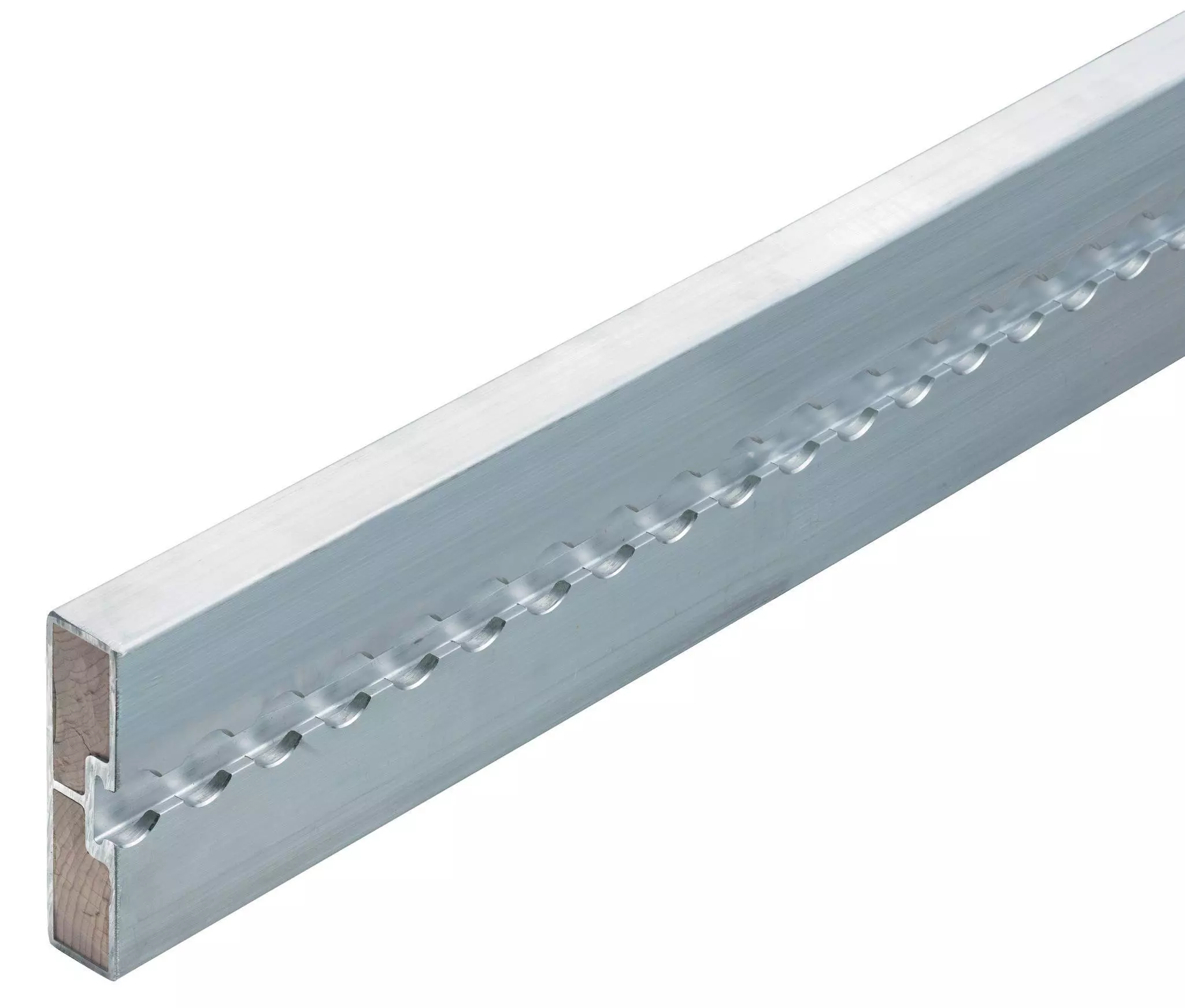

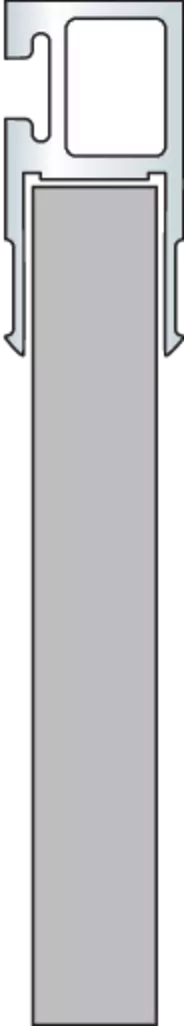

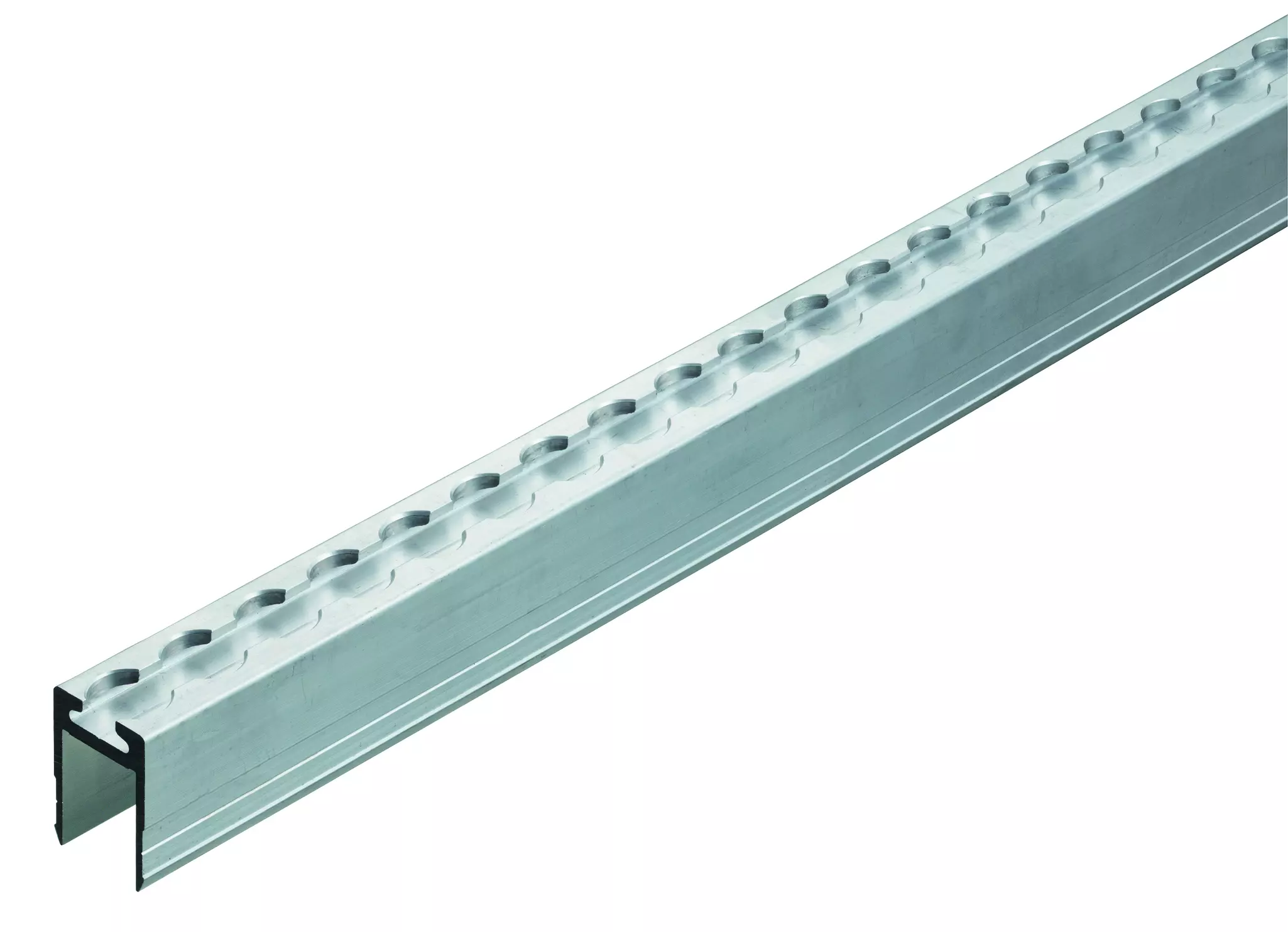

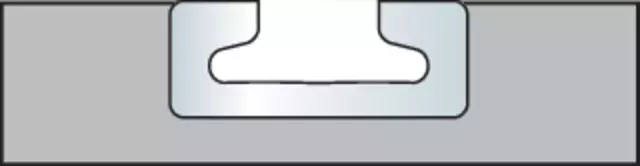

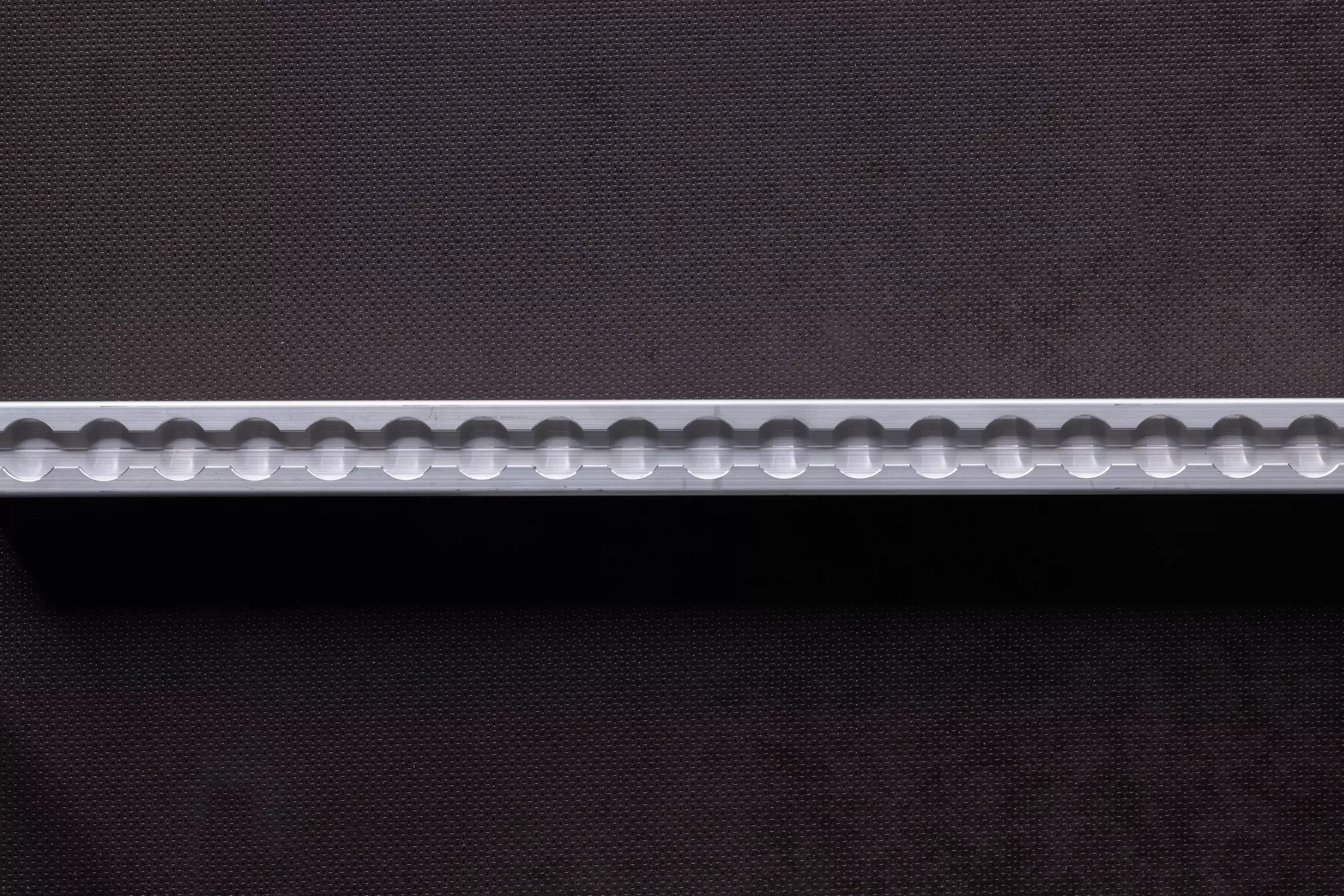

Airline track Special 24 mm base
Base article no. 521453

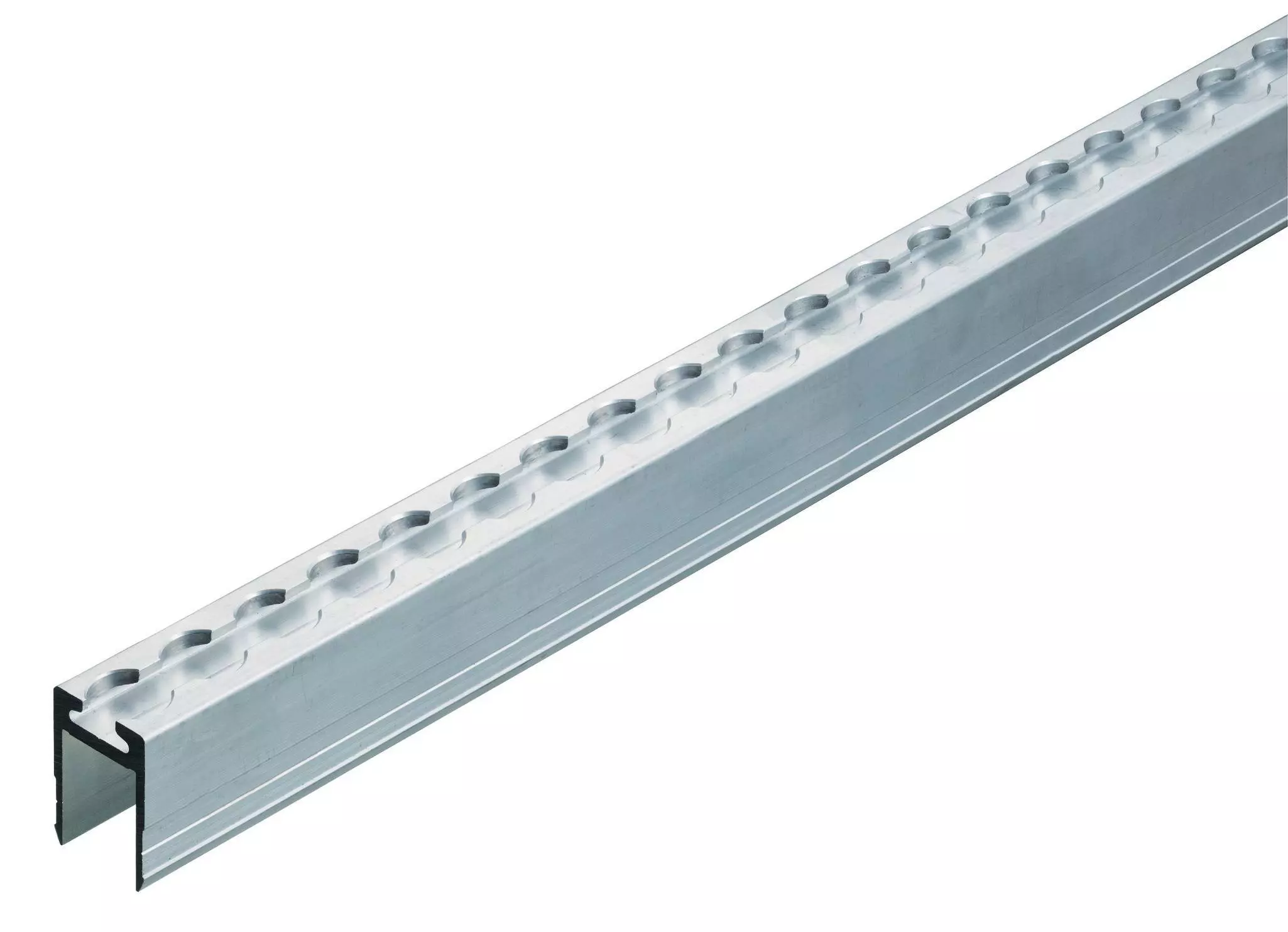

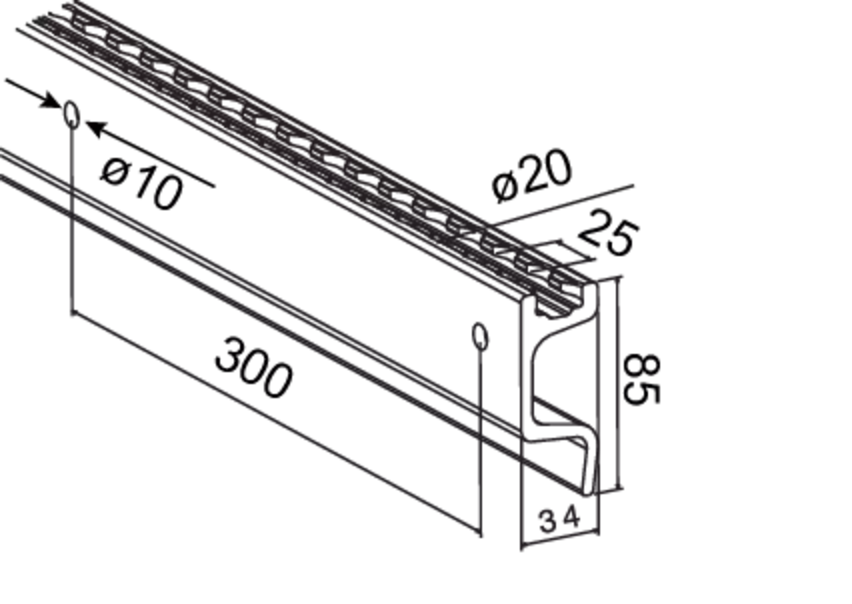

Airline track Special Side board top
Base article no. 71225

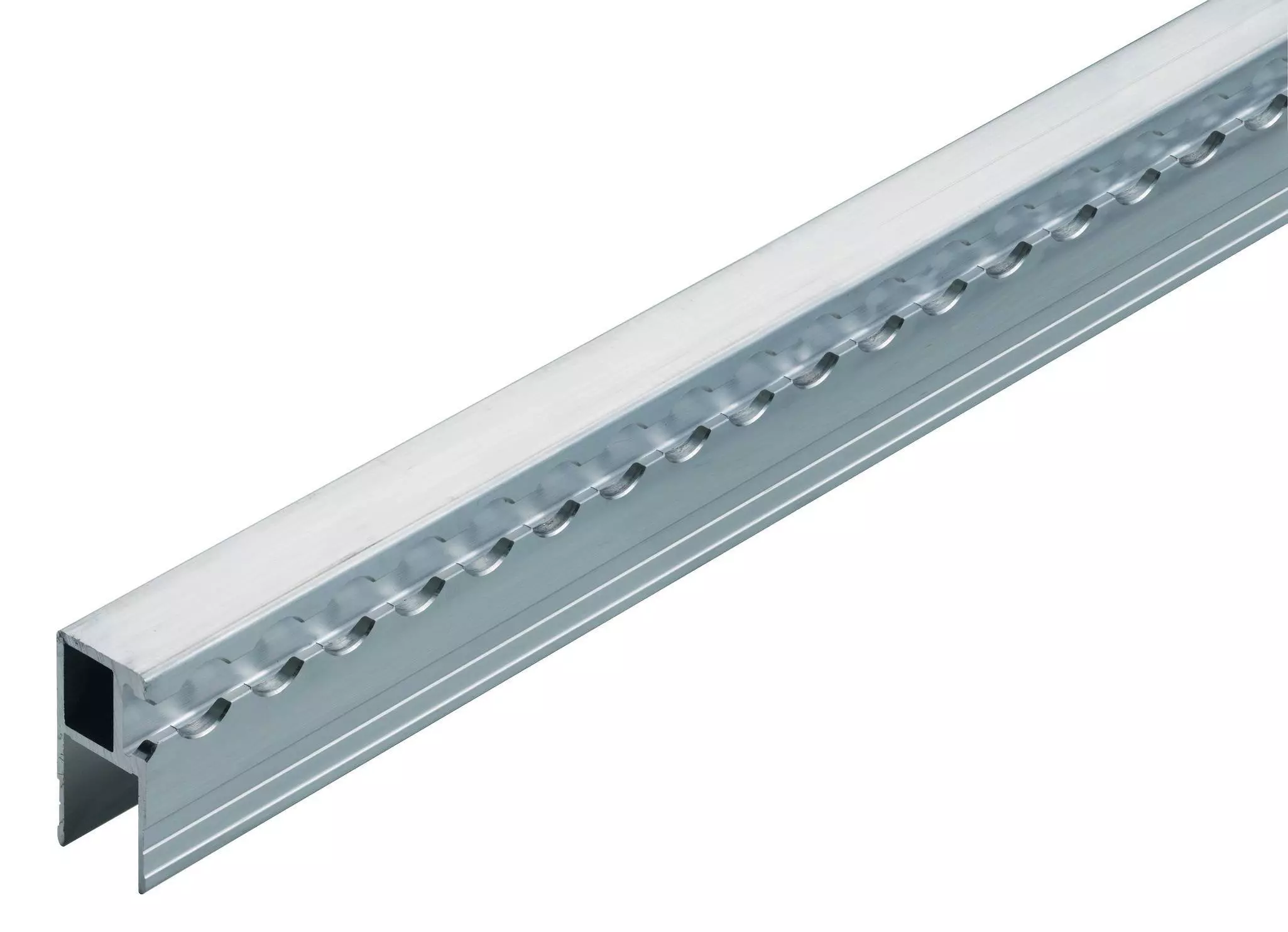

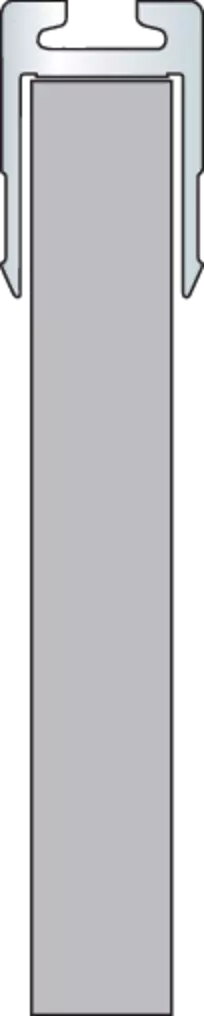

Airline track Special side board
Base article no. 520450
Airline track Special lashing rail
Base article no. 71203
Accessories
Track cover
Base article no. 71380-2000
Not available in the webshop
This product is currently not available in our shop. To purchase, please contact us by email or give us a call.
End piece EXTERIOR semi-circular (for 322138)
Base article no. 322139
Not available in the webshop
This product is currently not available in our shop. To purchase, please contact us by email or give us a call.
