ATD airline tracks for double deck loading

allchange-compatibility

Made in Germany

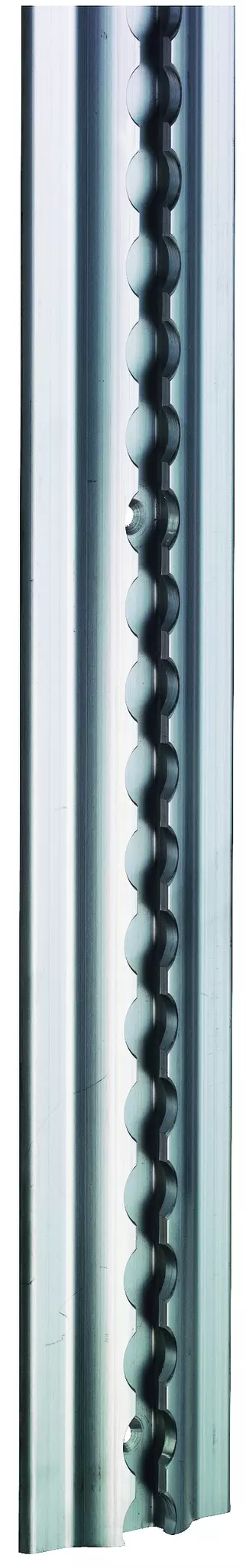

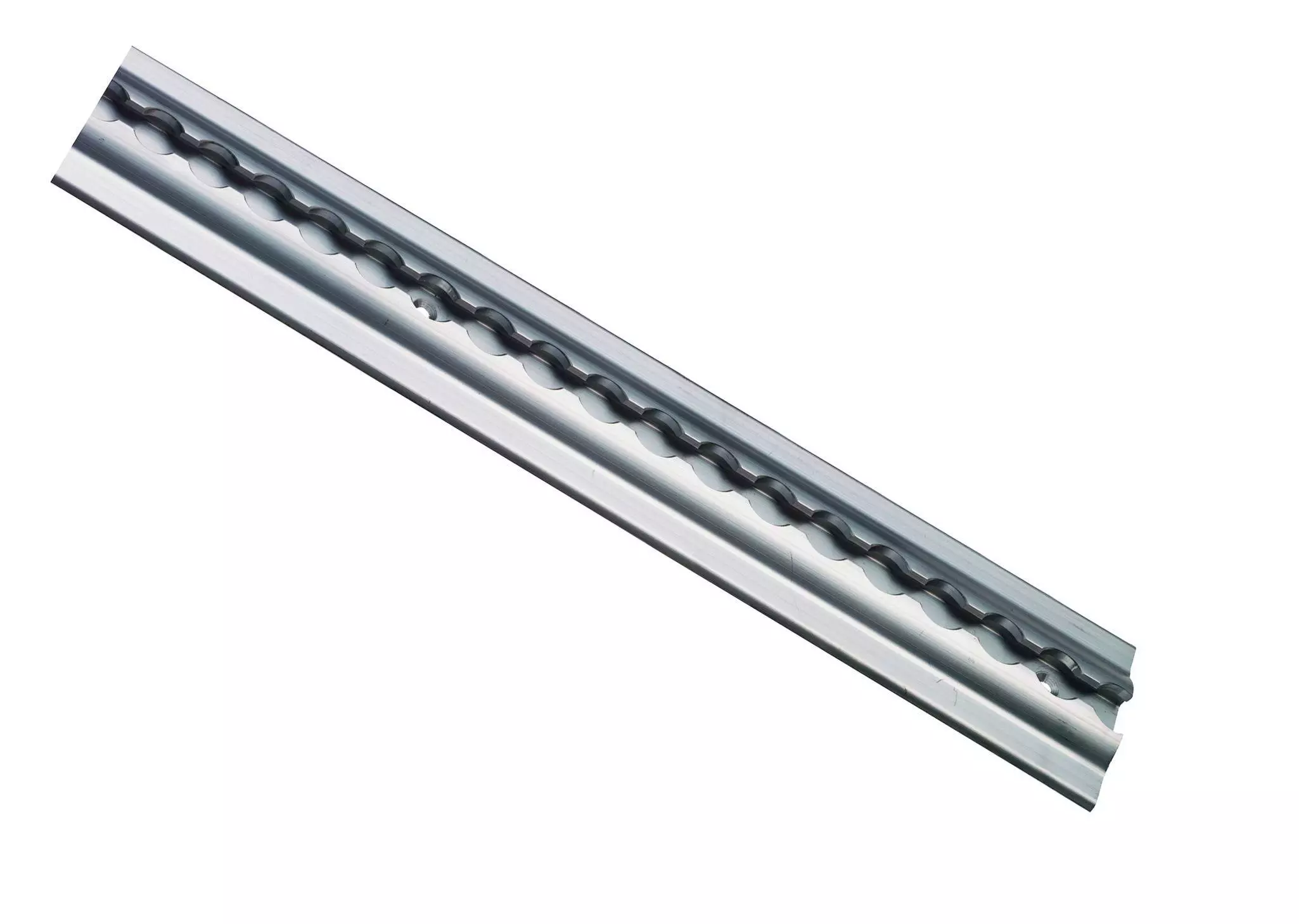

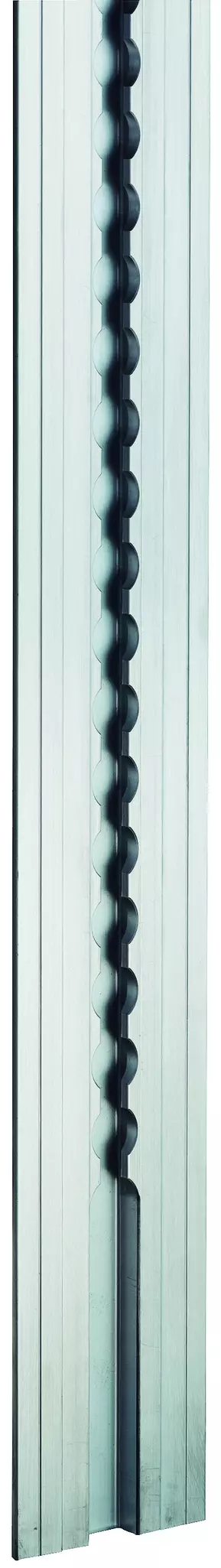

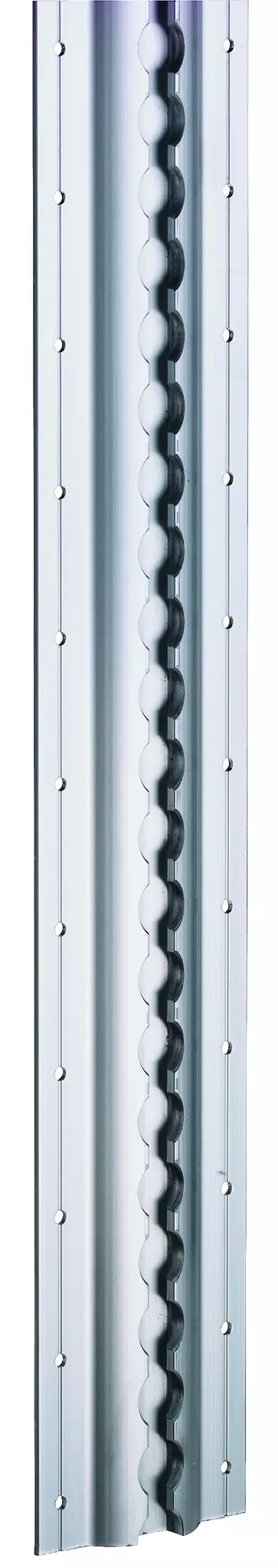

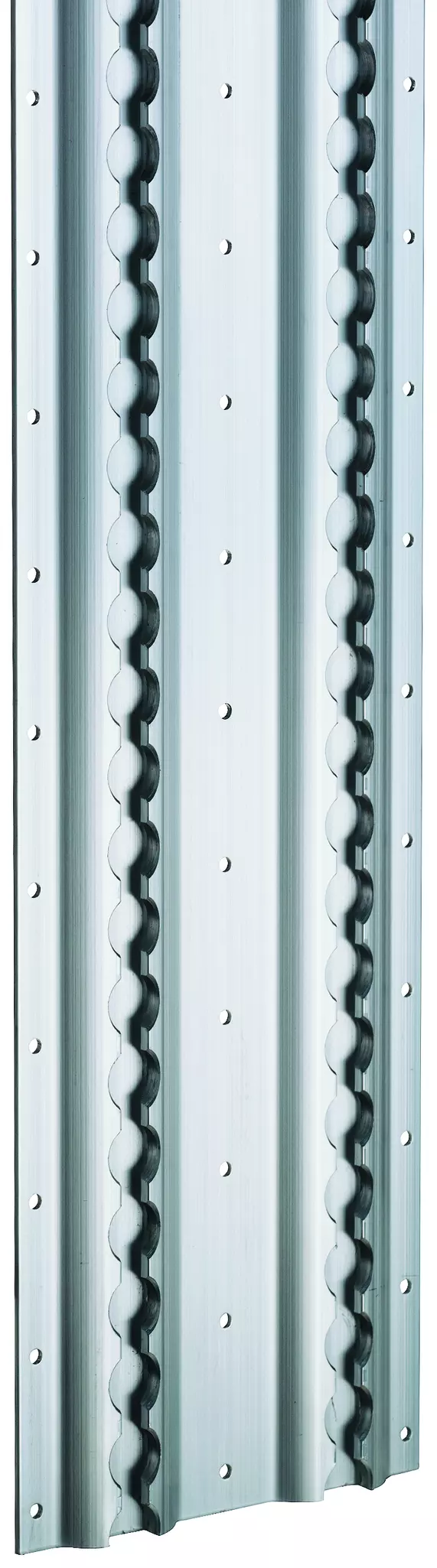

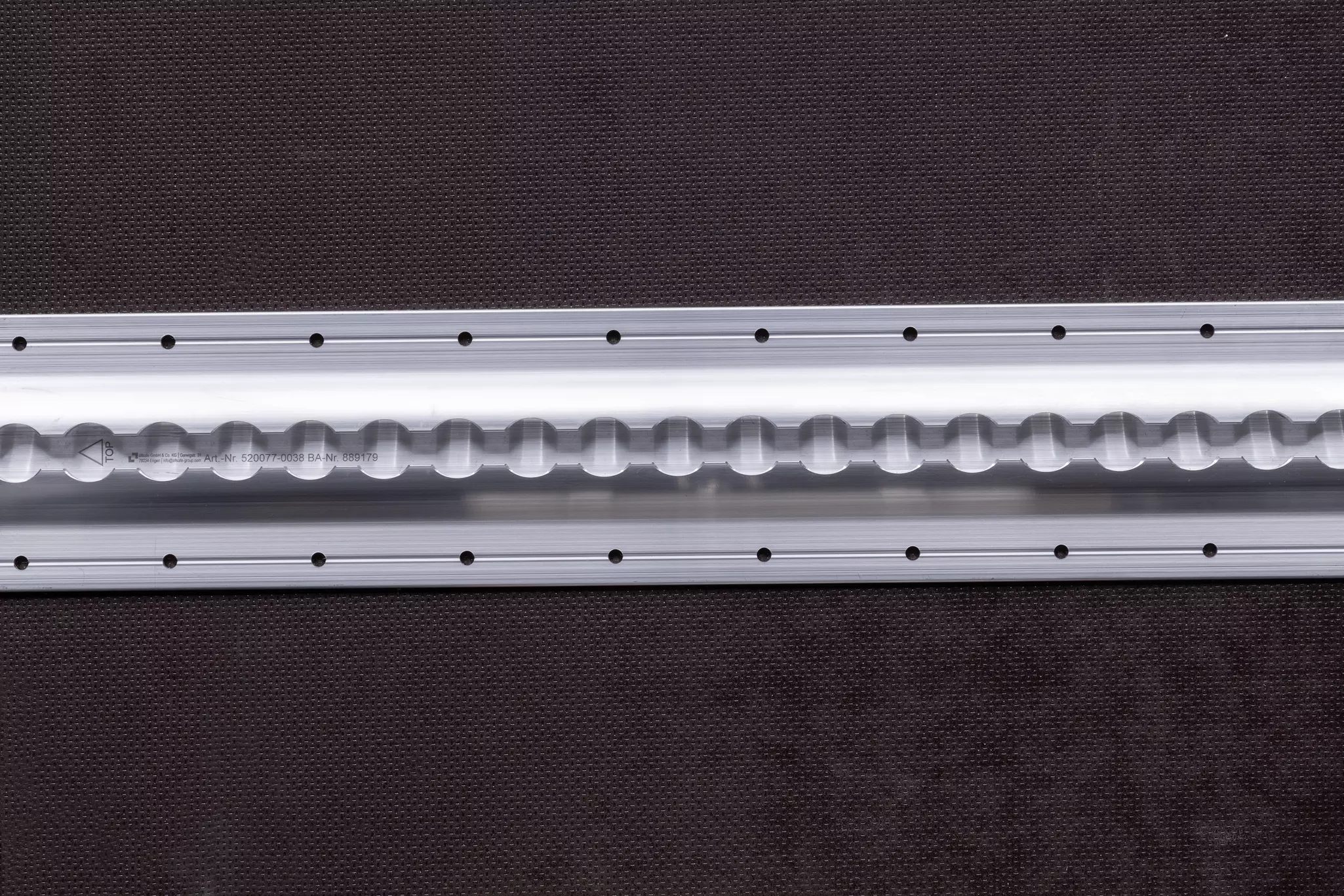

The vertical aluminum rails for flexible double deck systems

ATD airline tracks are sturdy aluminum tracks that have been specially developed for vertical mounting on or in box walls. They enable double-deck systems to be used easily in conjunction with ATD decking beams. These can be simply inserted into the bottom of the track and moved effortlessly up to the roof. Thanks to the secure locking mechanism in the airline hole pattern, a stable and flexibly adjustable loading level is created – ideal for professional applications, especially in refrigerated food transport. The tracks can also be used to secure loads. Installation is quick and easy using various methods such as gluing, screwing or riveting, ensuring maximum flexibility in vehicle equipment.

Technical specifications

At a glance

  • Made of aluminum
  • Suitable for double-deck loading
  • Variants for gluing, riveting, and screwing
  • For mounting on the side wall
  • For small to large box vehicles
  • 220 to 1960 mm

configuration options

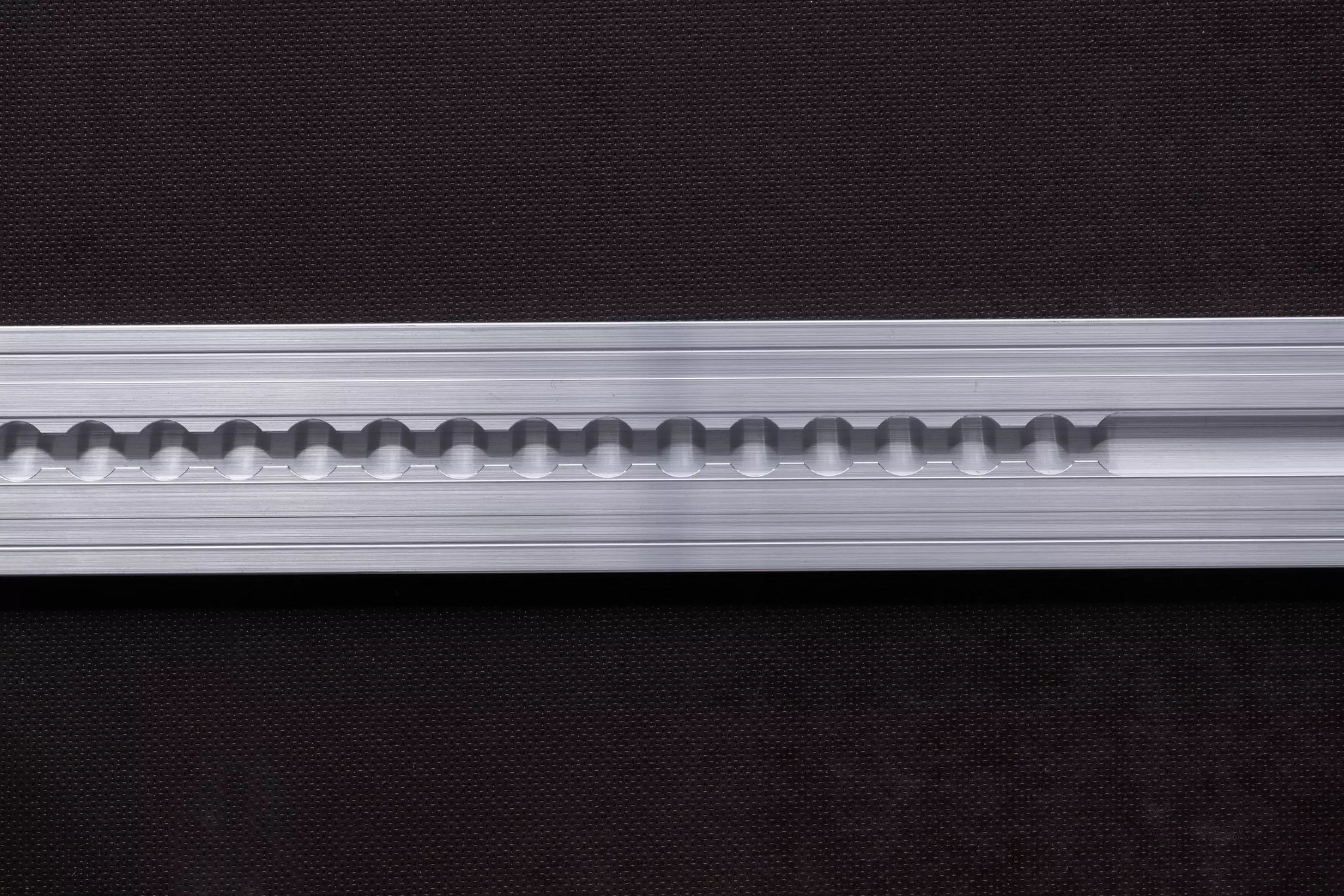

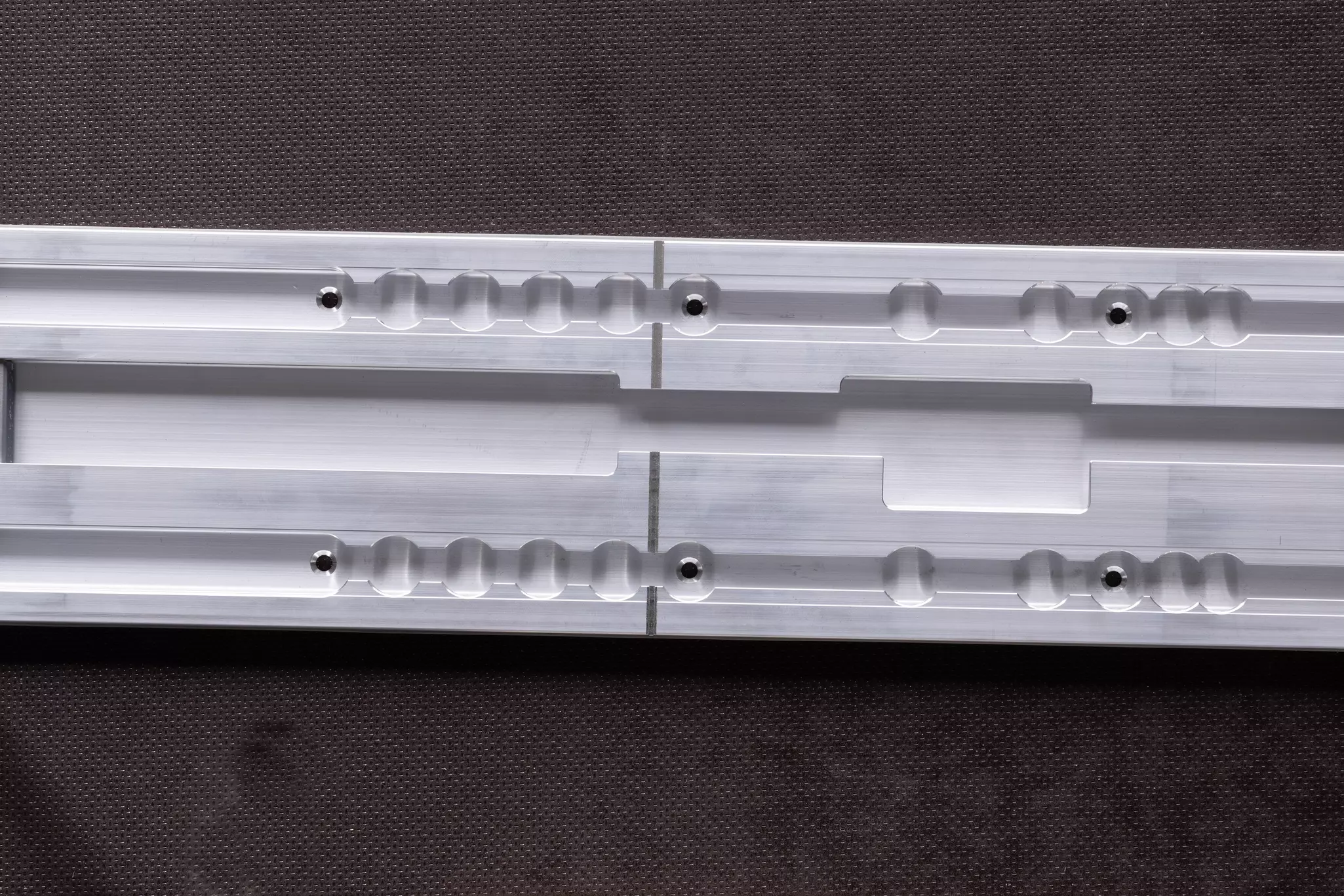

Pitch

Unless otherwise specified, the pitch is P = 25.0 mm.

e.g.: P = 25 mm
e.g.: P = 50 mm

Profiles

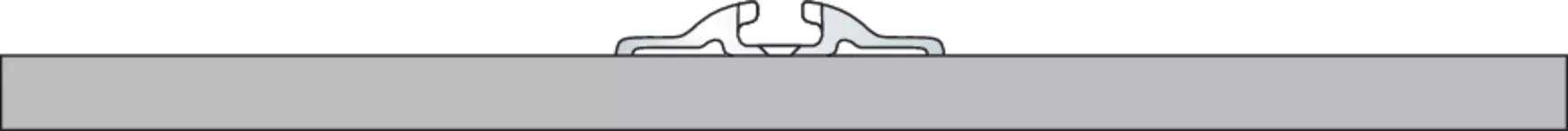

ATD-I simple

Base article no. 520077
  • For riveting and screwing
  • Weight: 1.12 kg/m
  • Mounted on the wall

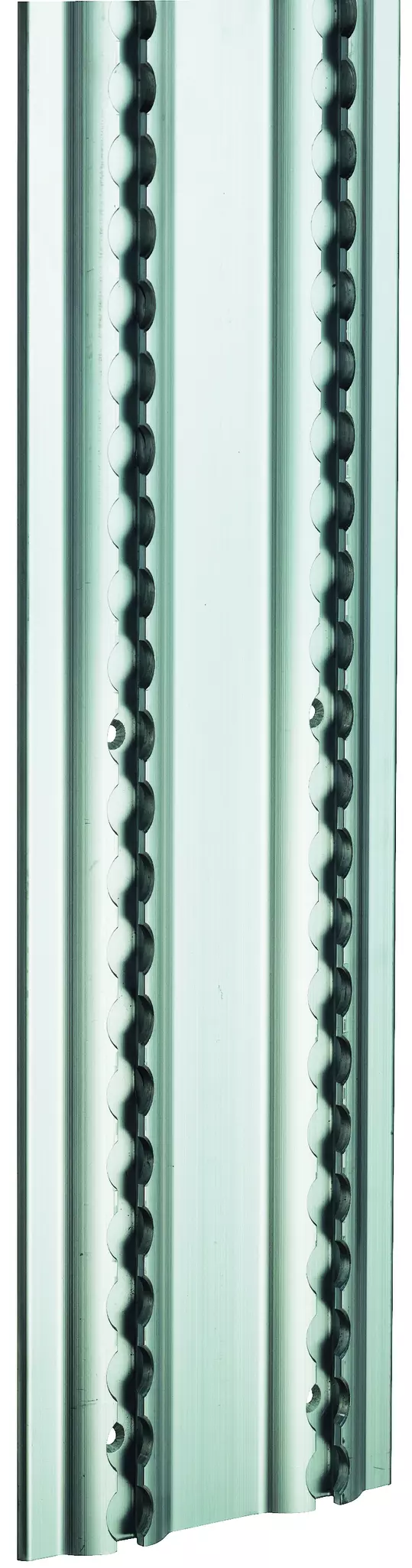

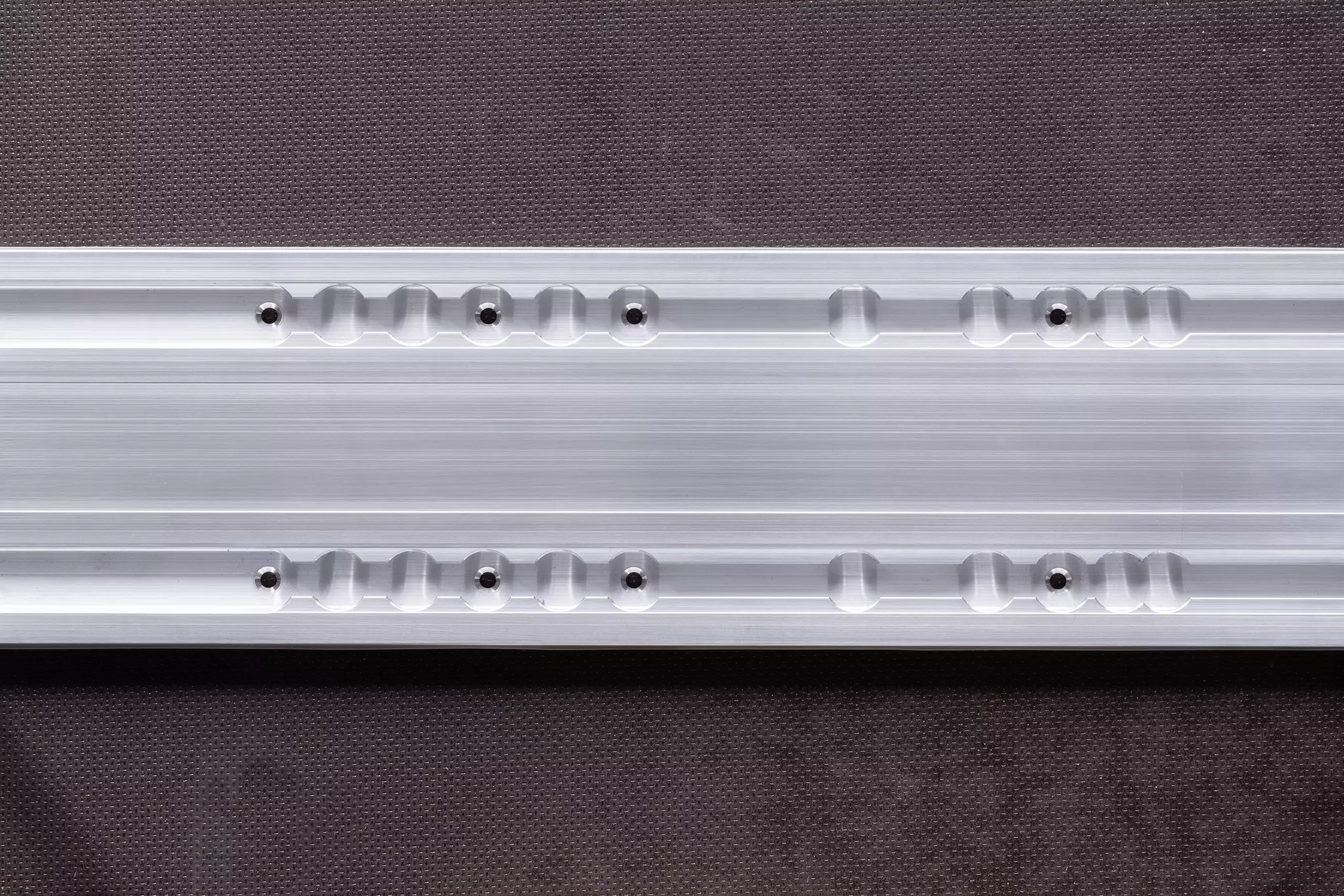

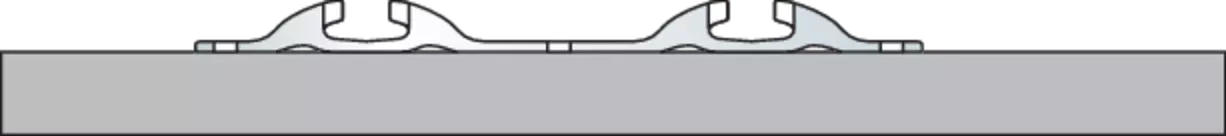

ATD-I double

Base article no. 520177
  • For riveting and screwing
  • Weight: 2.09 kg/m
  • Mounted on the wall

ATD-I glueable single

Base article no. 520820
  • For gluing
  • Weight: 1.02 kg/m
  • Placed on the wall

ATD-I glueable double

Base article no. 520821
  • For gluing
  • Weight: 2.19 kg/m
  • Placed on the wall

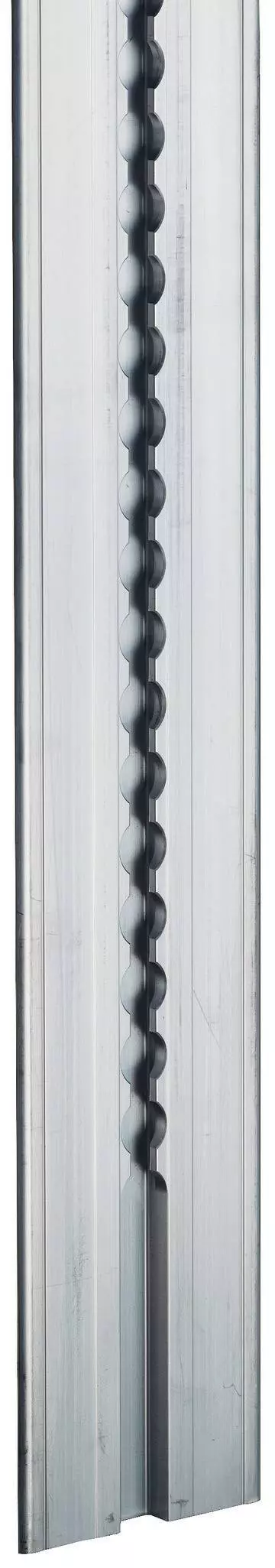

ATD-F simple

Base article no. 520421
  • For gluing
  • Weight: 0.88 kg/m

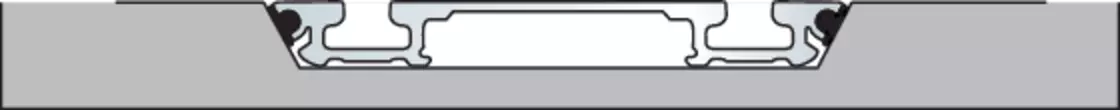

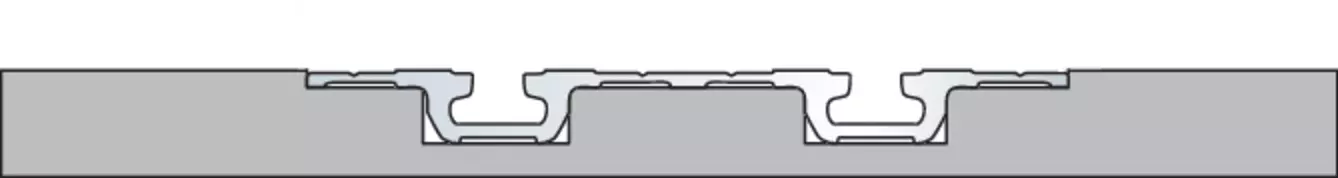

  • Recessed into the wall

ATD-F double

Base article no. 520422
  • For gluing
  • Weight: 1.83 kg/mg
  • Recessed into the wall

ATD-F release rod

Base article no. 521309
  • For gluing
  • Weight: 1.90 kg/m
  • Recessed into the wall
  • Compatible with release rod

ATD-II simple

Base article no. 520277
  • For gluing
  • Weight: 1.05 kg/m
  • Recessed into the wall

ATD-II double

Base article no. 520477
  • For gluing
  • Weight: 2.10 kg/m
  • Recessed into the wall

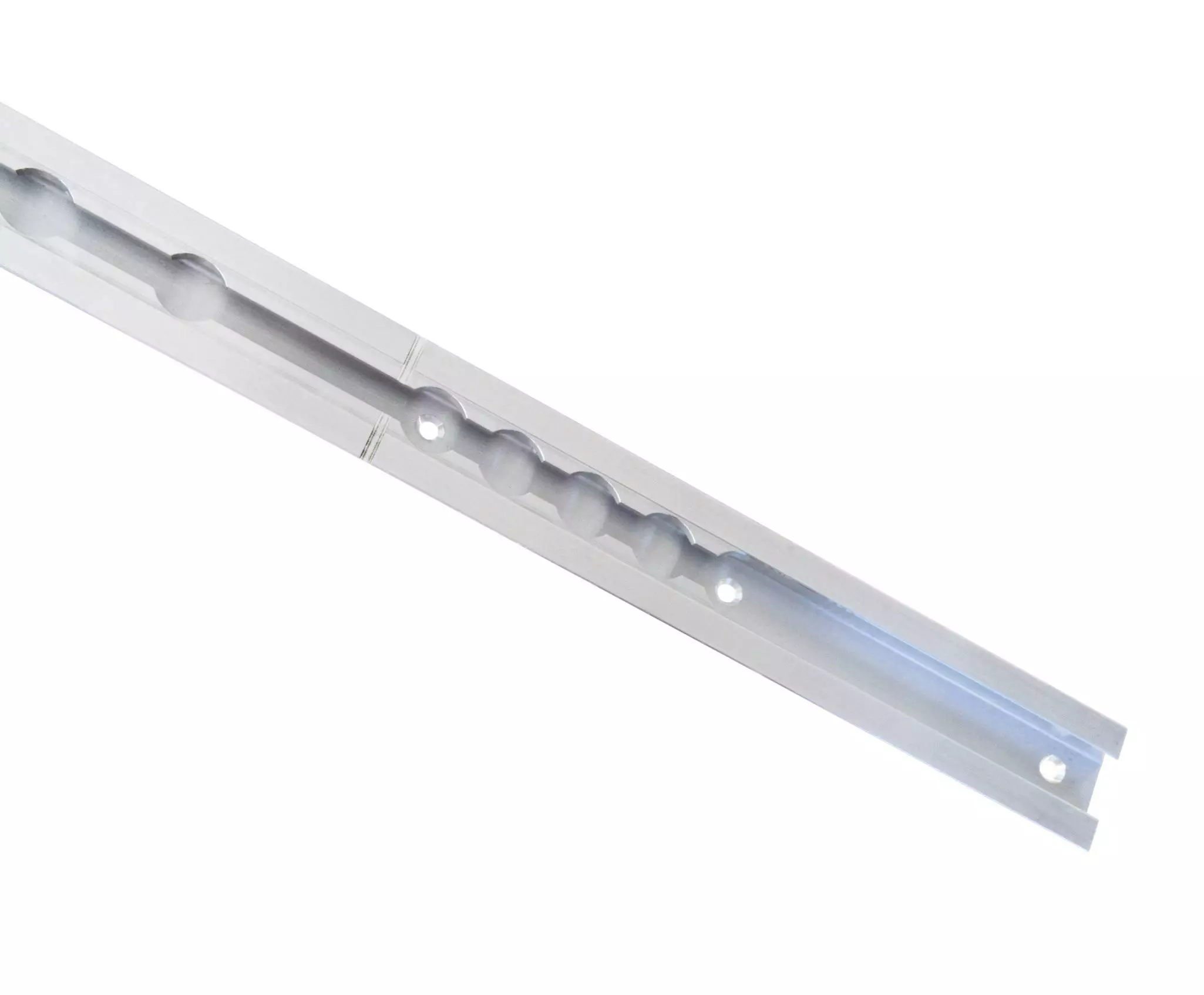

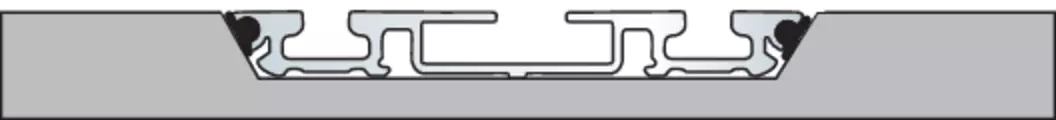

ATD-II narrow, straight

Base article no. 522616
  • For gluing, riveting, and screwing
  • Weight: 0.69 kg/m
  • Recessed into the wall
  • With silicone profile
Not available in the webshop

ATD-II narrow double

Base article no. 521025
  • For gluing, riveting, and screwing
  • Weight: 1.75 kg/m
  • Recessed into the wall
  • With silicone profile

ATD-II narrow release rod

Base article no. 521026
  • For gluing, riveting, and screwing
  • Weight: 1.95 kg/m
  • Recessed into the wall
  • Compatible with release rod
