Heavy duty airline track for securing loads

allchange-compatibility

Made in Germany

Maximum strength for demanding applications in passenger transport and heavy-duty applications

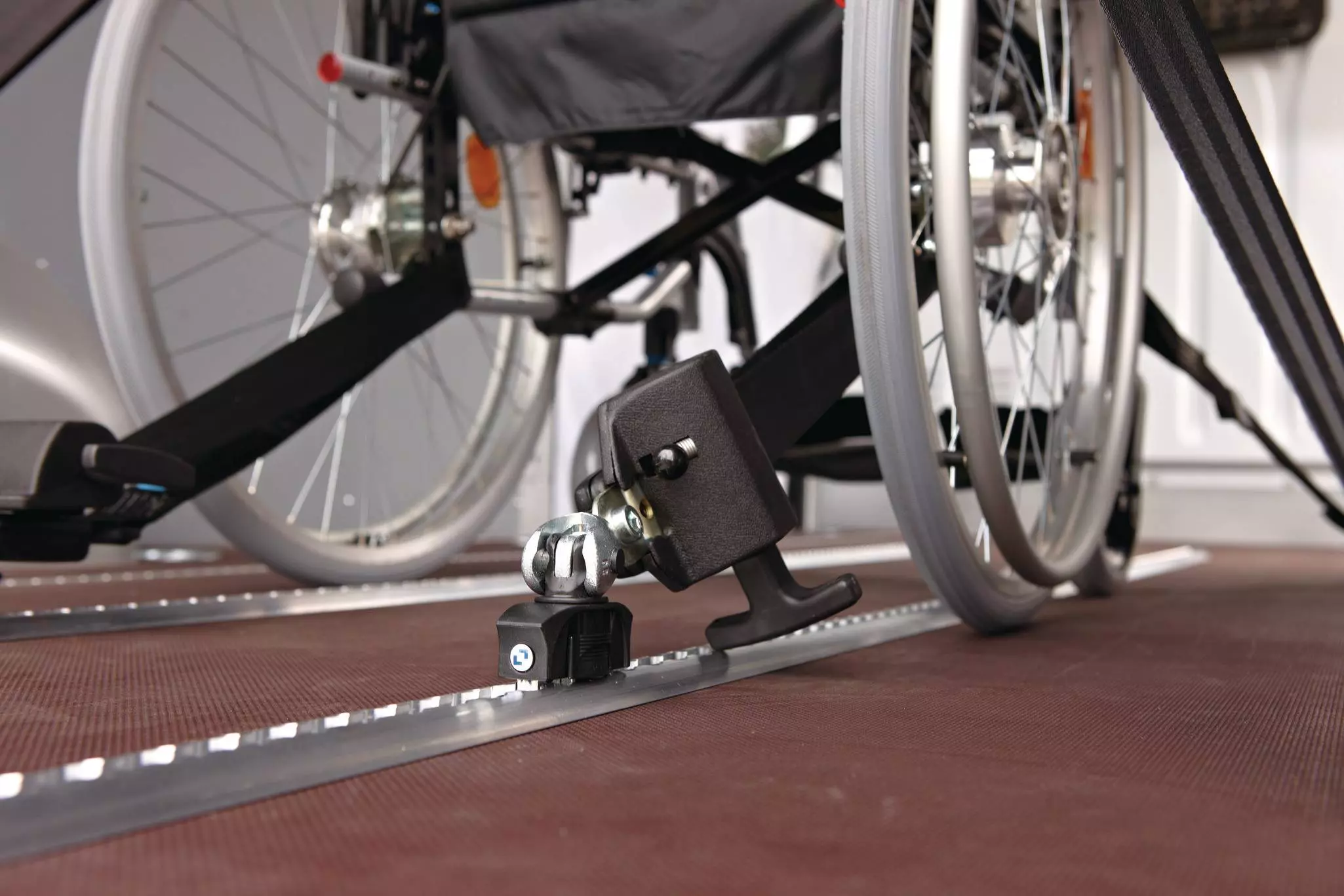

The Heavy Duty airline track from allsafe is the ideal choice for the highest load requirements. Made from a high-strength aluminum alloy, it meets all crash-relevant standards and is particularly suitable for special applications such as seat fixation in passenger transport. Its particularly robust construction ensures maximum safety, while the choice between screw or adhesive mounting allows for stable and flexible installation. Perfect for transporters and box vehicles – available for surface mounting or recessed installation.

Technical specifications

At a glance

  • Made of aluminum
  • For large transporters and small to large box vehicles
  • Variants for gluing and screwing

Load capacity

The Airline tracks can be qualified by the installer in conjunction with the KERL as lashing points in accordance with ISO 27955 (passenger cars), ISO 27956 (panel vans), DIN 75410-1 (flatbed trucks up to 3.5 t) or EN 12640 (intermodal loading units and commercial vehicles). The permissible load capacities listed below are achieved under the following conditions:

  • Airline tracks Standard, Special, and HD secured with M6 screws 10.9
  • Mounting distance 75 / 76.2 mm (except for steel airline tracks:
50 mm, special airline tracks 24 mm Floor: 500 mm, outer frame: 300 mm)
or sufficient bonding
  • Sufficient force transmission to the substructure

Load capacity in conjunction with lashing points

KERL500KERL1000KERL2000*KERL2000**
ISO27955350daN
ISO27956500daN800daN800daN800daN
EN12640400daN1000daN1000daN2000daN

Load capacity in combination with screw fittings

KERLM8KERLM10
X200daN500daN
Y200daN500daN
Z1000daN2000daN

configuration options

Starting dimension

Unless otherwise specified, the starting dimension is X = 0 mm.

e.g.: X = 0 mm
e.g.: X = 25 mm

Pitch

Unless otherwise specified, the pitch is P = 25.0 mm.

e.g.: P = 25 mm
e.g.: P = 50 mm

Mounting holes

S4S5S6S8
W90°90°90°90°
D9111317,2
d4,6*5,5*6,6*9,0*

Position of mounting holes

For holes with equal spacing, please specify the hole spacing a1 and a2.

For individual hole spacing, please specify the hole spacing a1, a2, a3, a4, etc.

a2 = same distance
a2 - a... = individual distances

2-part track

2-part rail and JF cut-out

Start and end of track

Select the shape of the track start and end (max. radius or max. F2 = half track width in mm).

Profiles

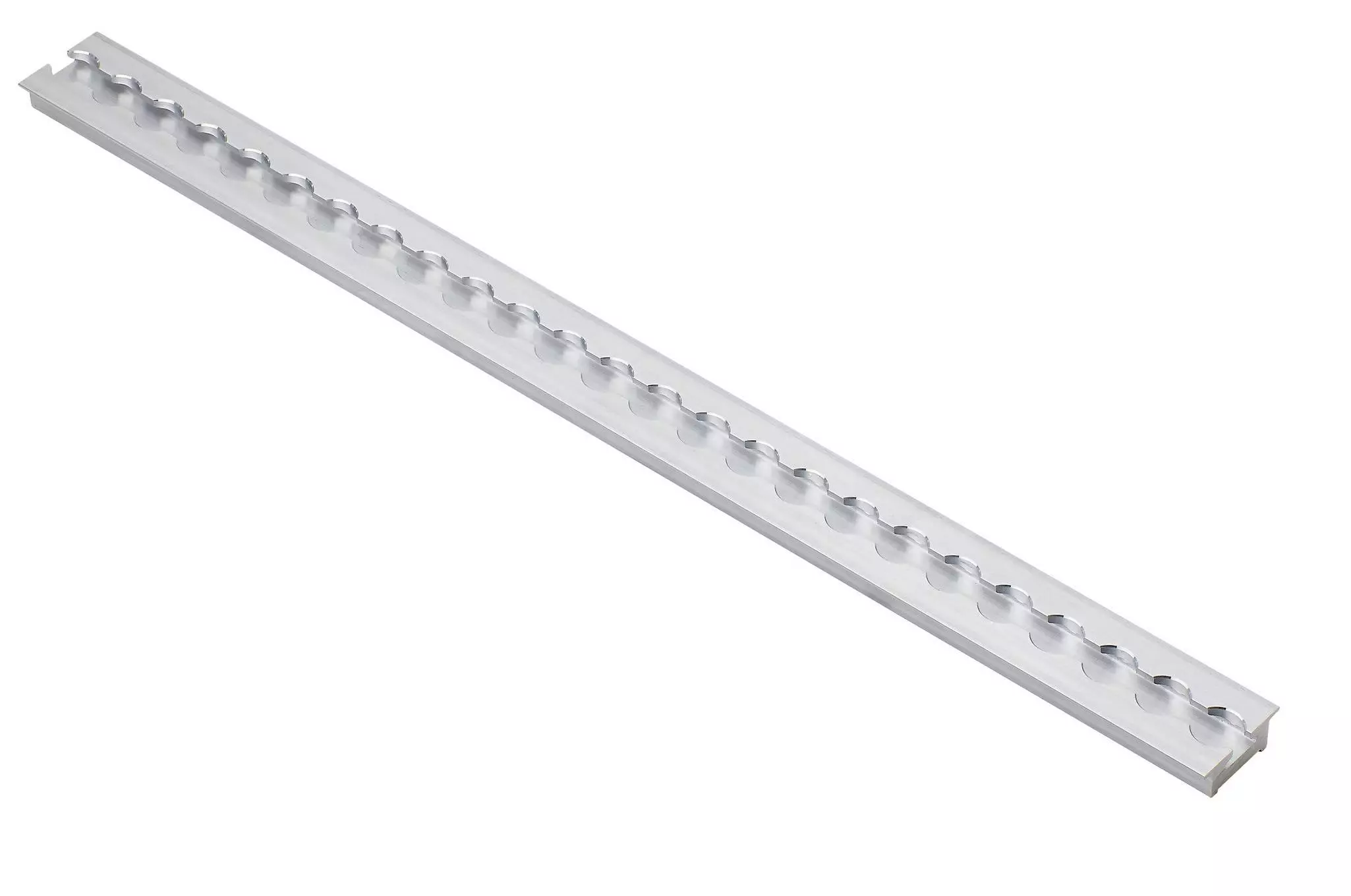

Heavy-duty semicircular airline track

Base article no. 520224
  • 100 to 6000 mm
  • For screwing
  • Horizontal and vertical use
  • Placed on the wall
  • Weight: 0.76 kg/m
Configure now

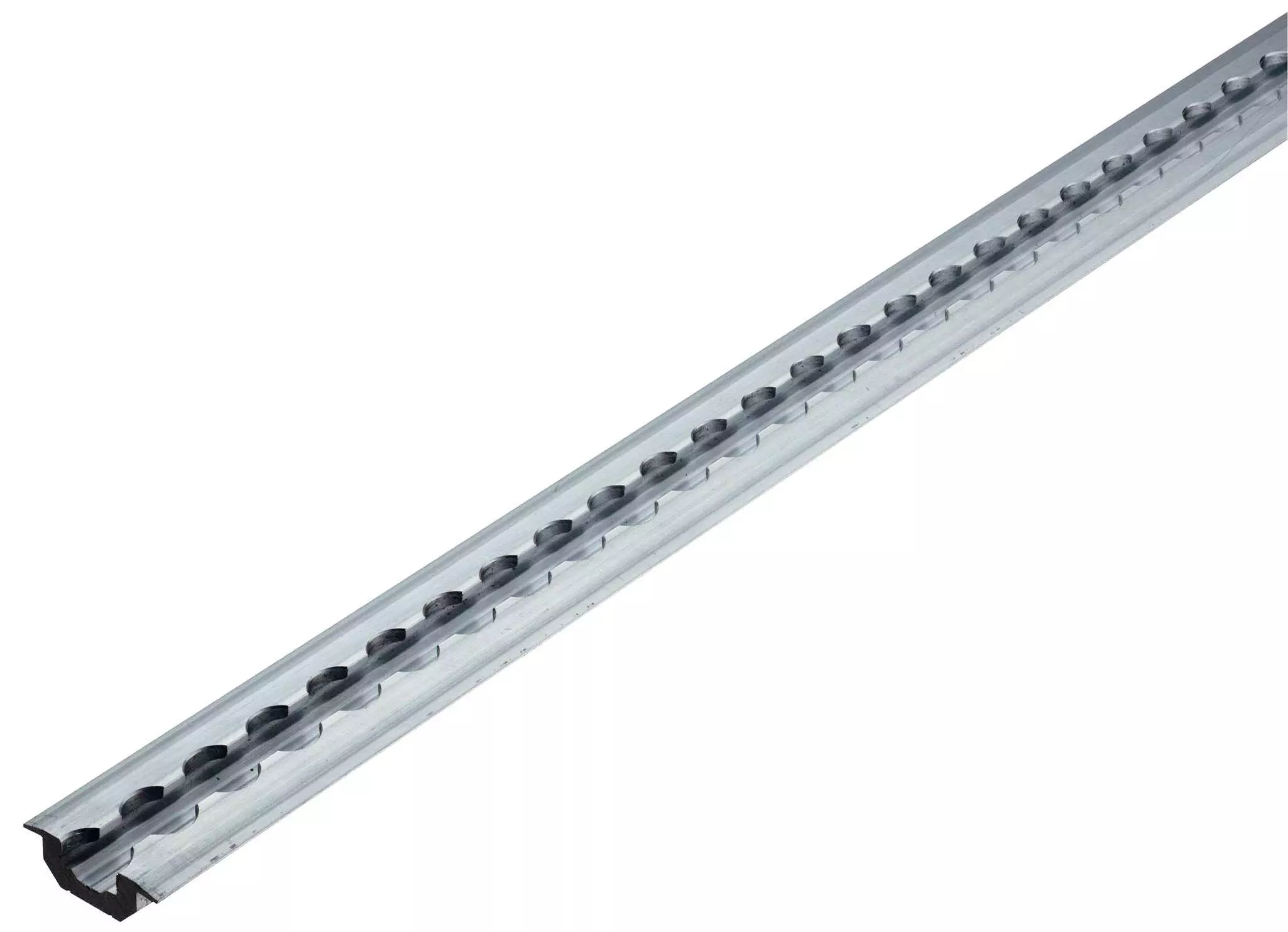

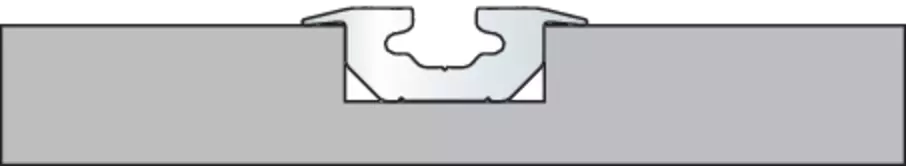

Heavy-duty recessed airline track

Base article no. 520223
  • 100 to 6000 mm
  • For screwing
  • For seat fixation
  • Recessed into the wall
  • Weight: 1.00 kg/m
Configure now

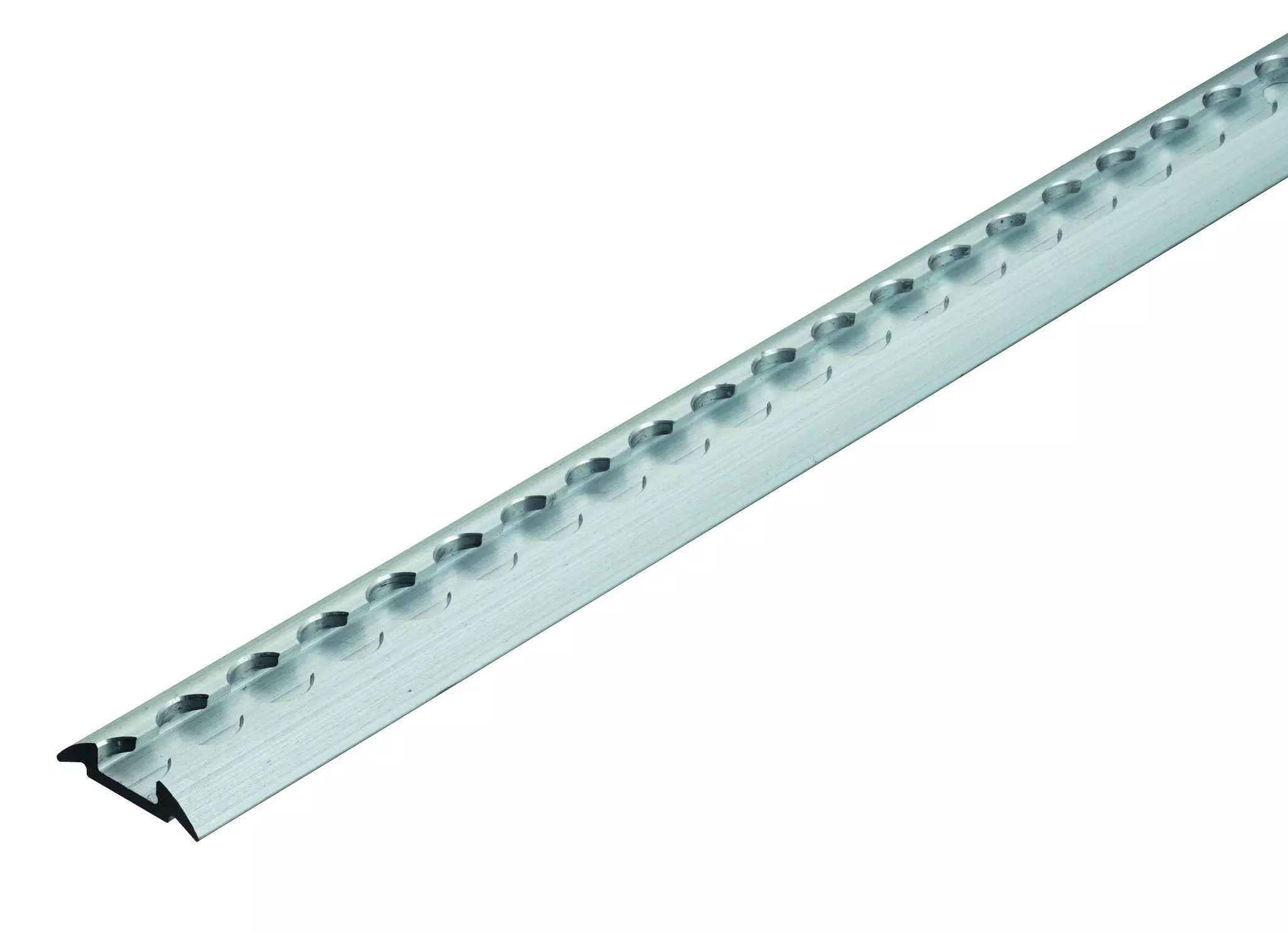

Airline track Heavy-duty floor track

Base article no. 320646
  • 100 to 6000 mm
  • For gluing and screwing
  • Weight: 1.16 kg/m
  • Recessed into the wall
Configure now

Heavy-duty airline track 34x16

Base article no. 522566
  • 100 to 5800 mm
  • For screwing
  • Weight: 0.88 kg/m
  • Recessed into the wall
Configure now

Downloads

Product configurator

accessories

End caps

Heavy-duty retractable end piece (for 520223)

Base article no.: 521498

Not available in the webshop

Heavy-duty semi-circular end piece (for 520224)

Base article no.: 521499

Not available in the webshop

Track cover

Length freely selectable from 100 to 3000 mm.
