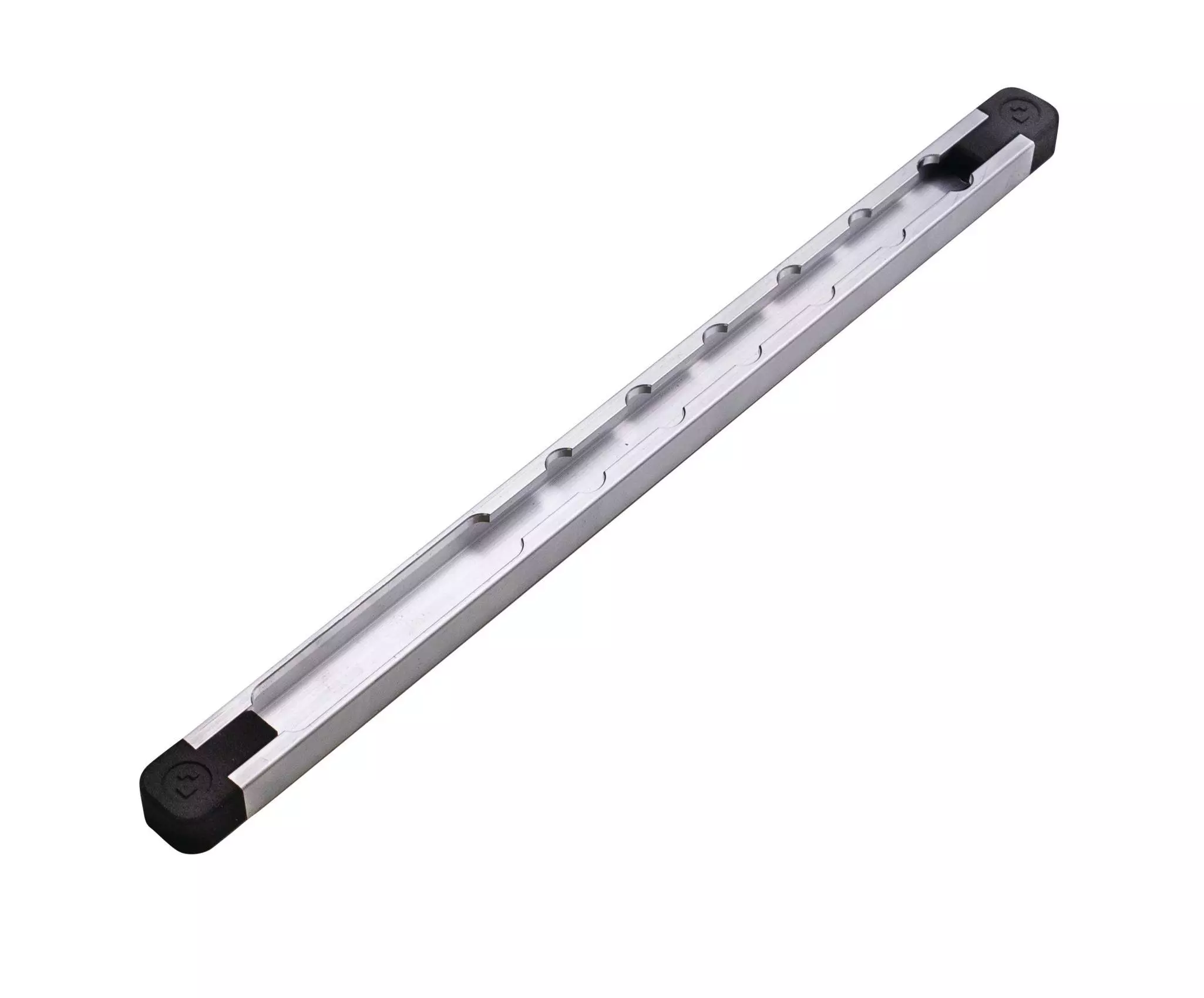

Mini airline track

allchange-compatibility

Made in Germany

Reliable safety for minimal installation space

The Mini Airline track combines space-saving design with reliable safety, making it the perfect solution for campers, cargo bikes, workshop vehicles, and compact transport equipment. Weighing only 300 g per meter, it offers maximum functionality with minimal additional weight. Ideal for narrow spaces, such as between drawers, in tool cabinets, or on the front of vehicle equipment. Despite its compact dimensions, the track has a load capacity of 125 daN and is suitable for light to medium loads. Straps and fittings can be removed as required, ensuring maximum flexibility. The Mini Airline Track secures your load even in the tightest installation spaces.

Technical specifications

At a glance

  • Minimal weight at only 300 g/m
  • For cargo bikes, small transporters, campers, and caravans

Downloads

Product configurator

Starting dimension

Unless otherwise specified, the starting dimension is X = 0 mm.

e.g.: X = 0 mm
e.g.: X = 25 mm

Pitch

Unless otherwise specified, the pitch is P = 25.0 mm.

e.g.: P = 25 mm
e.g.: P = 50 mm

Mounting holes

S4S5
W90°90°
D911
d4,6*5,5*

Accessories

End cap

End piece for mini airline rail (for 522893)

Base article no.: 522862

Not available in the webshop
