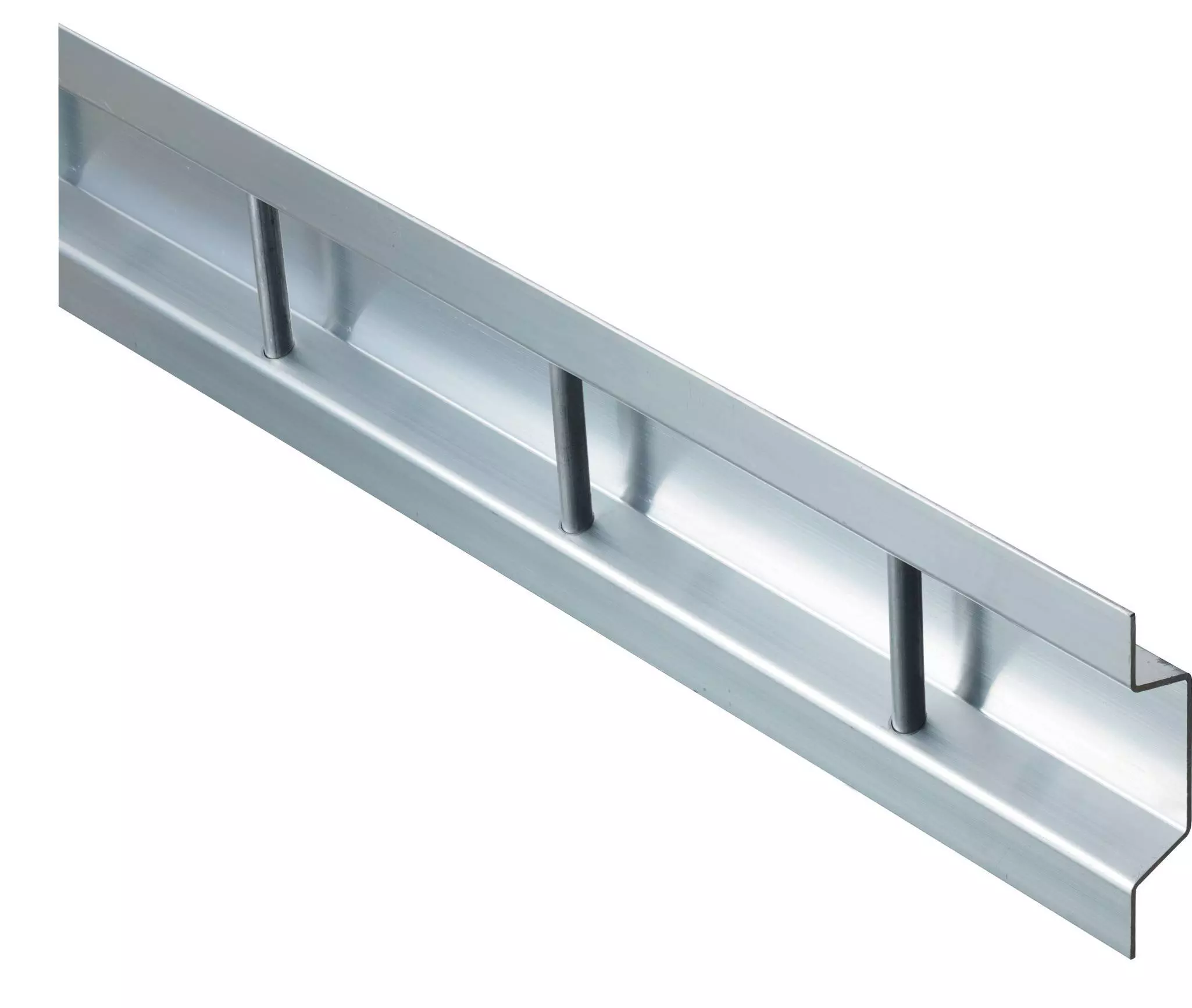

Pin tracks, large, retractable
Base article no. 71059
Pin track for sinking
allchange-compatibility
Made in Germany
Efficient load securing without loss of space
The recessed pin tracks from allsafe enable maximum use of the loading area, as they are installed flush with the wall and do not protrude. The smooth wall surface protects sensitive goods from damage and also provides lashing points when used with flat hooks – without the need for additional accessories. Thanks to the option of adhesive or screw mounting, the tracks can be installed flexibly and easily, enabling quick and precise integration into various vehicle types. Easy to install and handle, the small pin track is ideal for transporters and smaller box vehicles, while the large version is ideal for use in large box vehicles. This track has proven itself as standard in rental vans and furniture cases.
Technical specifications
At a glance
- Ideal for transporters and medium-sized box vehicles
- Use as side wall rail
- Versions available for screwing and gluing
- Supplied made to measure from 220 to 4500 mm

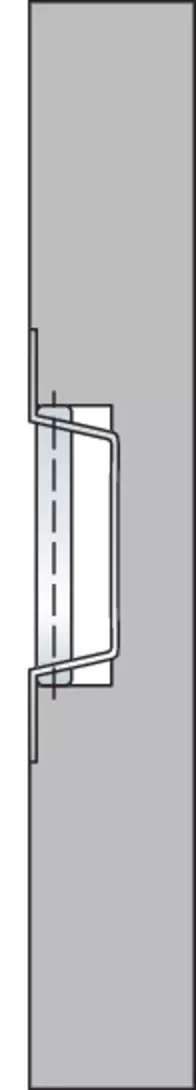

- For recessing
Variants

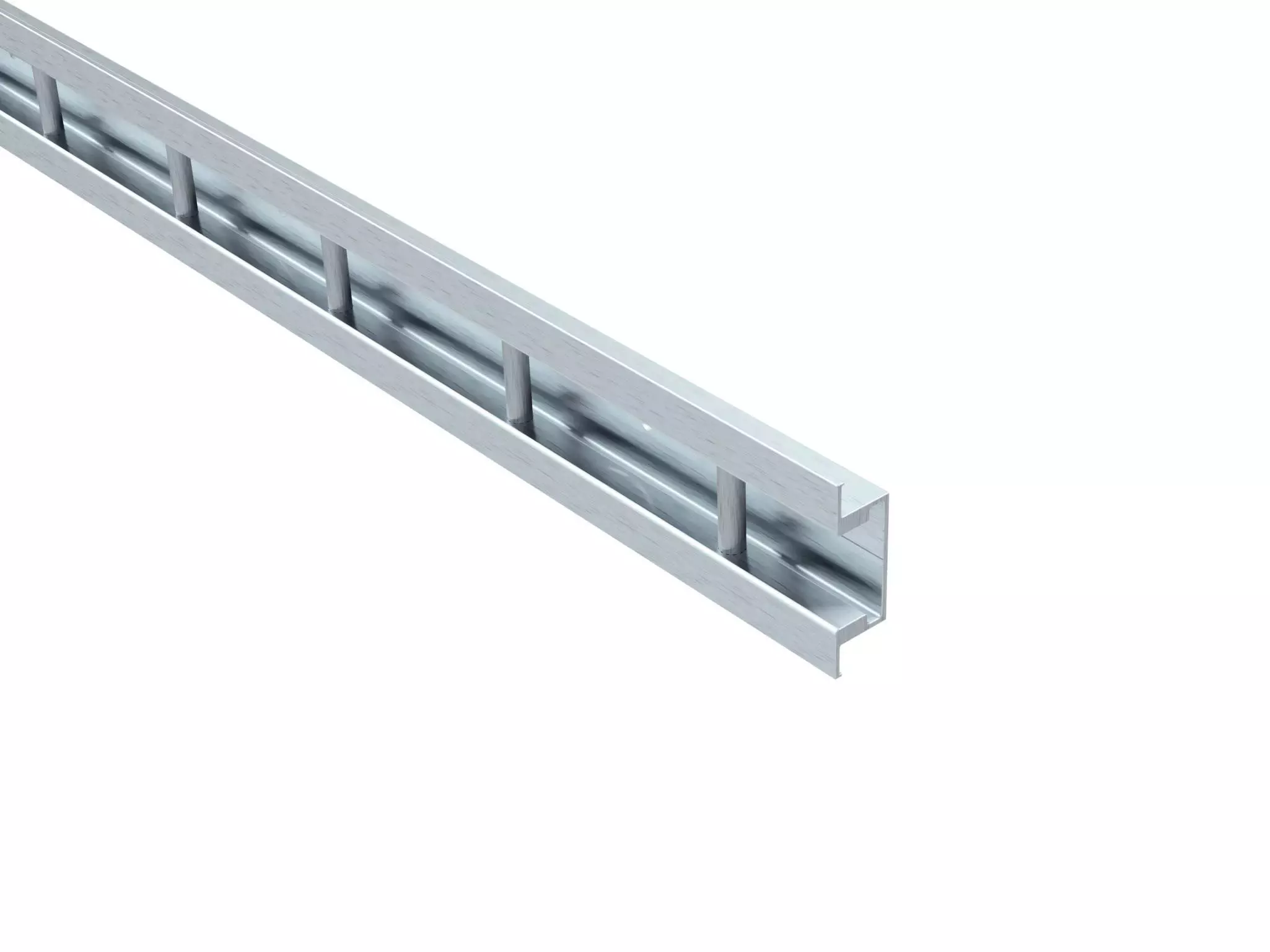

Pin tracks, small, retractable
Base article no. 522768
Configuration options
Distance between Pin tracks
Please select the rod spacings B1 and B2. Good results are achieved with rod spacing B1 = 100 mm and B2 = 50 mm.
- B2 min. 50 mm
- B2 max. 150 mm
Mounting hole
| D5 | D6 | |
|---|---|---|
| d | 5,0 | 6,0 |
Distance between mounting holes
Please select the hole spacing a2. Good results are achieved with a mounting distance a2 = 200 mm.
- a2 = B1 or multiple of B1
Accessories
End caps
End piece for Pin tracks, small (for 522768)
Base article no.: 522850
Not available in the webshop
