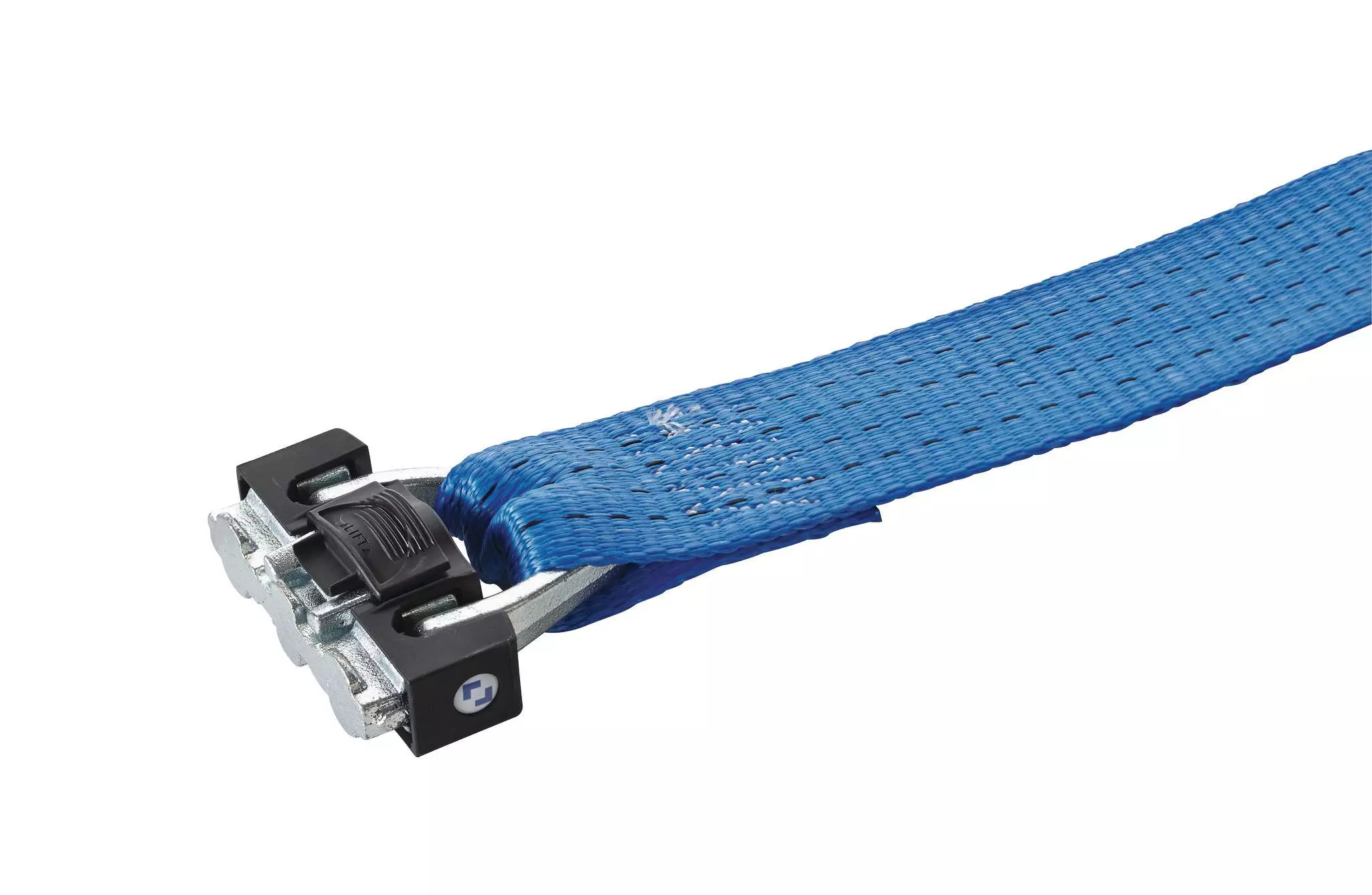

KERL AJS 300
511275
- 300 daN according to ISO 27956*
- Galvanized steel, aluminum
- For hooks Ø 25 mm
- For AJS, keyhole tracks and Airline tracks
- L min = 140 mm
Base article no.: 511263

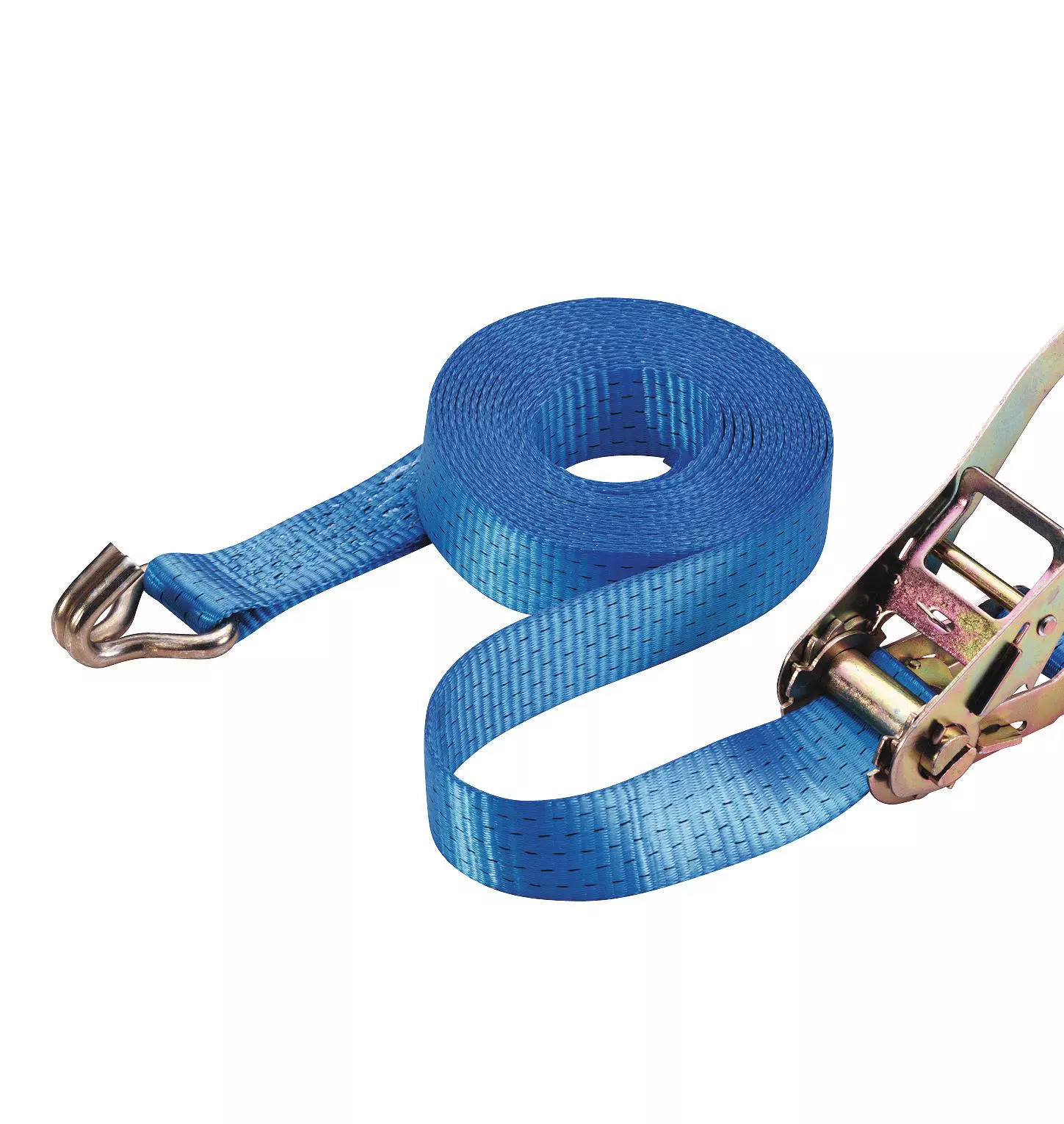

Lashing straps with 25 mm strap width
The flexible and safe solution for smaller loads

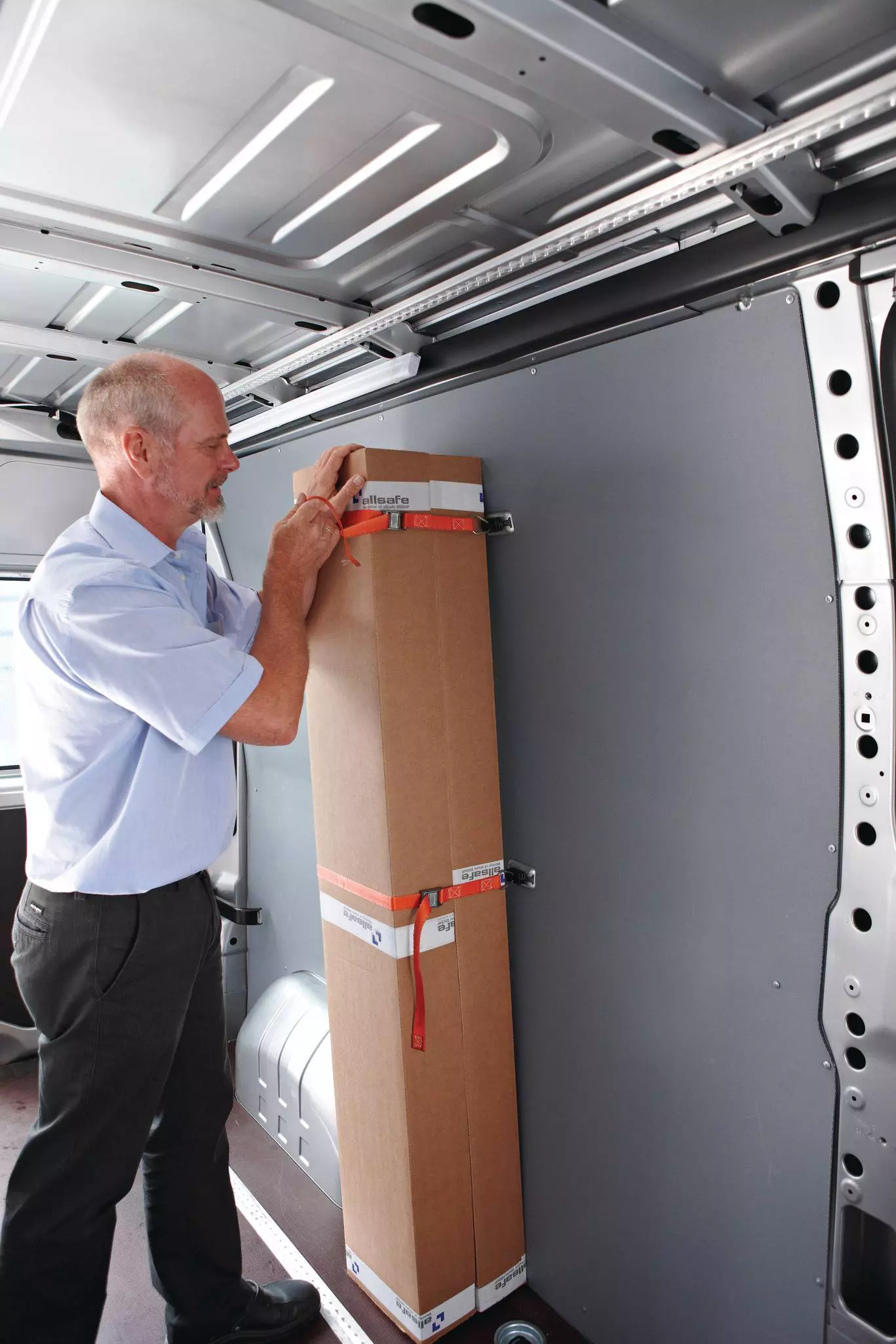

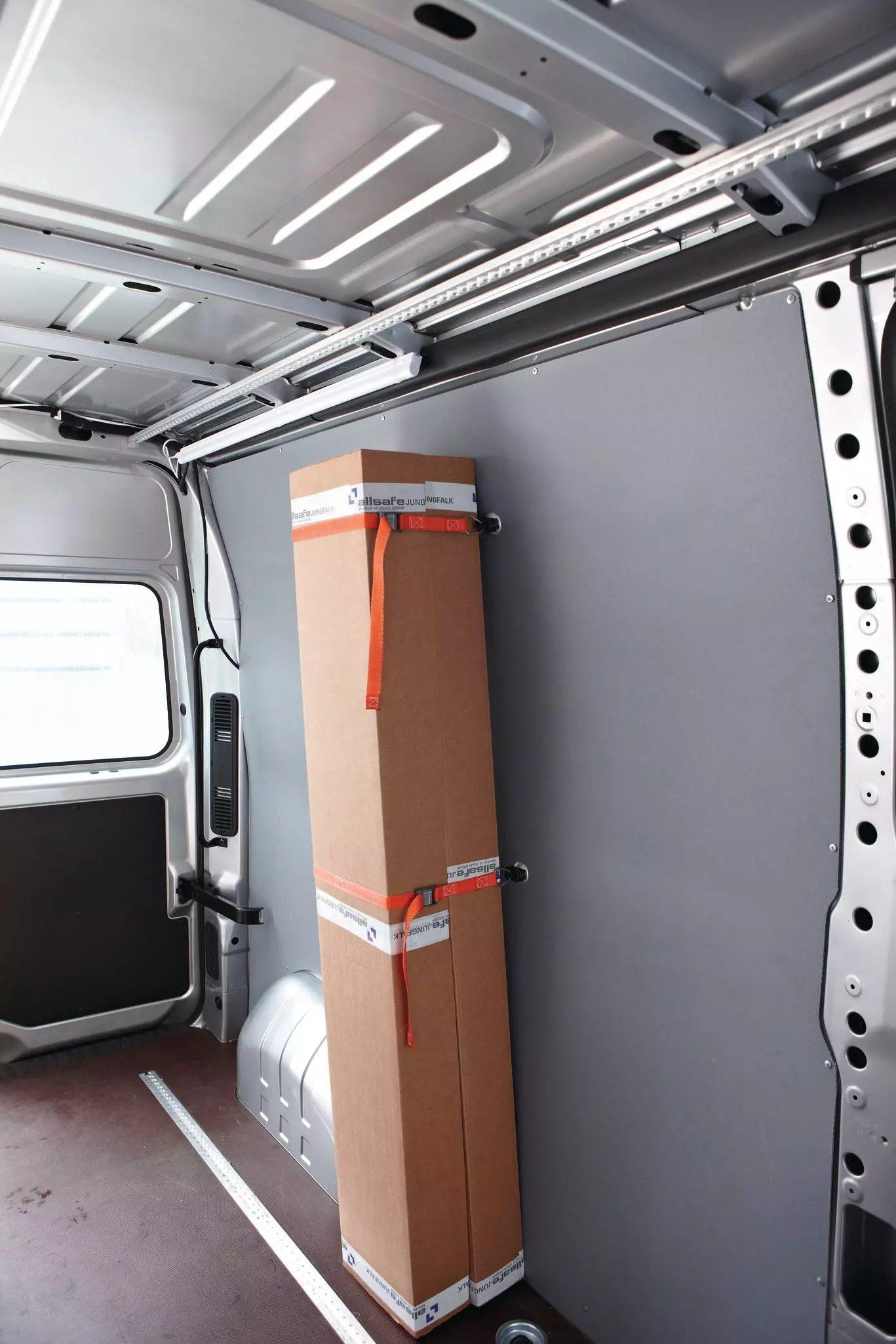

The allsafe lashing strap with a width of 25 mm is the perfect choice for reliable load securing in vans, cars, and trailers. Specially developed for smaller loads, it ensures a secure hold during transport and meets the highest safety standards thanks to certified load specifications in accordance with DIN EN 12195-2. The strap can be customized and flexibly printed with your desired design, such as your logo. The label contains standard information such as the lashing force, which indicates the validity of the standard. In addition, it is fully compatible with all allsafe tracks, shoring elements, and fittings—for effortless integration into existing securing systems. Design your lashing strap entirely according to your needs: Choose the perfect solution for your application from a range of end fittings, locks, lengths, and colors.
Albert's tip
Want your company name or logo printed on the webbing? No problem. Want the print on the label too? We can do that! And all this from just one piece.
Configuration options
End fittings
Lmin indicates the minimum fixed end length for this fitting. The hook position can be selected at the top or bottom.
KERL 500
310275
- BC 500 daN according to ISO 27956*
- Galvanized steel, plastic
KERL 500 V2A
310280
- Stainless steel, plastic
- Rustproof
- BC 500 daN according to ISO 27956*
KERL 1000
511228
- BC 1000 daN according to ISO 12640*
- Galvanized steel, plastic
- Compatible with Airline tracks with 20 mm hole and 25 mm or 25.4 mm grid
- Opening Ø 25 mm Load capacity: 1000 daN according to EN 12640*

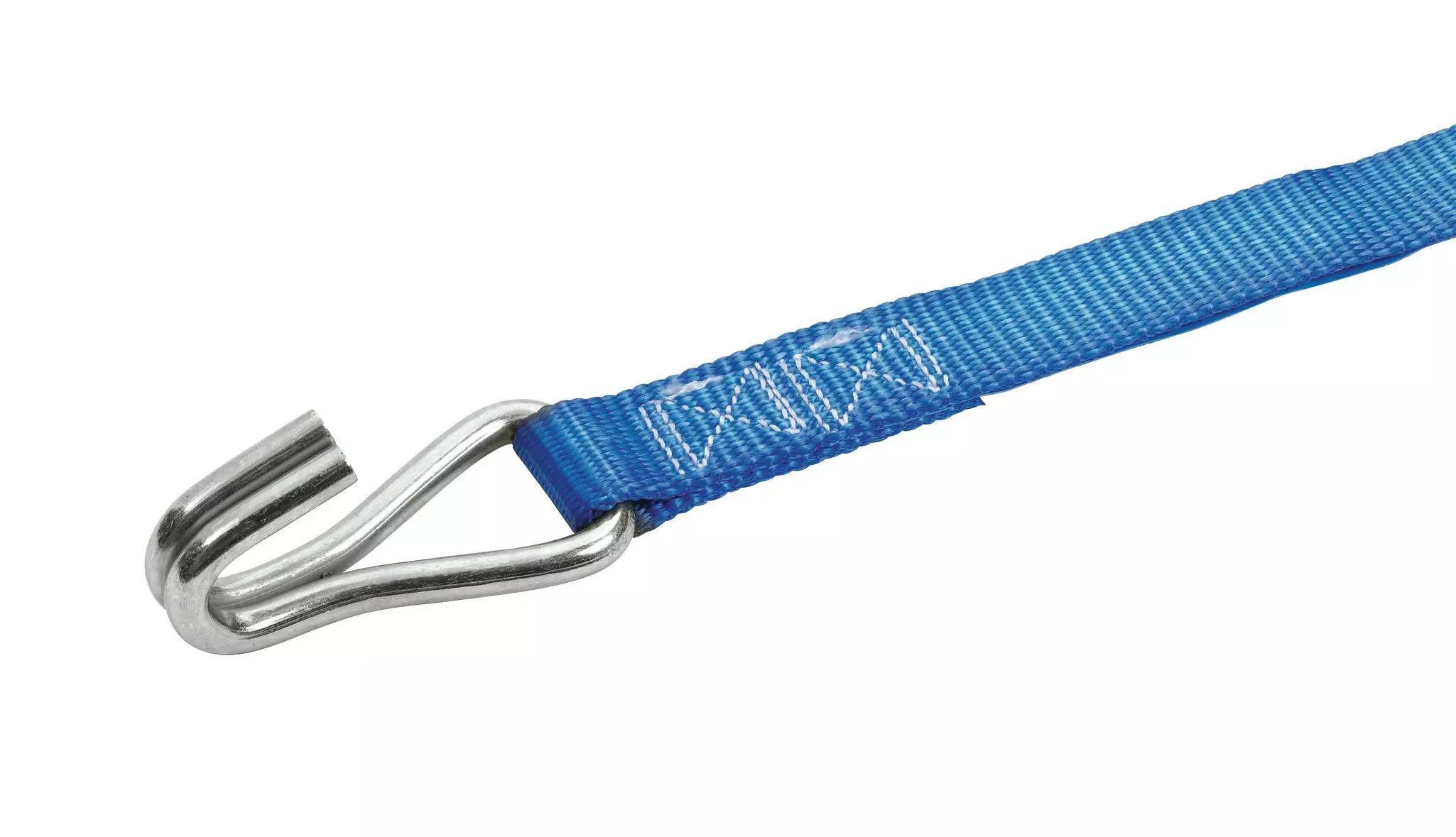

Wire hook
77034
- LC 550 daN
Closed wire hook
71049
- LC 650 daN
Closed wire hook
71038
- LC 750 daN
Flat hook with safety catch
71026
- LC 750 daN
- With safety device
Clamp lock hook
71349
- LC 750 daN
- Without backup

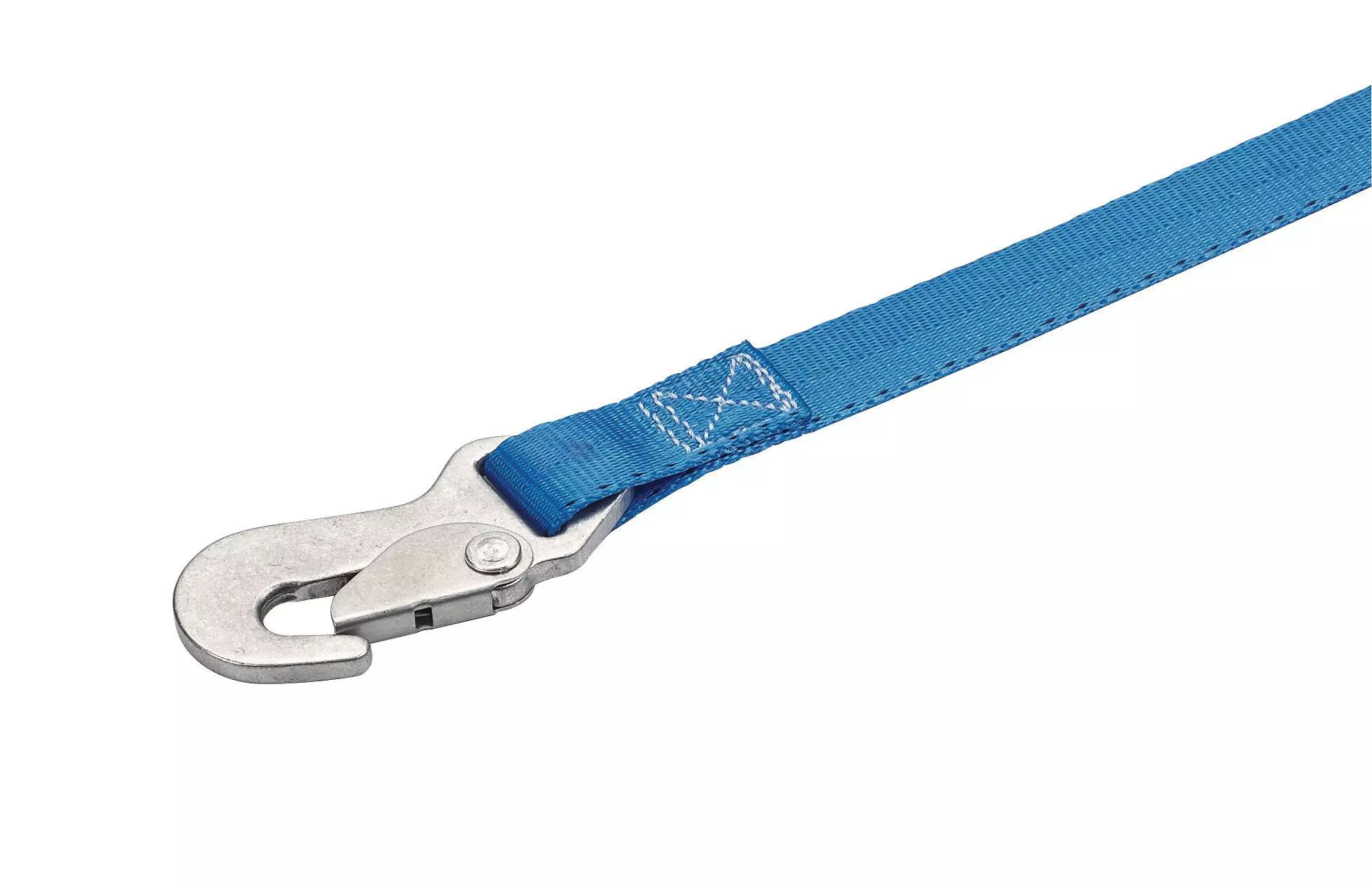

Straight snap hook
71028
- LC 1100 daN
Forged snap hook
71104
- LC 1250 daN
Snap hook
75008
- LC 500 daN
- Made of aluminum

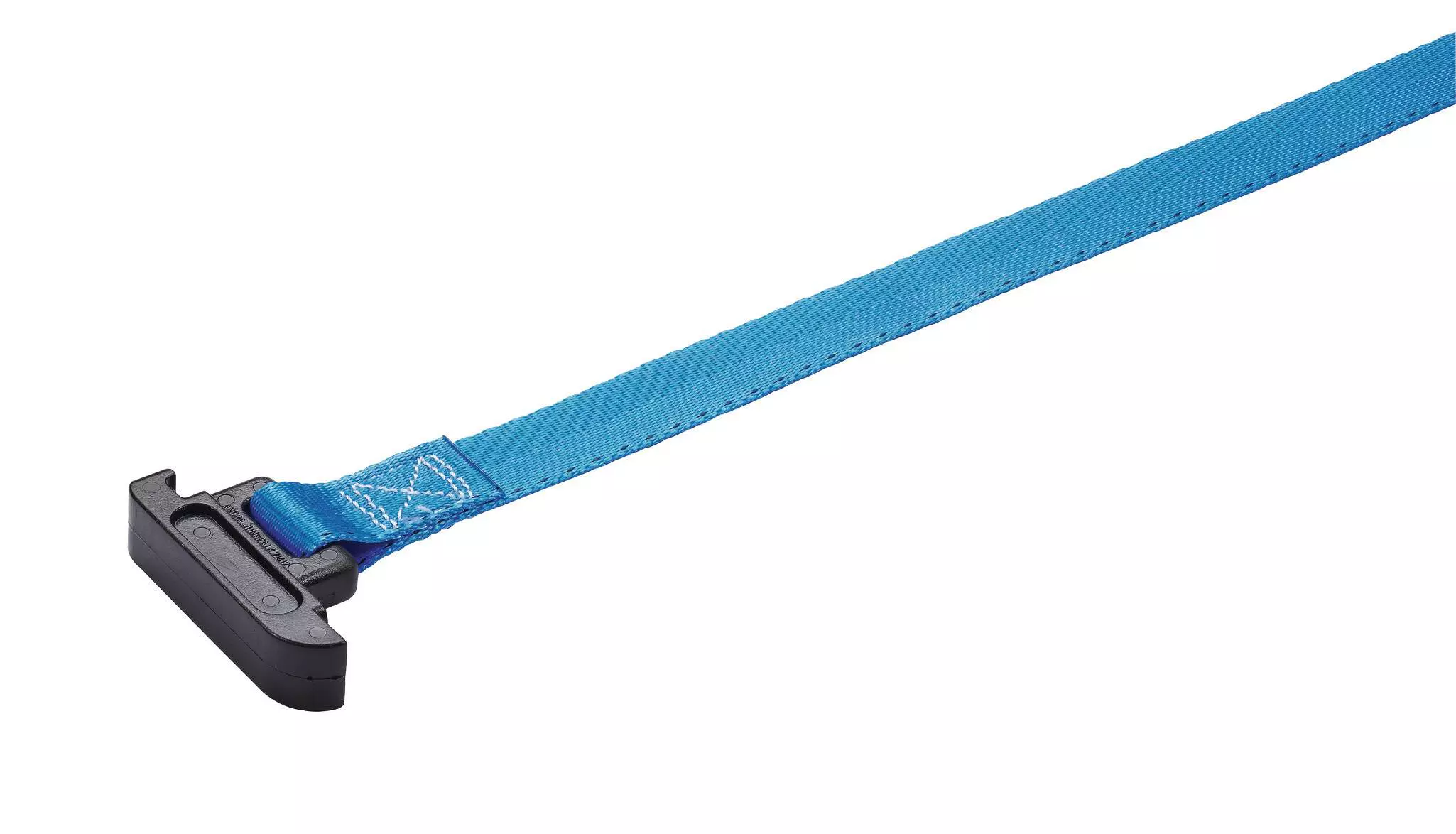

Keyhole tracks fitting, plastic
71412
- LC 300 daN

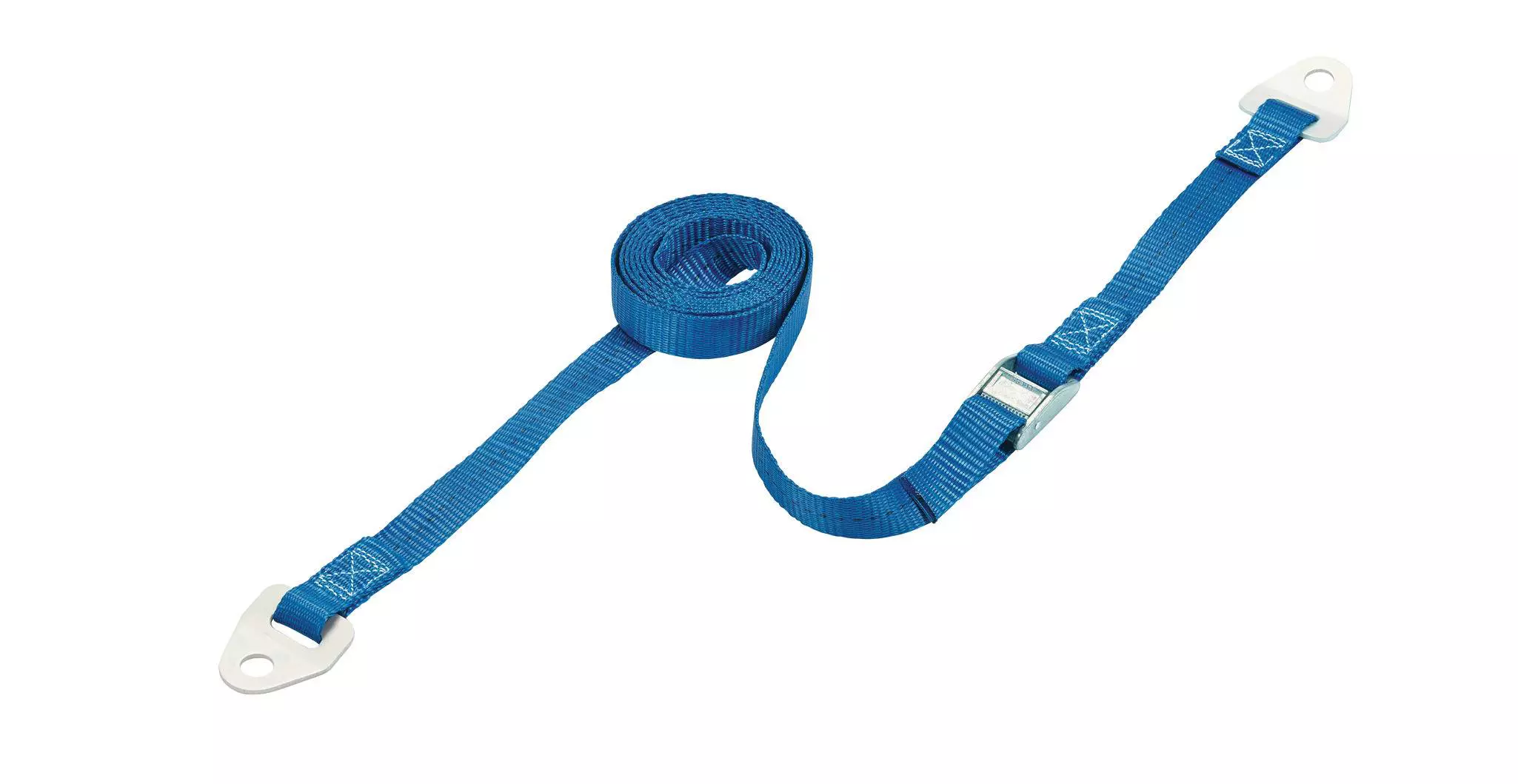

Eye plate
75012
- LC 445 daN
- Suitable socket: 75570

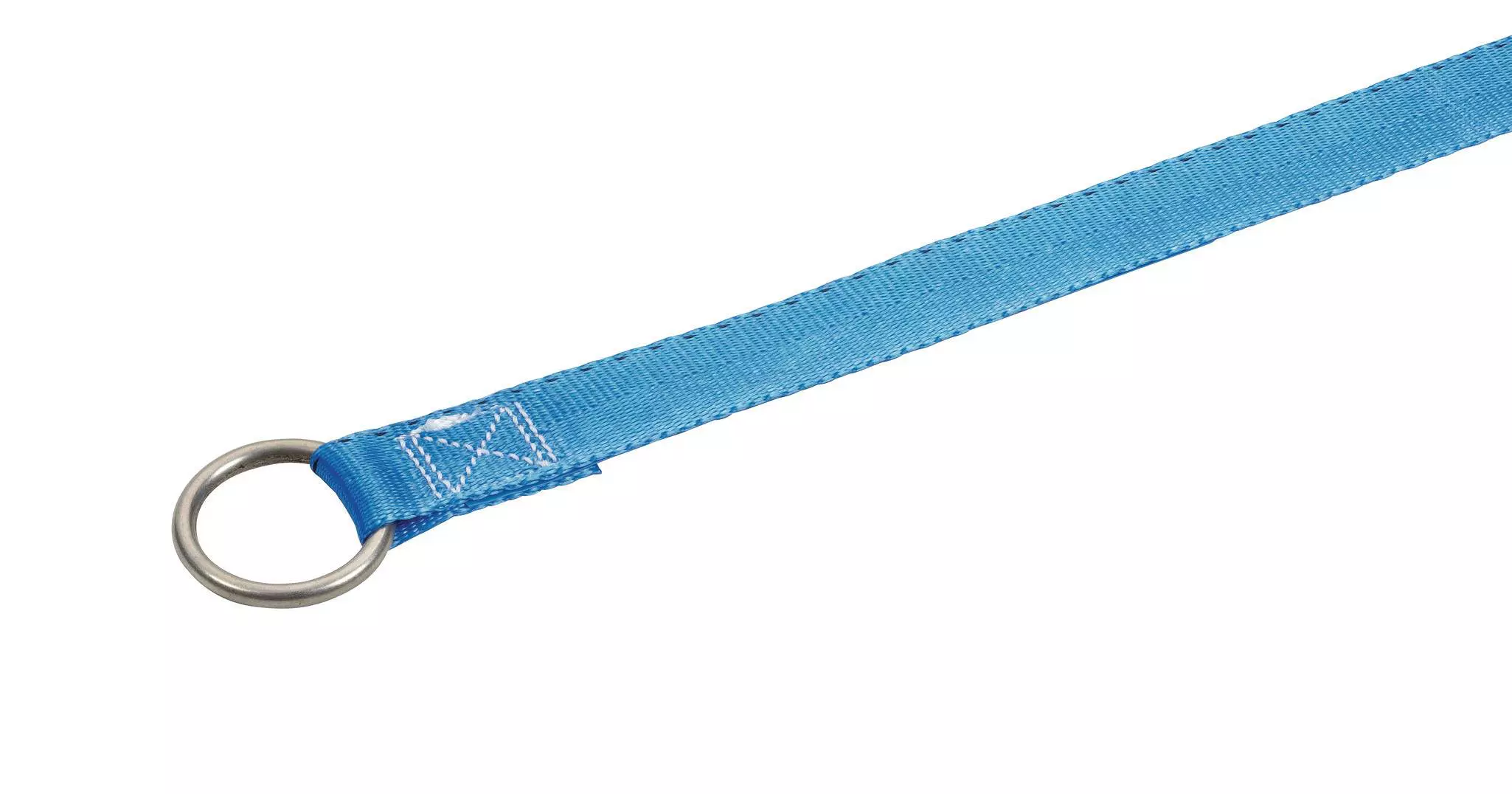

Ring Ø35x5 welded
121008
- LC 300 daN
- Rustproof

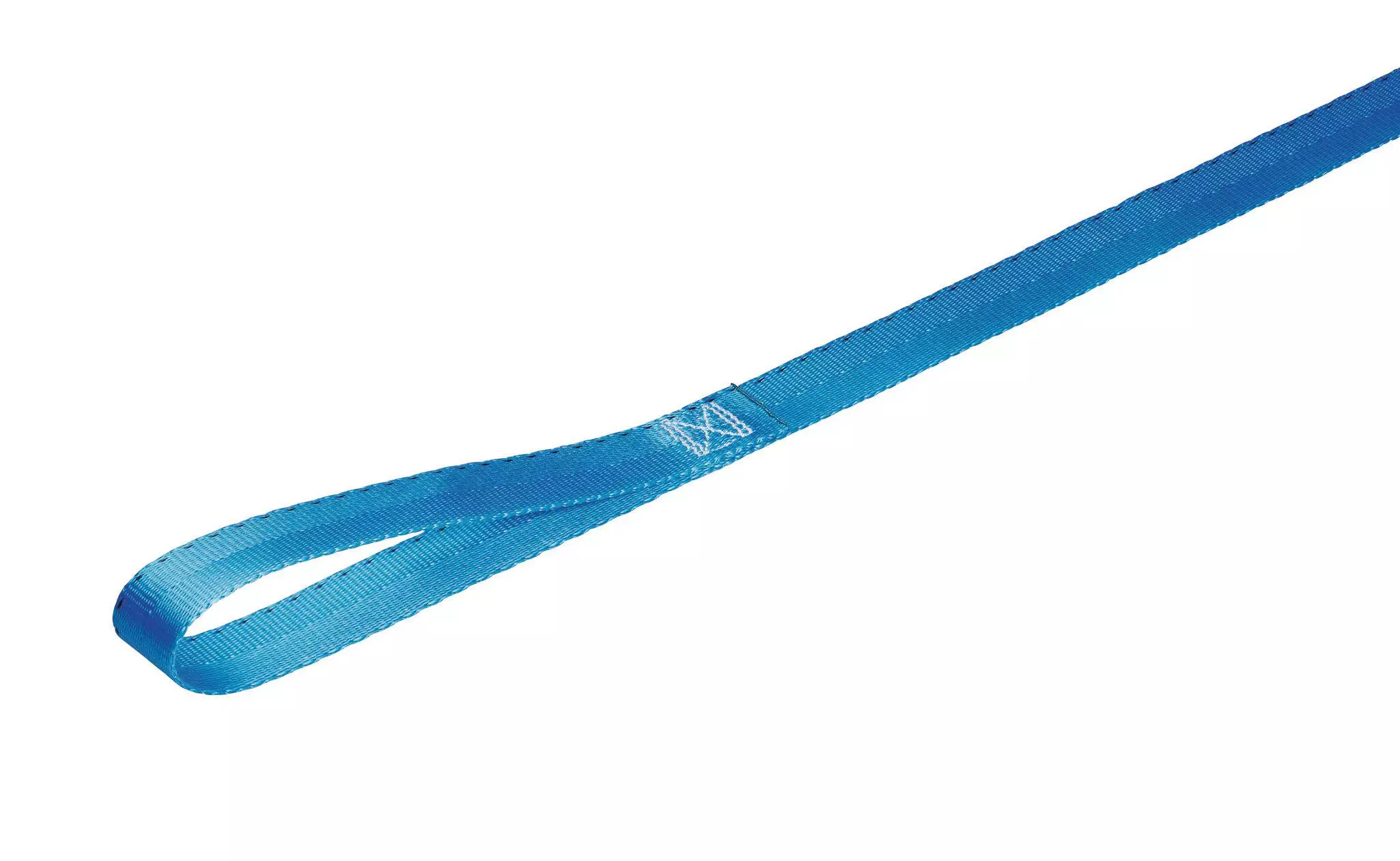

Loop
71756
- Loop 200 mm
Locks

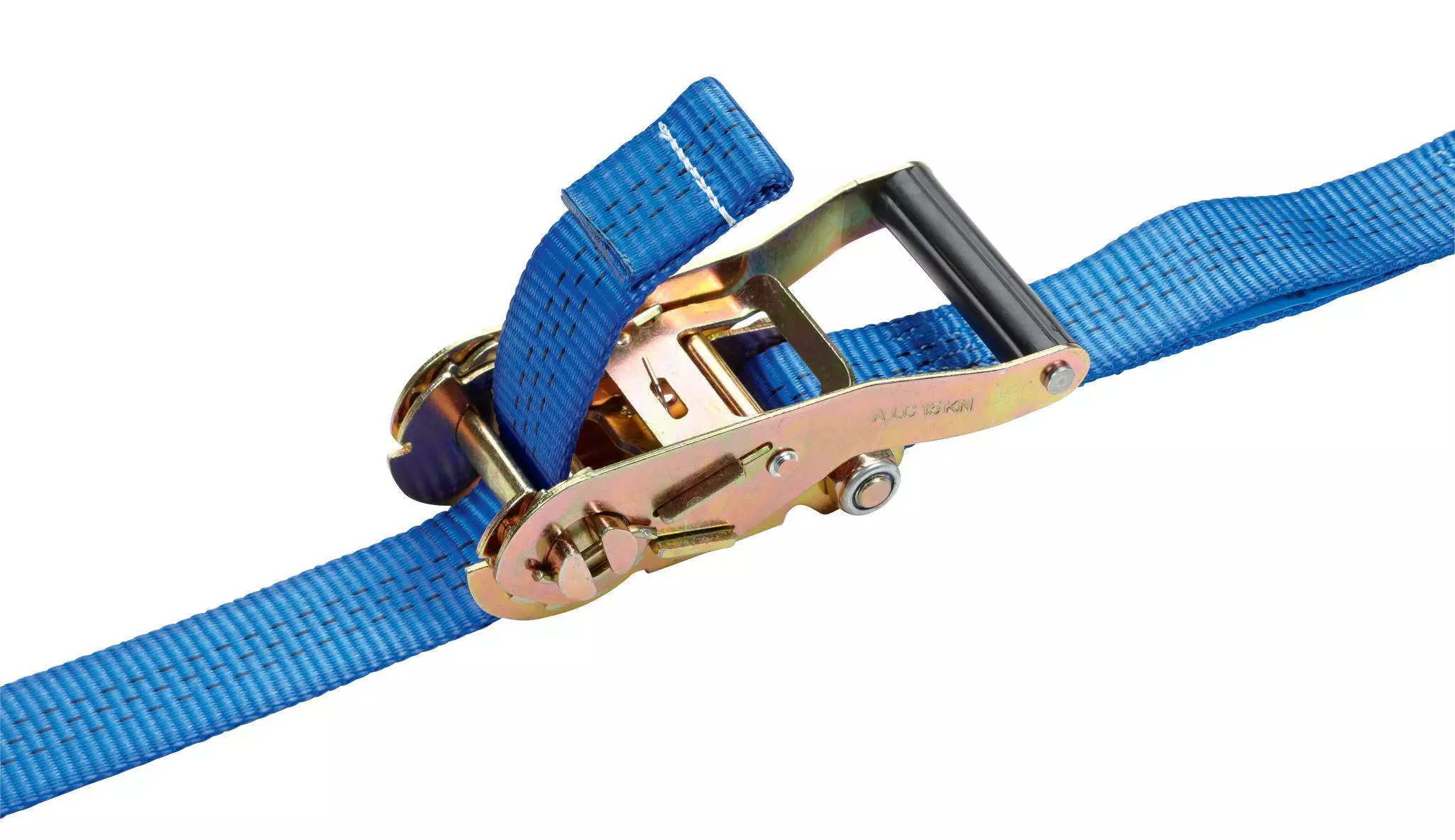

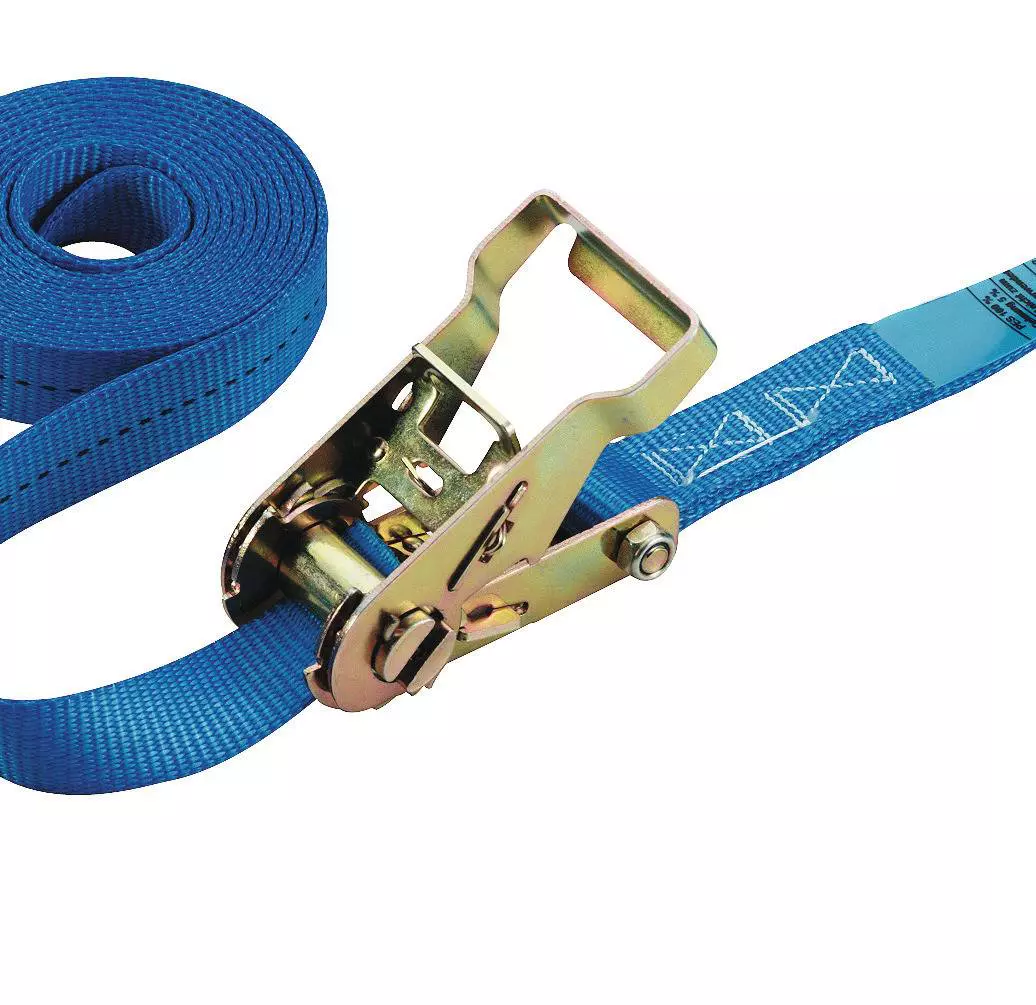

Ratchet lock
71234
Ratchet lock
560438-10
- LC 800 daN, STF 390 daN
- blue powder coated
Ratchet, blue zinc-plated
360013-10
- LC 1300 daN, STF 400 daN
- Silver galvanized
Ratchet lock
77036
- LC 1300 daN, STF 400 daN
- yellow zinc-plated
Ratchet lock
71036
- LC 2000 daN, STF 340 daN
- yellow galvanized

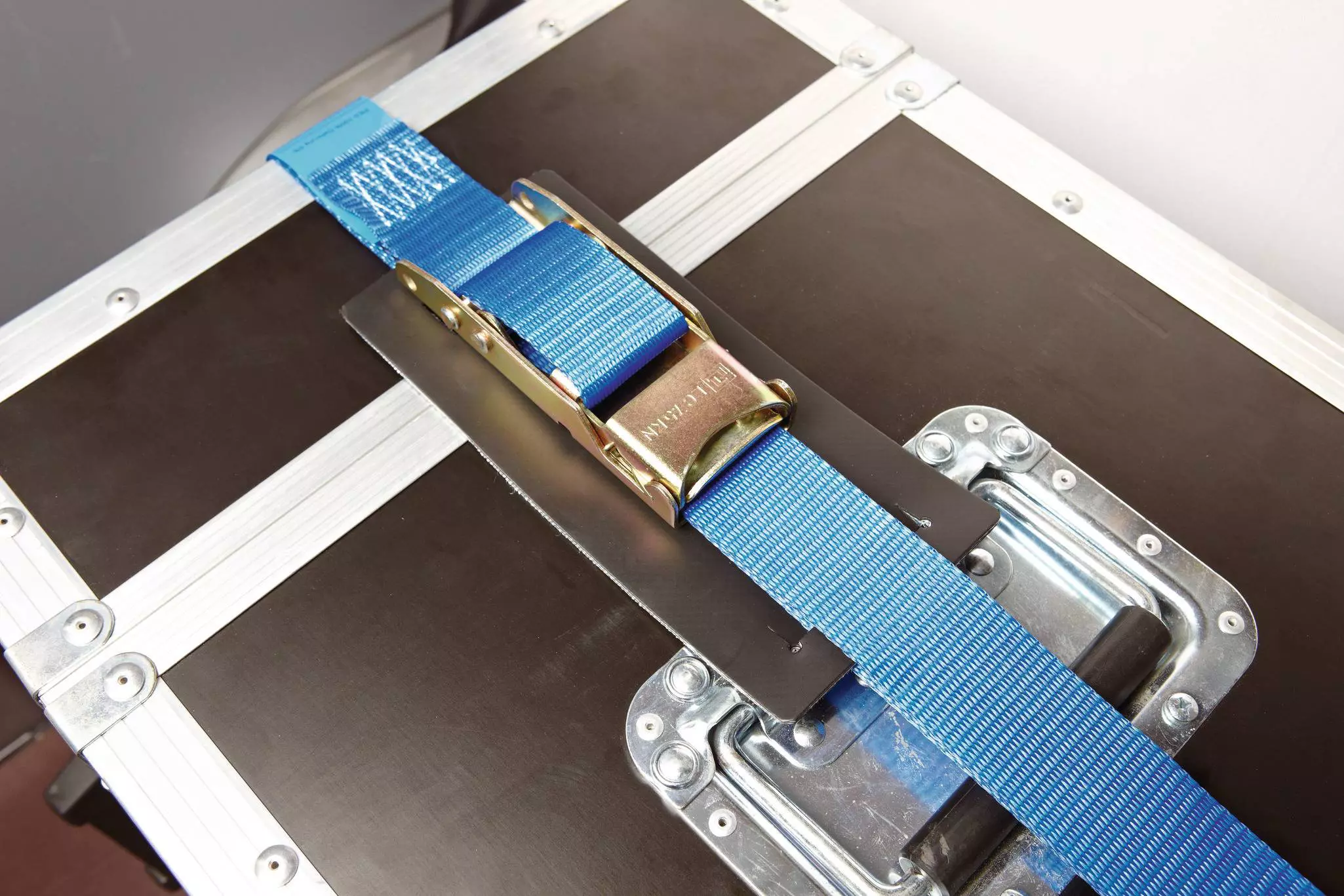

Lever clamp
71017
- LC 350 daN

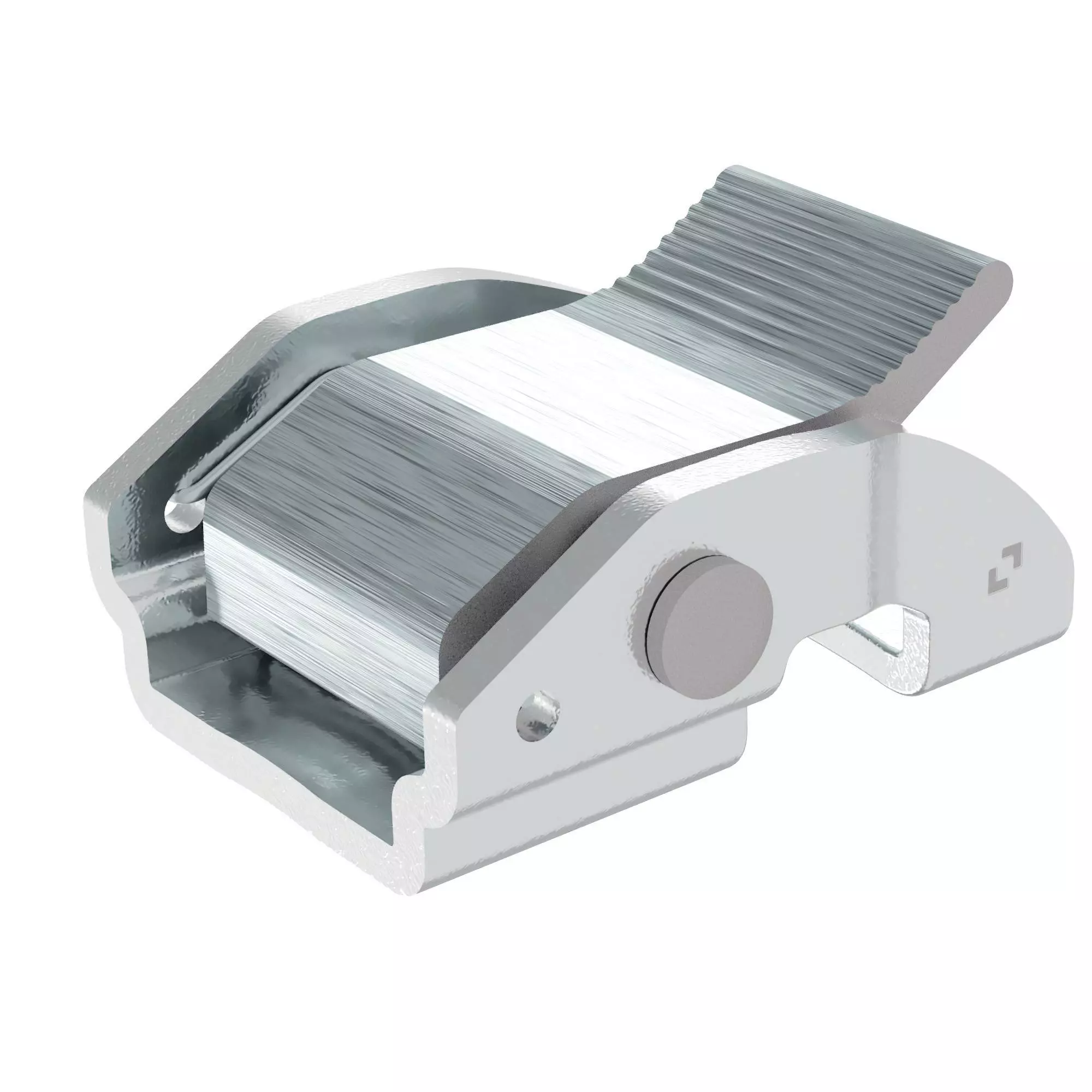

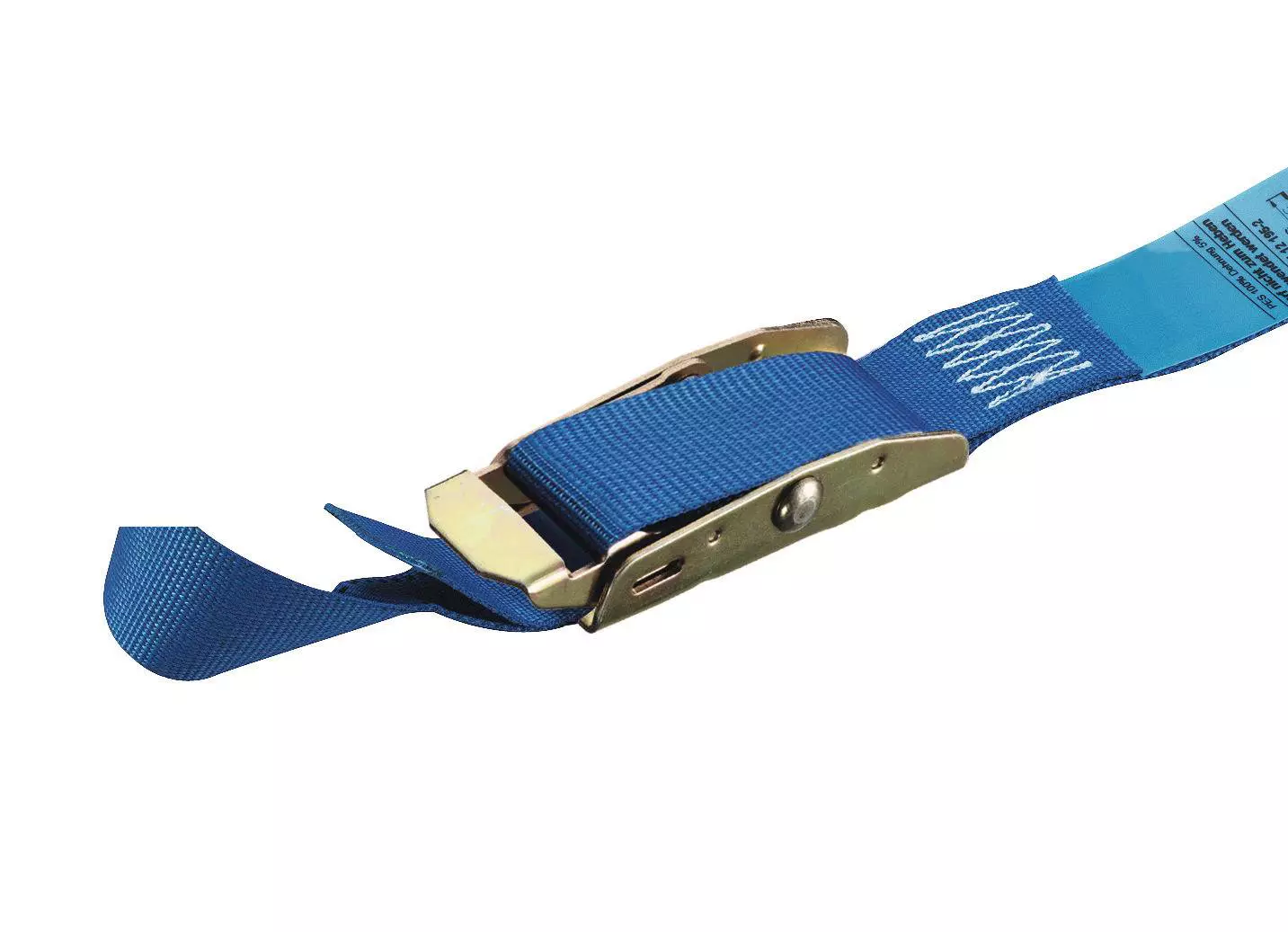

Clamp lock 25 mm
512132-10
- LC 250 daN

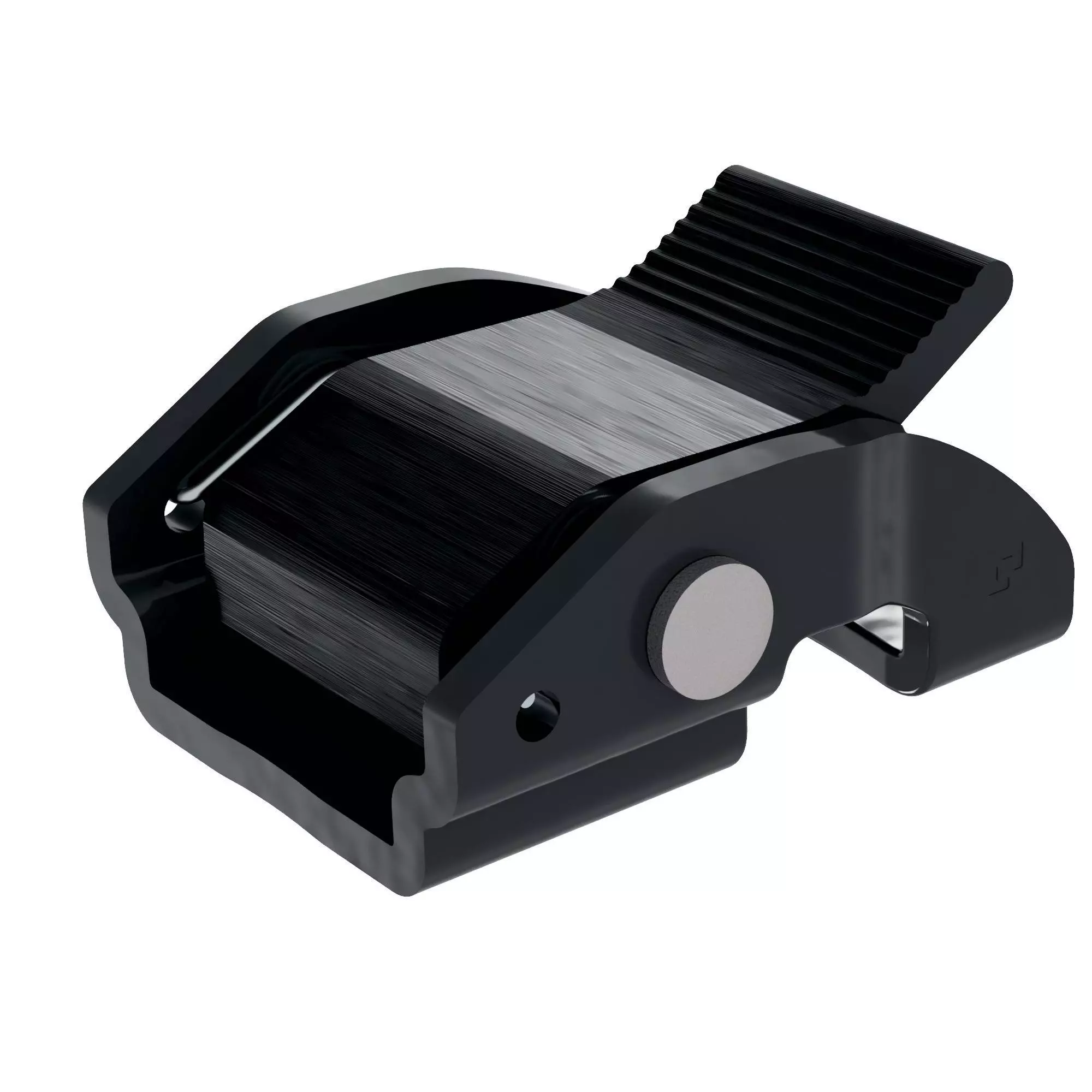

Clamp lock 25 mm black
512132-20
- LC 250 daN
webbing color
Not all colors are available for individual locks.
Color
Blue
Color
Red
Color
Gray
Color
Black
Color
Olive
Color
Orange
Color
Green
Length and pressure
Total length
Enter the total length in mm.
- 25 mm strap width: From a fixed end length of 300 mm, the length can be freely selected.
- 35 mm strap width: From a fixed end length of 400 mm, the length can be freely selected.
- 45/50 mm strap width: From a fixed end length of 500 mm, the length can be freely selected.
Strap printing
On request, we can print your belt according to your specifications.
Label printing
Print your individual logo on the label.
special equipment

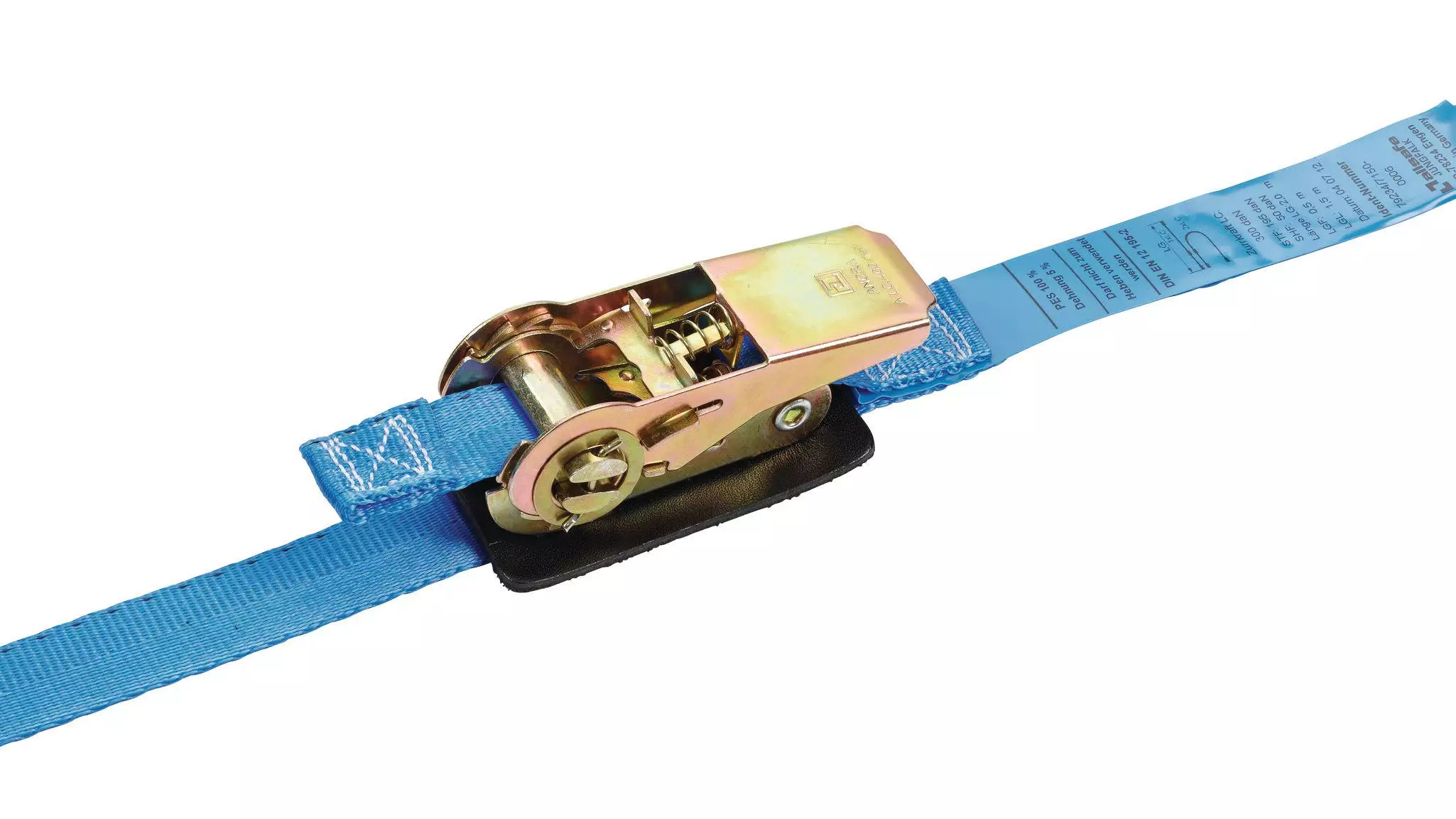

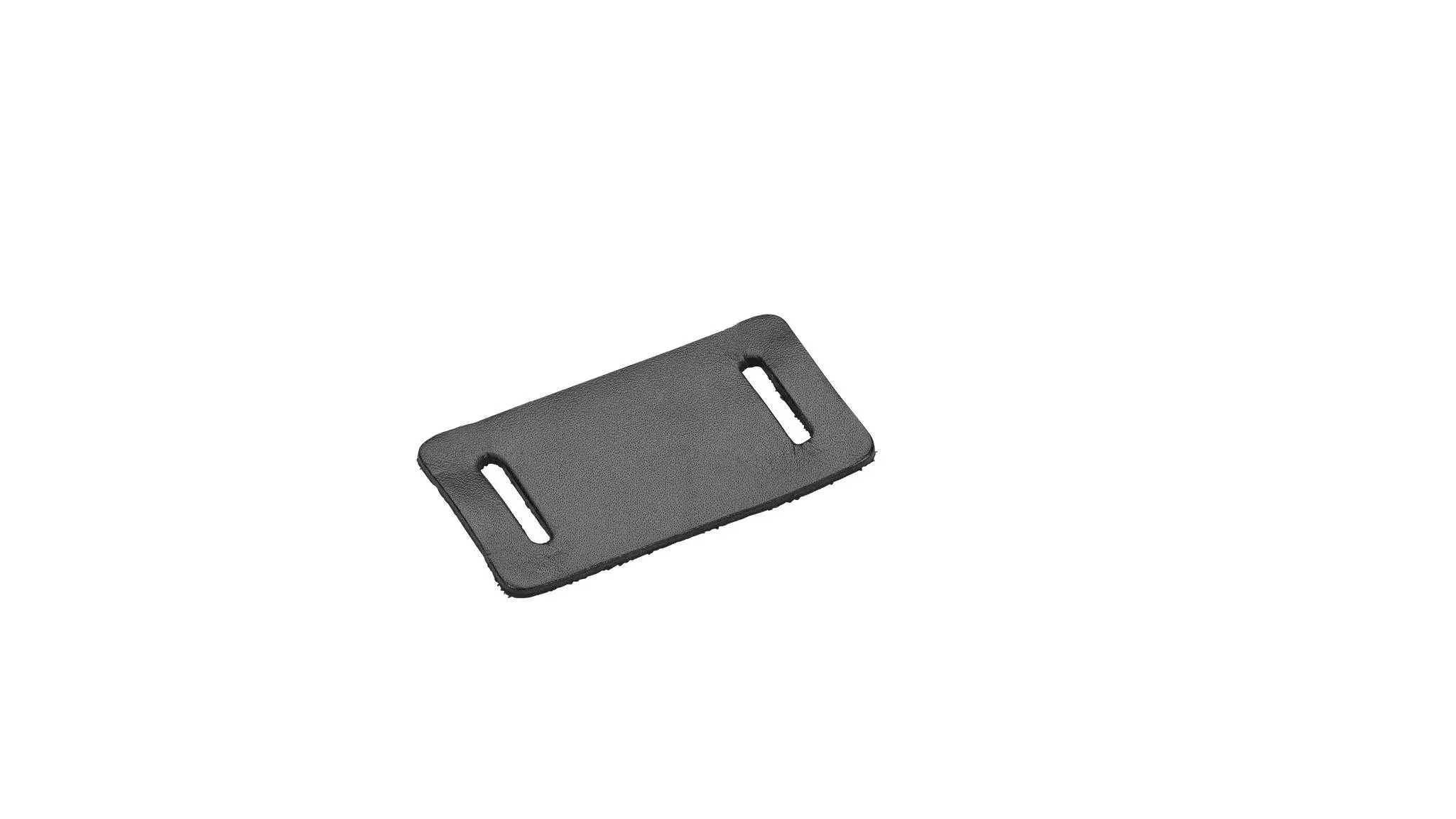

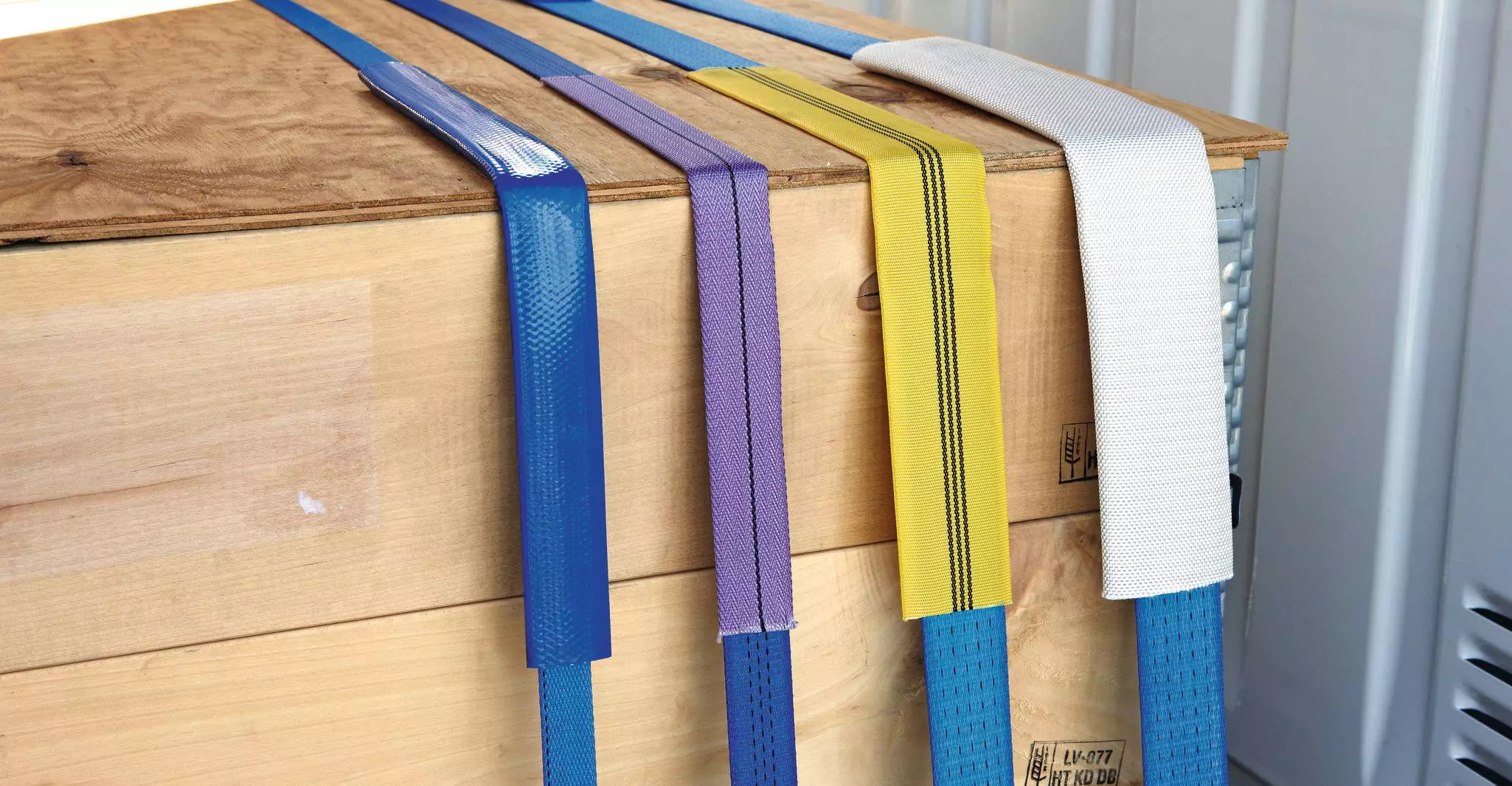

Label protection fixed length
From fixed length 400 mm
Label protection open length
Fold-back
Prevents unthreading from the lock.

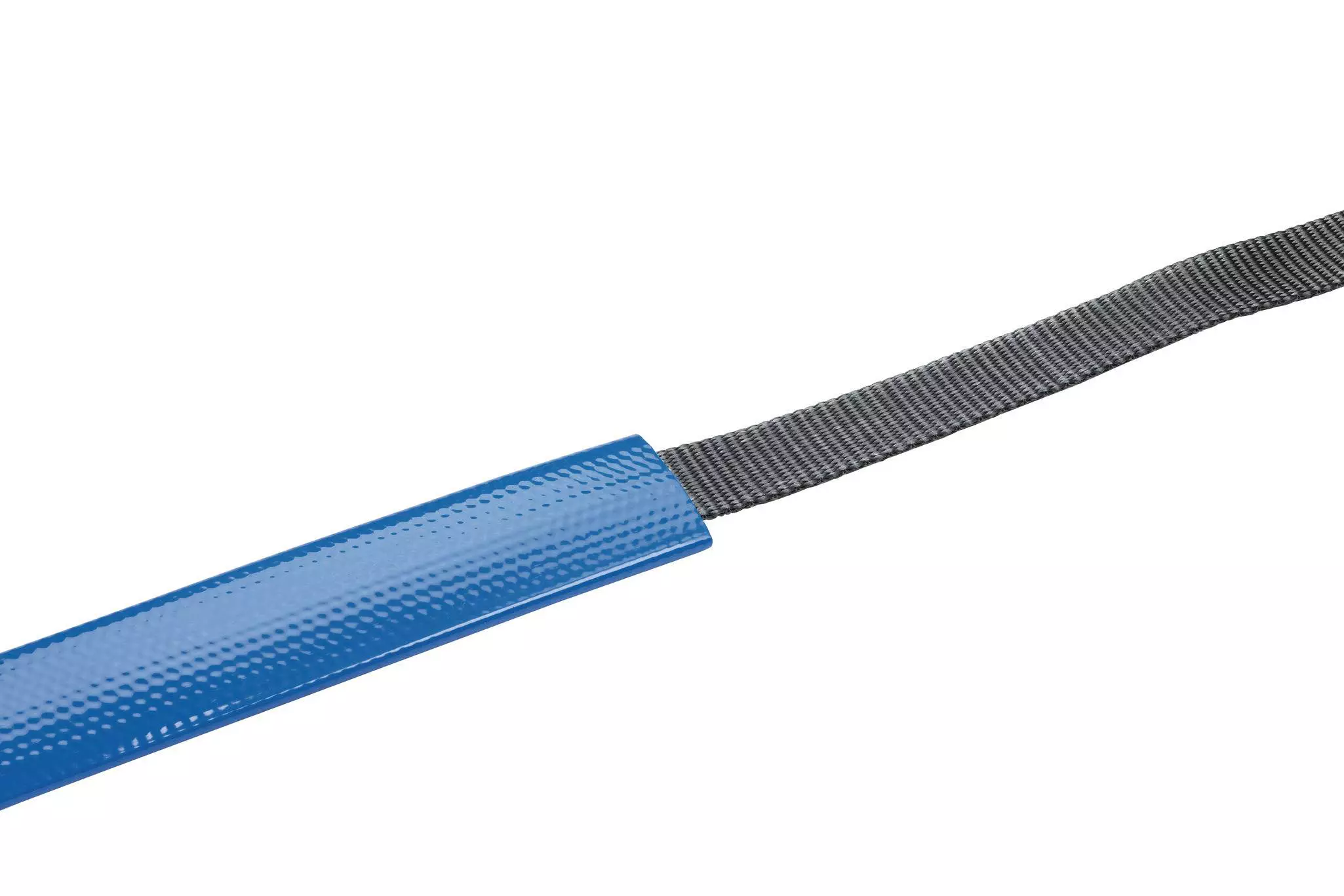

Rub protection, rubberized, blue

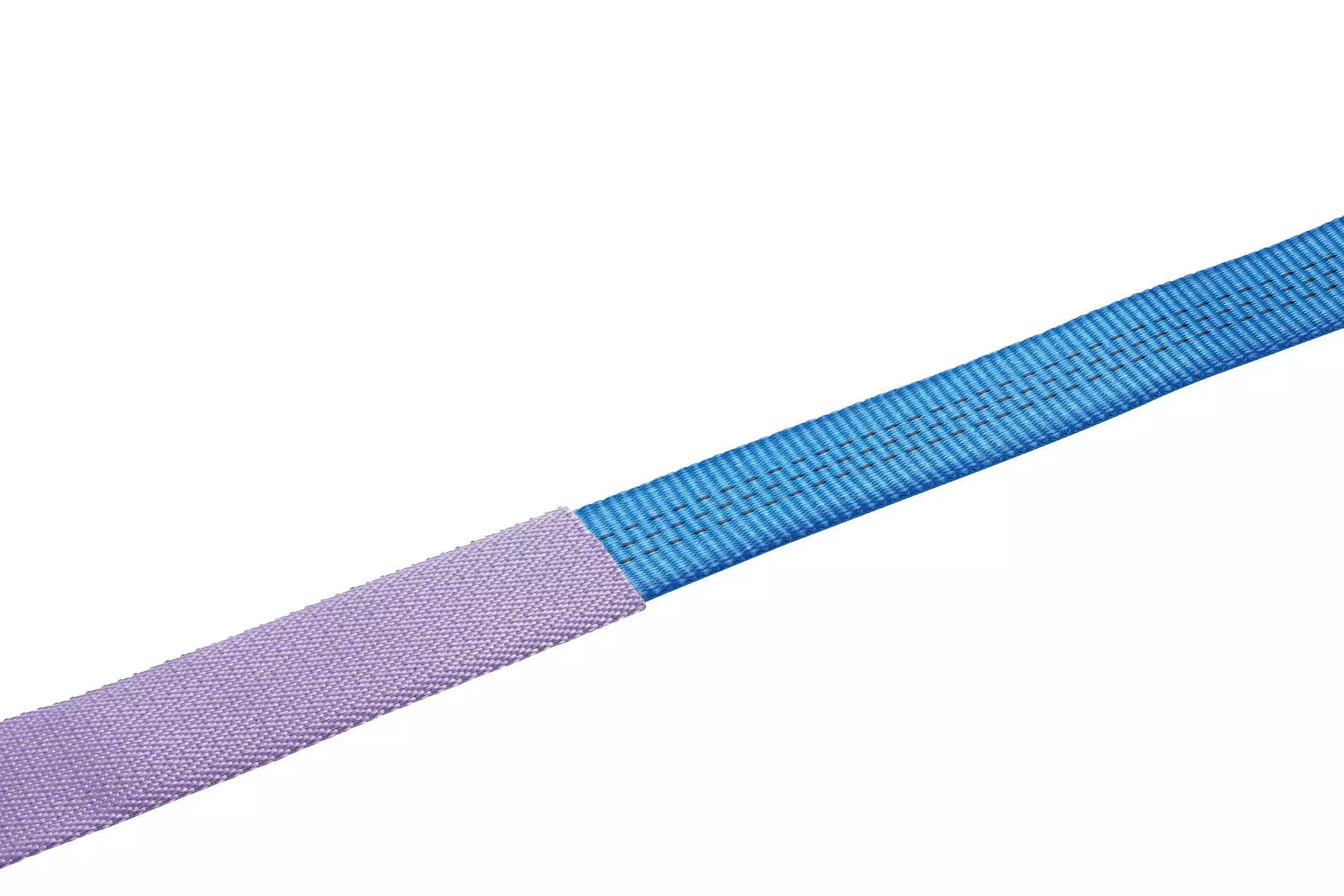

Abrasion protection hose made of fabric, purple
Accessories
Downloads
Order the 25 mm lashing strap now
Configure our products according to your requirements. Custom-made and delivered ready for installation.
