KAT AJS | Barrier

allchange-compatibility

Made in Germany

Barriers for small and large curtainsiders

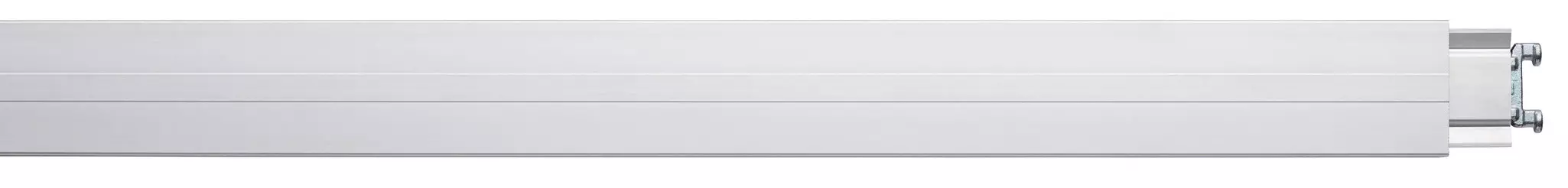

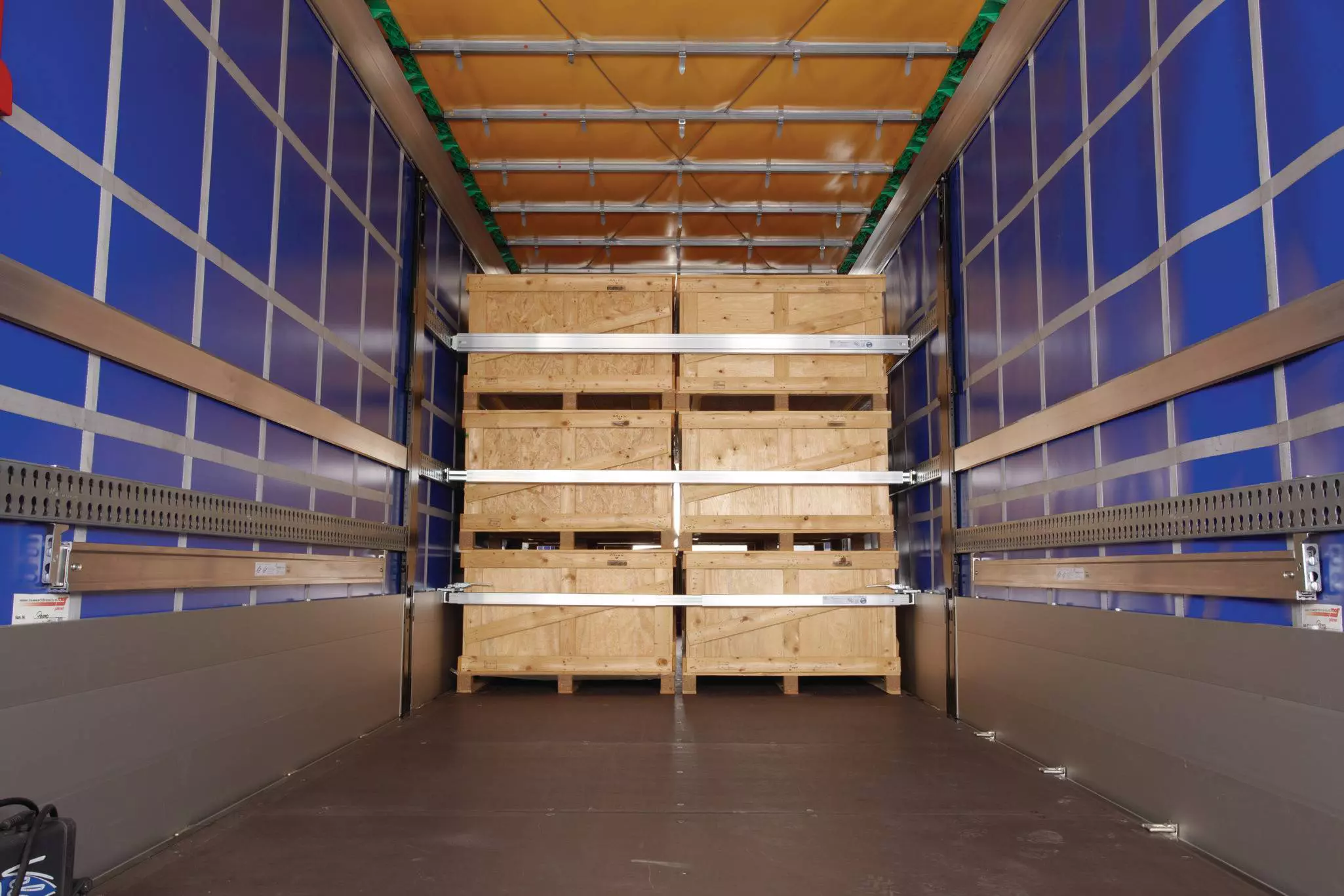

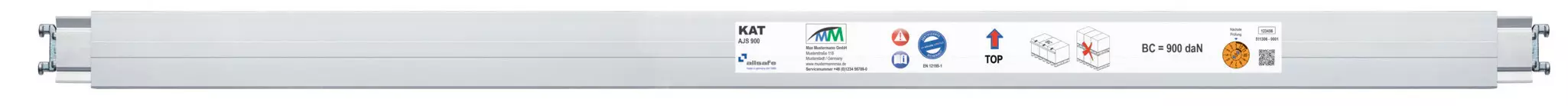

The KAT AJS locking beam is the ideal choice for securing loads in small and large curtainsiders. Specially developed for use in combination with AJS and CTD systems, it offers reliable stability and maximum flexibility for securing loads.

Thanks to its telescopic design, the KAT AJS adapts easily to different loading situations and can be securely anchored in the vehicle. The high load capacity ensures that even heavy loads are held securely in place, while the ergonomic operation guarantees quick and easy securing.

The form-fitting anchoring keeps the load securely in place even during sudden movements. The KAT AJS is available in various load capacity classes, offering the right solution for different transport requirements. Discover our variants for double-deck loading.

Technical specifications

At a glance

  • For keyhole tracks
  • Ideal for use in medium and large curtainsiders

Variants

KAT AJS BC 900

Base article no. 511306
  • range of use from min. 425 – max. 2510 mm
  • 70 mm telescopic
  • BC 900 daN

KAT AJS BC 1100

Base article no. 511307
  • Range of use from min. 485 – max. 2500 mm
  • 70 mm telescopic
  • BC 1100 daN

KAT AJS BC 2800

Base article no. 511308
  • range of use from min. 300 – max. 2480 mm
  • 20 mm telescopic
  • BC 2800 daN
