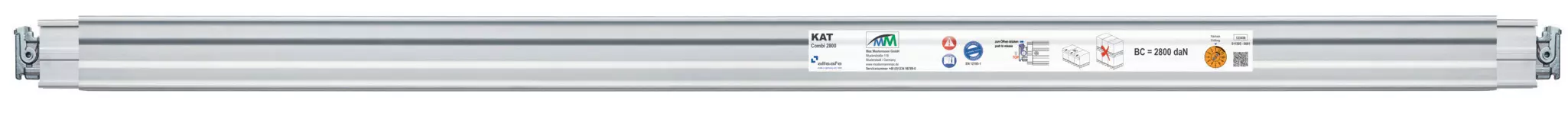

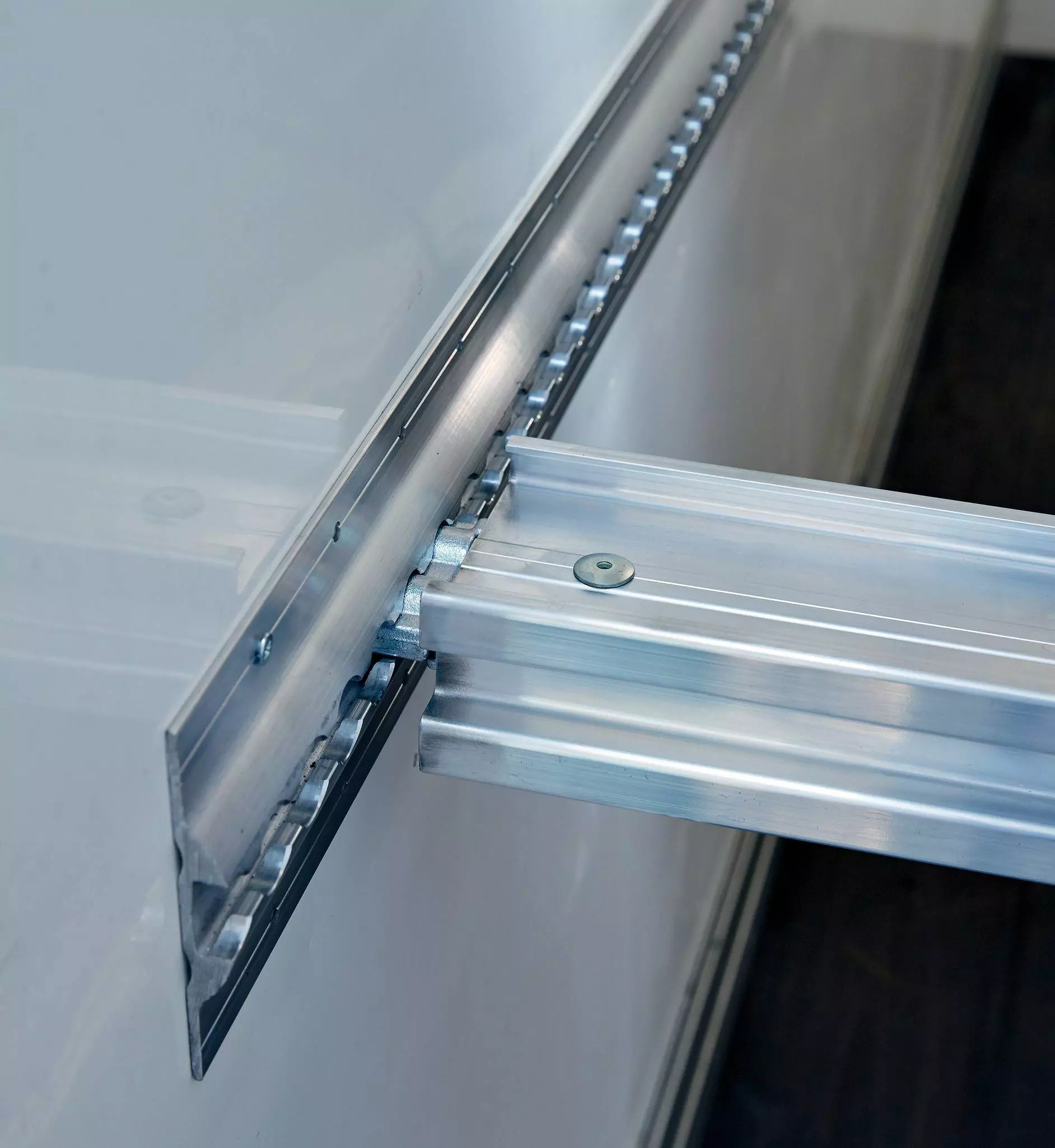

KAT locking bars | For box vehicles and curtainsiders

  • KAT Combi | Barrier beams for Combi tracks

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • Available in the application range: min. 485 – max. 2520 mm
    • Variants available in 900 daN, 1100 daN and 2300 daN
    • Variants for double-deck loading available
    • For Combi tracks
    • For horizontal use
    • For small to large box vehicles and curtainsiders
    • Variants with attached Airline tracks available

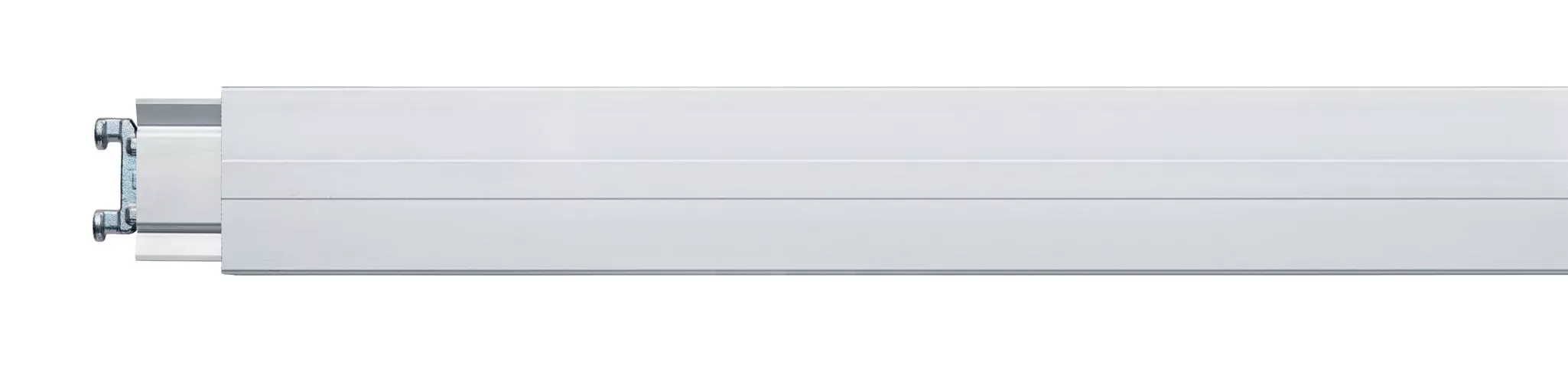

  • KAT Combi tracks 800

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • Ideal for use in medium and large box vehicles
    • Application range from min. 650 – max. 2510 mm
    • BC 800 daN
    • For combi tracks
    • Secured by integrated pressure spring
    • 30 mm telescopic
    • Made of aluminum

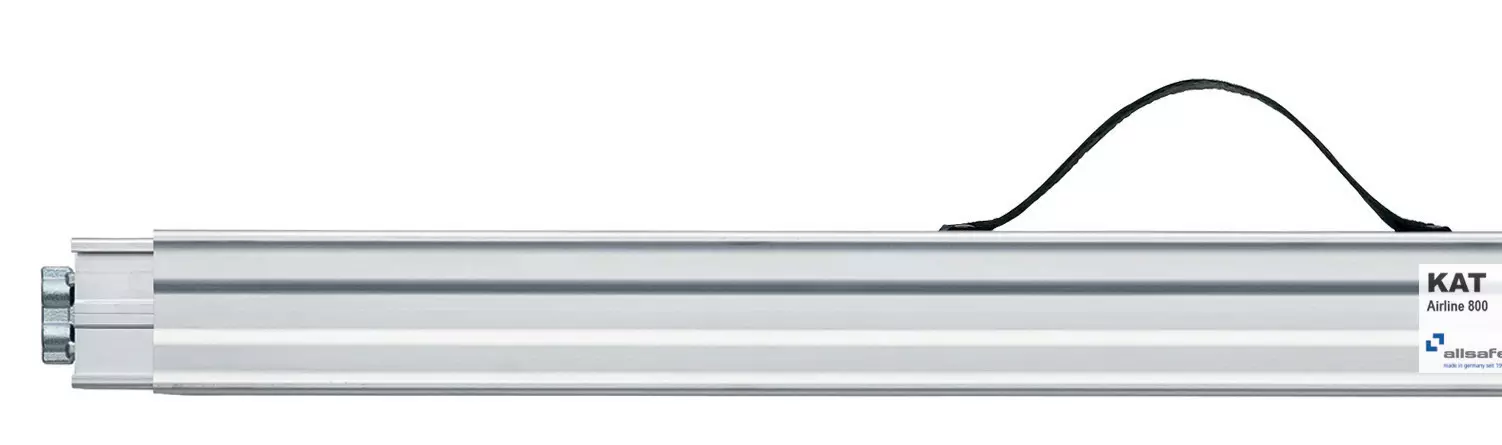

  • KAT Airline 800 | Locking bar for Airline tracks

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • Ideal for use in medium and large box vehicles
    • For use in areas with heights ranging from 650 – 2510 mm
    • BC 800 daN
    • For Airline tracks
    • 30 mm telescopic Locking
    • By integrated pressure spring

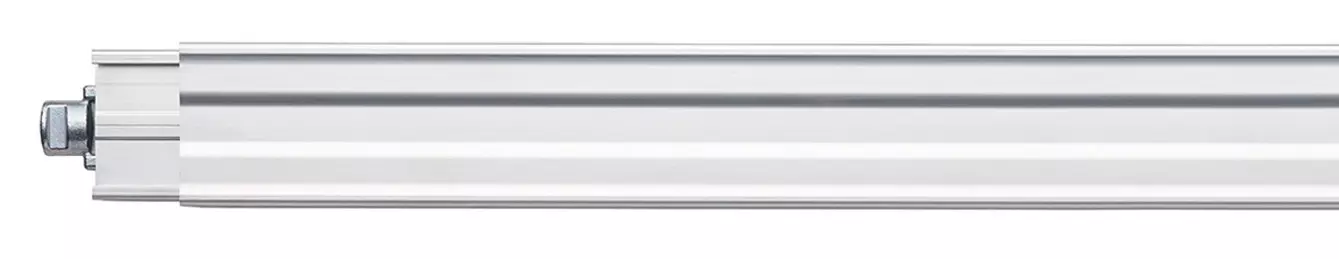

  • KAT SL | Locking bar

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • Models available for double-deck loading
    • Ideal for use in medium and large box vehicles
    • Can be used in vehicles with a min. of 485 mm and max. of 2520 mm
    • For keyhole tracks
    • Models available with 900 daN, 1100 daN and 2800 daN

  • KAT AJS | Barrier

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • For keyhole tracks
    • Ideal for use in medium and large curtainsiders
    • Can be used for loads ranging from 300–2510 mm
    • Available in 900 daN, 1100 daN and 2800 daN variants

KAT barrier beams from allsafe

Our locking beams provide secure and stable fixation for your load and are available for various rails. We offer suitable solutions for small and large box vehicles and curtainsiders, enabling versatile use.

For maximum compatibility, we offer locking beams for use with Combi tracks, Airline tracks, keyhole tracks, and AJS tracks. Our range also includes products that are suitable for double-deck loading, enabling efficient use of space. An optional Airline track provides even greater flexibility and extended application possibilities.
