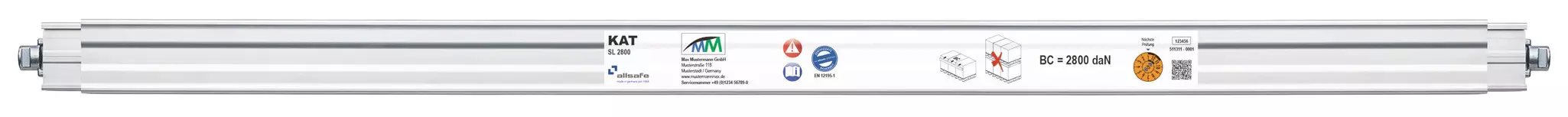

KAT SL | Locking bar

allchange-compatibility

Made in Germany

For use in keyhole tracks – for small and large box vehicles

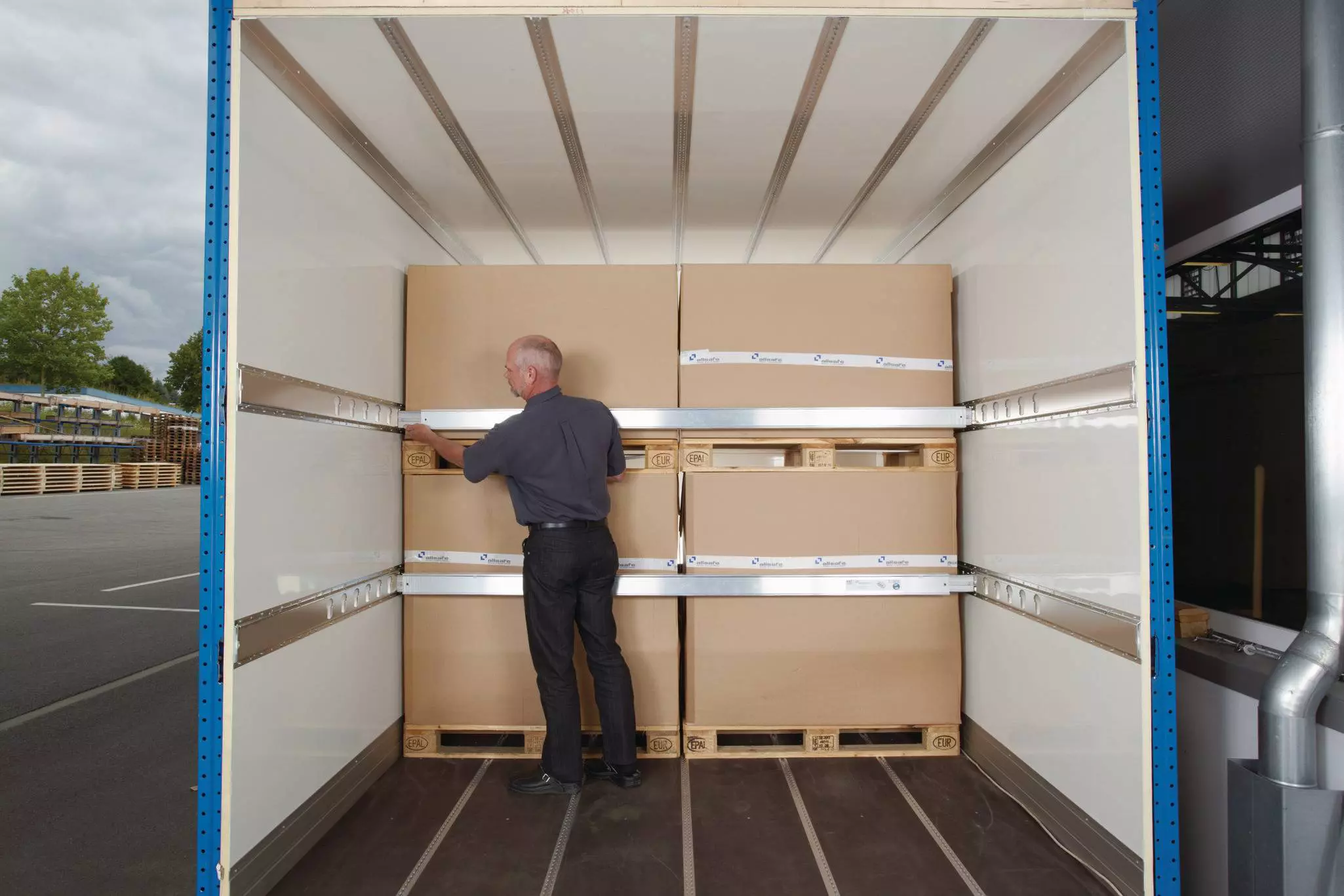

The KAT SL locking beam is the ideal solution for securing loads in box vehicles with keyhole plates. Our KAT SL locking beams have been specially developed for use in garment boxes. Our range also includes variants for double-deck loading.

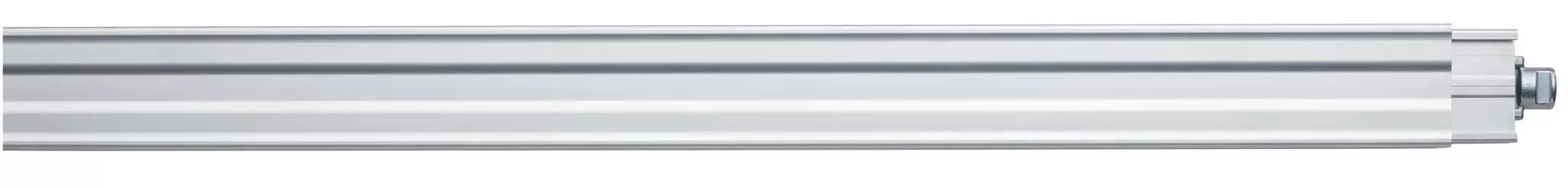

Thanks to its one-sided telescoping capability, the locking beam impresses with its ergonomic application. This allows the bar to be adjusted to the right length with minimal effort.

With its high load capacity and stable form-fitting anchorage, the KAT SL is ideally suited for keeping loads secure even in difficult driving conditions. The bar is available in different load capacity classes and can therefore be ideally adapted to your individual requirements.

Technical specifications

At a glance

  • Ideal for use in medium-sized and large box vehicles
  • For keyhole tracks

Variants

KAT SL BC 900

Base article no. 511309
  • BC 900 daN
  • 35 mm telescopic
  • range of use from min. 485 – max. 2475 mm

KAT SL BC 1100

Base article no. 511310
  • BC 1100 daN
  • 35 mm telescopic
  • Suitable for double-deck loading (PL 1000 daN)
  • Range of use from min. 485 – max. 2465 mm
  • For standard width Telescopic on both sides also possible

KAT SL BC 2800

Base article no. 511311
  • BC 2800 daN
  • 20 mm telescopic
  • Range of use from min. 650 – max. 2520 mm
