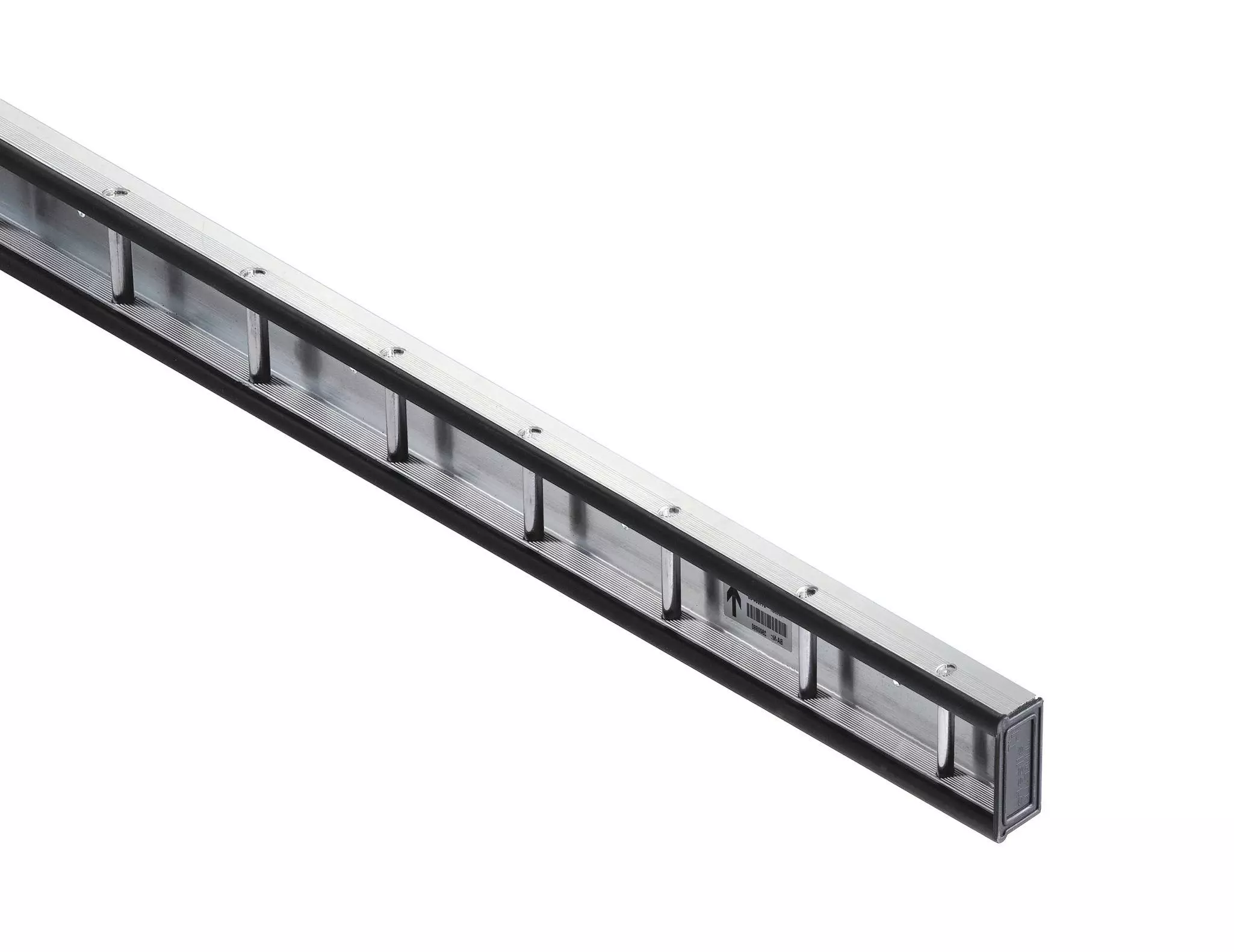

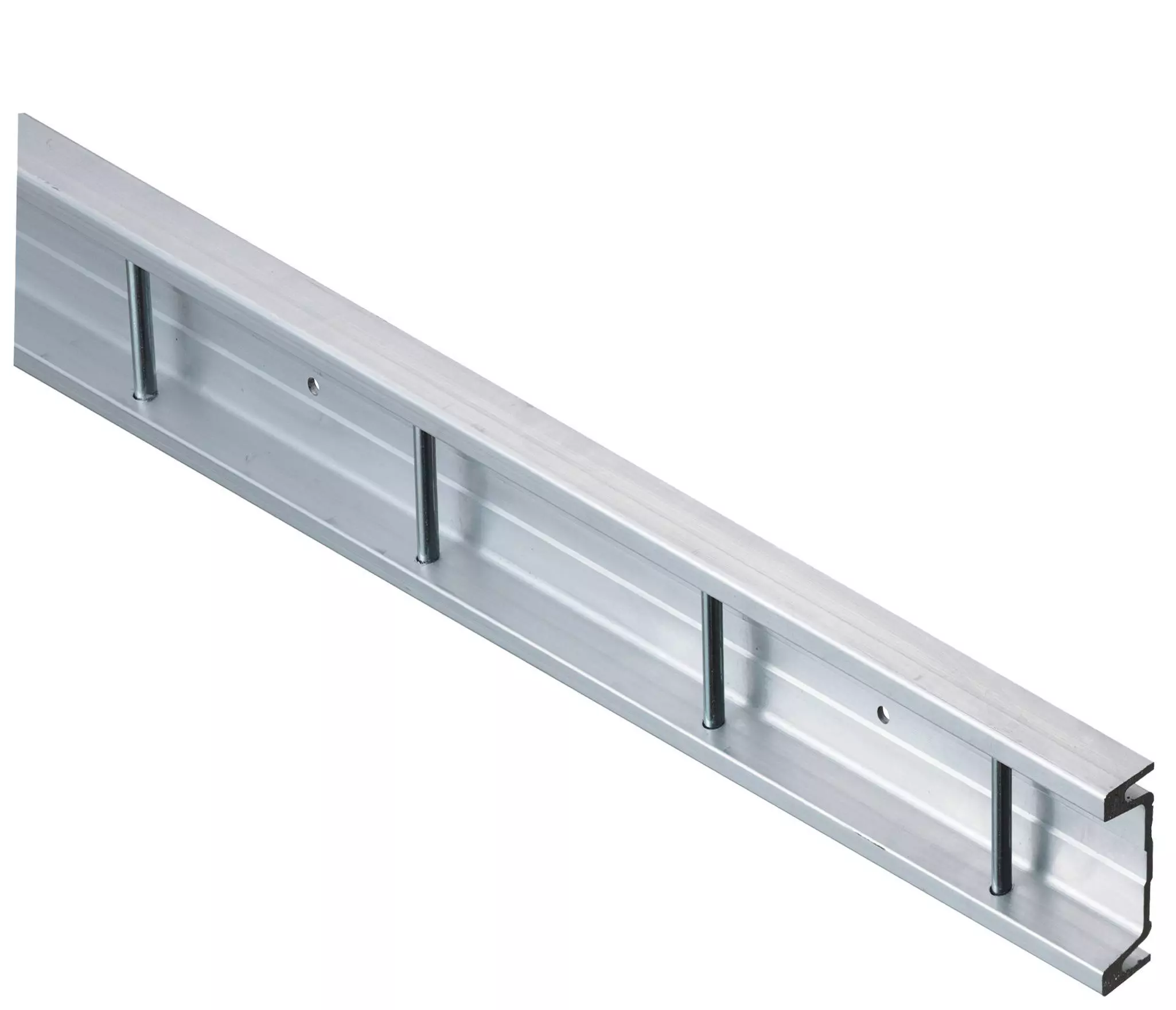

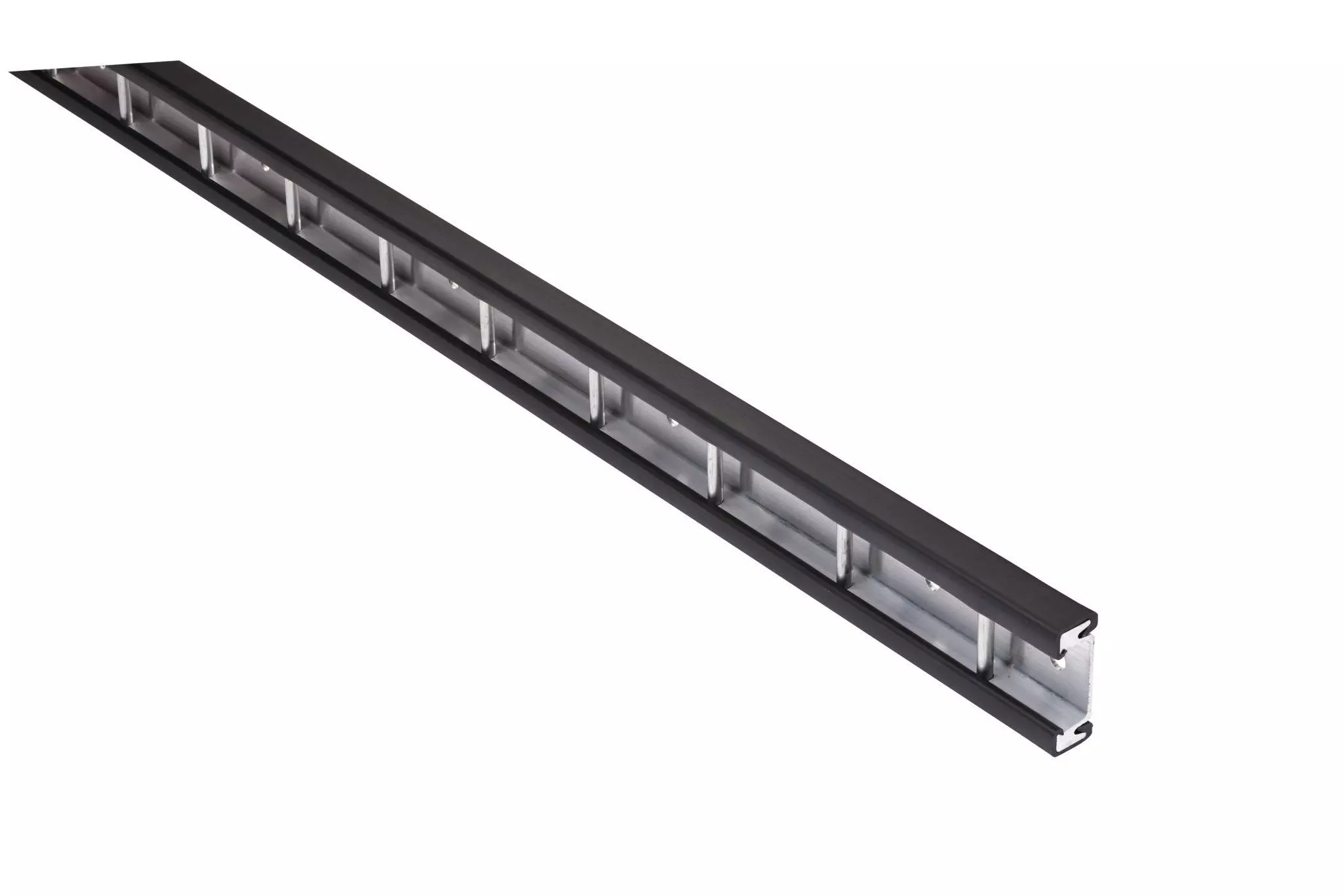

Pin tracks, small
Base article no. 510546
Pin tracks for attachment
allchange-compatibility
Made in Germany
The robust and straightforward fastening solution

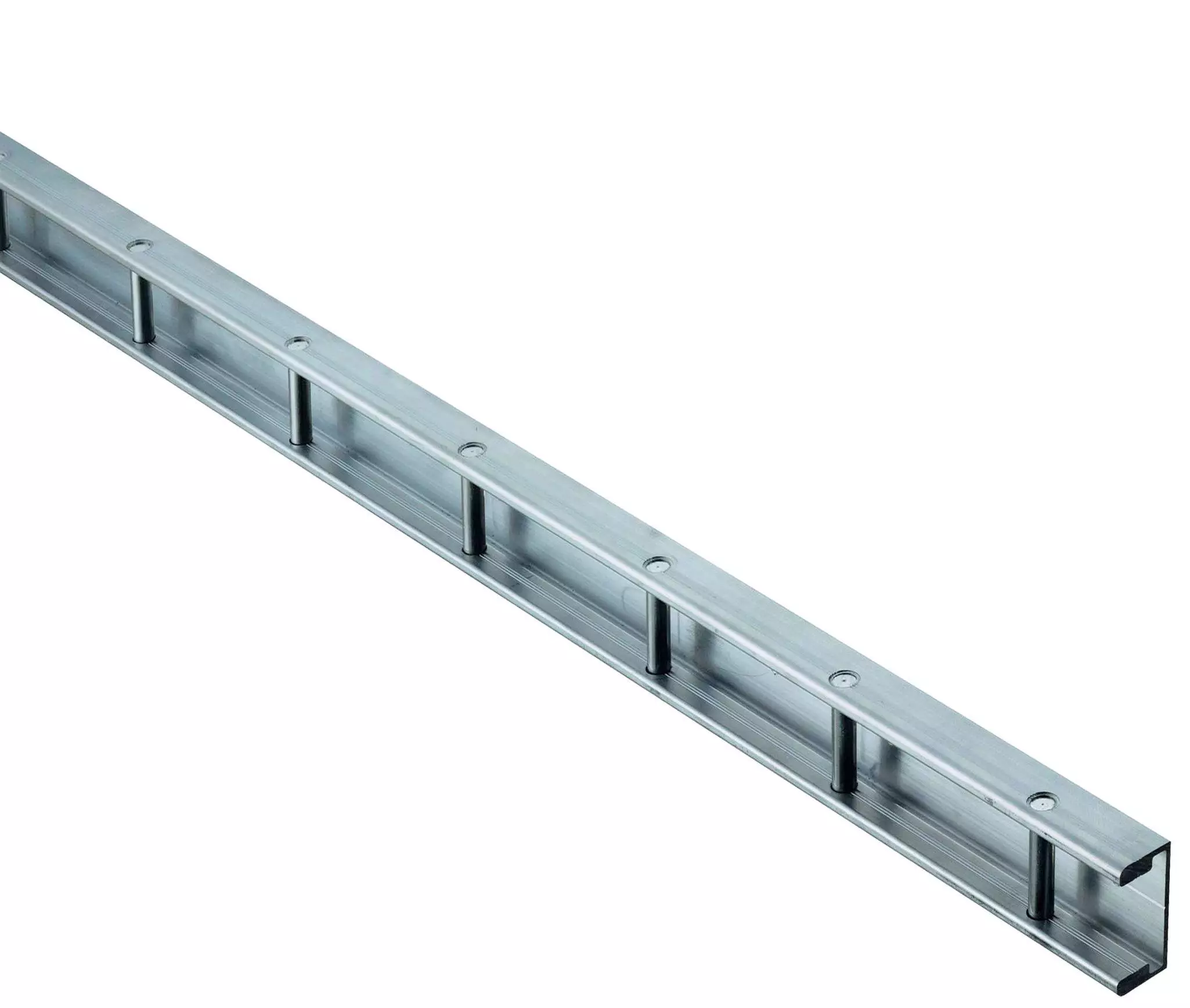

The pin track from allsafe offers a robust and flexible option for securely fixing loads in vehicles. It is placed directly on the wall and can be quickly and easily fastened with screws or adhesive – without any complicated accessories. Thanks to its simple handling, the pin track is ideal for rental and furniture transport vehicles as well as for small and large box vehicles. In combination with flat hooks, it serves as a reliable lashing point for securing transported goods. The integrated rubber coating protects sensitive surfaces from chafing and prevents the load from slipping. Whether in the small or large version, with the allsafe pin track you are choosing a durable and proven solution that keeps your load secure.
Technical specifications
At a glance
- Ideal for transporters Medium-sized box vehicles
- Use as side wall rail
- Versions available for screwing and gluing
- Customized lengths from 220 to 6000 mm
- For mounting
- Made of aluminum
Variants
Configuration options
Please select the rod spacing B1 and B2. Good results are achieved with rod spacing B1 = 100 mm and B2 = 50 mm.
For B2, a minimum spacing of 50 mm and a maximum spacing of 150 mm must be selected.
Distance between Pin tracks
Please select the rod spacings B1 and B2. Good results are achieved with rod spacing B1 = 100 mm and B2 = 50 mm.
- B2 min. 50 mm
- B2 max. 150 mm

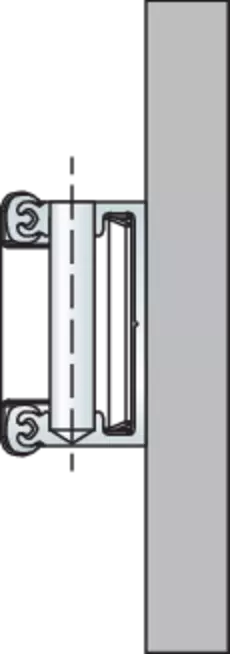

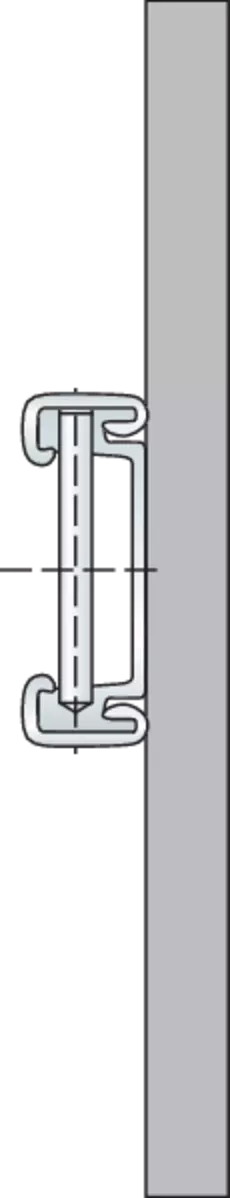

Mounting hole
| D5 | D6 | |
|---|---|---|
| d | 5,0 | 6,0 |
Distance between mounting holes
Please select the hole spacing a2. Good results are achieved with a mounting distance a2 = 200 mm.
- a2 = B1 or multiple of B1
Accessories
End caps
End piece for Pin tracks, large with rubber (for 71099)
Base article no.: 560066-10
End piece for Pin tracks, large (for 510168)
Base article no.: 522852
