Bolt Ø 19 mm
Compatible with Airline tracks Ø 20 mm
Base article no.: 512010

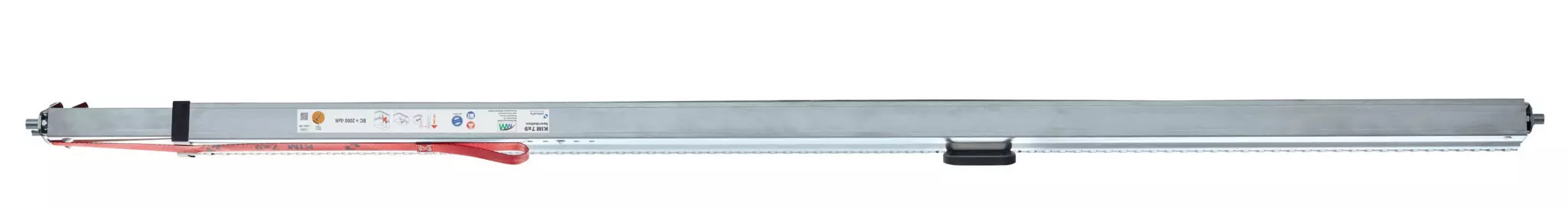

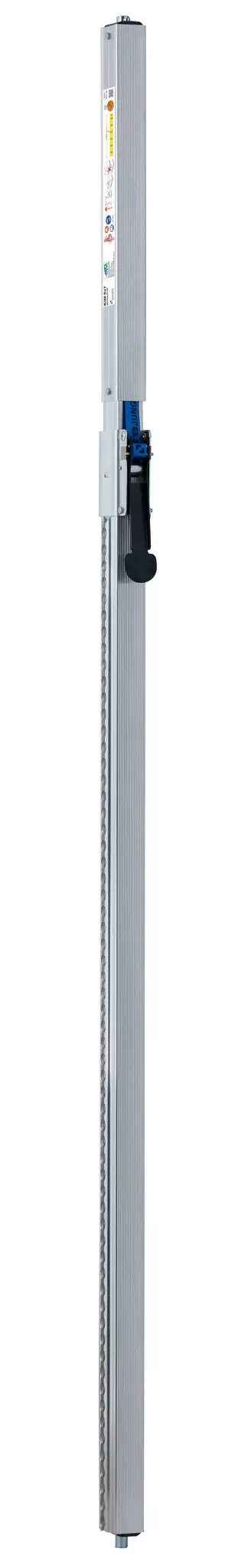

KIM 7x9 | Telescopic locking bar with integrated Airline tracks
Maximum load capacity and maximum flexibility for large box-type curtainsider vehicles
The KIM 7x9 locking bar offers maximum stability and adaptability. Our strongest locking bar with a square profile secures goods with an impressive locking force of up to 2000 daN, which ensures reliable hold even at the highest loads.

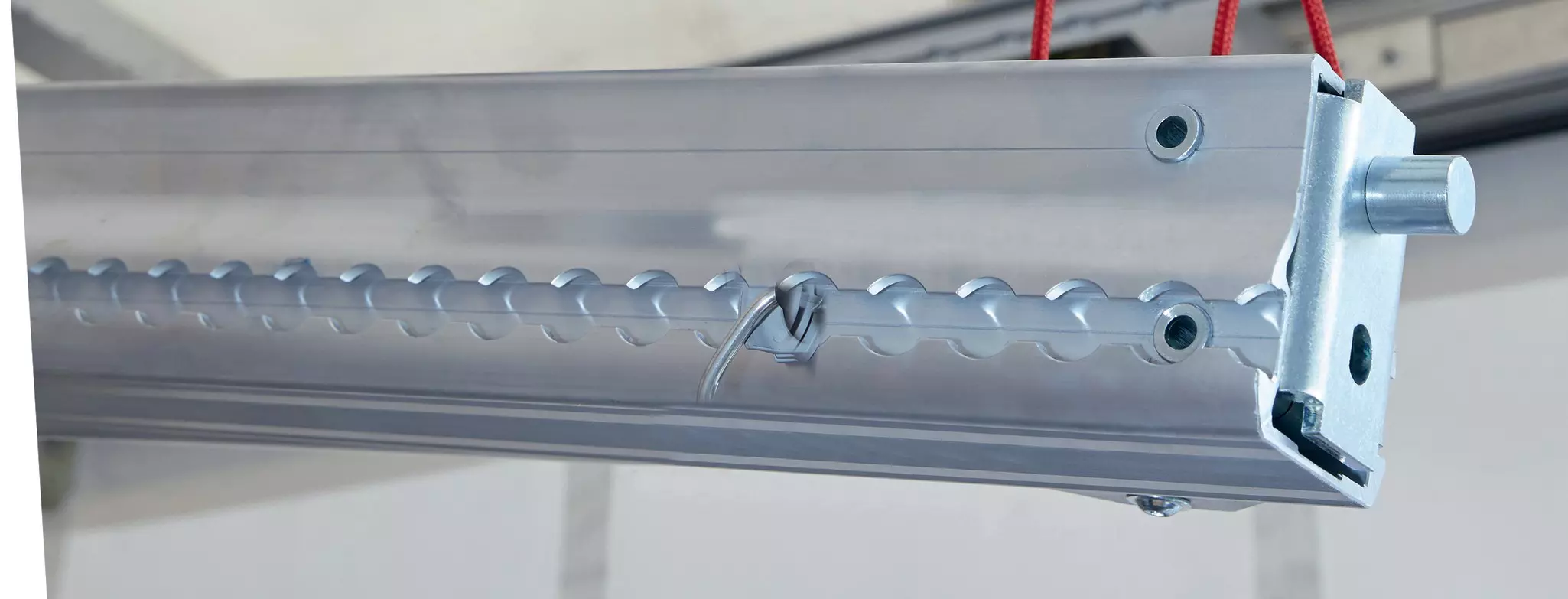

The locking bar is equipped as standard with two integrated Airline tracks that offer a variety of fastening options. These rails enable the use of locking bars, straps and fittings, which means that it is always possible to react to different loading requirements. The KIM 7x9 is manufactured to fit the internal dimensions of the vehicle precisely and offers maximum flexibility of use.
Our KIM 7x9 locking bar is also part of our CRS system, which was specially developed for securing beverage crates.
Technical specifications
At a glance
- Only for vertical use

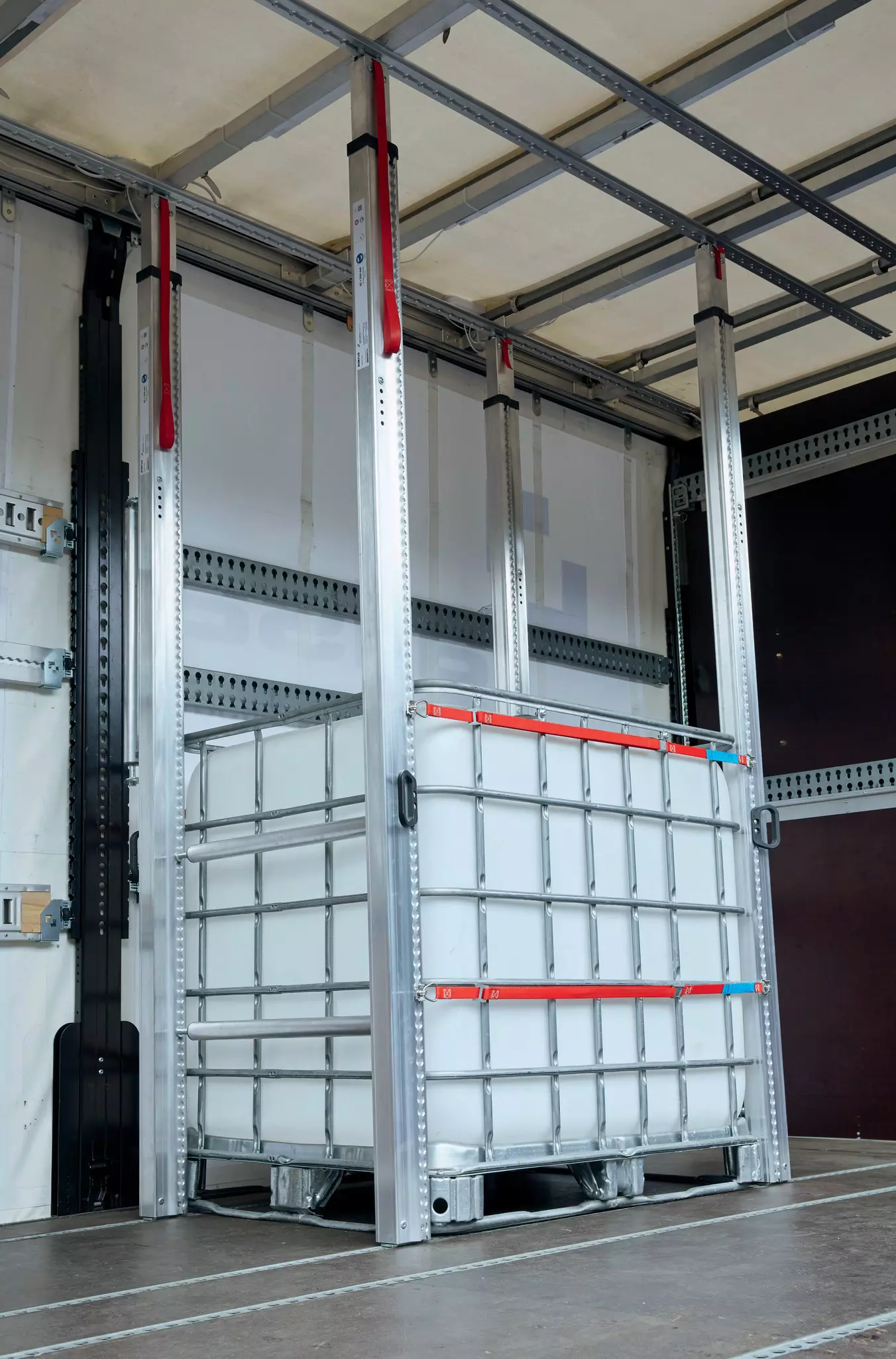

- Ideal for use in large box vehicles and curtainsiders
- Square locking bar
- Up to 2000 daN BC
- Weight: approx. 10–15 kg depending on length
- Made of steel or aluminum
Area of application
- Operating range from min. 1800 to max. 3100 mm
- Fixed operating range with 50 mm spring travel

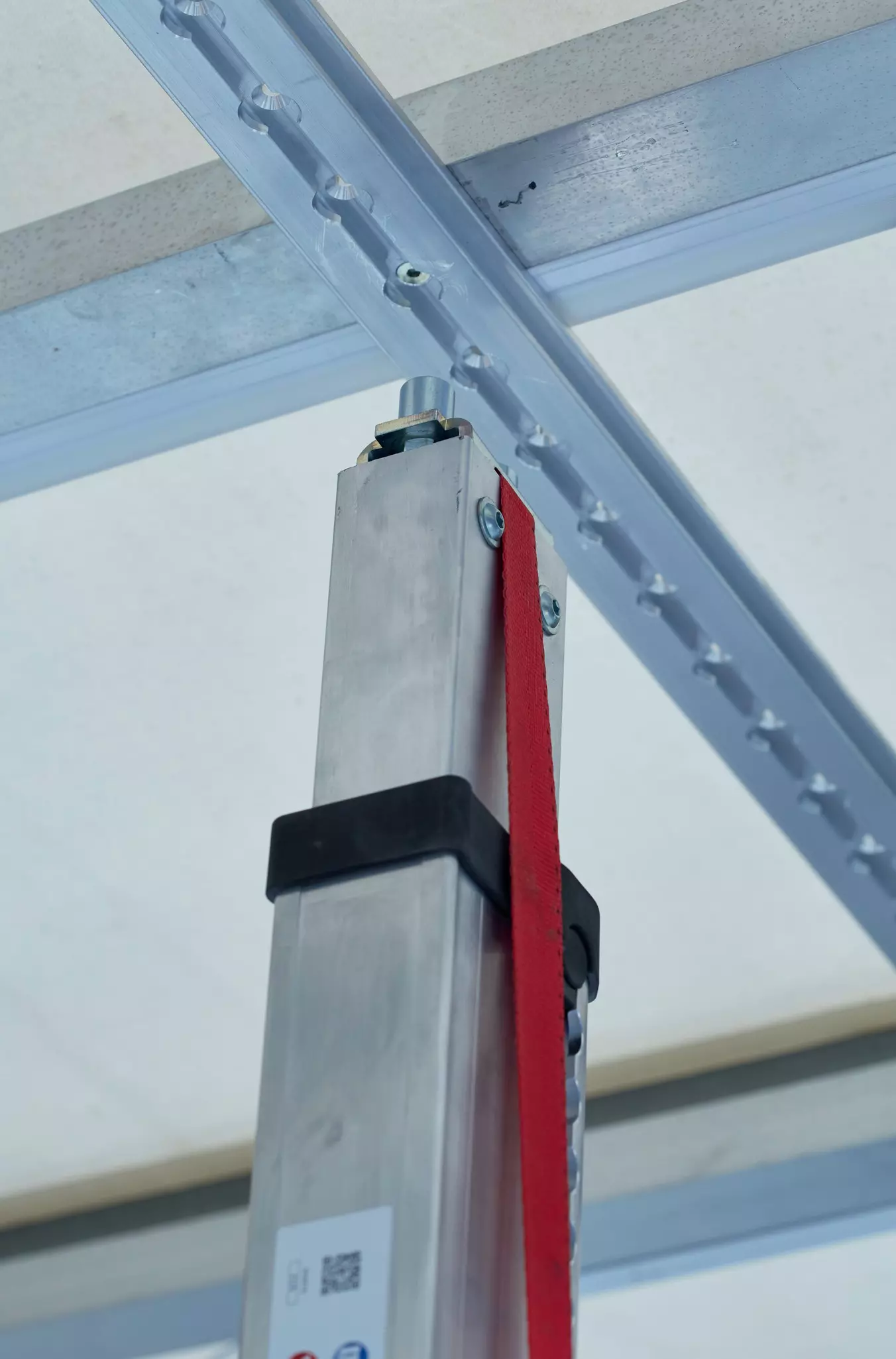

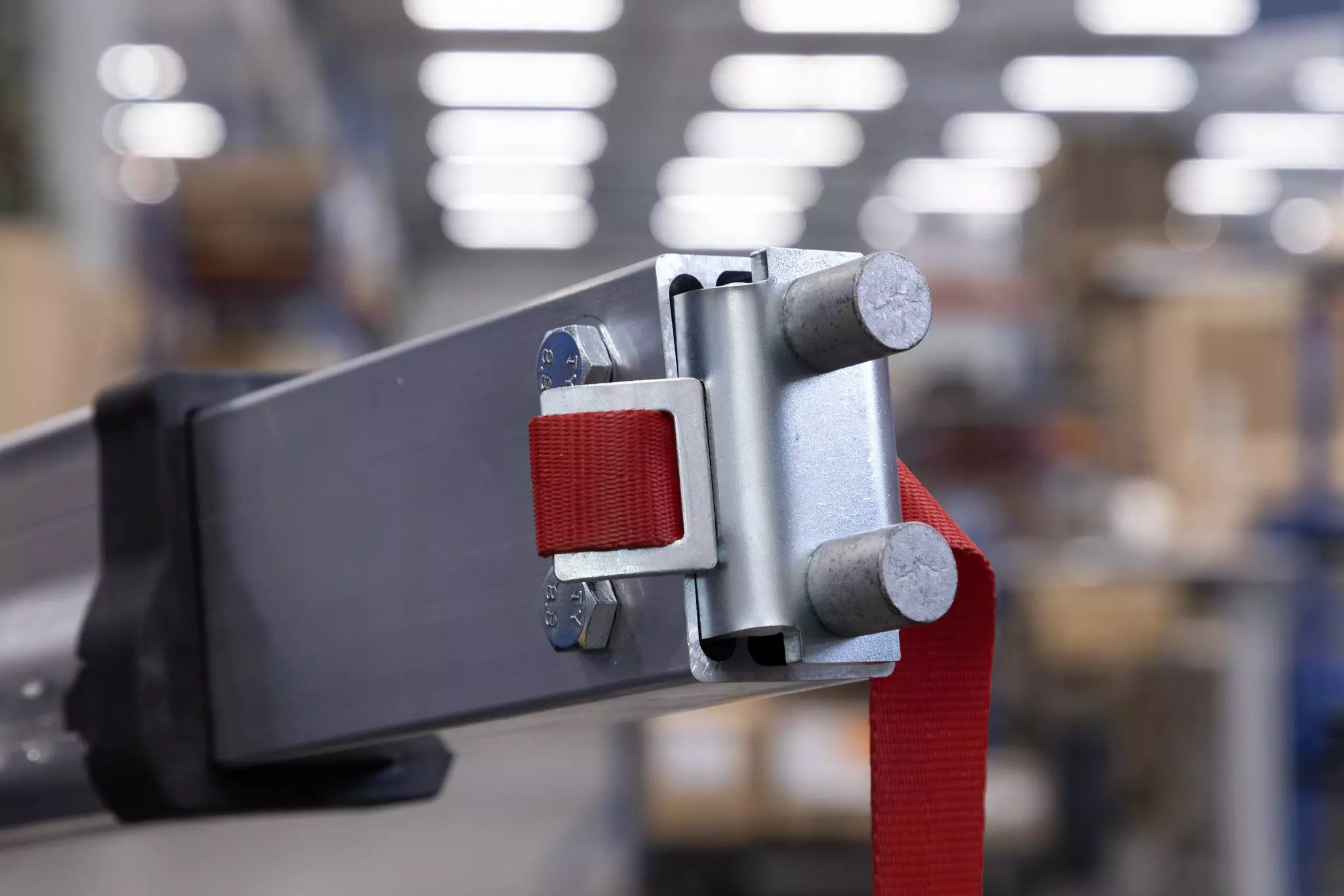

End pieces
Bolt Ø 24 mm
Compatible with round hole tracks Ø 25 mm
Configuration options
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Downloads
Order the KIM 7x9 locking bar now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
