KIM locking bars | For transporters, box vehicles and curtainsiders

Vehicle type
Scope
Vehicle type
Scope

  • KIM 44 Profi locking bar

    • Round barrier
    • For vans and small box vehicles
    • Range of application from min. 650 mm to max. 2500 mm
    • Ergonomically adjustable

  • Lock bar KIM 46

    • Round barrier
    • For vans and small box vehicles and curtainsiders
    • Operating range from min. 300 to max. 2540 mm
    • Fixed application range with 50 mm spring travel

  • Barrier bar KIM 46 Professional

    • For vans and small box vehicles
    • Rundsperrstange
    • Areas of application from min. 1150 to max. 2500 mm
    • Ergonomically adjustable

  • KIM 55 locking bar

    • Round locking bar
    • For medium-sized box and curtainsider vehicles
    • Application range from min. 640 – max. 2520 mm
    • fixed application range with 70 mm spring travel

  • KIM 55 Profi locking bar

    • Round barrier
    • Areas of application from min. 1850 to max. 2850 mm
    • For small to large box vehicle and curtainsider trucks
    • Ergonomically adjustable

  • KIM 4x4 locking bar

    • Square locking bar
    • For transporters
    • Operating range from min. 640 to max. 2520 mm
    • Fixed application range with 70 mm spring travel

  • KIM 4x4 Profi locking bar

    • For transporters
    • Square locking bar
    • Range of application from min. 1250 to max. 2550 mm
    • Ergonomically adjustable

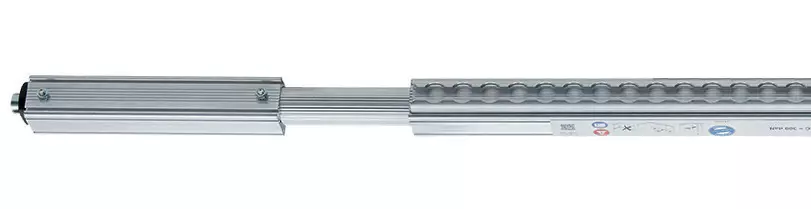

  • KIM 4x4 Airline track

    • Square locking bar
    • For transporters
    • Range of application from min. 640 to max. 2520 mm
    • Fixed application range with 70 mm spring travel
    • With attached Airline tracks

  • KIM 4x4 Airline tracks

    • Square locking bar
    • For transporters
    • Operating range from min. 1250 mm to max. 2550 mm
    • Ergonomically adjustable
    • With attached Airline tracks

  • Barrier bar KIM 5x7

    • Square locking bar
    • For medium to large box vehicles and curtainsiders
    • Operating range from min. 640 to max. 2480 mm

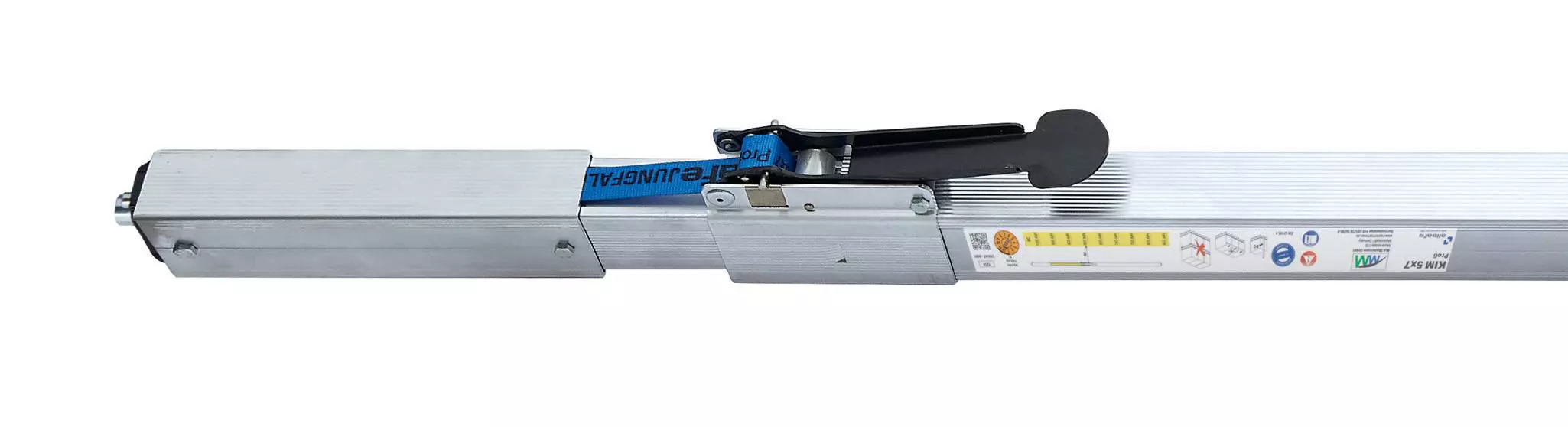

  • KIM 5x7 Professional Locking Bar

    • Square locking bar
    • Areas of application from min. 1800 to max. 3200 mm
    • For medium to large box vehicles and curtainsiders
    • Ergonomically adjustable

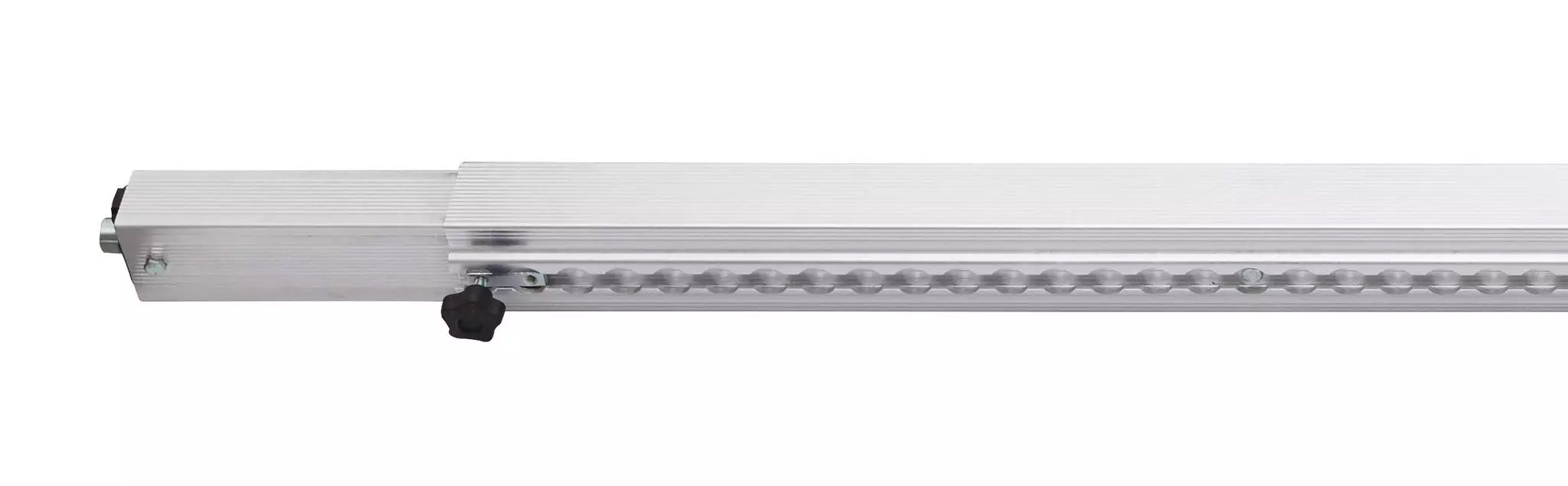

  • Barrier bar KIM 5x7 Airline tracks

    • Square locking bar
    • For medium to large box vehicles and curtainsiders
    • Operating range from min. 640 to max. 2480 mm
    • Fixed application range with 70 mm spring travel
    • With attached Airline tracks

  • Barrier bar KIM 5x7 Airline tracks

    • Square locking bar
    • For medium to large box vehicles and curtainsiders
    • Operating range from min. 1800 to max. 3200 mm
    • Ergonomically adjustable
    • With attached Airline tracks

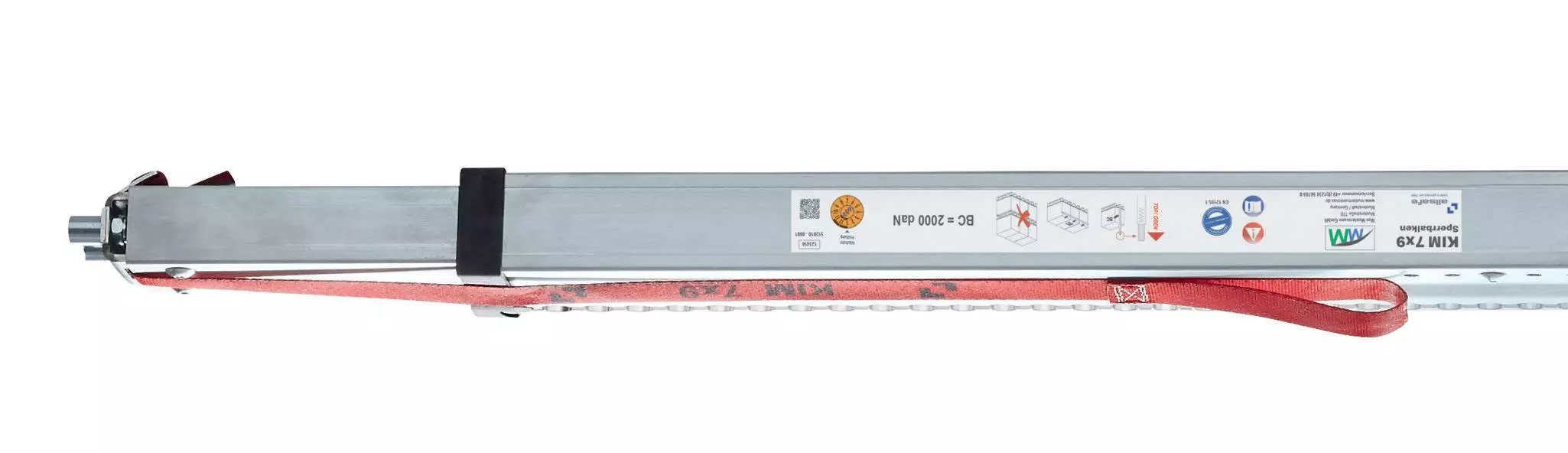

  • Barrier bar KIM 7x9

    • Square locking bar
    • For large box vehicles and curtainsiders
    • Operating range from min. 1800 to max. 3100 mm
    • Fixed application range with 50 mm spring travel
    • For vertical use only

KIM barrier posts from allsafe

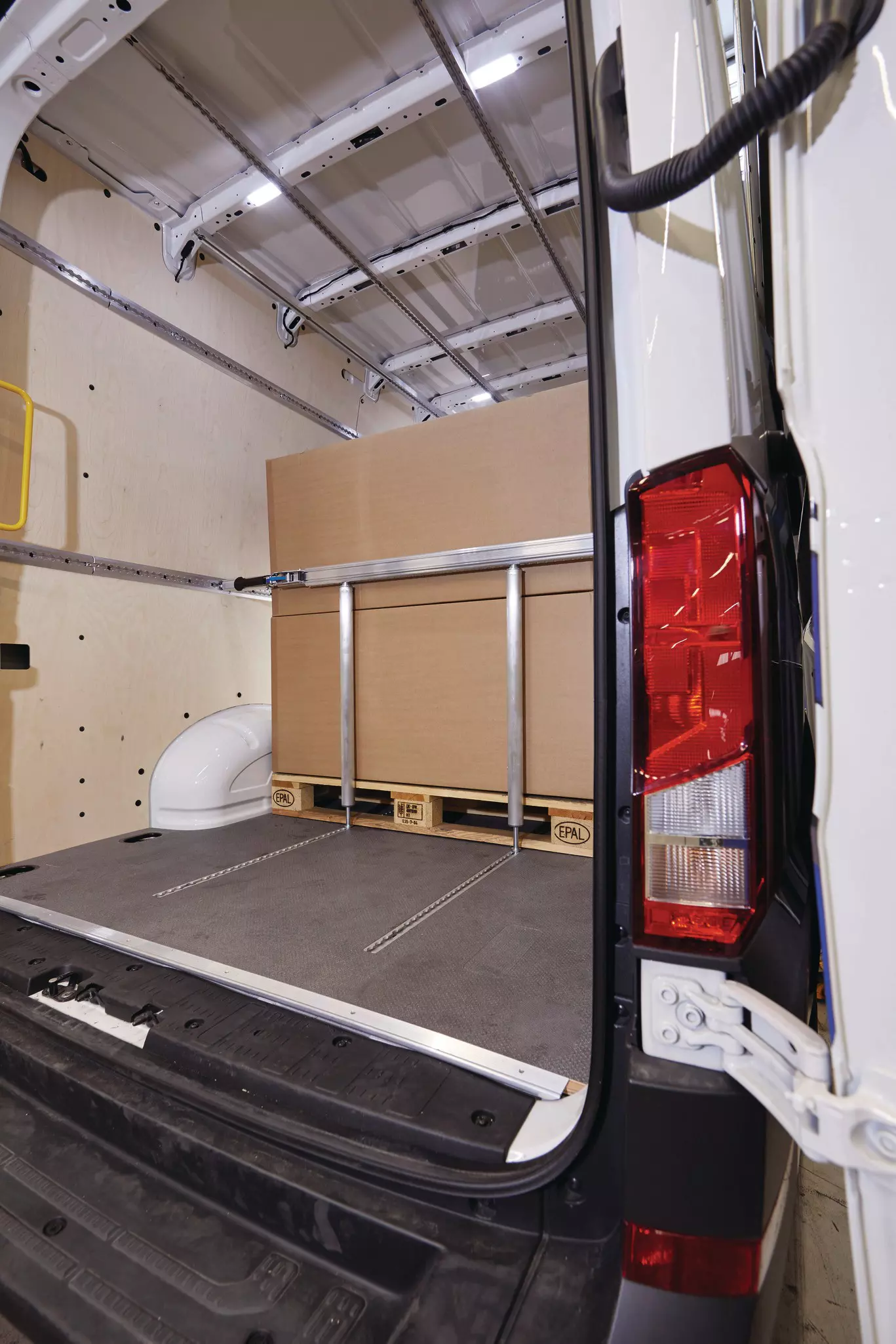

Our locking bars are the perfect solution for securing loads in combination with Airline tracks, Pin tracks or Round hole tracks, offering safety and flexibility for different types of vehicles. Whether for transporters, panel vans or small and large box vehicles and curtainsiders – at allsafe you will find the right locking bar configured to your requirements.

We offer both round and square locking bars made of lightweight aluminum. This reduces weight and makes them easy to handle. The wide contact surface of our square locking elements ensures maximum protection for your load.

Our products with the “Profi” designation offer maximum flexibility: they are adjustable in length, can be used in multiple vehicles and in different positions, and feature an integrated load capacity indicator.

Our products without the “Profi” designation are ideal for use with a fixed installation height or width and have a defined spring travel.
