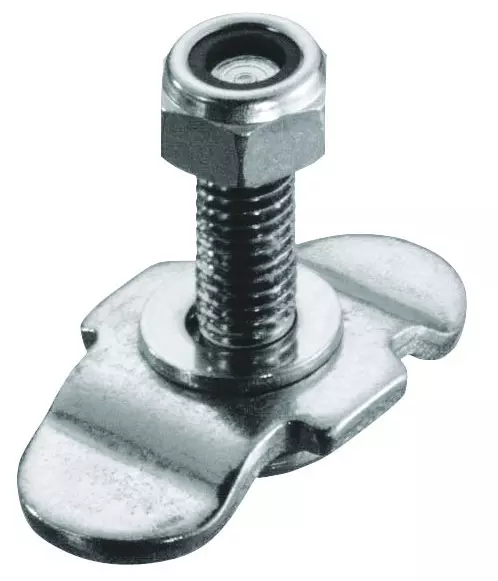

KERL M8 x2 | x 6 | x 10 | x 20 | x 30
Base article no. 310002
Screw fittings with threaded bolts
allchange-compatibility
Made in Germany
The flexible internal thread for your airline track
The KERL JIM from allsafe is the clever internal thread that sits exactly where you need it. Whether as an M8 made of sintered metal and plastic or 2x M6 made of galvanized steel, the KERL JIM can be quickly and easily inserted into airline tracks, remains securely in place during assembly, and can be moved or removed with just one hand.
Thanks to its clever design, it doesn't rattle, fall out accidentally, or stick out – for secure and clean fastening of fittings. Perfect for anyone looking for a flexible and stable fastening solution. A little fastening genius that makes everyday life in vehicle construction noticeably easier.
Technical specifications
*The length indicates the clamping range K (see sketch) when installed in standard rails. For other rails, the clamping range varies by ± 2 mm.
**Specification of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.
At a glance
- Variants with M8 and M10 threads available

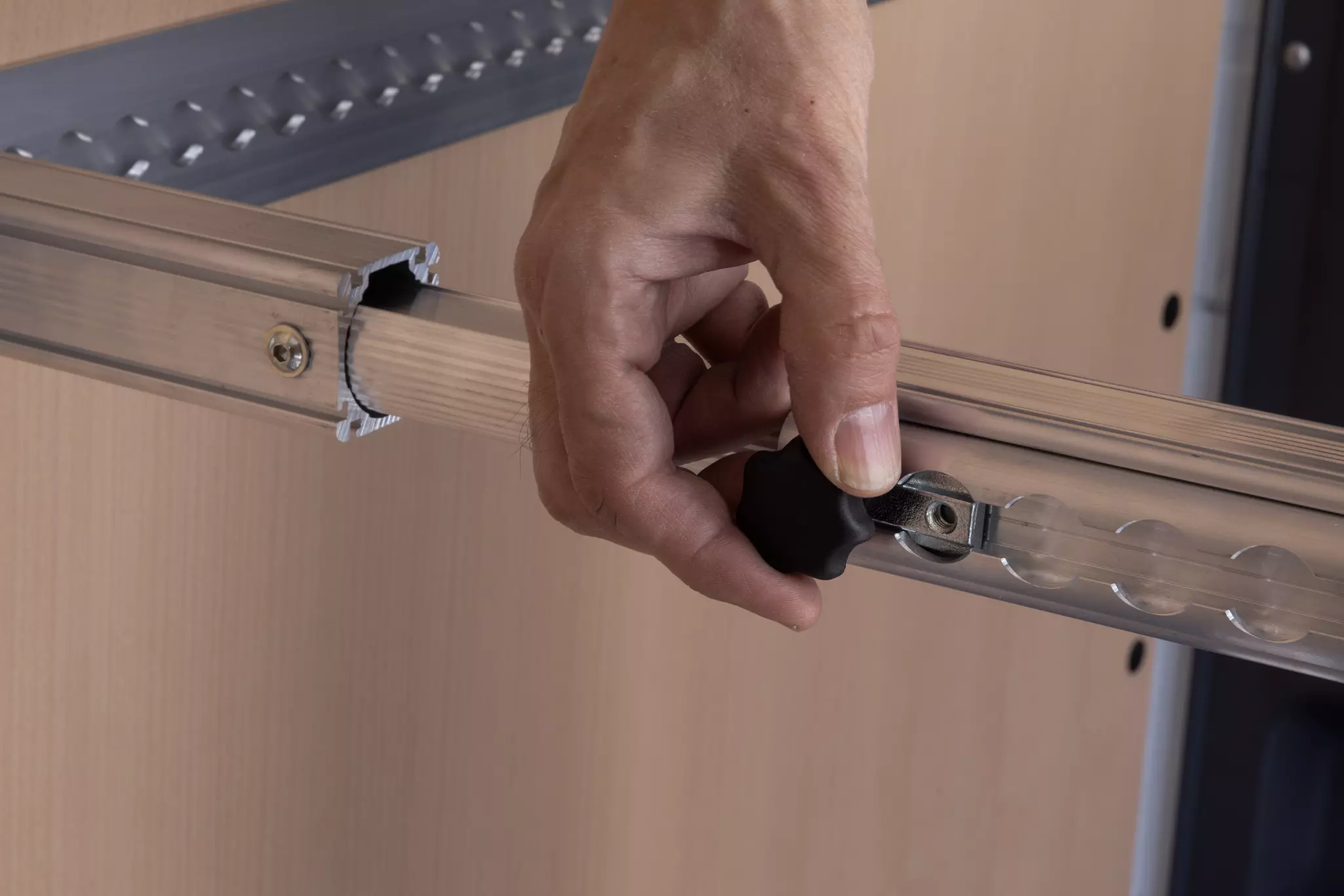

- Variants with star knob available
- Compatible with Airline tracks with 25 mm grid

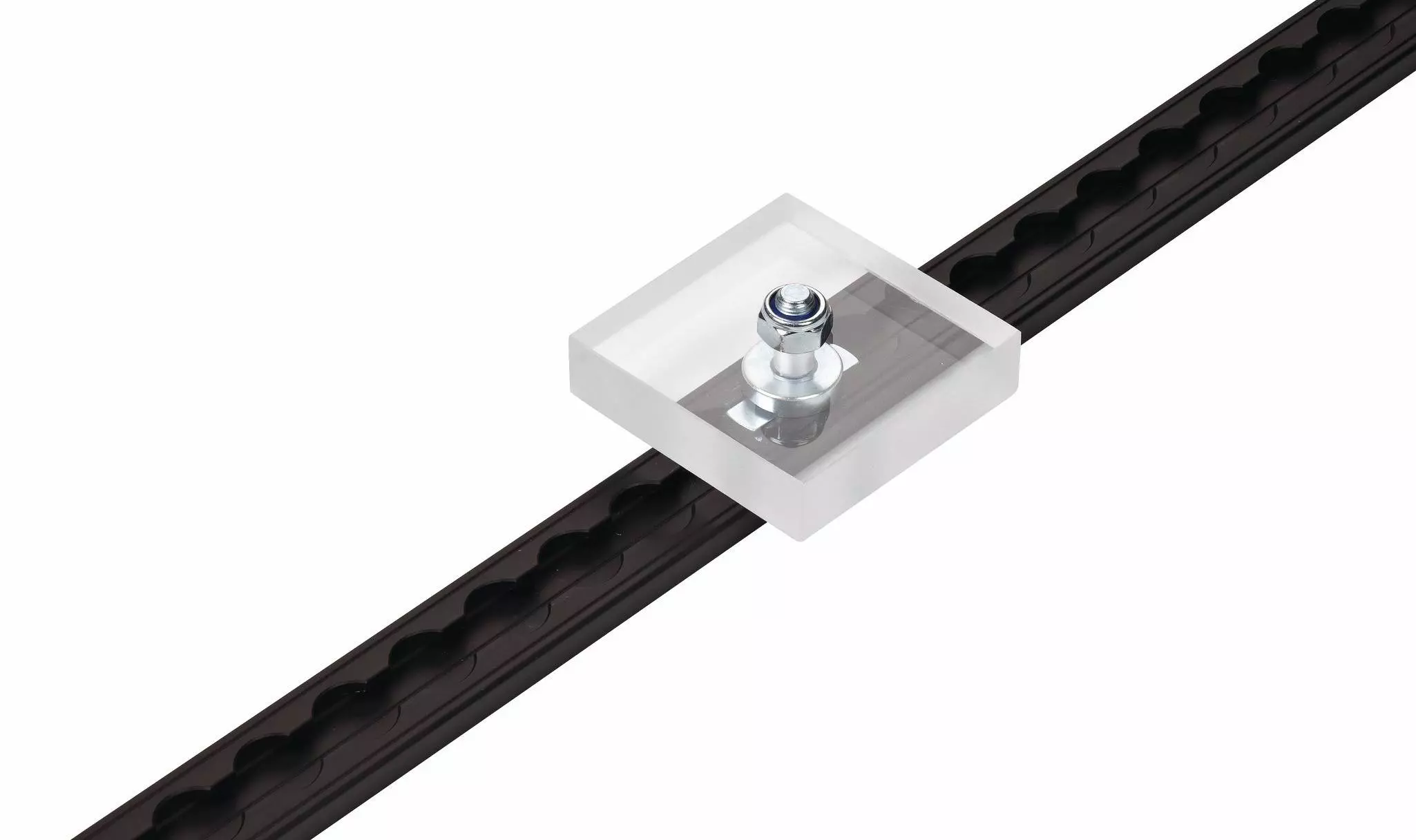

KERL M8 x 6 | x 10 | x 20 | x 30
Length indicates the clamping range K (see sketch) when installed in standard rails. For other rails, the clamping range varies by ± 2 mm.
*Indication of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.
Technical specifications KERL M8 x 6 | x 10 | x 20 | x 30
| 310002-19 | M8x6 | L24 | K0-6 |
|---|---|---|---|
| 310002-20 | M8x10 | L30 | K0-10 |
| 310002-21 | M8x20 | L40 | K0-20 |
| 310002-22 | M8x30 | L50 | K0-30 |

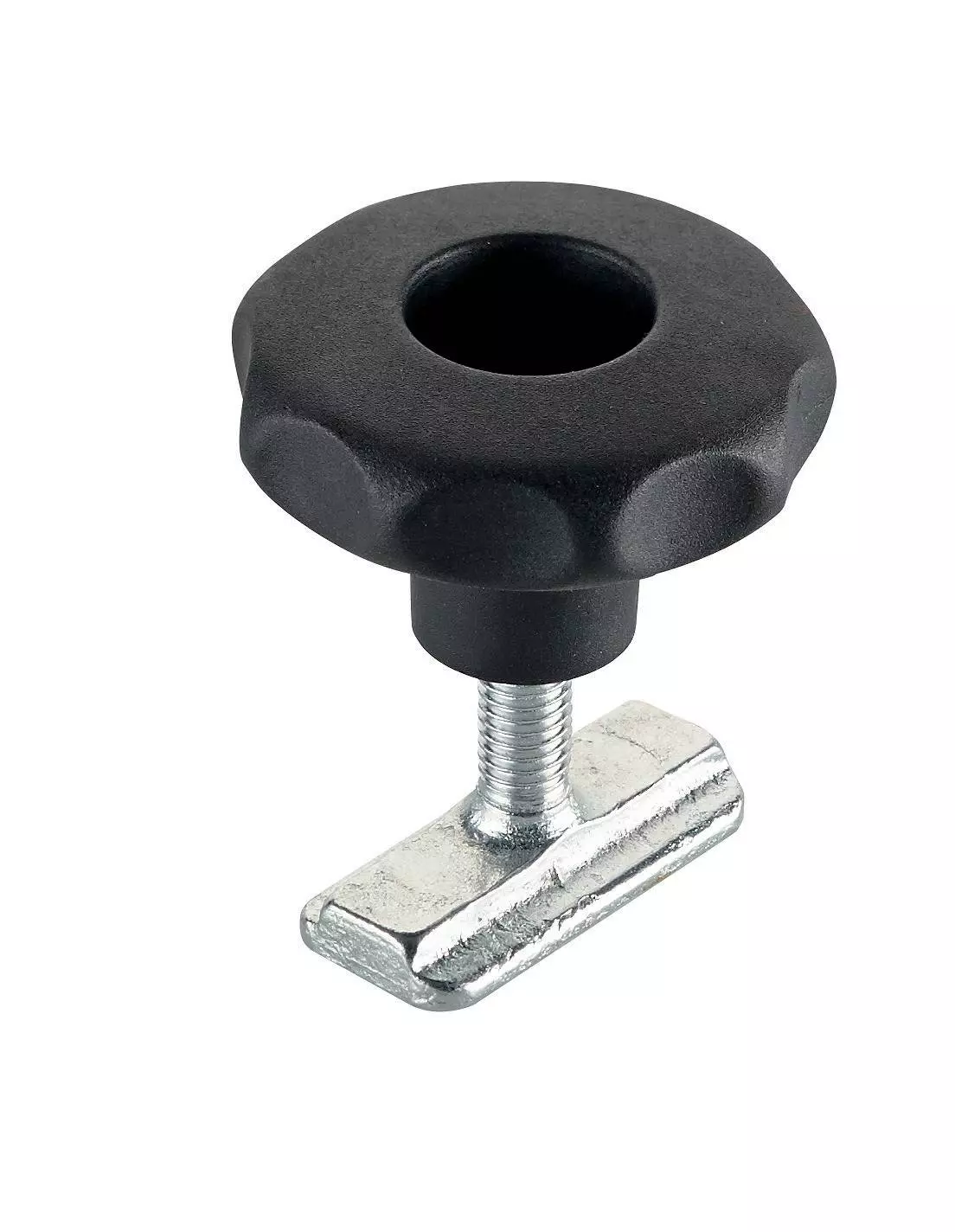

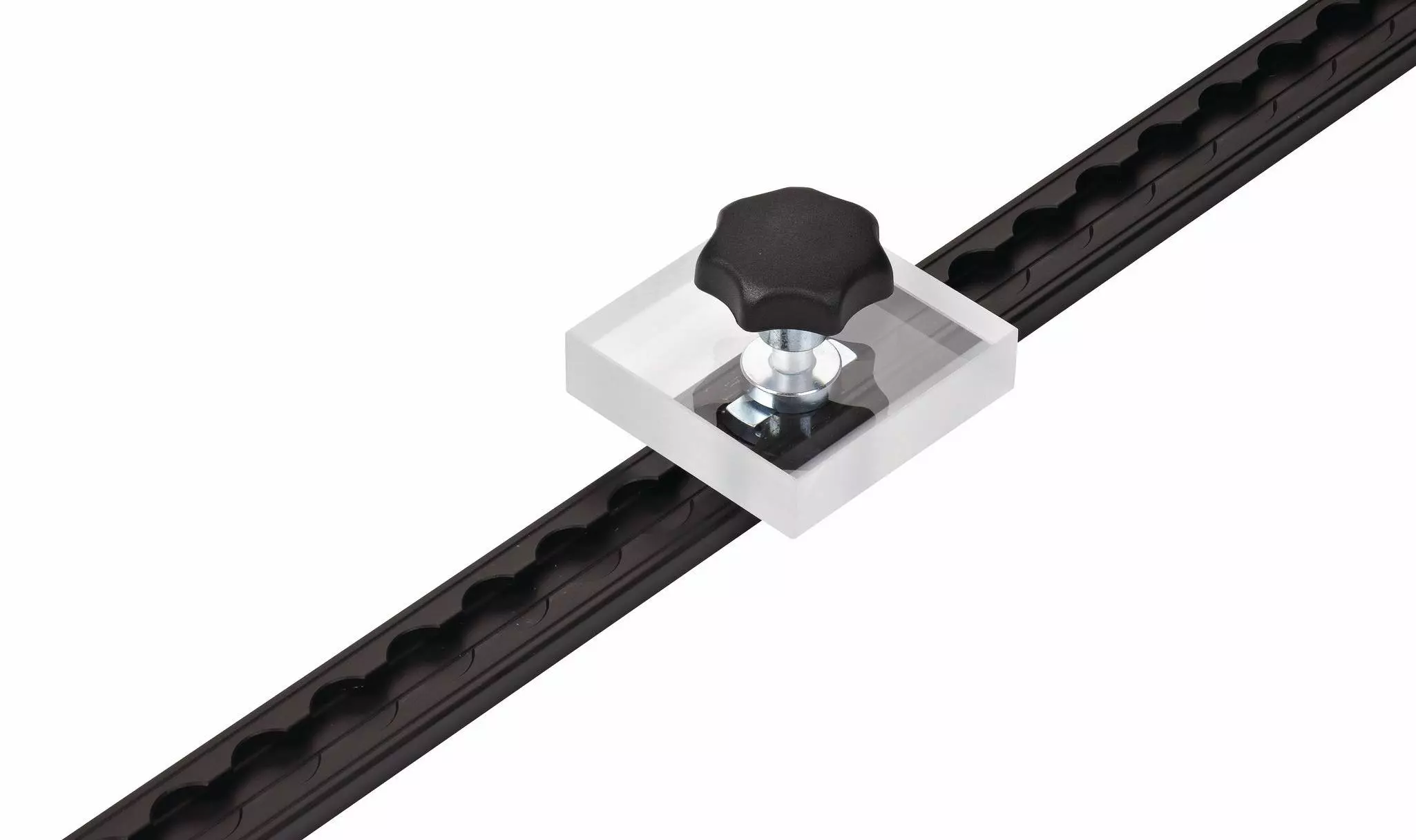

KERL M8 x 4S | x 12S | x 22S | x 32S
Length indicates the clamping range K (see sketch) when installed in standard rails. For other rails, the clamping range varies by ± 2 mm.
*Indication of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.
Technical specifications KERL M8 x 4S | x 12S | x 22S | x 32S
| 310276-47 | M8x4S | K0-4 |
|---|---|---|
| 310276-48 | M8x12S | K0-12 |
| 310276-49 | M8x22S | K0-22 |
| 310276-50 | M8x32S | K0-32 |
| 511330-10 | M8x24S | K3-24 |
KERL M8 x 4S | x 12S | x 22S | x 32S
Base article no. 310276

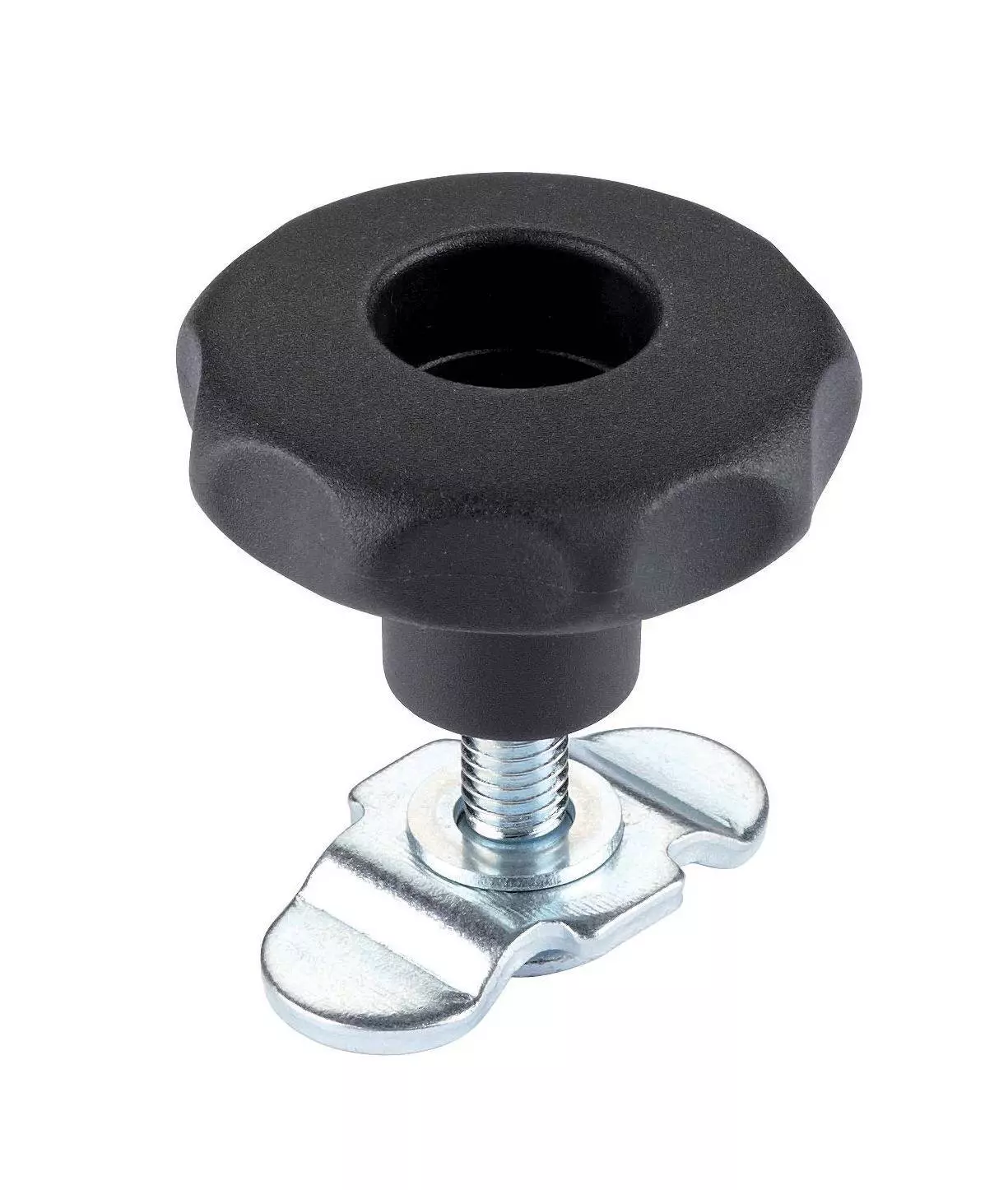

KERL M8 x 20S
Length indicates the clamping range K (see sketch) when installed in standard rails. For other rails, the clamping range varies by ± 2 mm.
*Indication of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.
Technical specifications KERL M8 x 24S slide
| 511330-10 | M8x20S | K0-20 |
|---|
KERL M8 x 24S slide
Base article no. 511330
Not available in the webshop

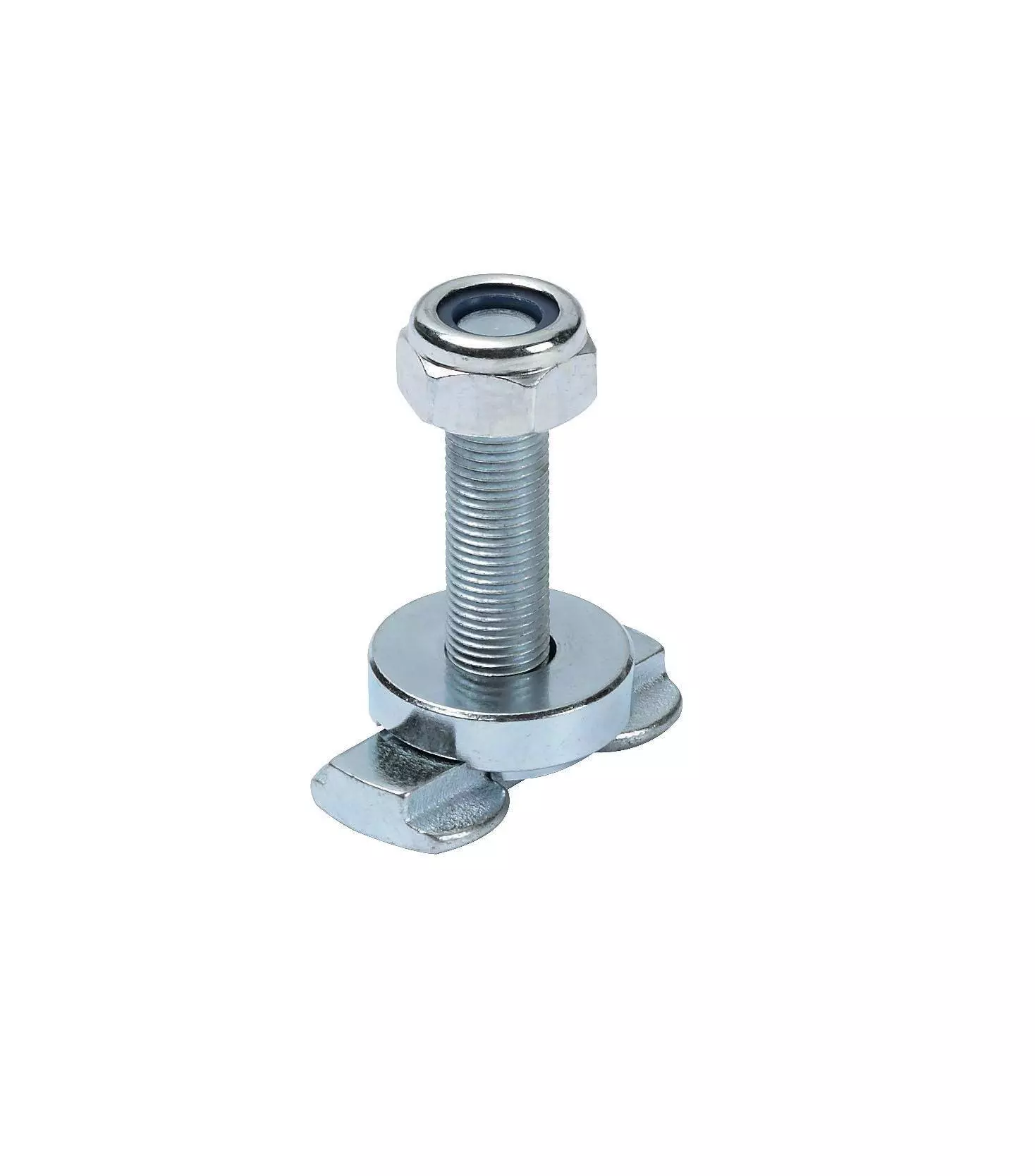

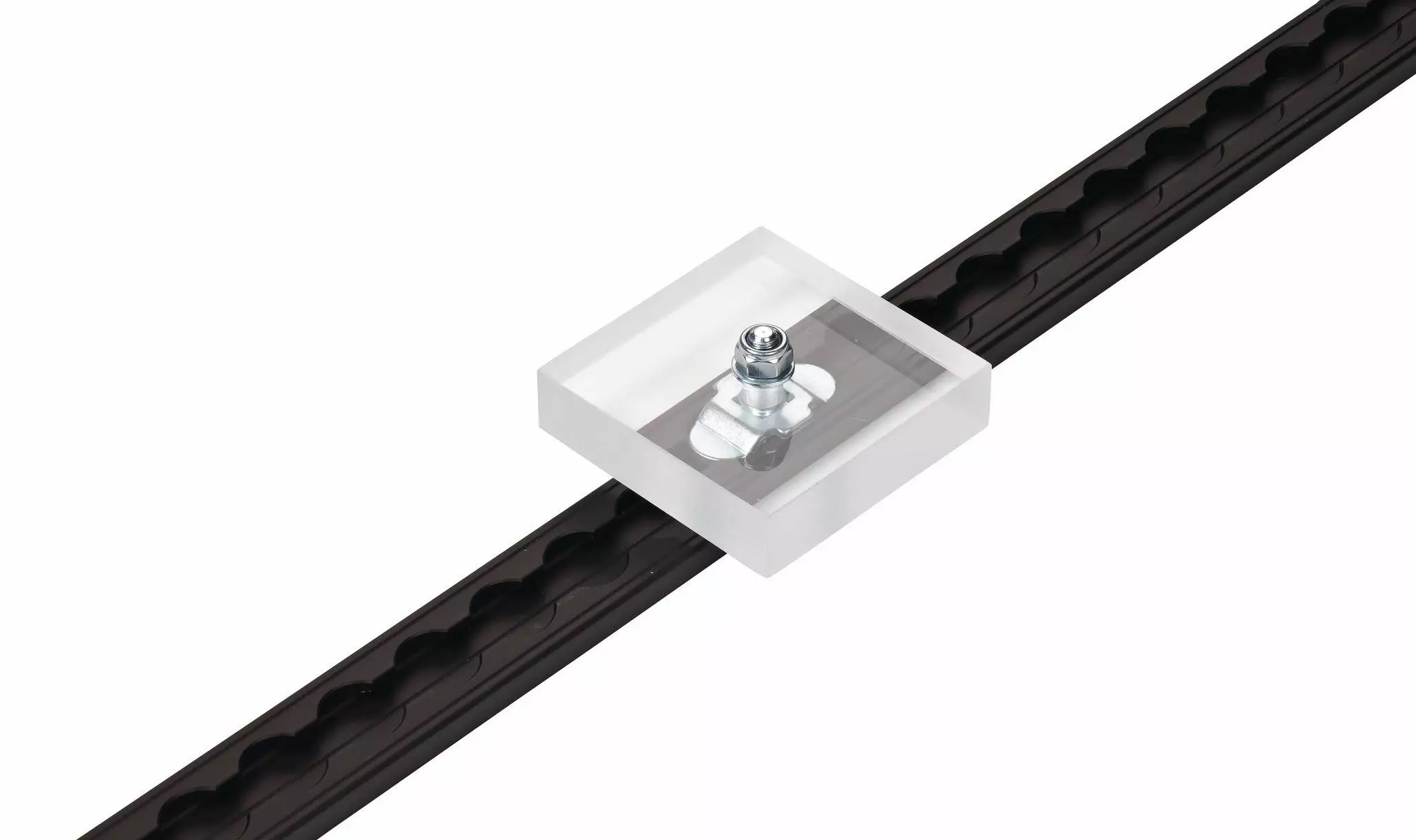

KERL M10 x 5 | x 12 | x 22 | x 32 | x 52
Length indicates the clamping range K (see sketch) when installed in standard rails. For other rails, the clamping range varies by ± 2 mm.
*Indication of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.
Technical specifications KERL M10 x 5 | x 12 | x 22 | x 32 | x 52
| 510003-09 | M10x5 | L23 | K0-5 |
|---|---|---|---|
| 510003-10 | M10x12 | L30 | K0-12 |
| 510003-20 | M10x22 | L40 | K0-22 |
| 510003-30 | M10x32 | L50 | K0-32 |
| 510003-40 | M10x52 | L70 | K0-52 |
KERL M10 x 5 | x 12 | x 22 | x 32 | x 52
Base article no. 510003

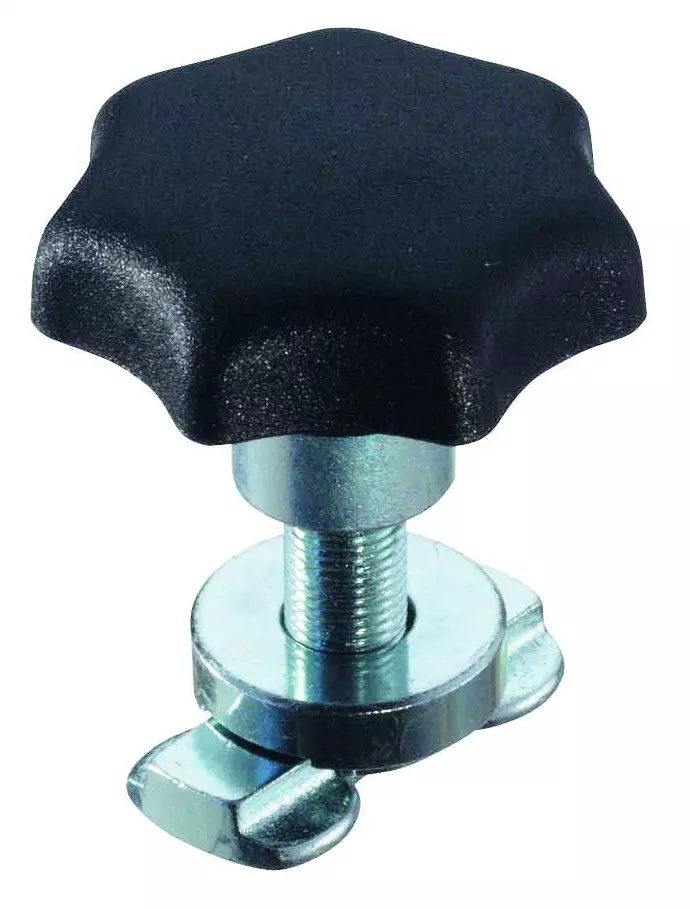

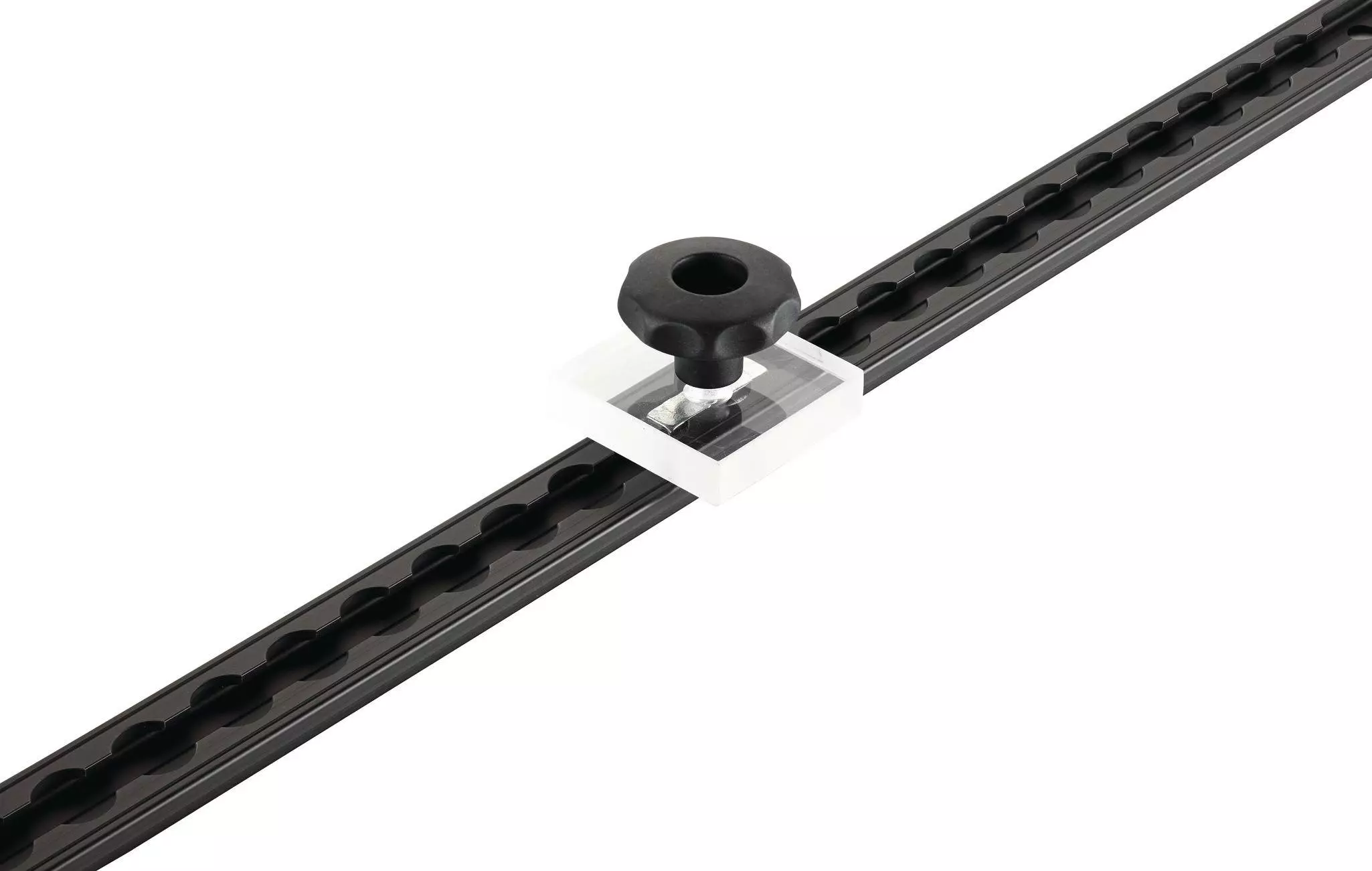

KERL M10 x 5S | x 12S | x 22S | x 32S | x 52S
Length indicates the clamping range K (see sketch) when installed in standard rails. For other rails, the clamping range varies by ± 2 mm.
*Indication of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.
Technical specifications KERL M10 x 5S | x 12S | x 22S | x 32S | x 52S
| 510001-10 | M10x5S | K0-5 |
|---|---|---|
| 510001-20 | M10x12S | K7-12 |
| 510001-30 | M10x22S | K13-22 |
| 510001-40 | M10x32S | K23-32 |
| 510001-50 | M10x52S | K44-52 |
KERL M10 x 5S | x 12S | x 22S | x 32S | x 52S
Base article no. 510001
