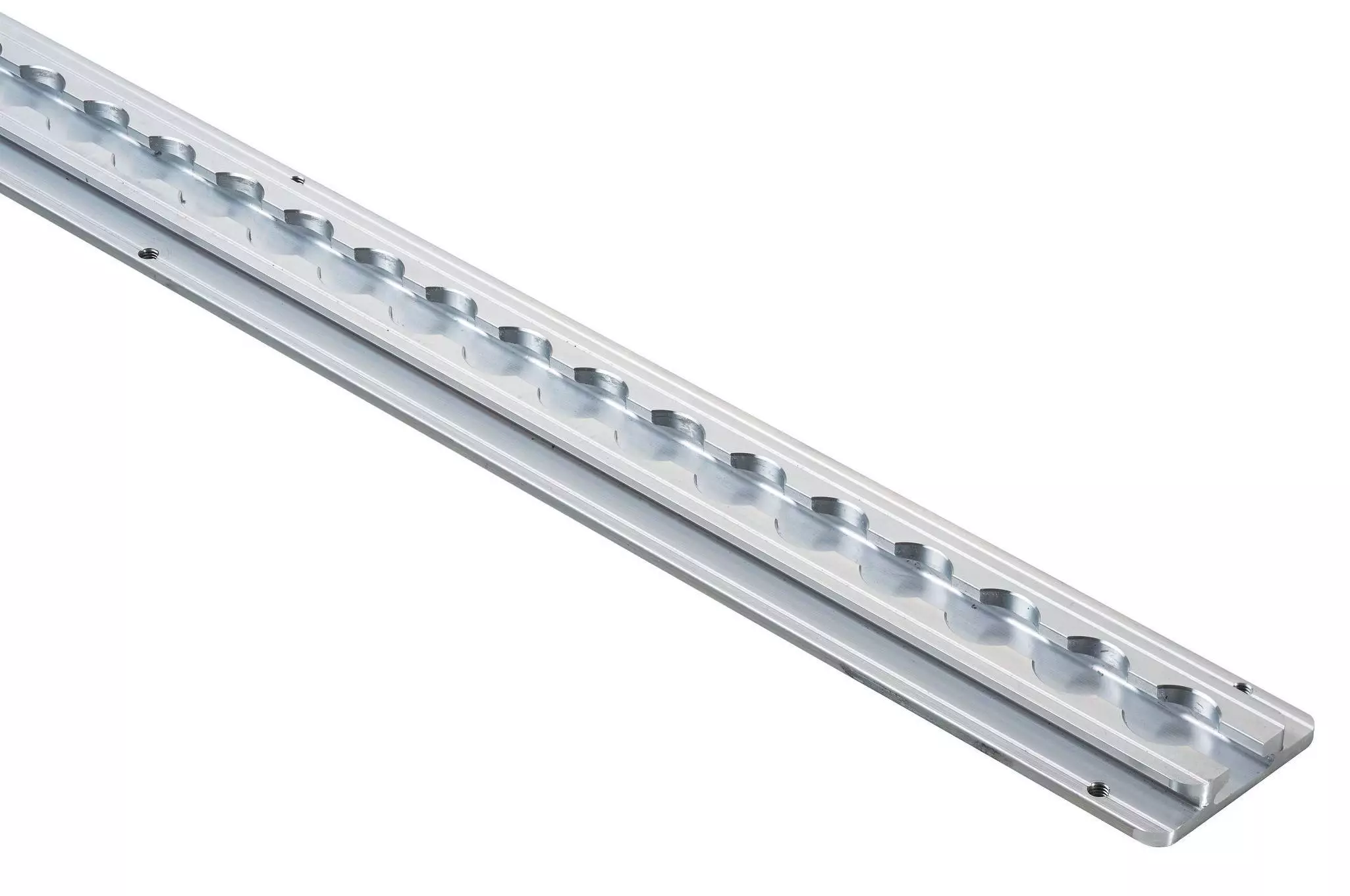

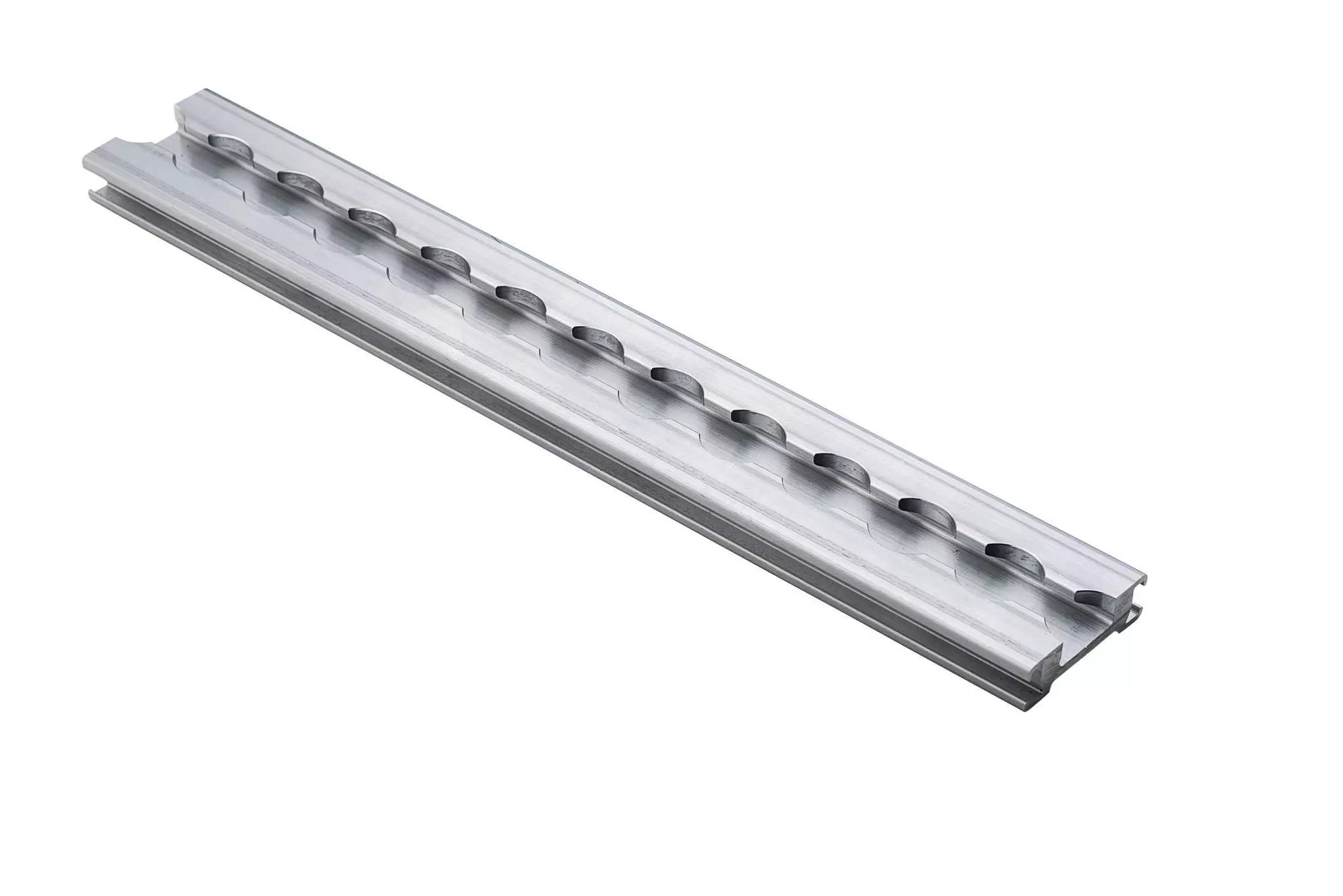

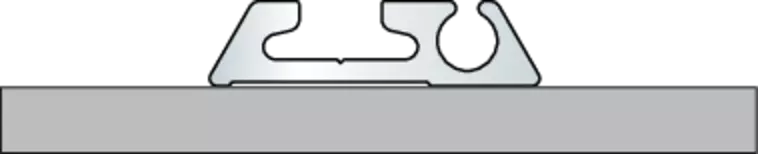

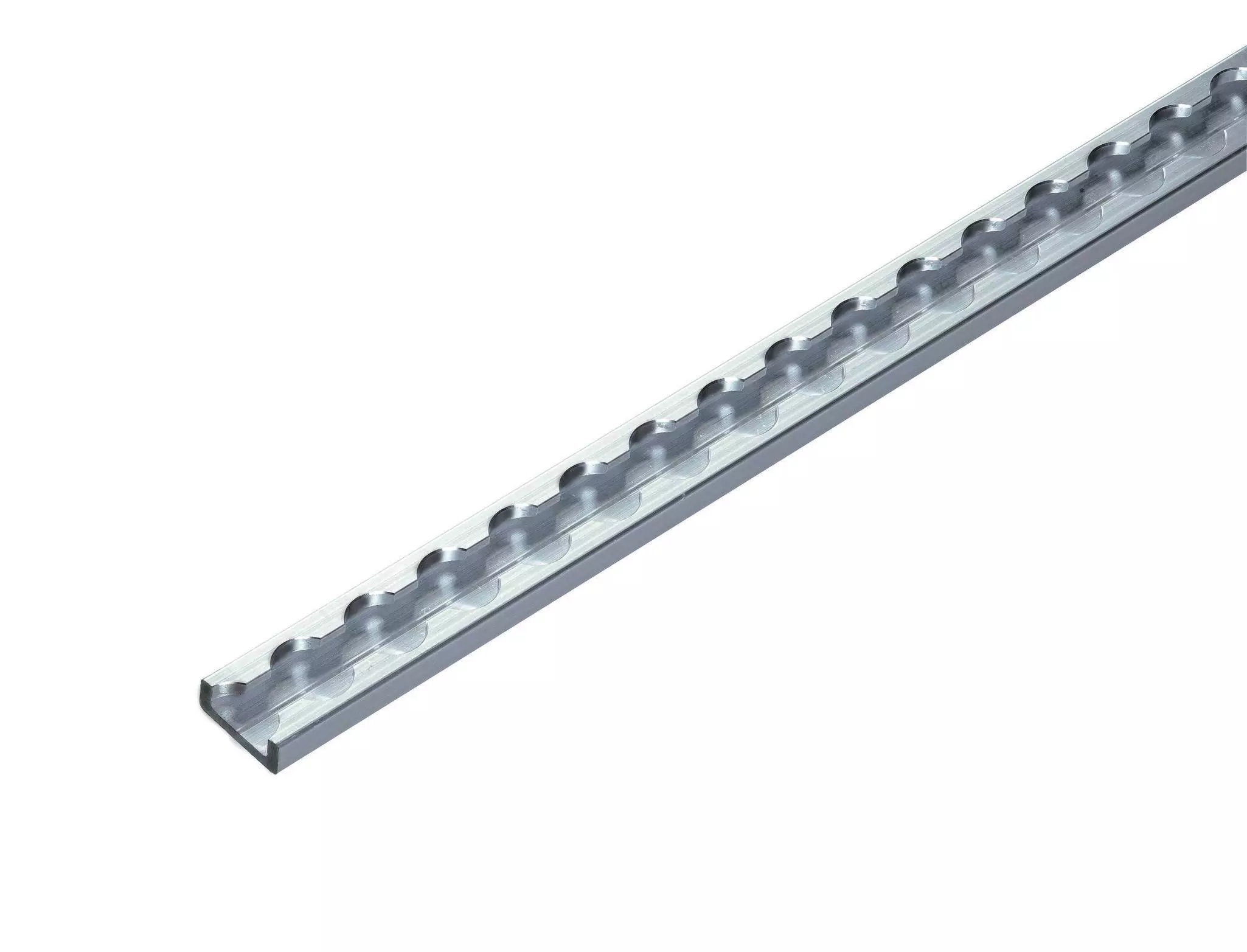

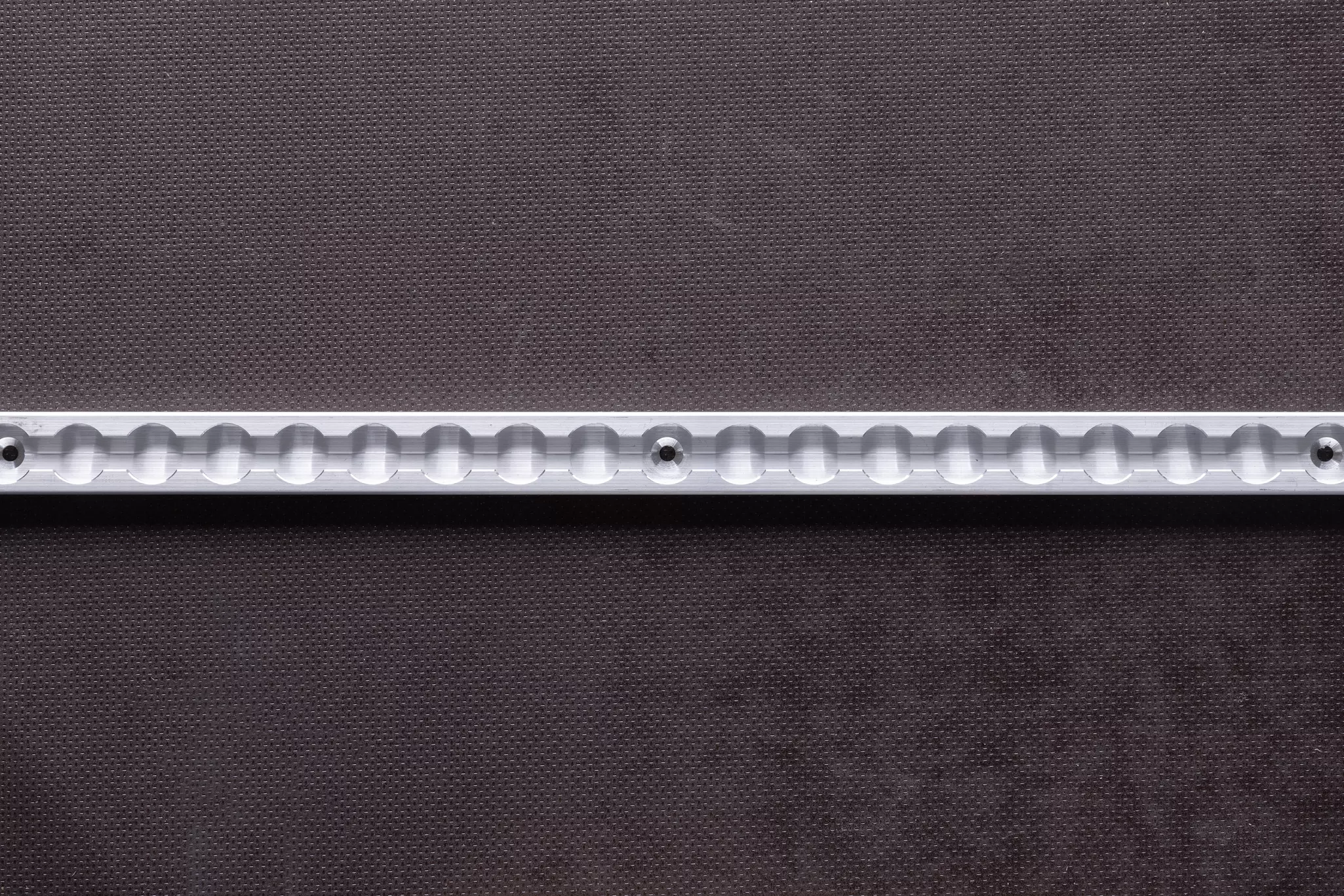

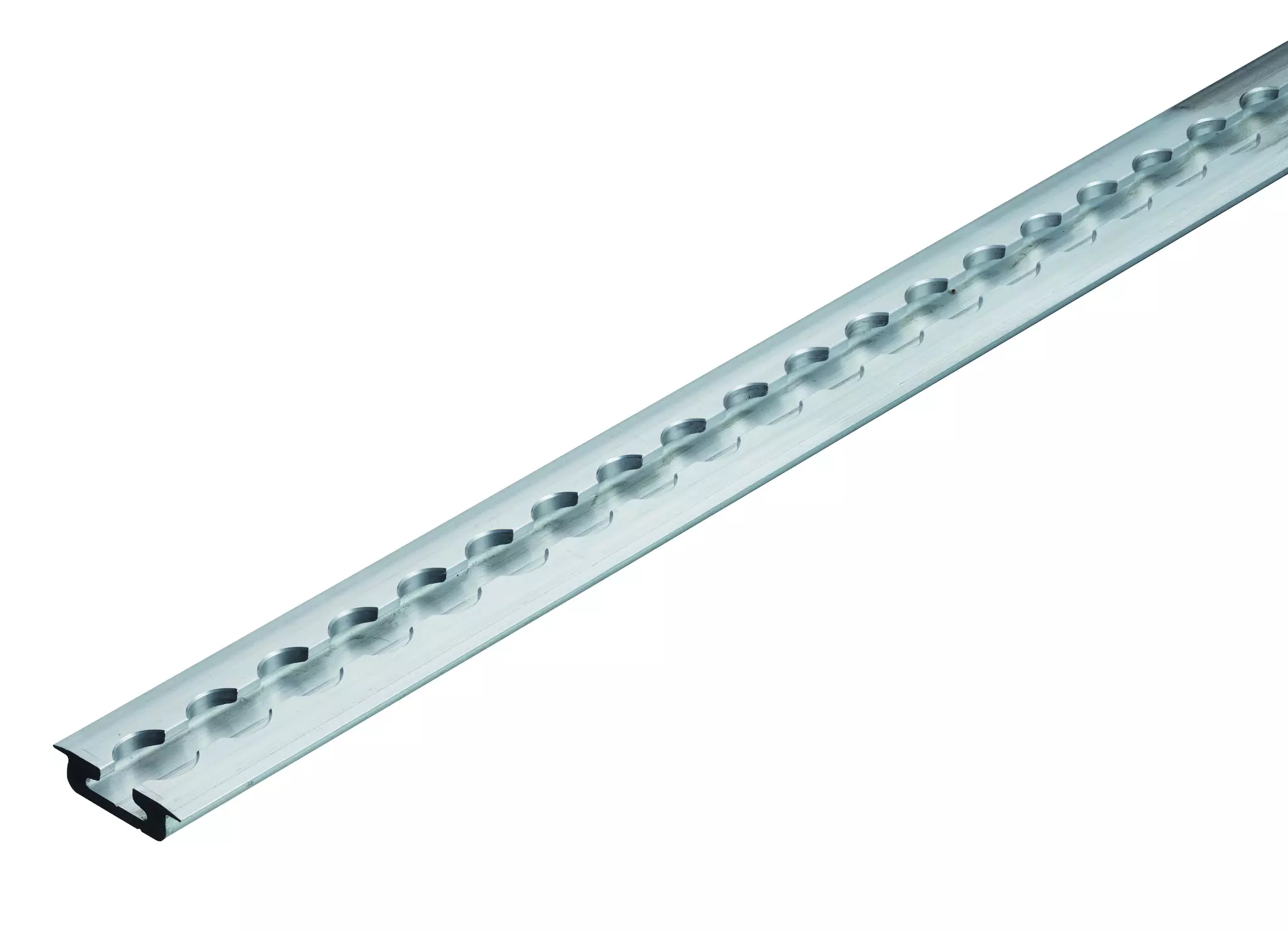

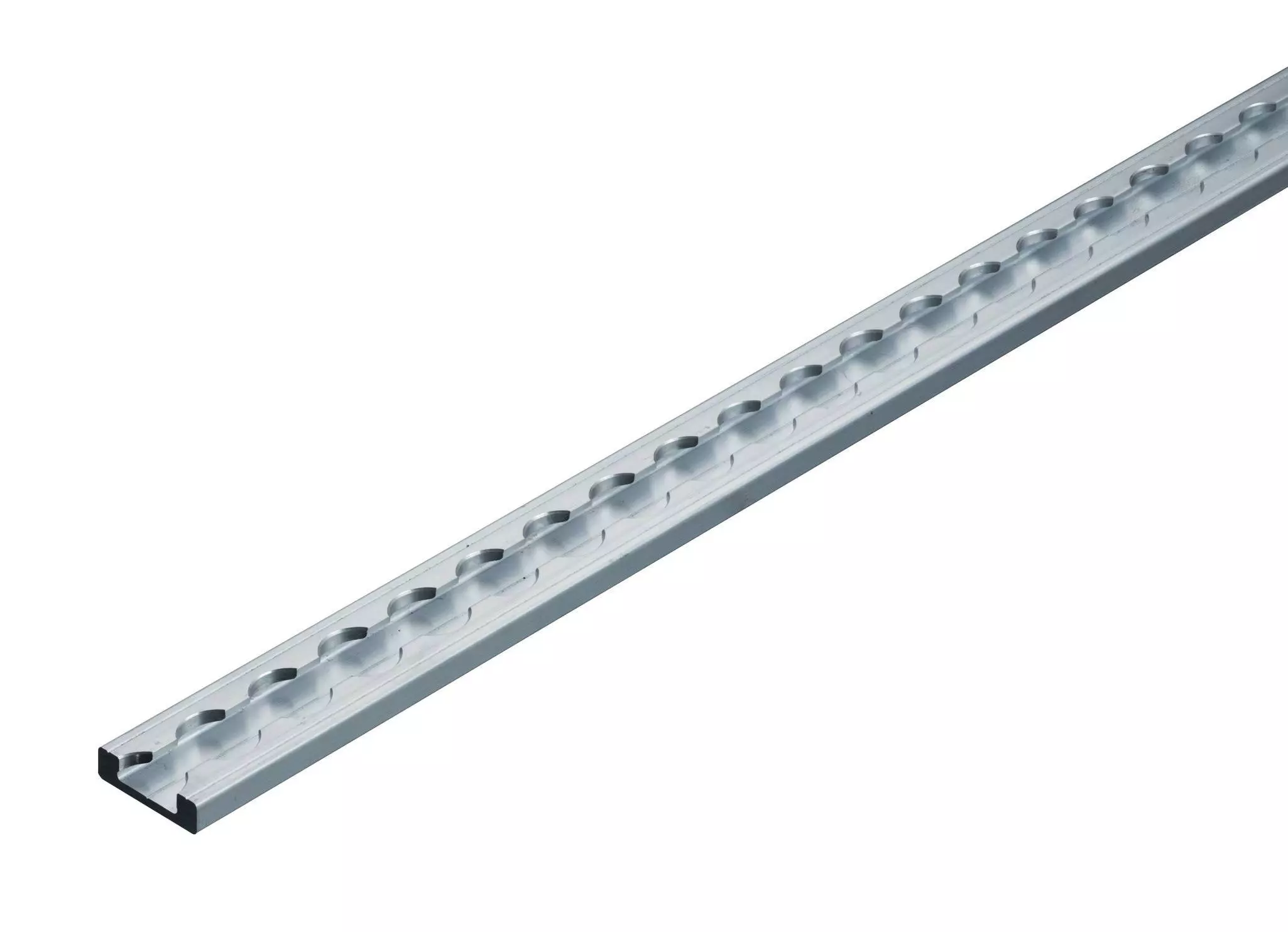

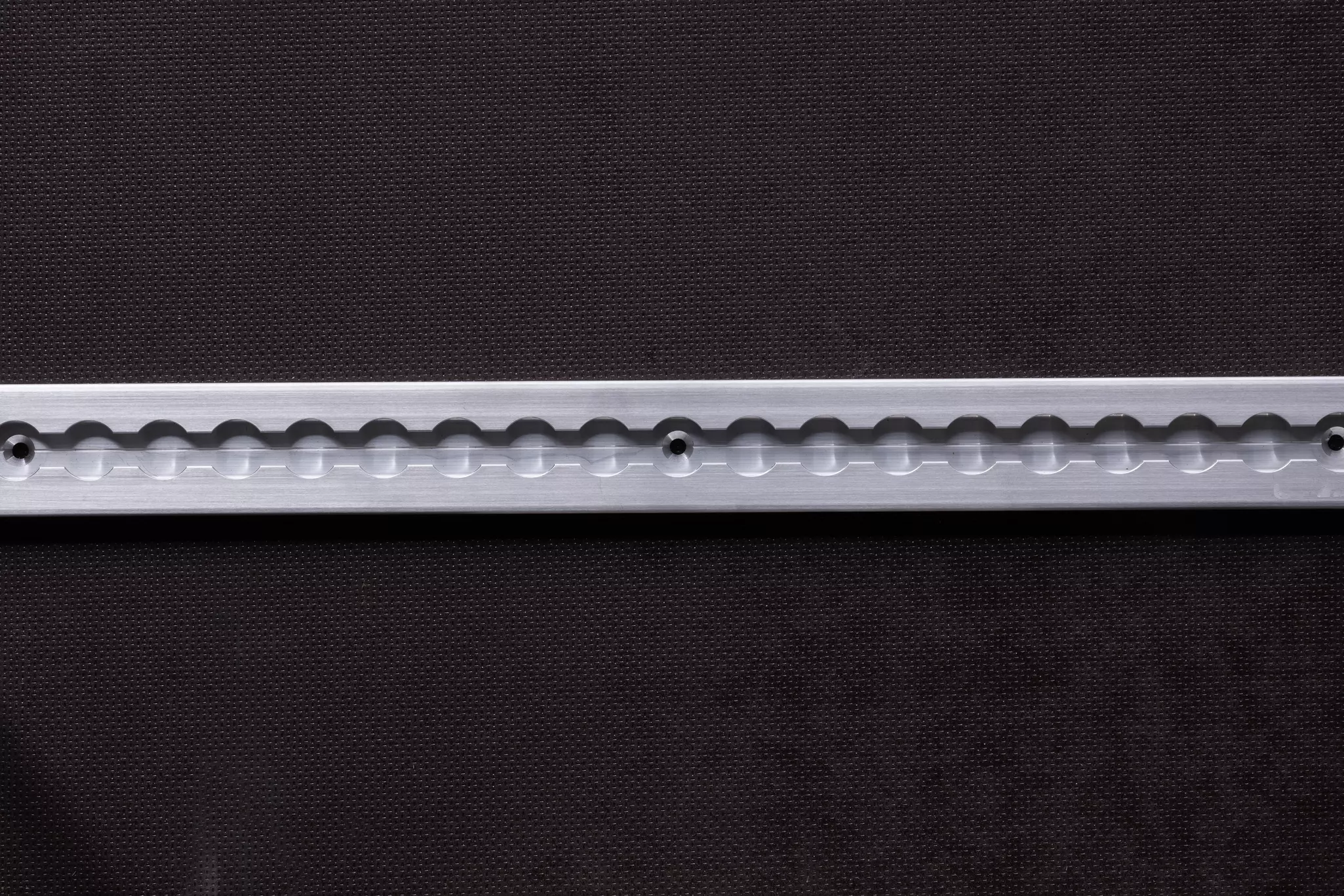

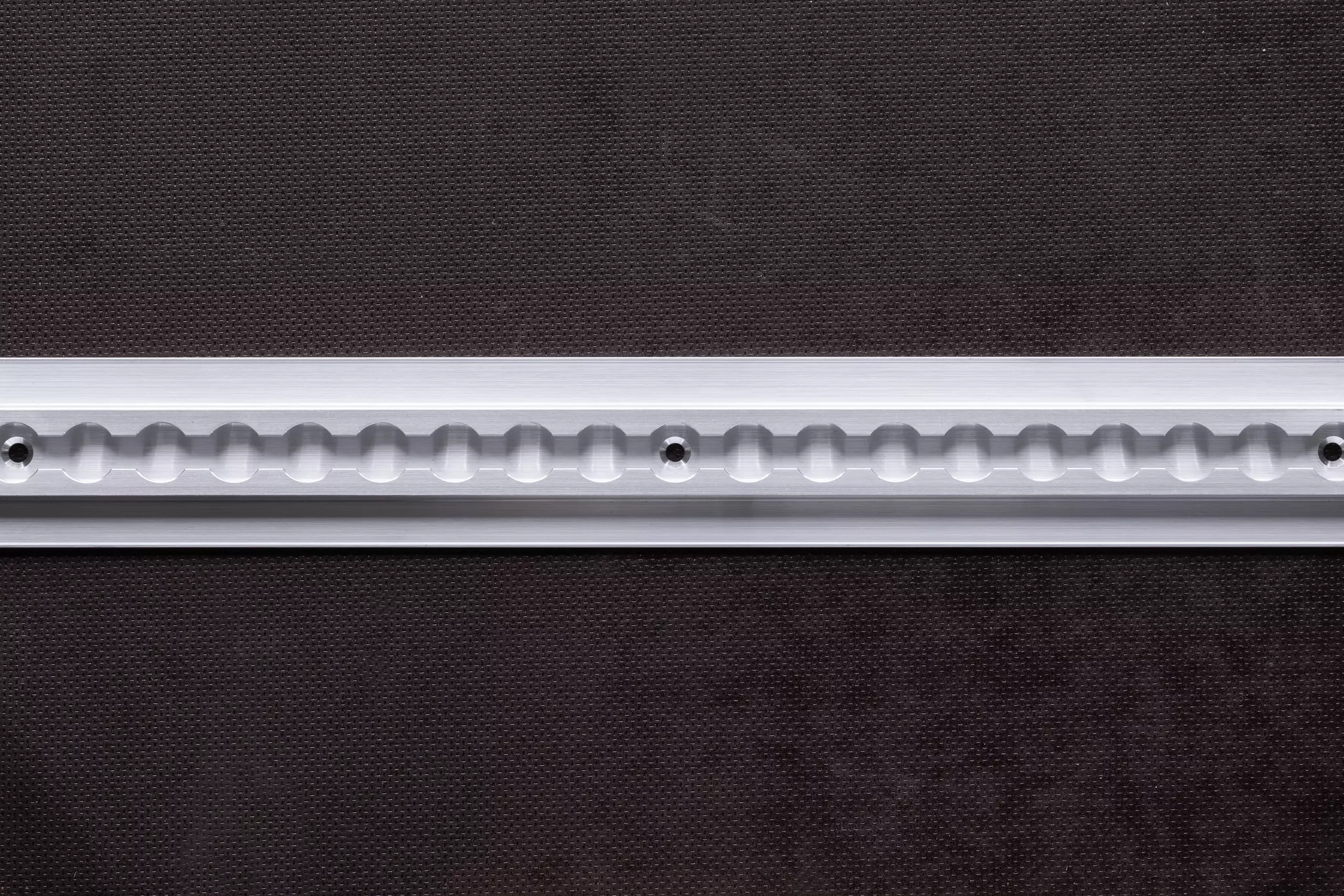

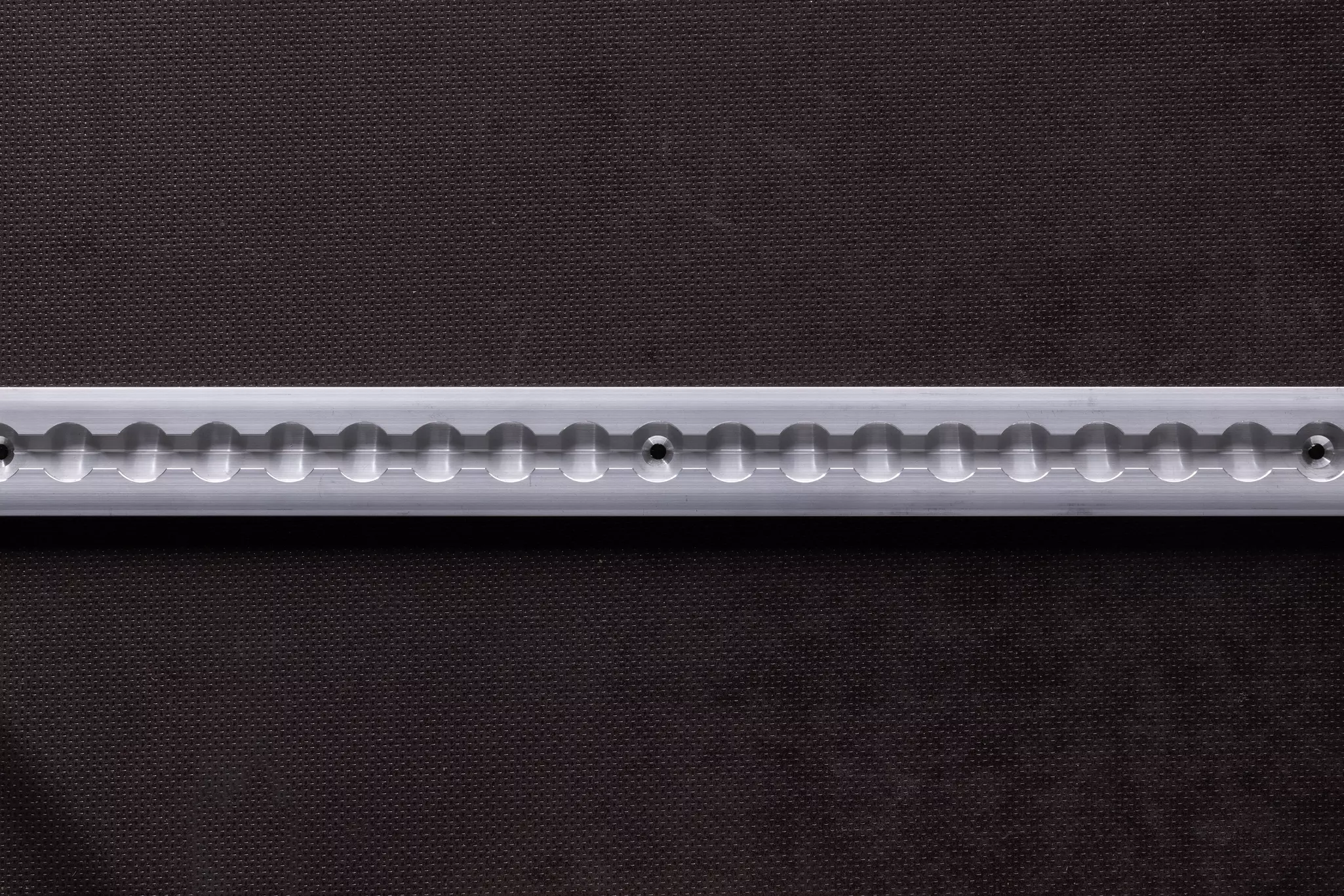

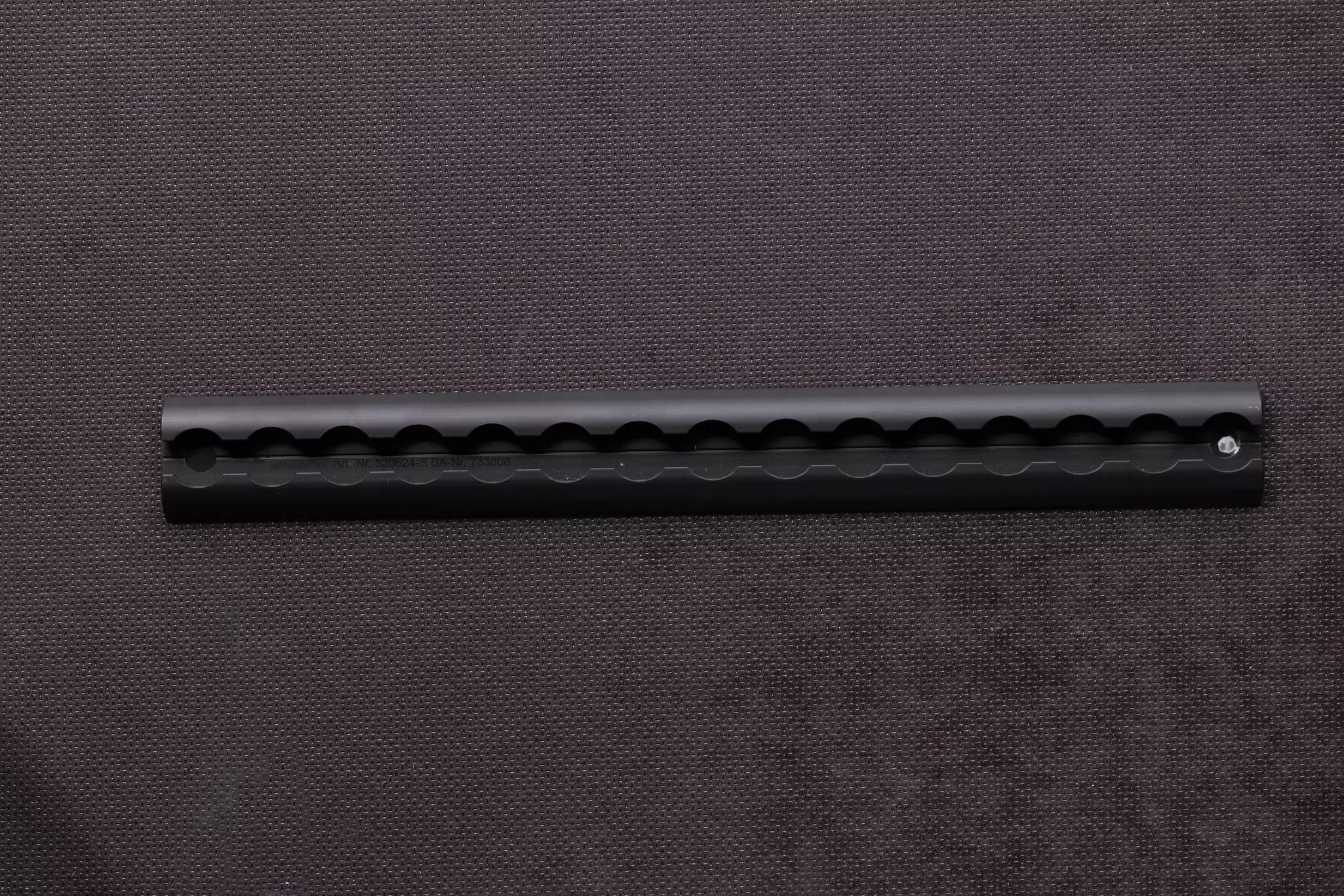

Airline track Light square
Base article no. 71226
Light airline tracks for securing loads
allchange-compatibility
Made in Germany

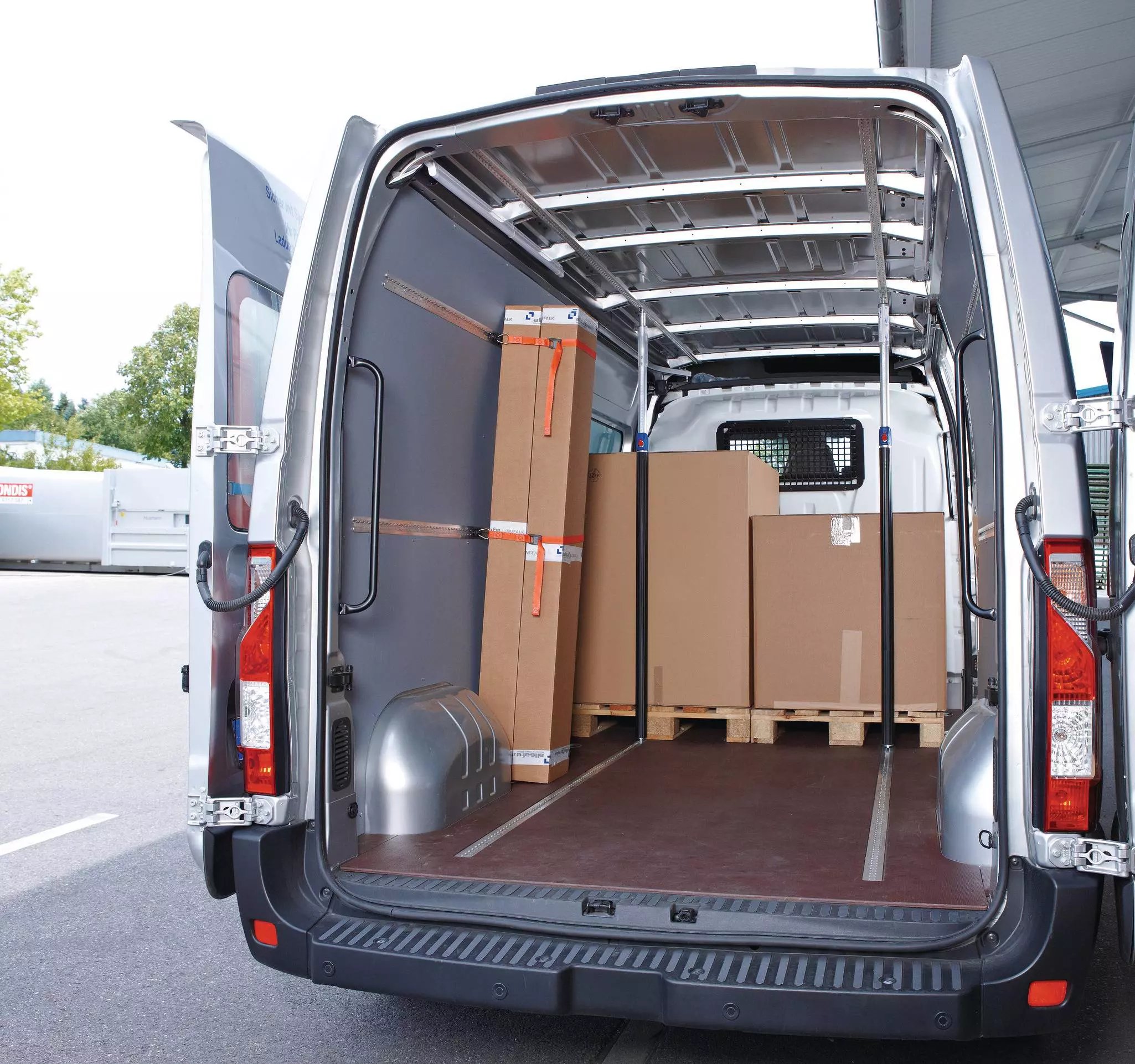

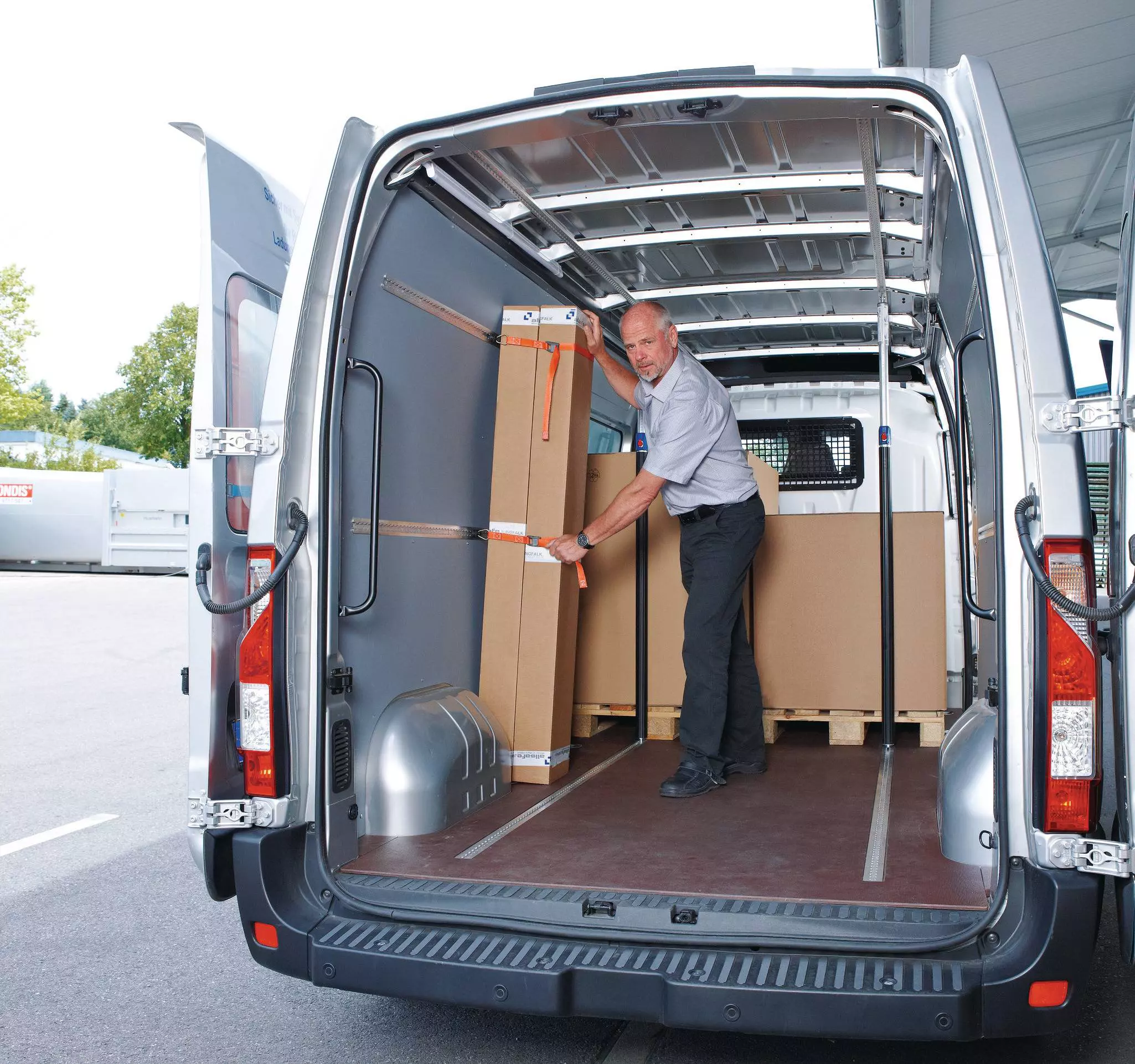

The compact and flexible fastening solution for transporters and small box vehicles

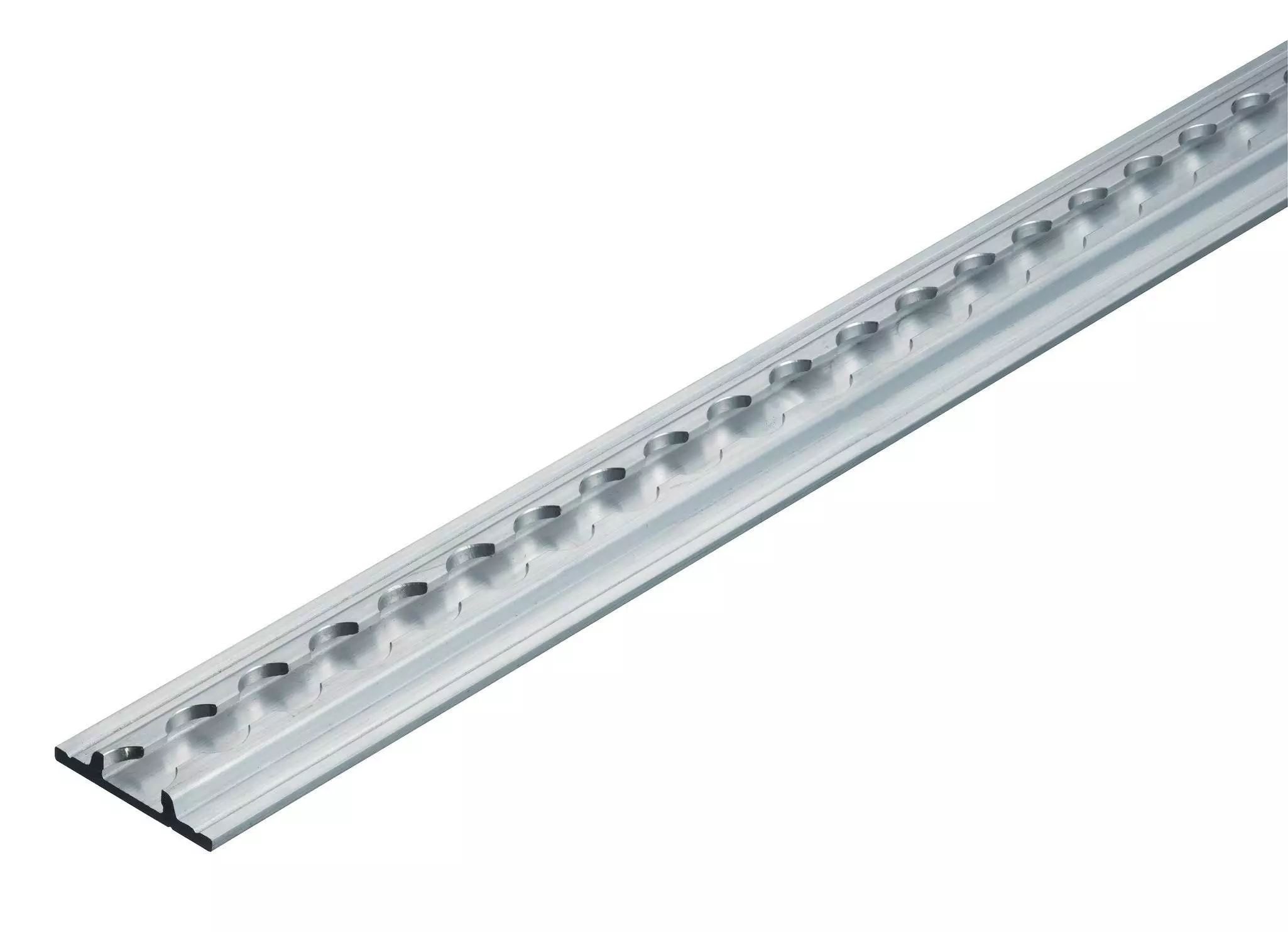

The airline track light is a lightweight fastening solution that fits easily into tight spaces thanks to its small dimensions. The compact design and low wall thickness allow maximum flexibility during installation without taking up valuable space in the vehicle. It is available in adhesive, riveted, or screw-mounted versions, making it particularly quick and easy to install. Ideal for leisure, vehicle equipment, or professional transport.
Technical specifications
At a glance
- Made of aluminum
- Variants for gluing, riveting, and screwing
- For car trailers and small to large transporters
- 100 to 6000 mm
Load capacity
The Airline tracks can be qualified by the installer in conjunction with the KERL as lashing points in accordance with ISO 27955 (passenger cars), ISO 27956 (panel vans), DIN 75410-1 (flatbed trucks up to 3.5 t) or EN 12640 (intermodal loading units and commercial vehicles). The permissible load capacities listed below are achieved under the following conditions:
- Sufficient force transmission to the substructure
- Mounting distance 75 / 76.2 mm (except for steel airline tracks: 50 mm, special airline tracks 24 mm Floor: 500 mm, outer frame: 300 mm) or sufficient bonding
- Airline tracks Light fastened with M5 screws 10.9
Load capacity in conjunction with lashing points
| KERL500 | KERL1000 | |
|---|---|---|
| ISO27955 | 350daN | 350daN |
| ISO27956 | 400daN | 500daN |
| EN12640 | 400daN | 400daN |
Load capacity in combination with screw fittings
| KERLM8 | KERLM10 | |
|---|---|---|
| X | 200daN | 500daN |
| Y | 200daN | 500daN |
| Z | 500daN | 800daN |

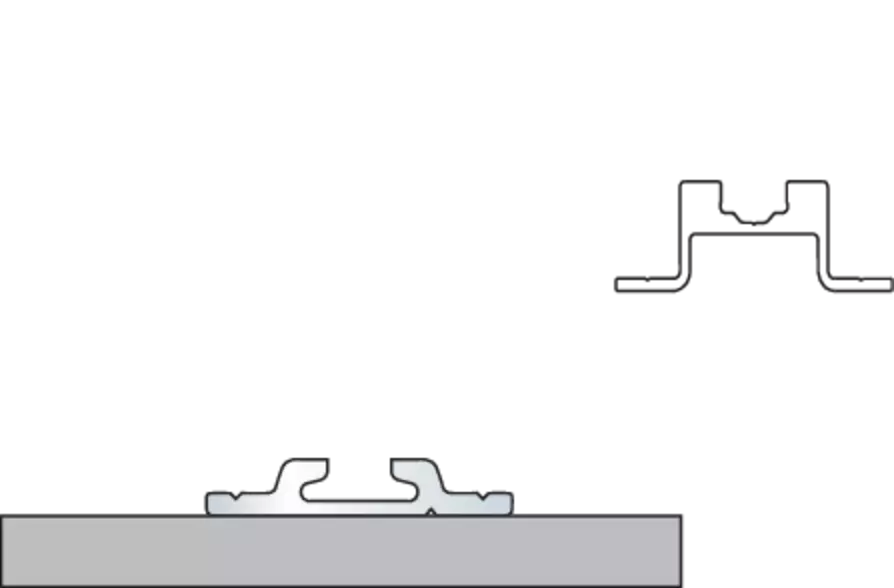

Profiles

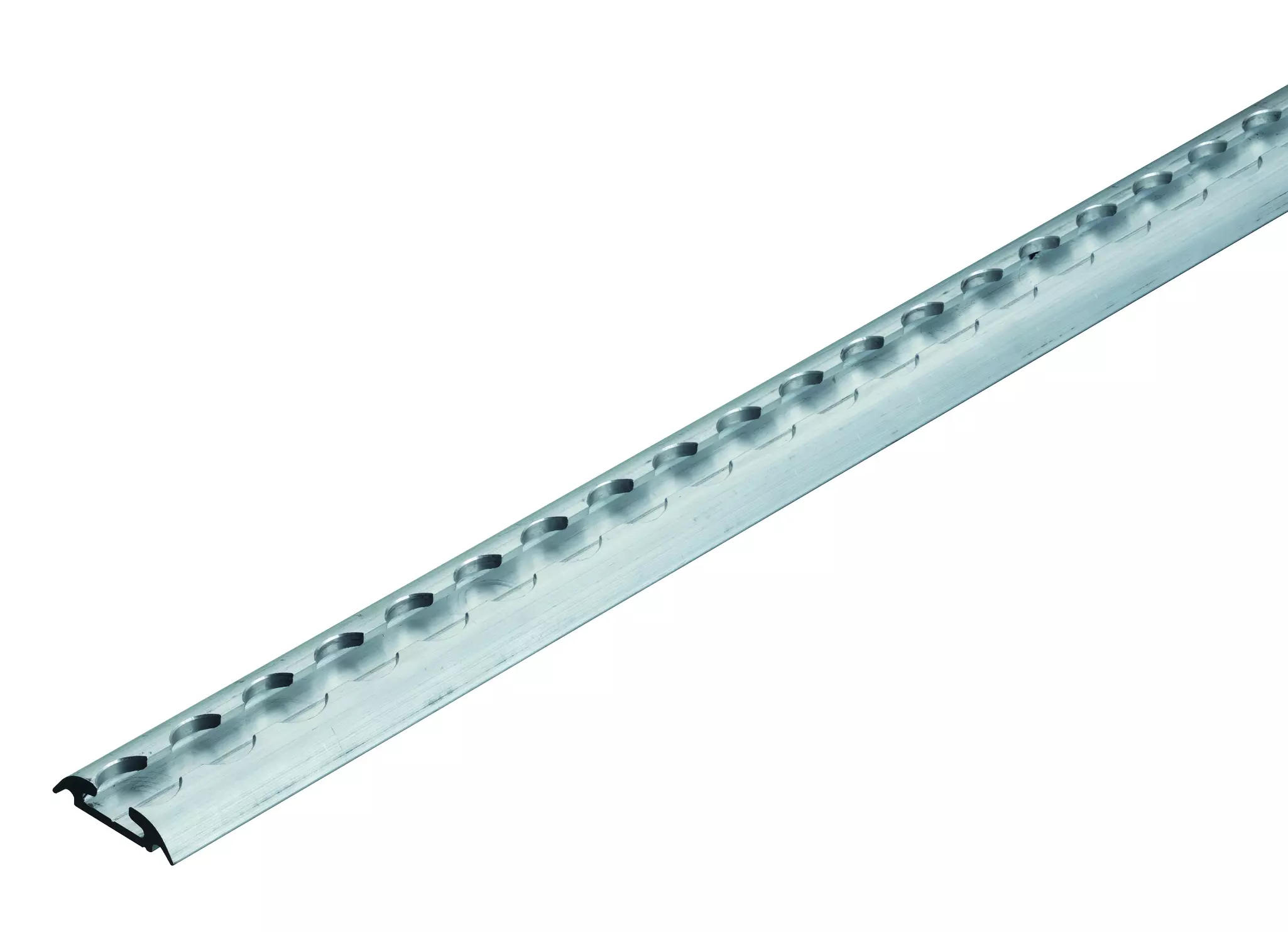

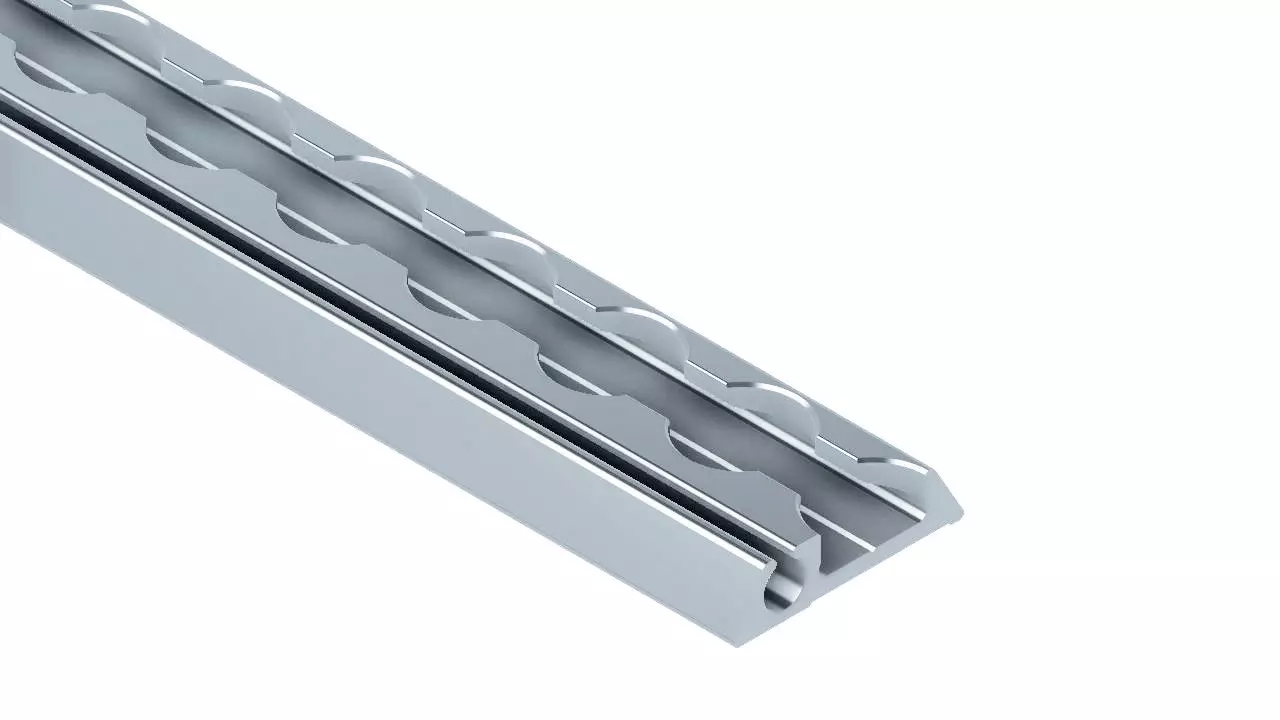

Airline track Light narrow
Base article no. 320643

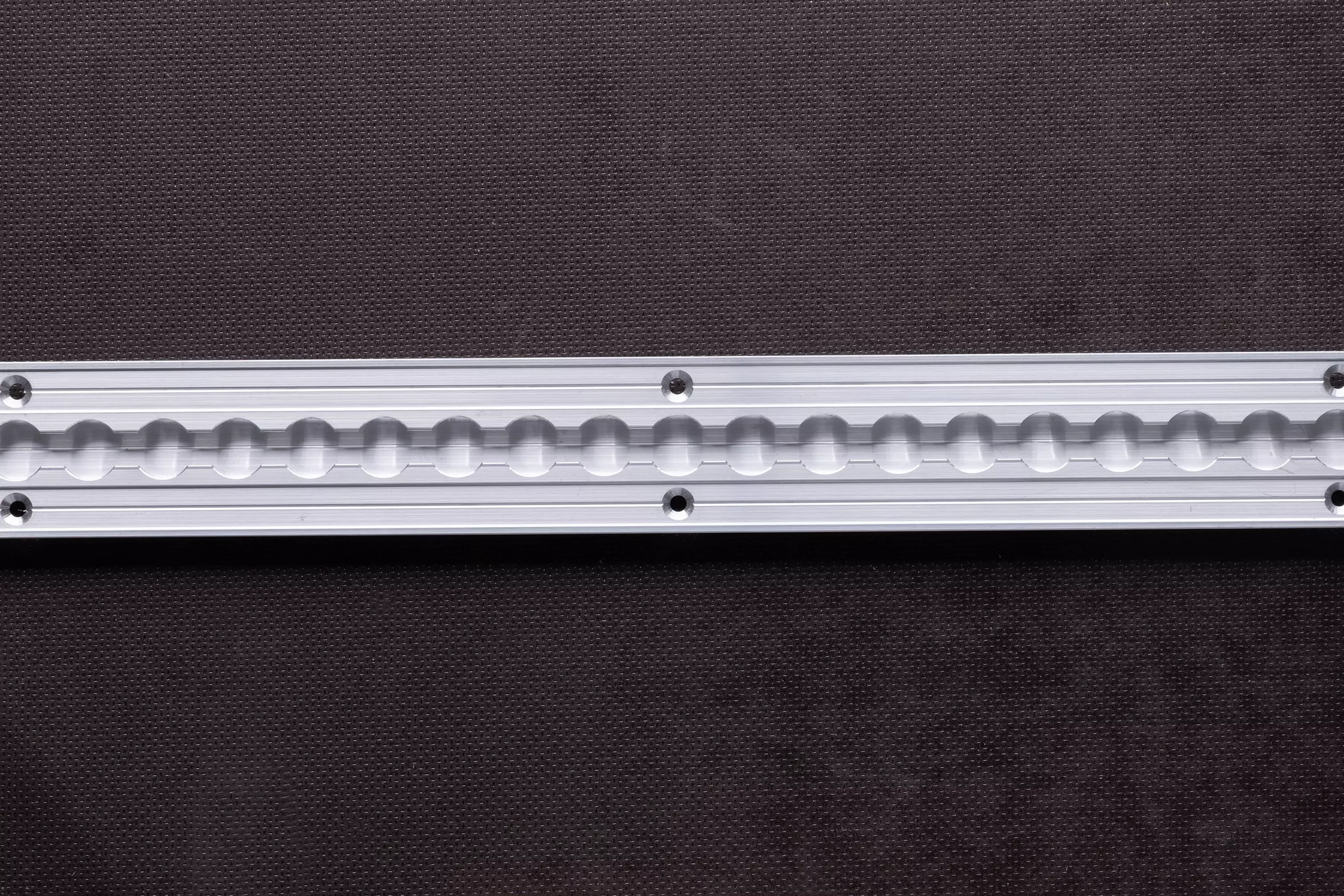

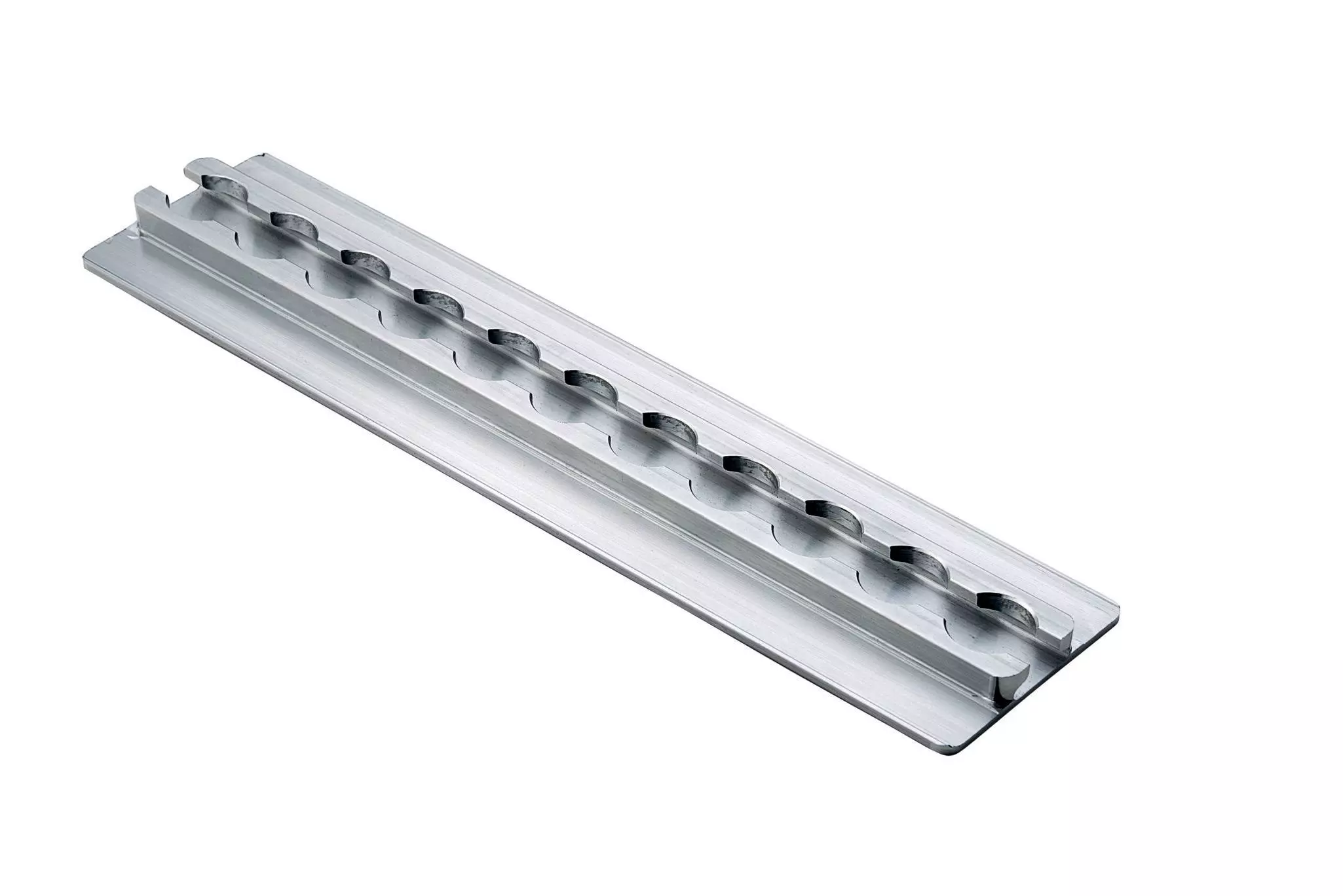

Light airline track with flange
Base article no. 520609

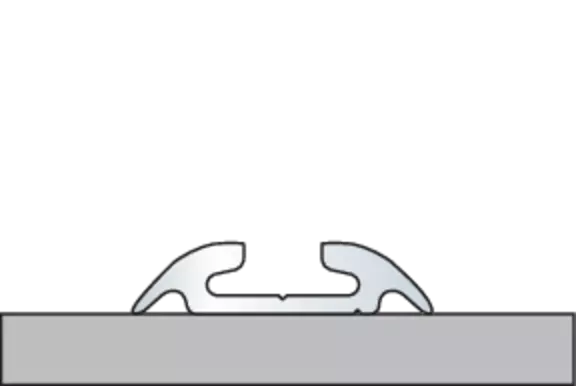

Airline track Light semicircular
Base article no. 520624
Light recessed airline track
Base article no. 520623
Airline track Light 10 mm floor
Base article no. 521631
Airline track Light 9 mm bottom
Base article no. 522483
Airline tracks Light LED
Base article no. 522477
Airline track Light 8 mm keder
Base article no. 522925
Not available in the webshop
configuration options
Starting dimension
Unless otherwise specified, the starting dimension is X = 0 mm.
Pitch
Unless otherwise specified, the pitch is P = 25.0 mm.
Mounting holes
| S4 | S5 | S6 | S8 | |
|---|---|---|---|---|
| W | 90° | 90° | 90° | 90° |
| D | 9 | 11 | 13 | 17,2 |
| d | 4,6* | 5,5* | 6,6* | 9,0* |
| N4 | N5 | N6 | |
|---|---|---|---|
| W | 120° | 120° | 120° |
| D | 10,1 | 12,0 | 13,0 |
| d | 4,2 | 5,05 | 6,7 |
| D5,0 | D5,5 | D6,6 | D8,5 | |
|---|---|---|---|---|
| d | 5,0 | 5,5 | 6,6 | 8,5 |
| M5 | M6 |
|---|
| FB5 | |
|---|---|
| D | 10,0 |
| d | 5,0 |

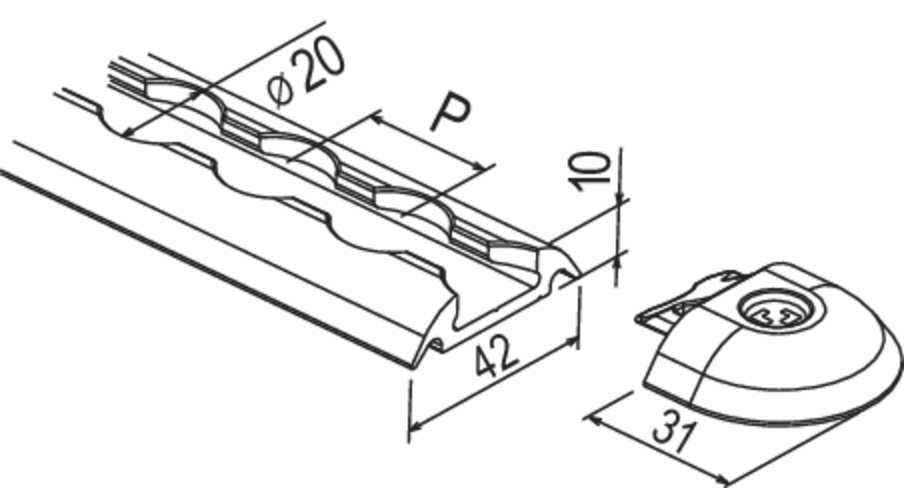

Position of mounting holes
For holes with equal spacing, please specify the hole spacing a1 and a2.
For individual hole spacing, please specify the hole spacing a1, a2, a3, a4, etc.
2-part track

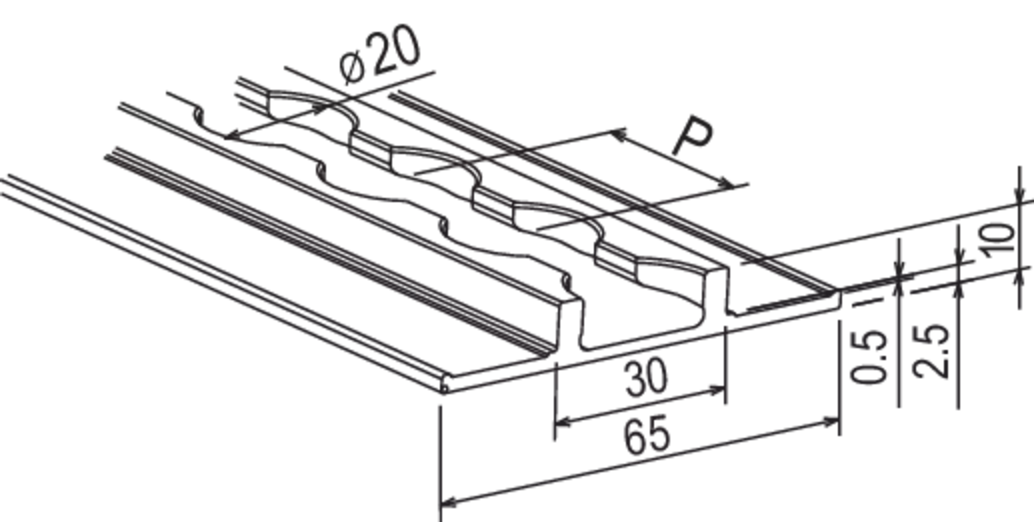

Start and end of track

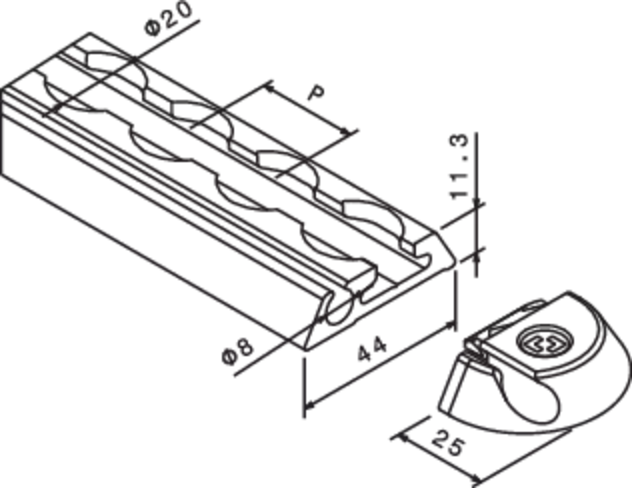

Select the shape of the track start and end (max. radius or max. F2 = half track width in mm).
accessories
Track cover
Length freely selectable from 100 to 3000 mm.

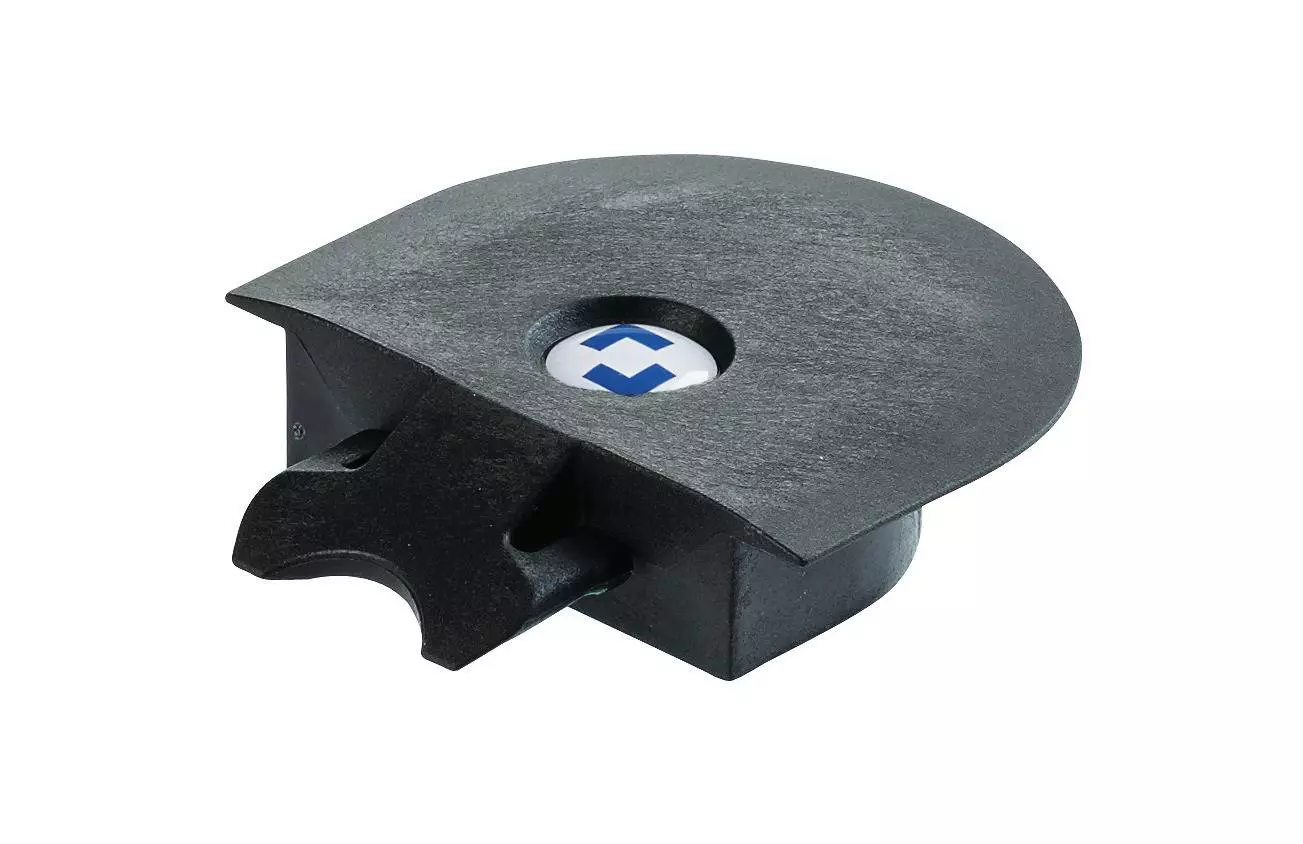

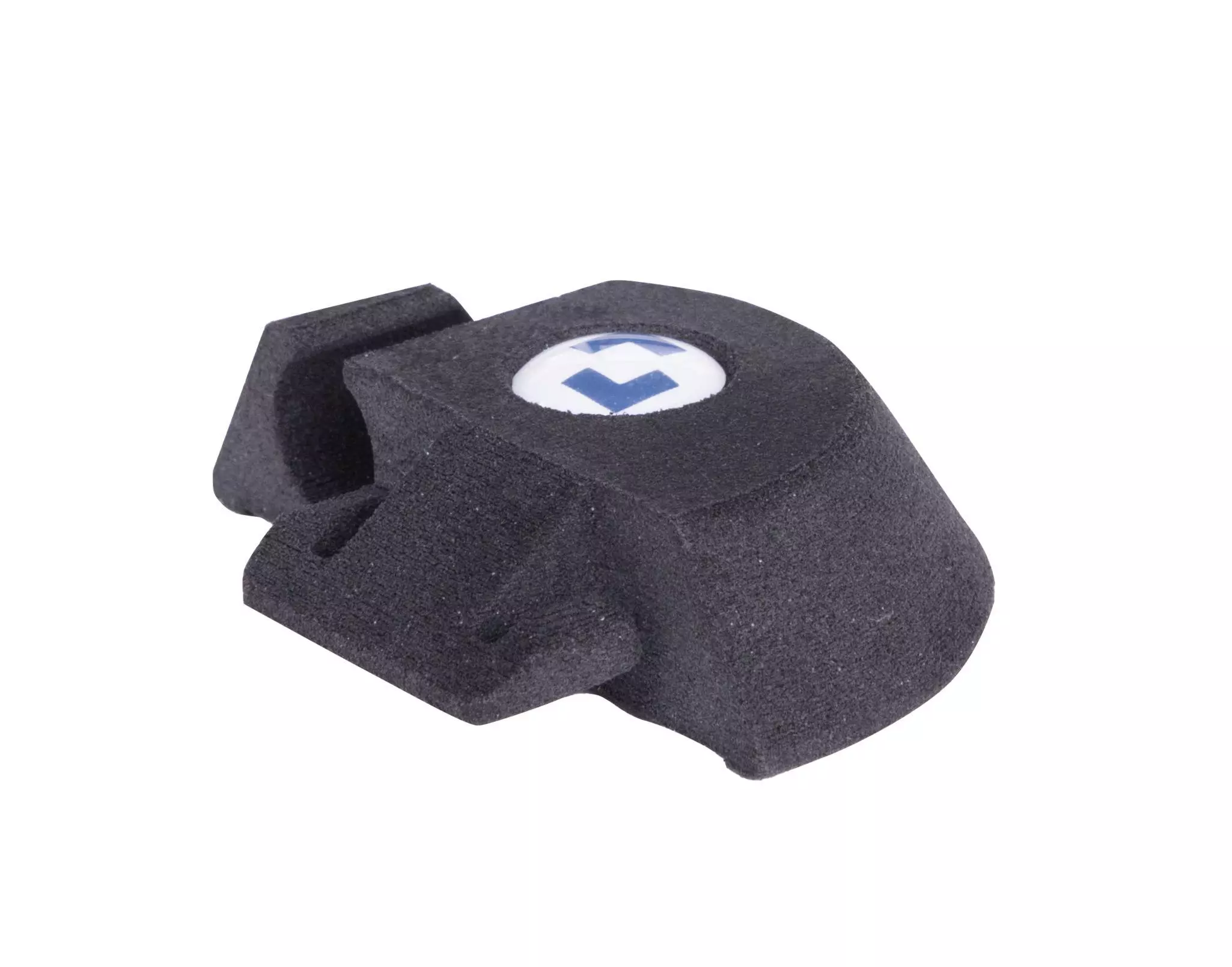

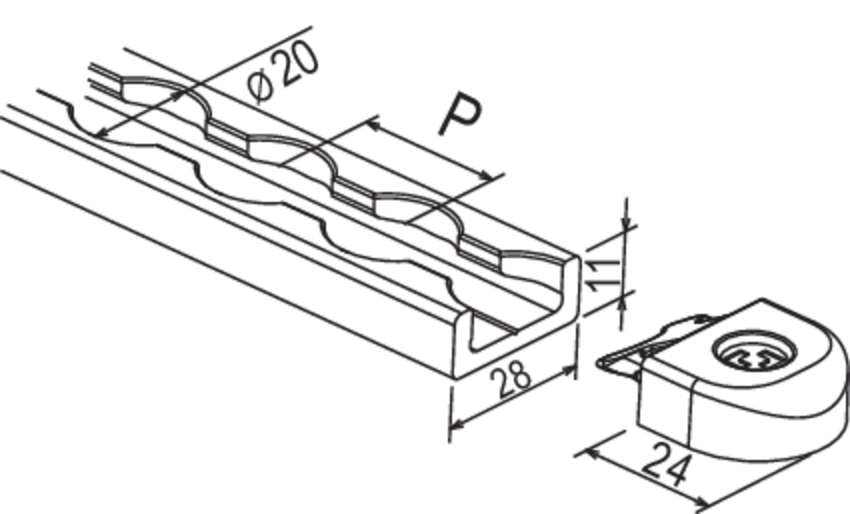

End caps

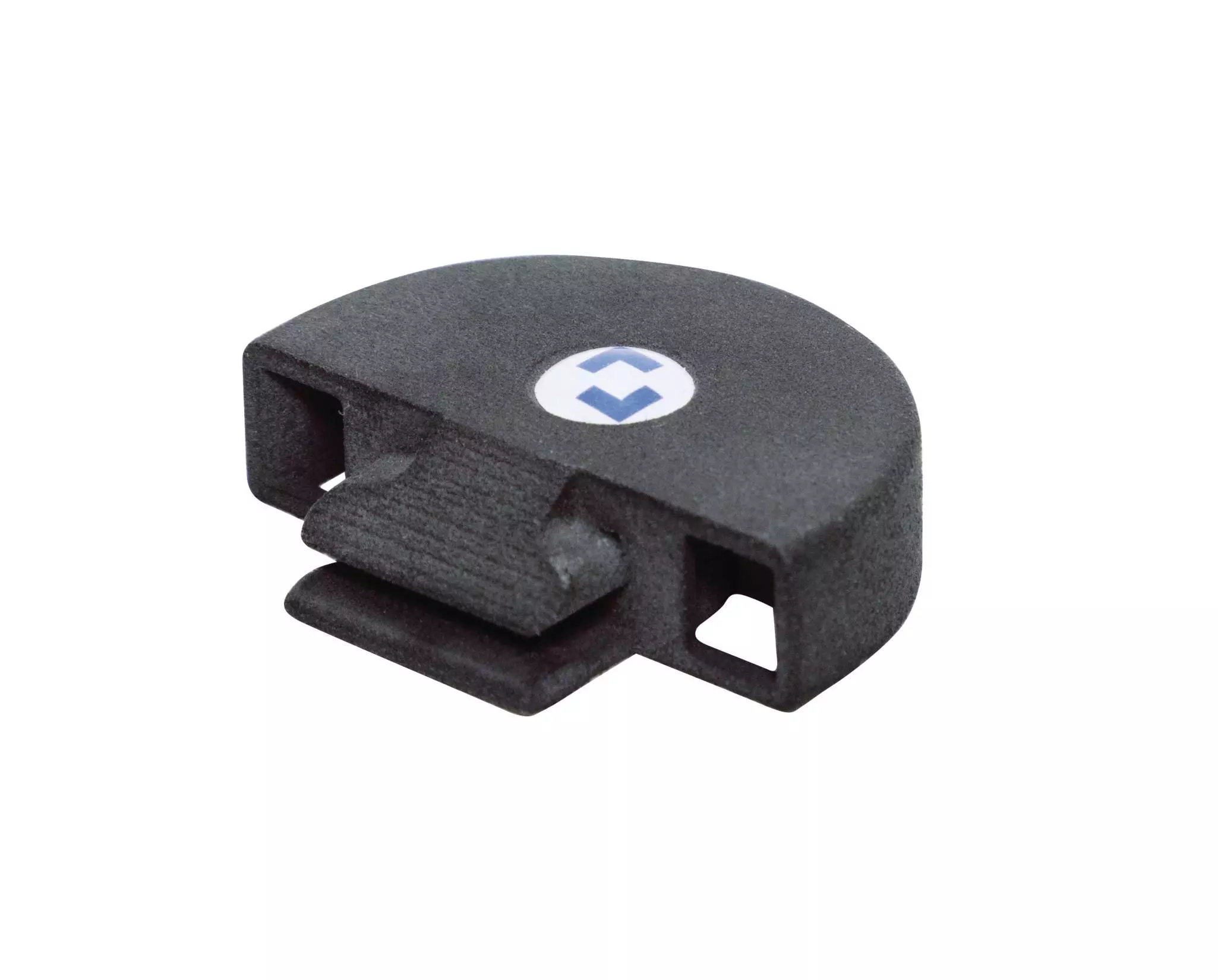

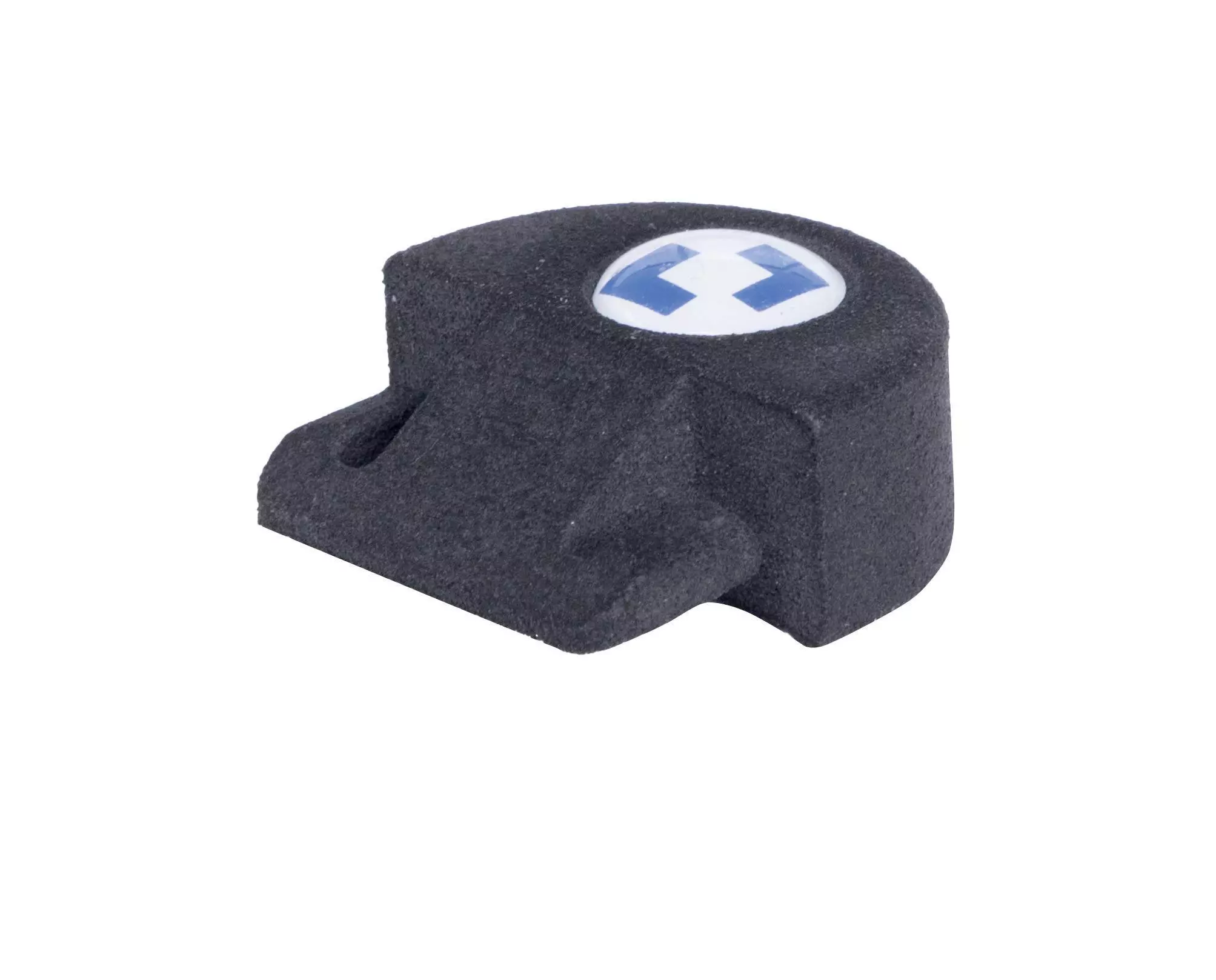

End piece Light square (for 71226)
Base article no.: 521500
Not available in the webshop
End piece, light, narrow (for 320643)
Base article no.: 521495
Not available in the webshop

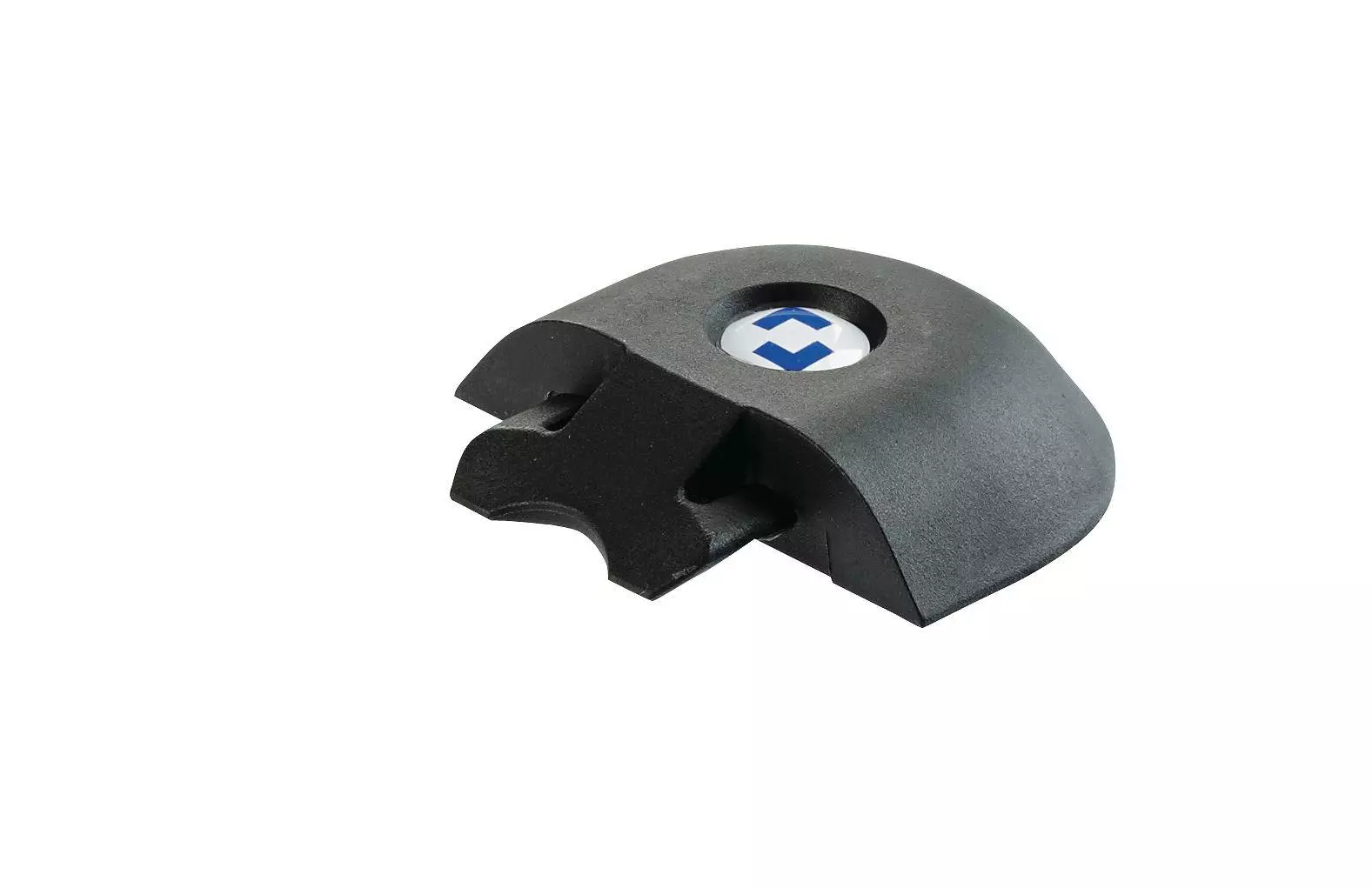

End piece, light flange (for 520609)
Base article no.: 521501
Not available in the webshop

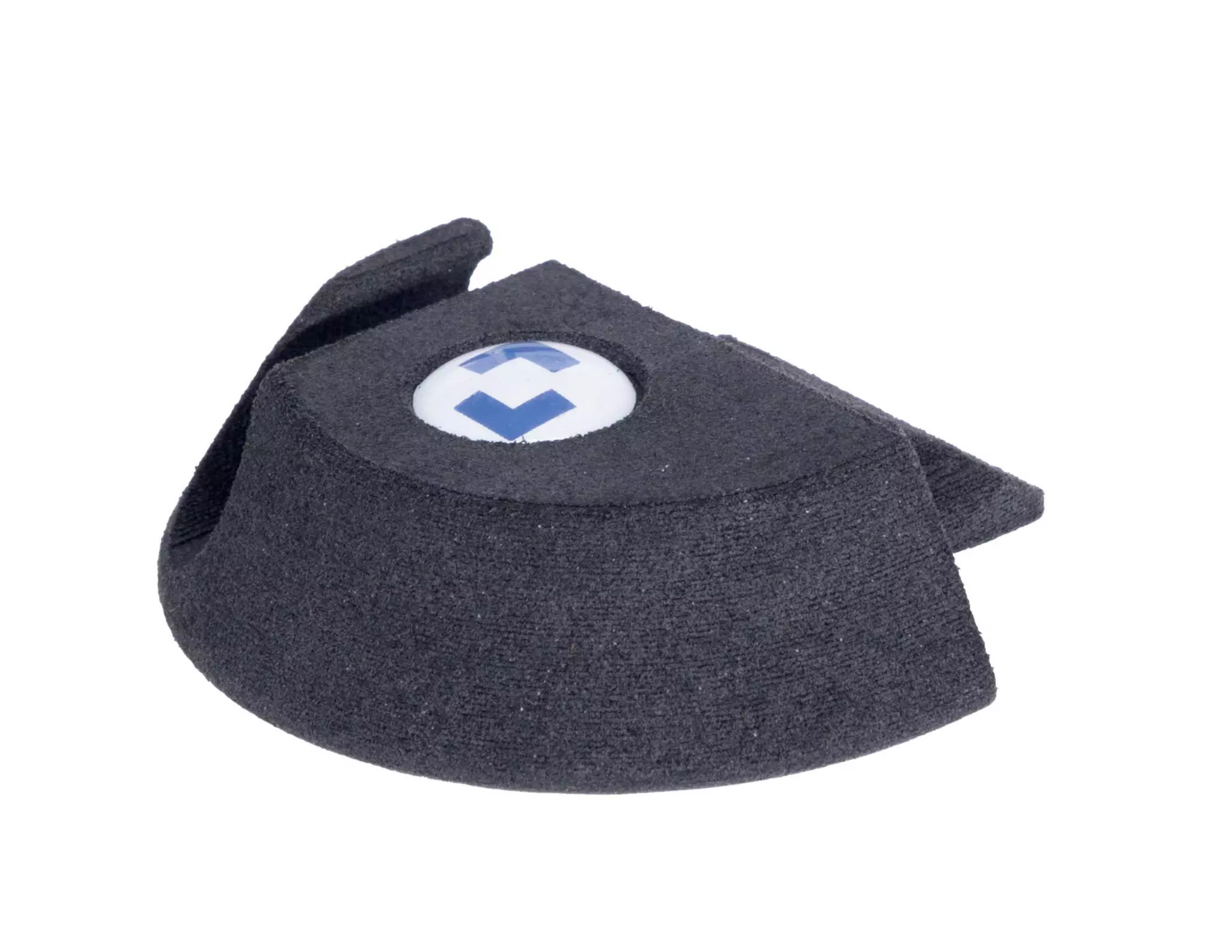

End piece, light, semi-circular (for 520624)
Base article no.: 521494
Not available in the webshop
End piece, light, retractable (for 520623)
Base article no.: 521502
Not available in the webshop
End piece Light LED (for 522477)
Base article no.: 522849
Not available in the webshop
End piece Light 8 mm piping left (for 522925)
Base article no.: 522936
Not available in the webshop
End piece, light, square (for 522925)
Base article no.: 522937
Not available in the webshop
End piece, light, square (for 522914)
Base article no.: 522930
Not available in the webshop
