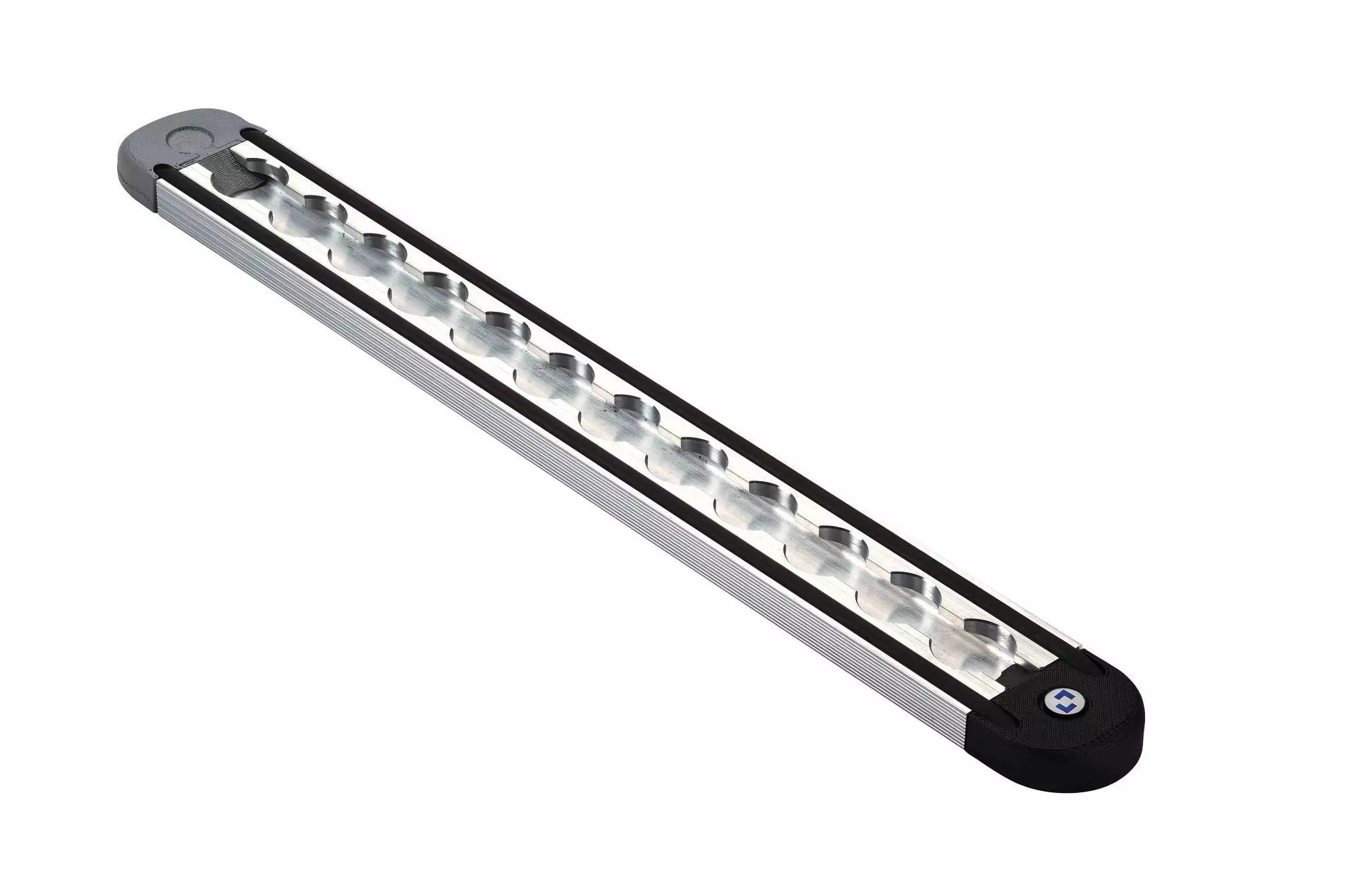

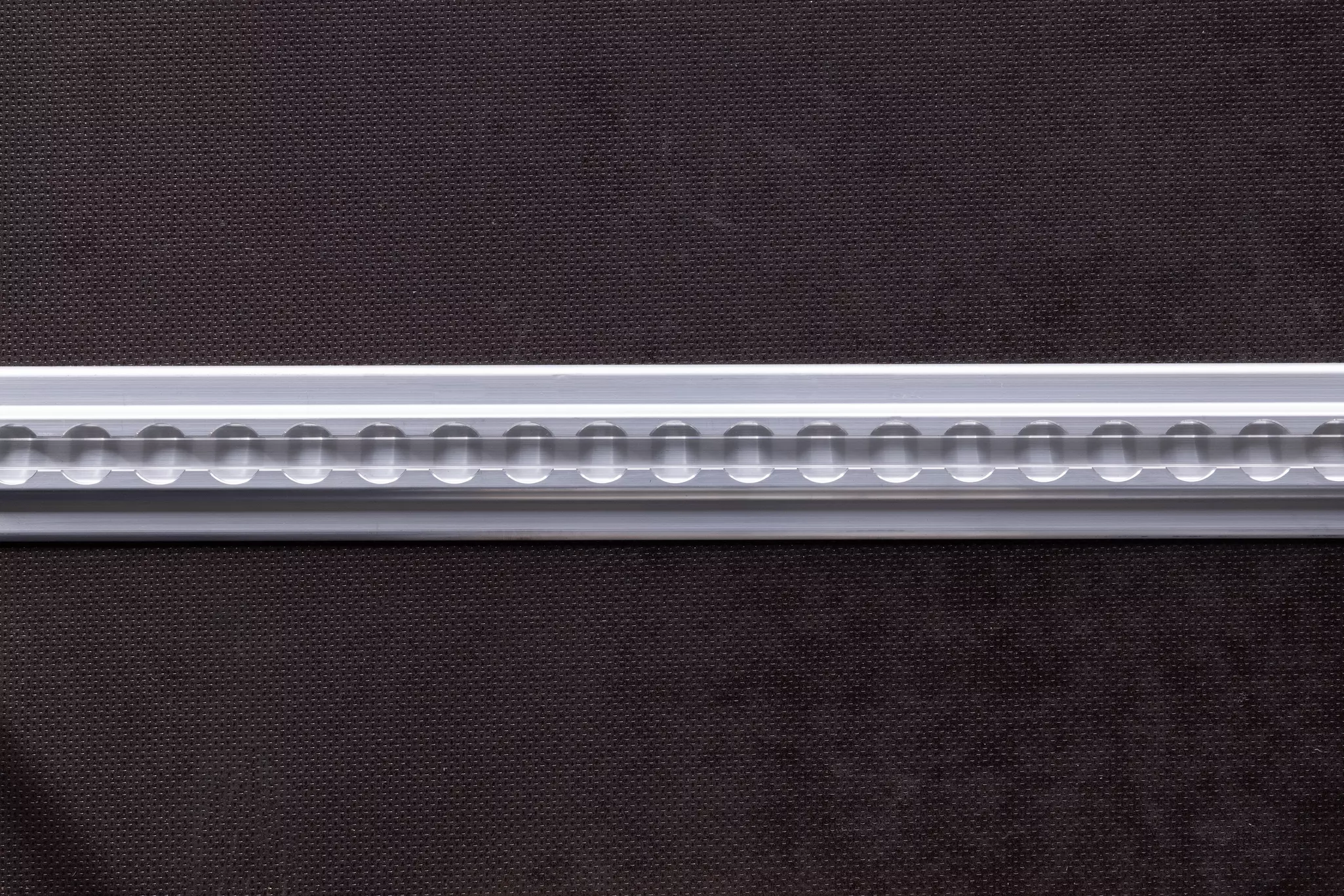

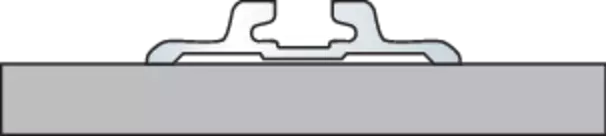

Airline track standard square
Base article no. 71206
Standard airline track for securing loads
allchange-compatibility
Made in Germany

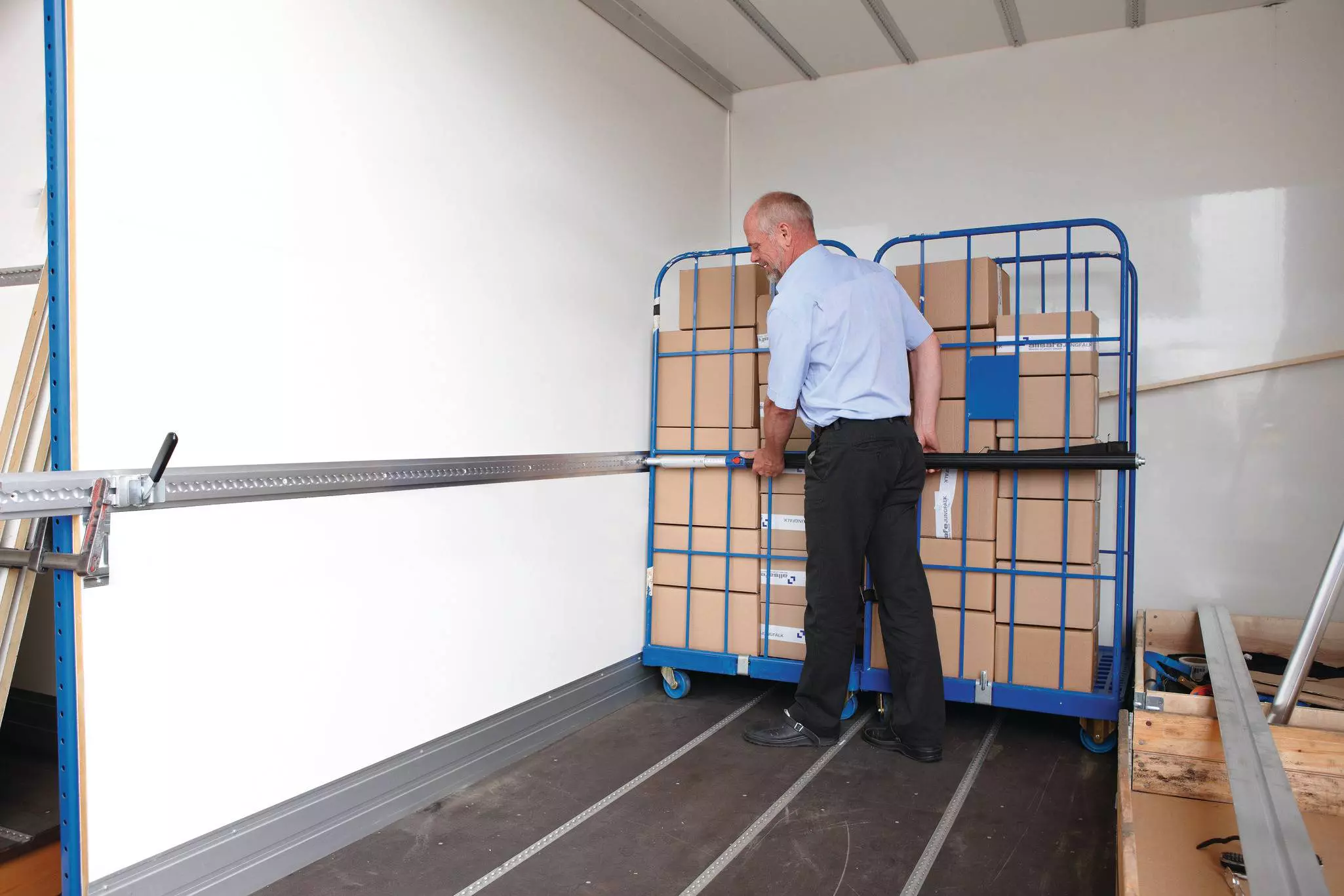

The resilient and versatile fastening solution for trucks and box vehicles

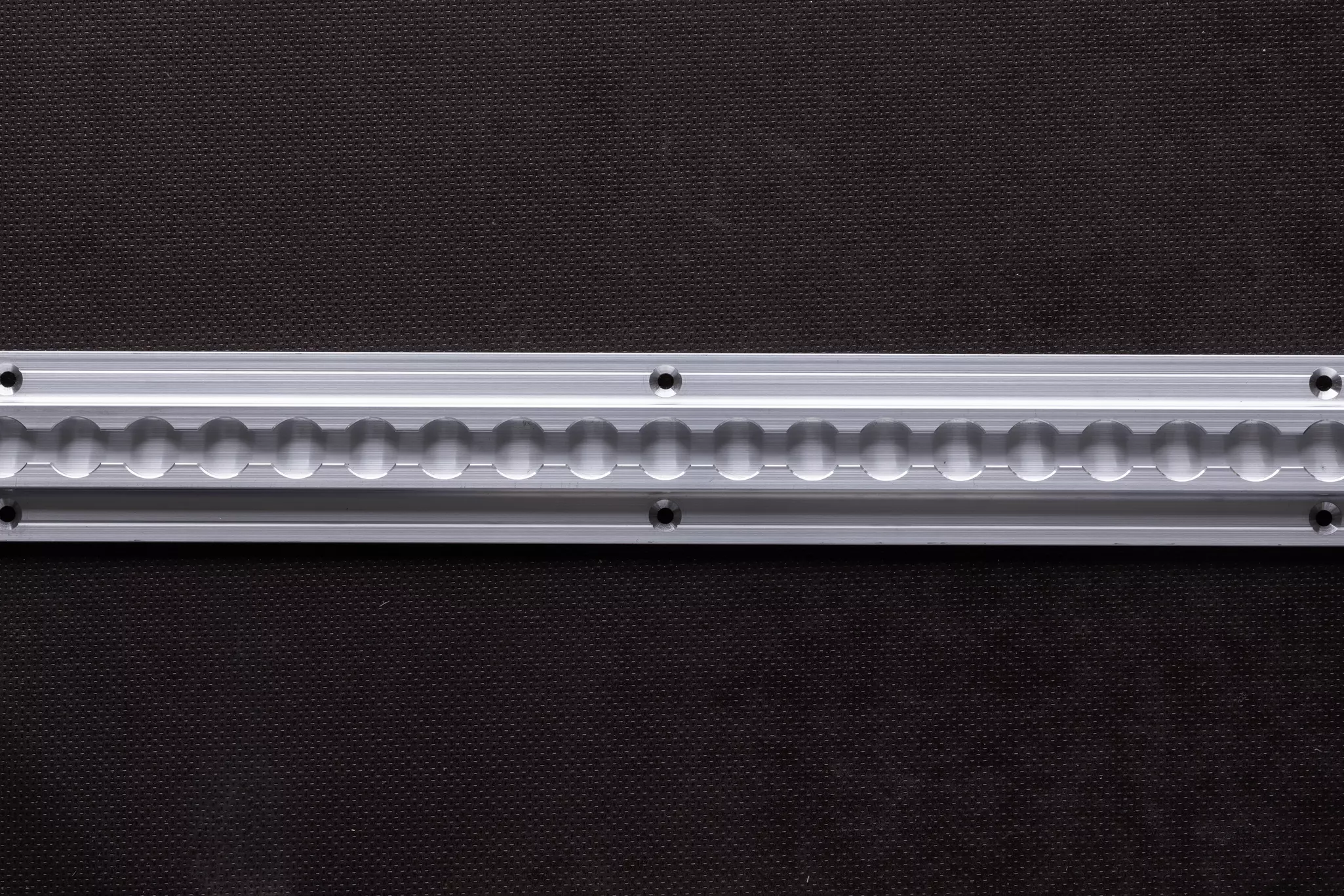

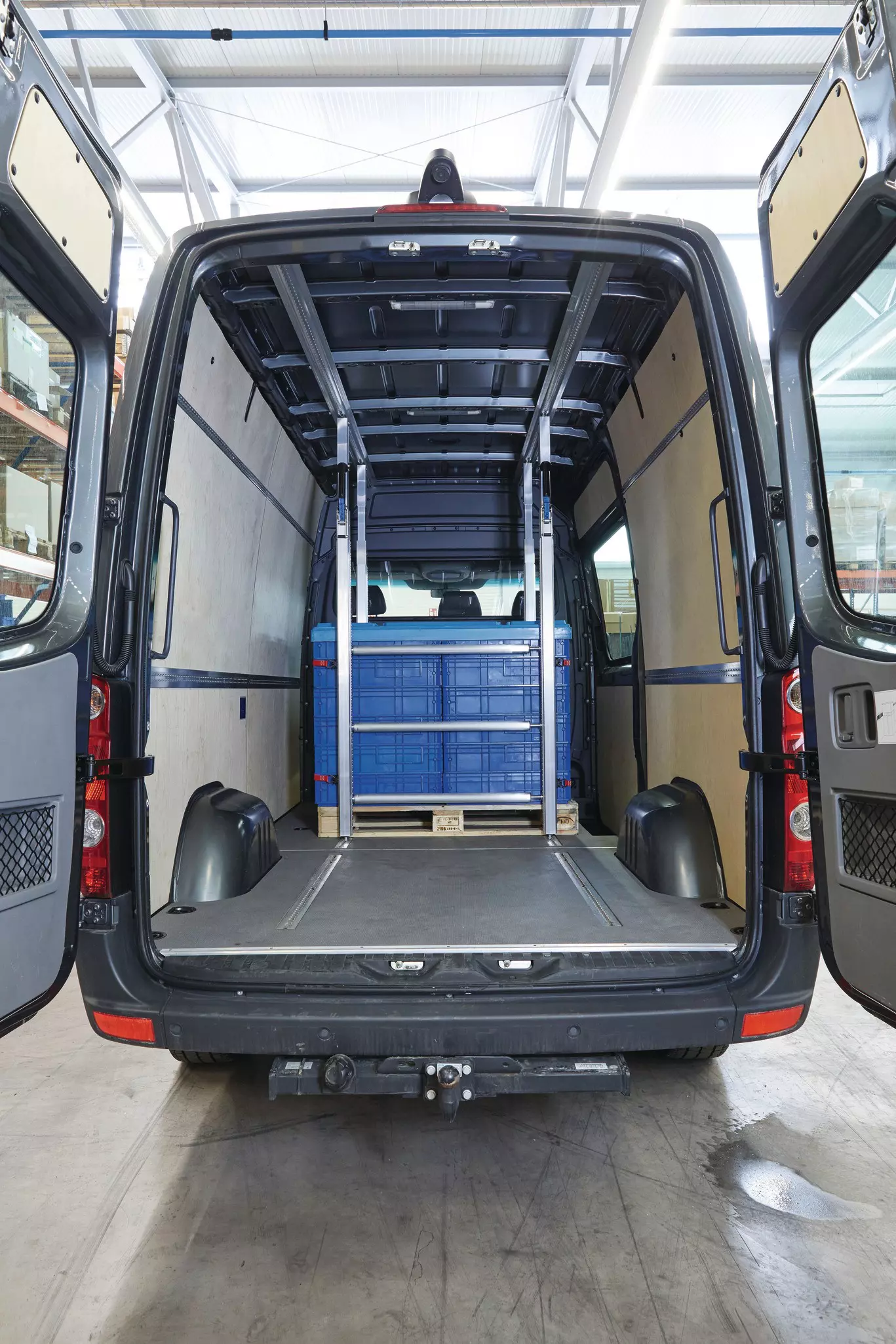

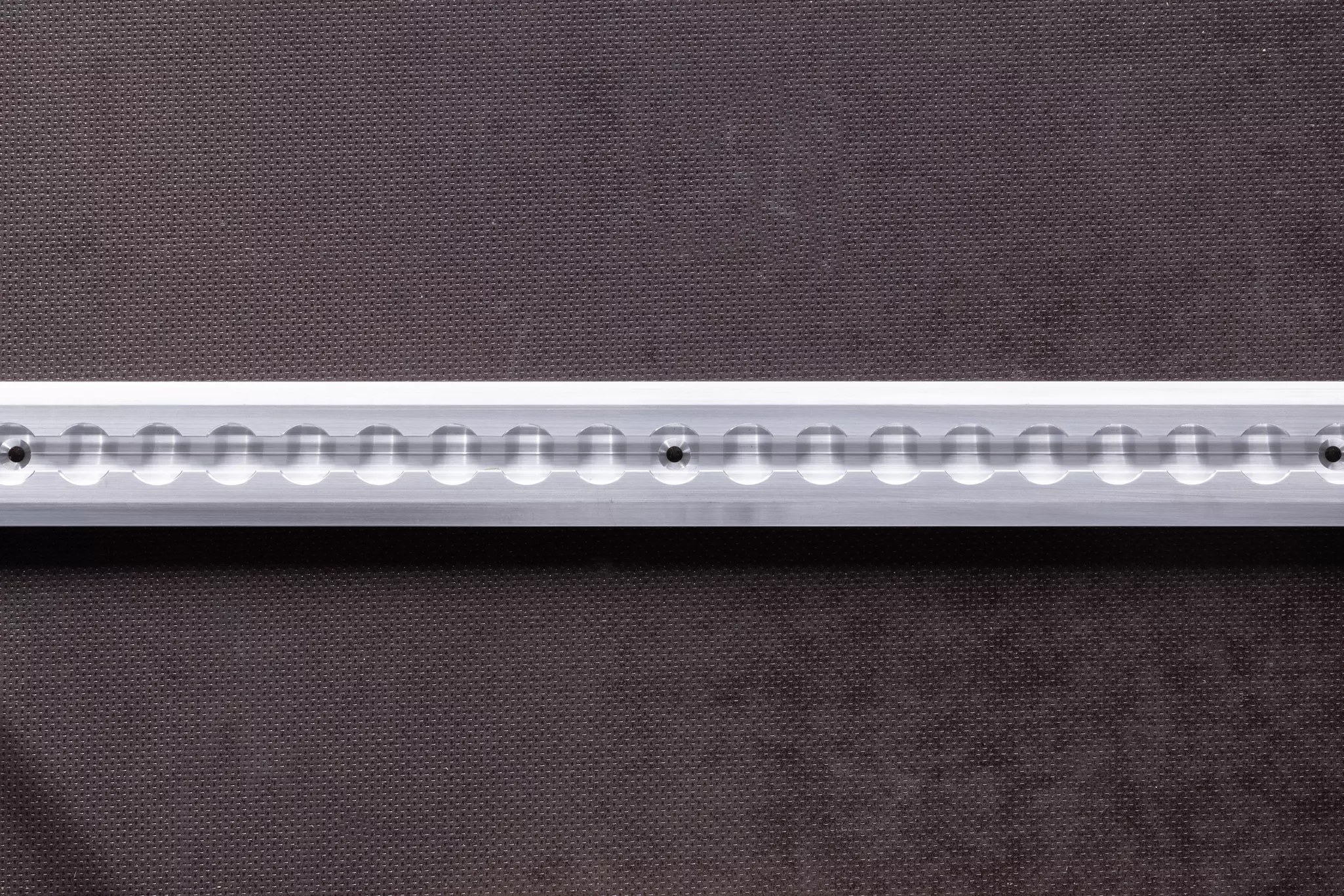

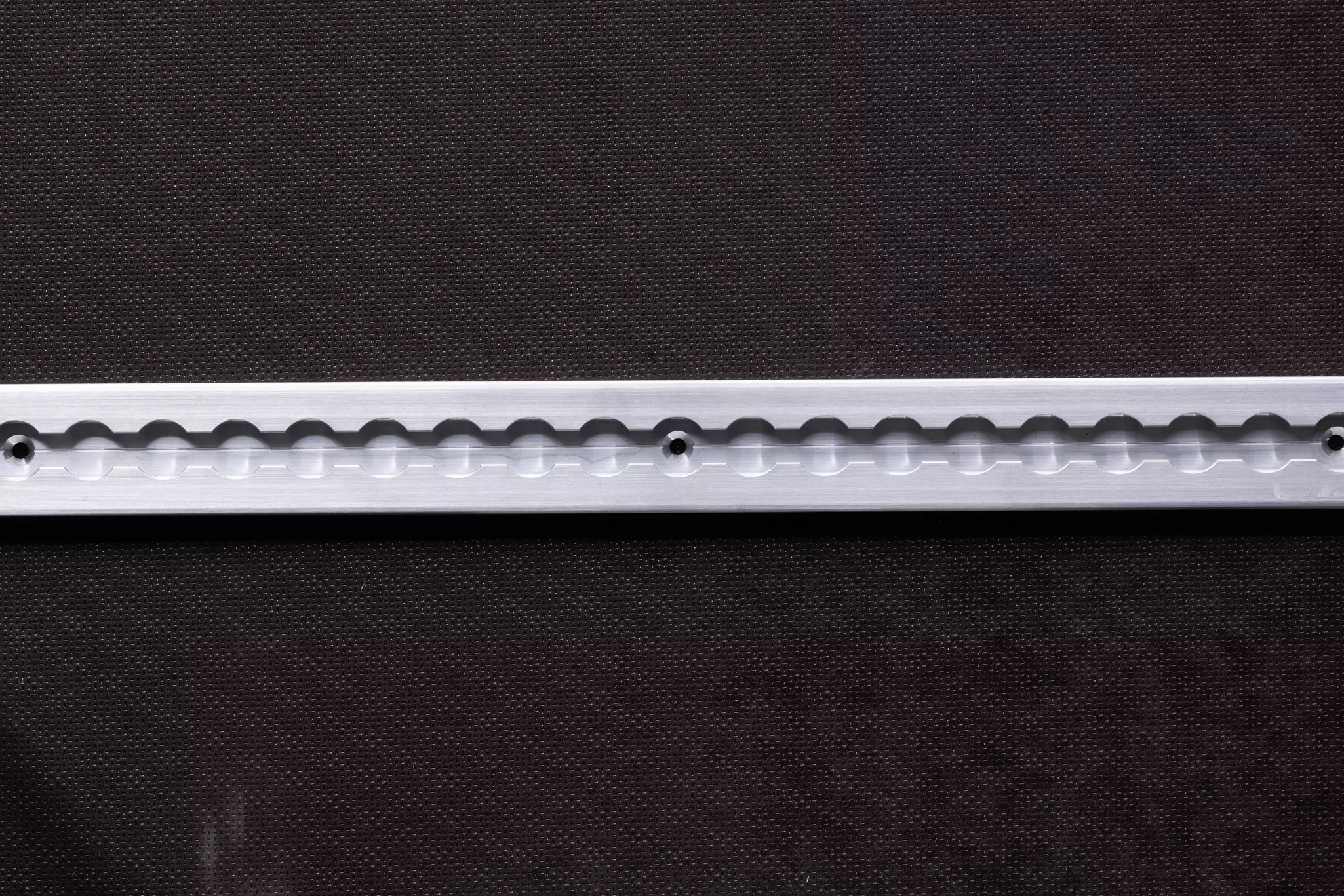

The allsafe Standard airline track combines high load capacity with low weight thanks to high-strength aluminium, offering a first-class solution for reliable load securing. With a wide range of profiles, this track can be flexibly adapted to all installation requirements and applications – whether in trucks or box vehicles. Robust and versatile, the Standard airline track is the ideal choice for professional transport requirements. It is easy to install using screws, rivets or adhesive, and is therefore quickly ready for use.
Technical specifications
At a glance
- Made of aluminium
- Variants for gluing, riveting, and screwing
- For large transporters and small to large box vehicles
- 100 to 6000 mm
Load capacity
The Airline tracks can be qualified by the installer in conjunction with the KERL as lashing points in accordance with ISO 27955 (passenger cars), ISO 27956 (panel vans), DIN 75410-1 (flatbed trucks up to 3.5 t) or EN 12640 (intermodal loading units and commercial vehicles). The permissible load capacities listed below are achieved under the following conditions:
- Sufficient force transmission to the substructure
- Mounting distance 75 / 76.2 mm (except for steel airline tracks: 50 mm, special airline tracks 24 mm Floor: 500 mm, outer frame: 300 mm) or sufficient bonding
- Airline tracks Standard, Special, and HD secured with M6 screws 10.9
Load capacity in conjunction with lashing points
| KERL500 | KERL1000 | KERL2000* | KERL2000** | |
|---|---|---|---|---|
| ISO27955 | 350daN | |||
| ISO27956 | 500daN | 800daN | 800daN | 800daN |
| EN12640 | 400daN | 1000daN | 1000daN | 2000daN |
Load capacity in combination with screw fittings
| KERLM8 | KERLM10 | |
|---|---|---|
| X | 200daN | 500daN |
| Y | 200daN | 500daN |
| Z | 1000daN | 2000daN |
configuration options
Starting dimension
Unless otherwise specified, the starting dimension is X = 0 mm.
Pitch
Unless otherwise specified, the pitch is P = 25.0 mm.

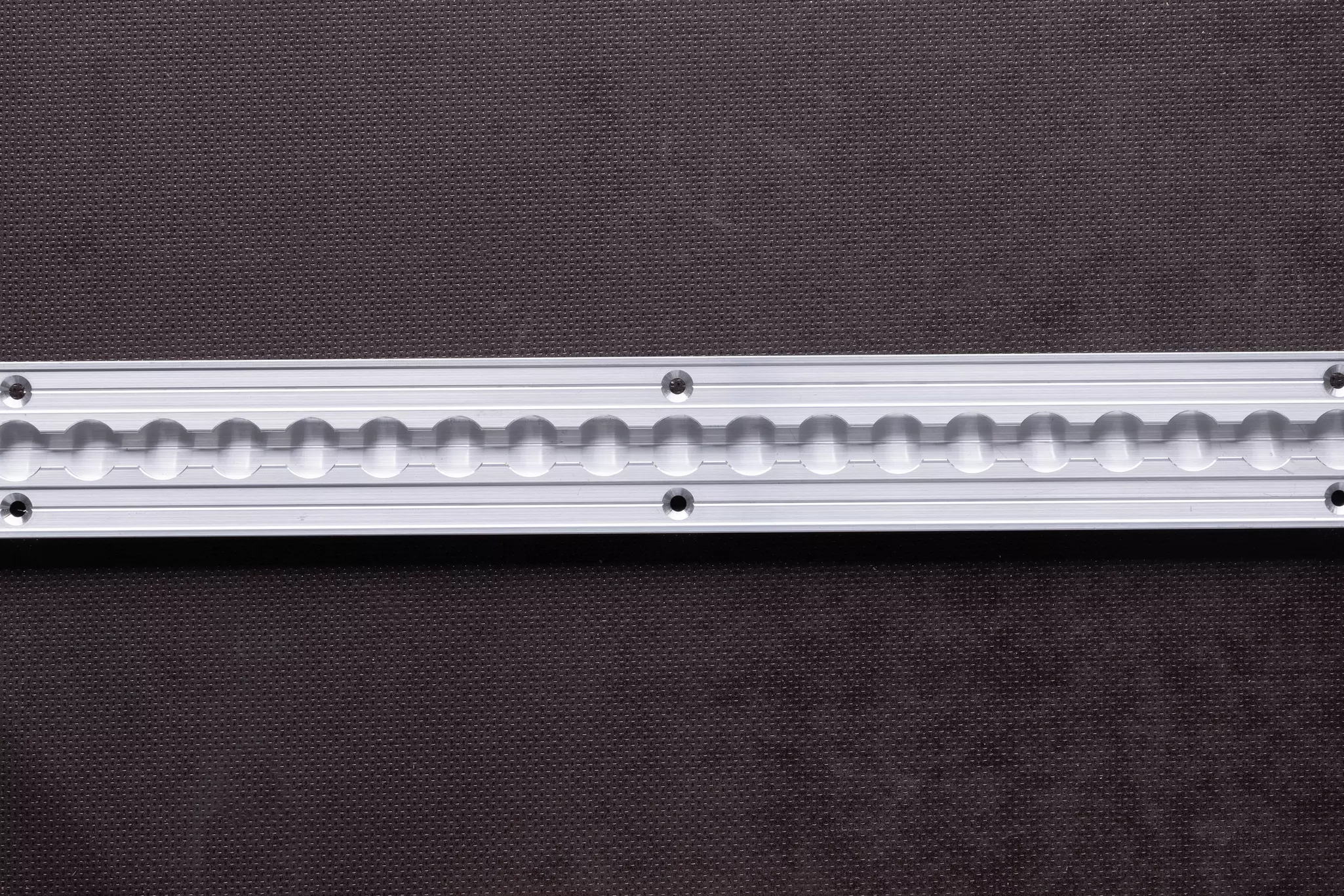

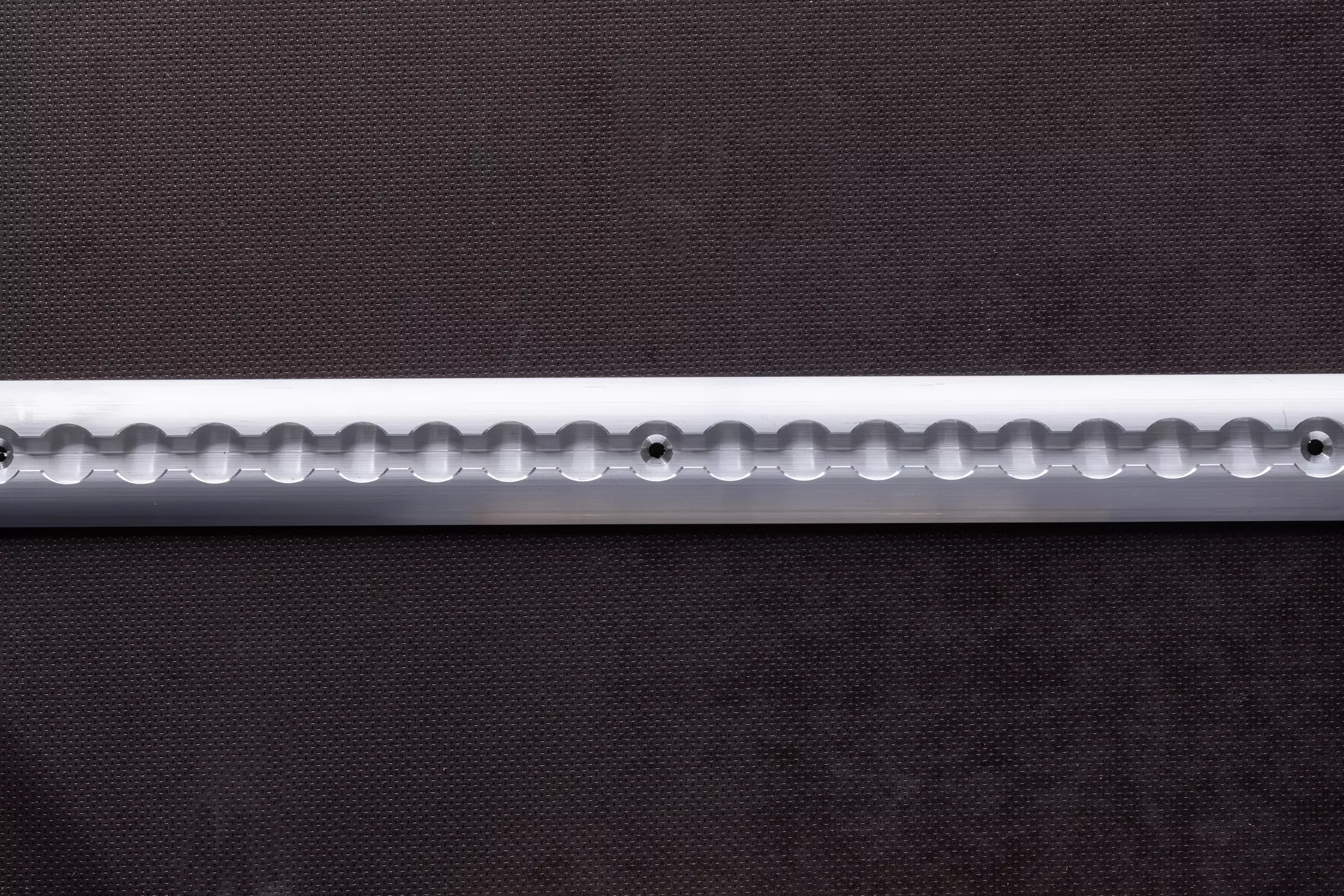

Mounting holes
| S4 | S5 | S6 | S8 | |
|---|---|---|---|---|
| W | 90° | 90° | 90° | 90° |
| D | 9 | 11 | 13 | 17,2 |
| d | 4,6* | 5,5* | 6,6* | 9,0* |
| N4 | N5 | N6 | |
|---|---|---|---|
| W | 120° | 120° | 120° |
| D | 10,1 | 12,0 | 13,0 |
| d | 4,2 | 5,05 | 6,7 |
| D5,0 | D5,5 | D6,6 | D8,5 | |
|---|---|---|---|---|
| d | 5,0 | 5,5 | 6,6 | 8,5 |
| M5 | M6 |
|---|
| FB5 | |
|---|---|
| D | 10,0 |
| d | 5,0 |
Position of mounting holes
For holes with equal spacing, please specify the hole spacing a1 and a2.
For individual hole spacing, please specify the hole spacing a1, a2, a3, a4, etc.
2-part track
Start and end of track
Select the shape of the track start and end (max. radius or max. F2 = half track width in mm).
profiles

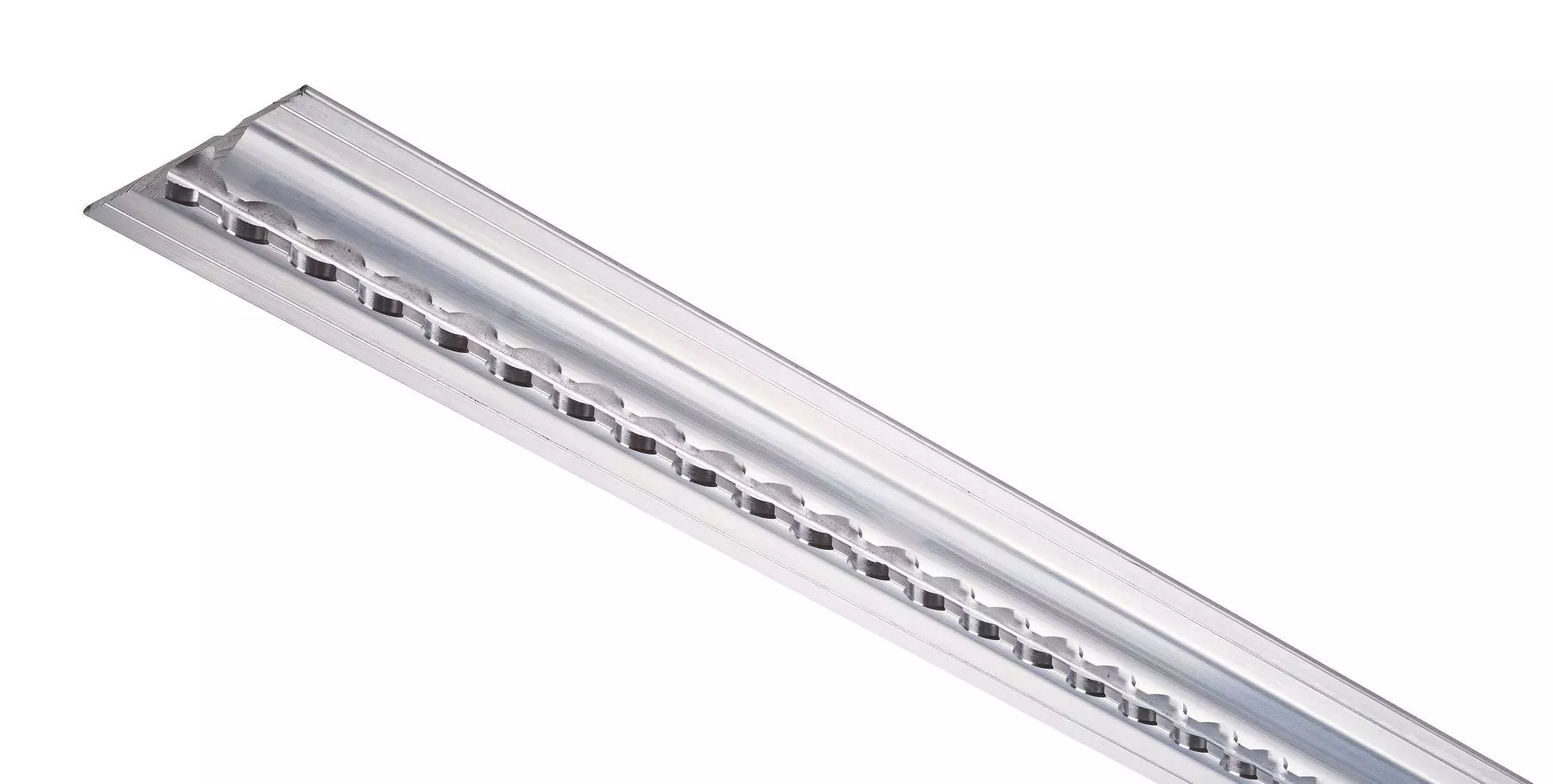

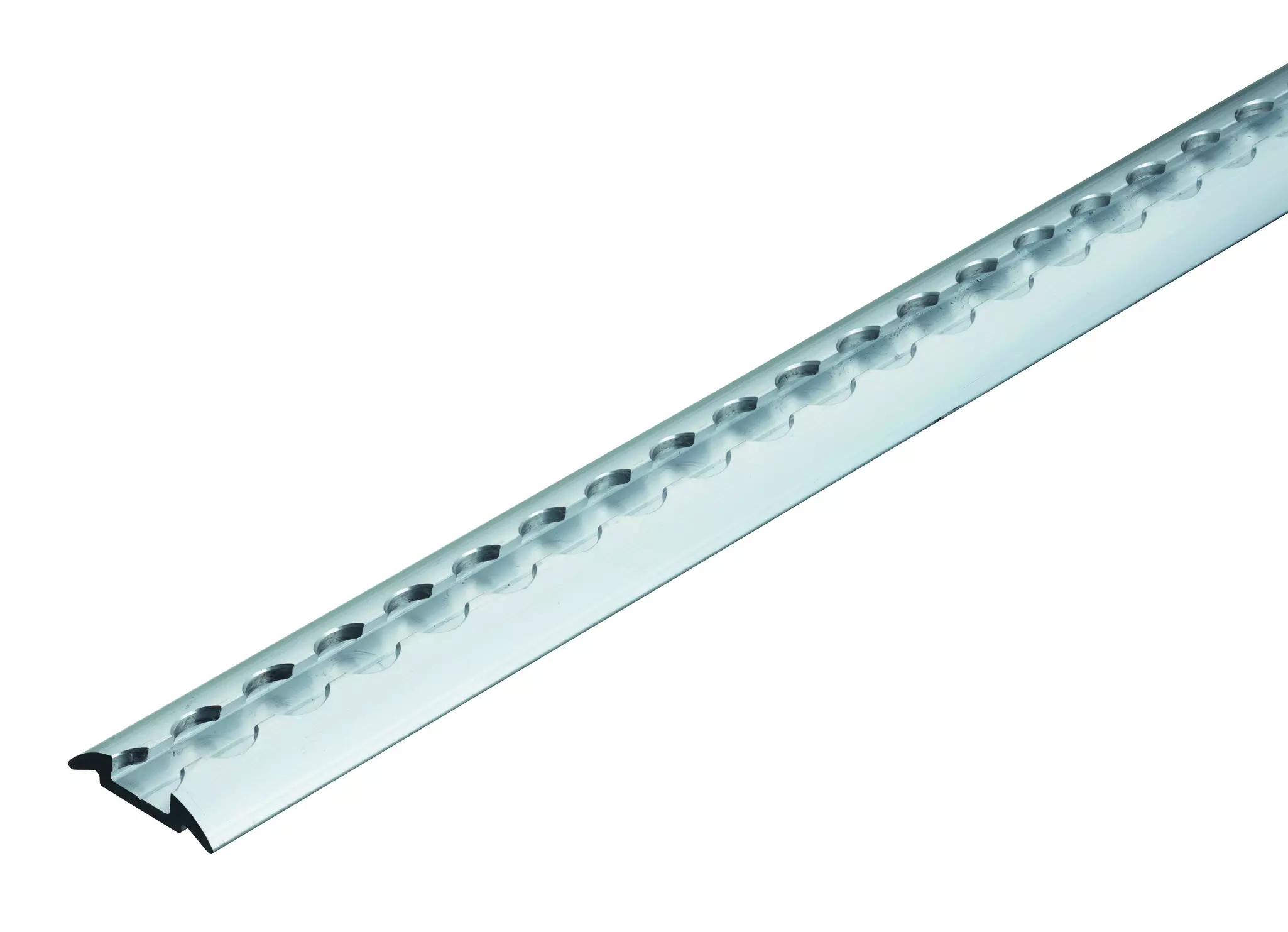

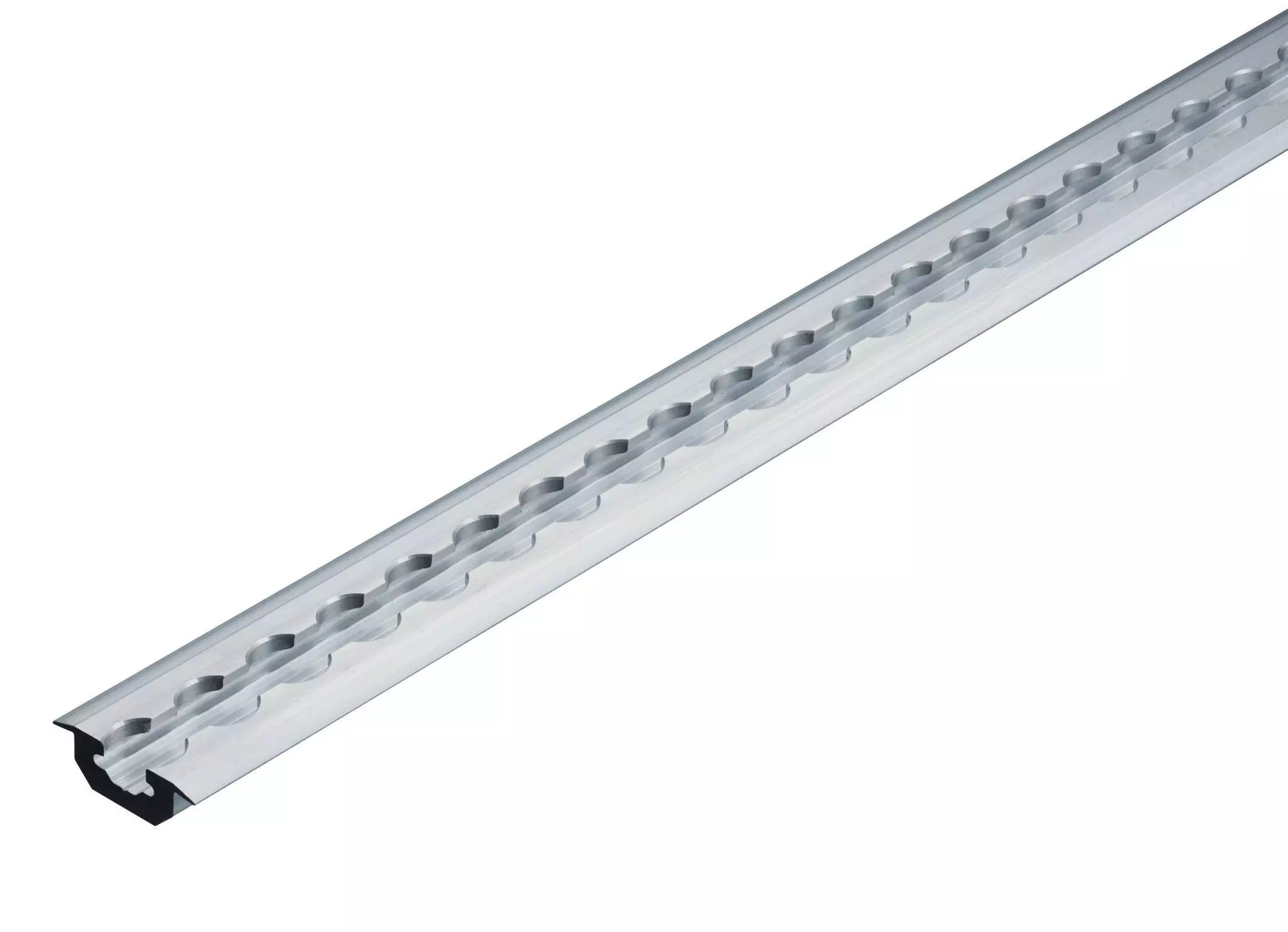

Standard airline track with flange
Base article no. 71209

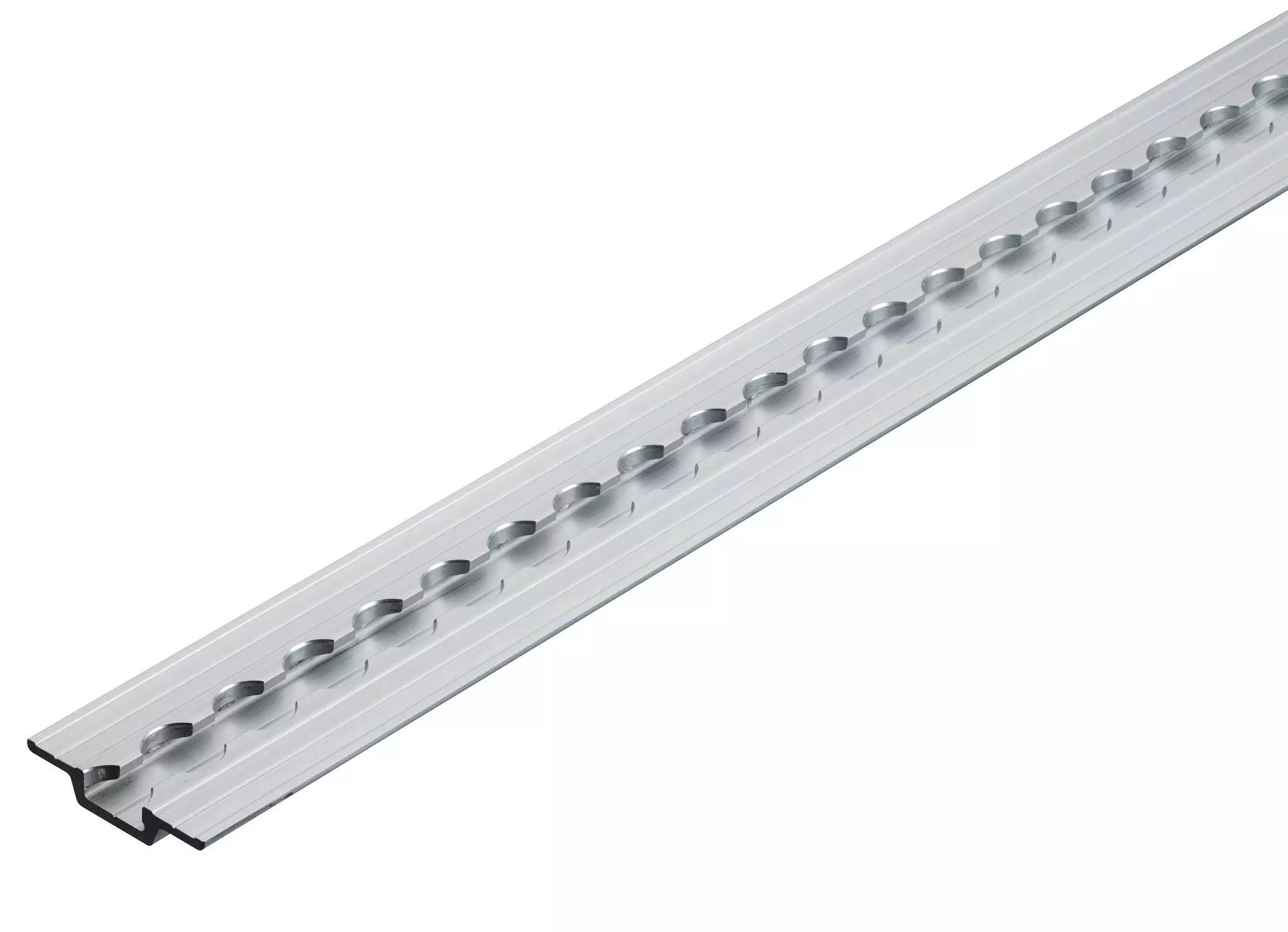

Airline track standard glueable
Base article no. 320357

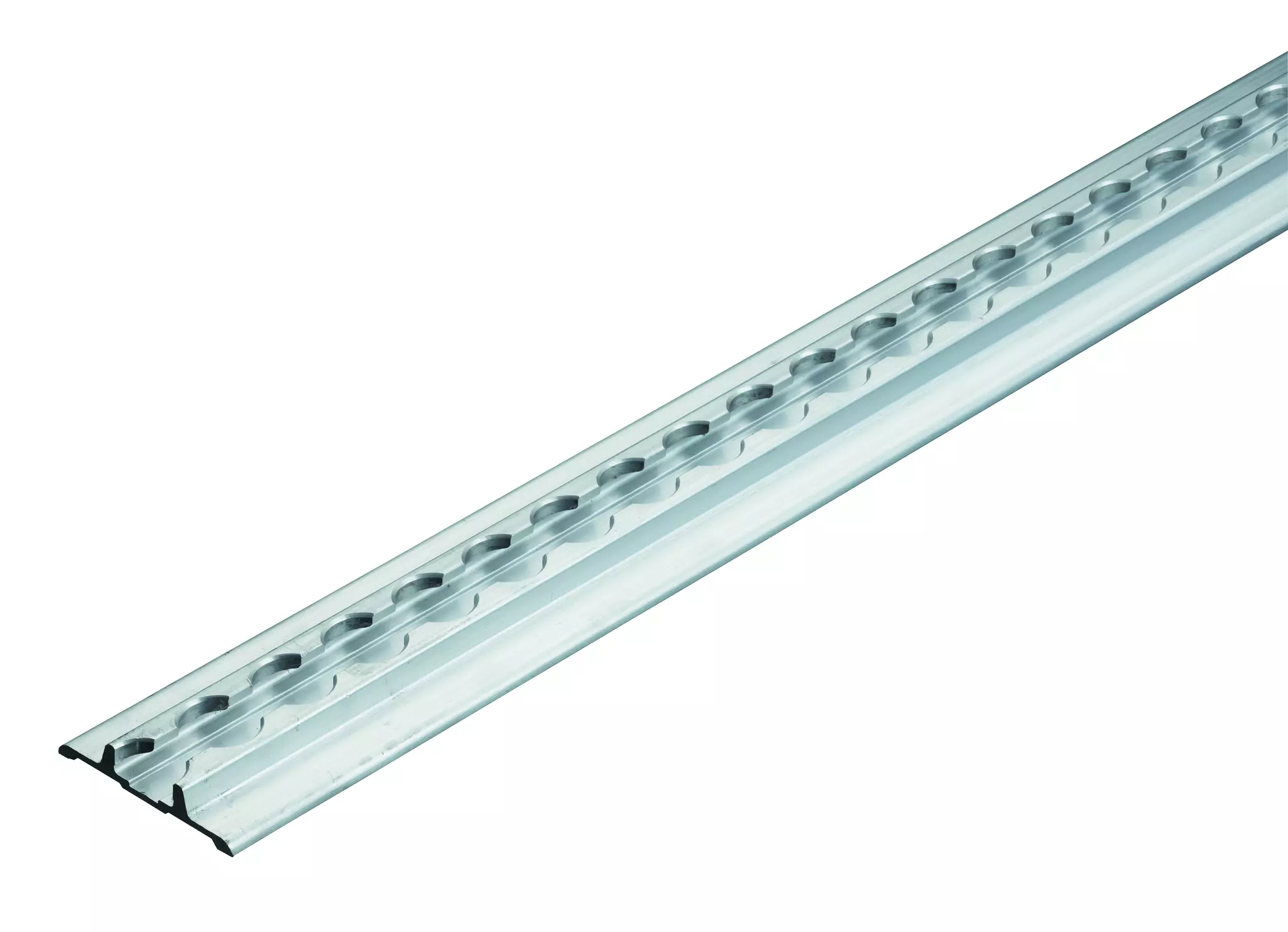

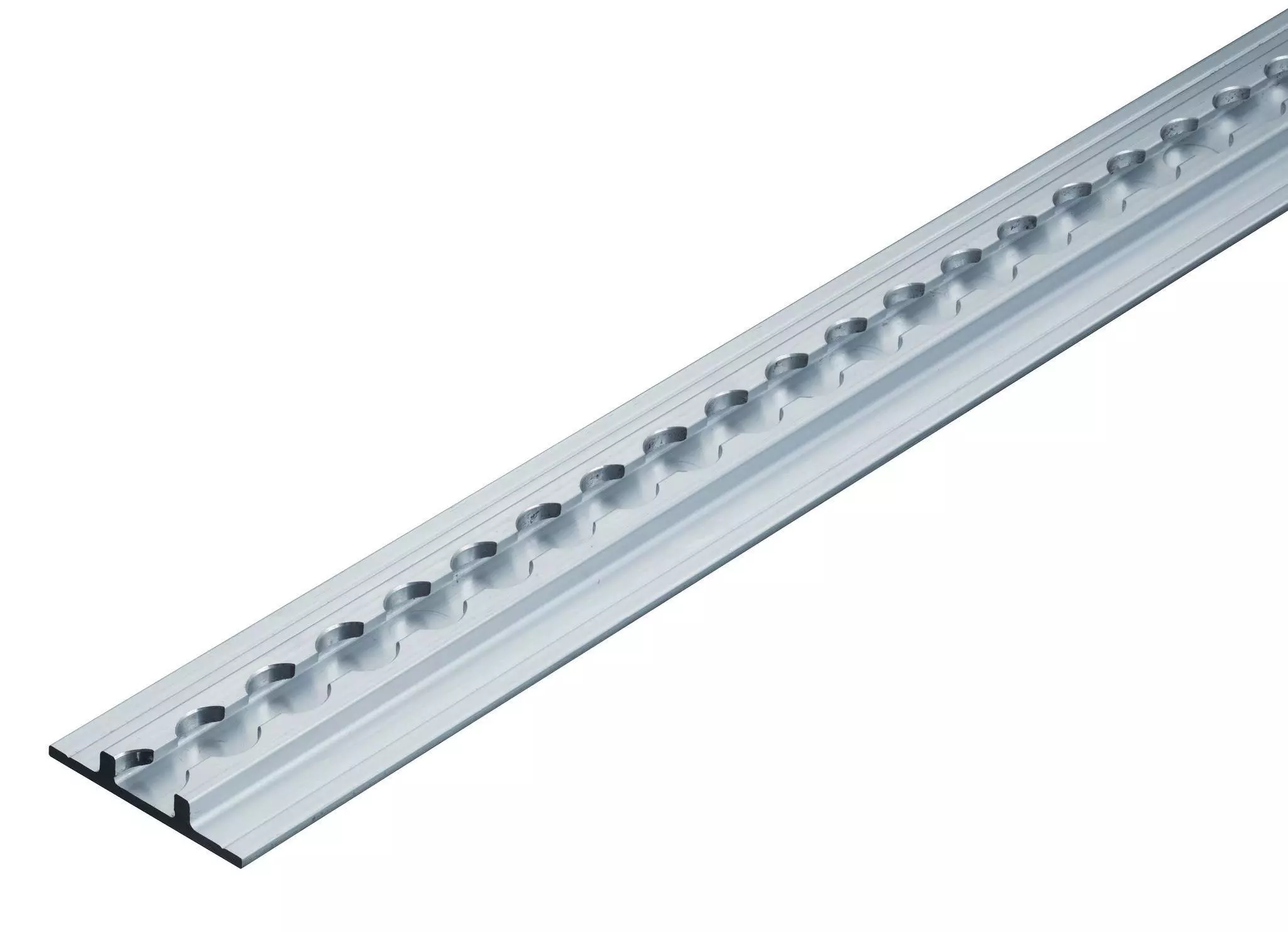

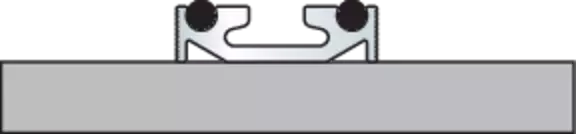

Standard airline track with wing
Base article no. 71207

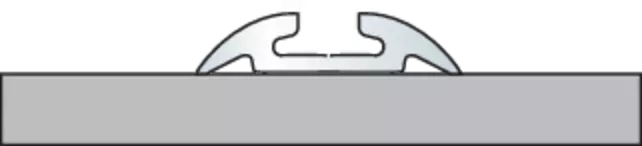

Standard semicircular airline track
Base article no. 71224

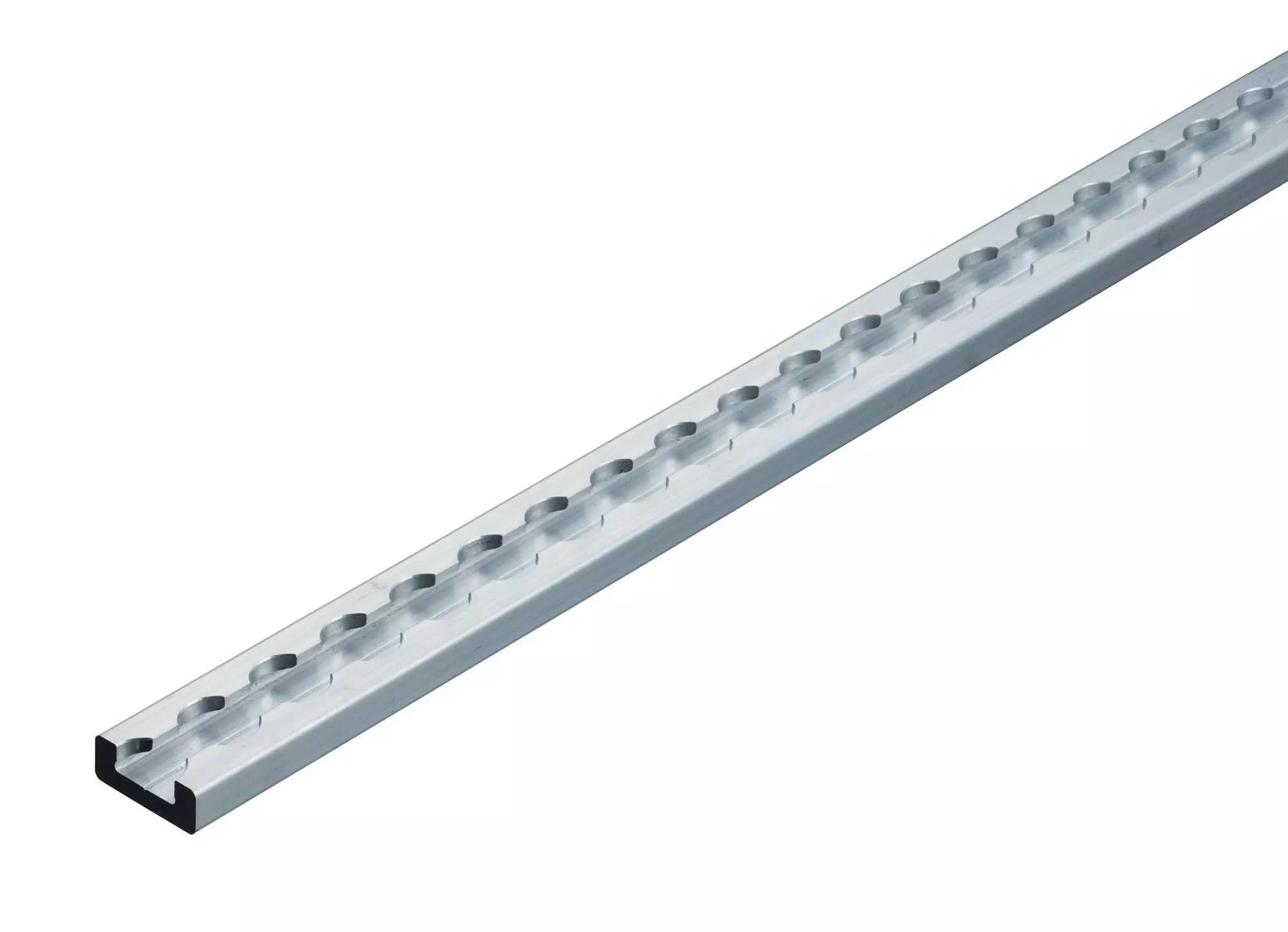

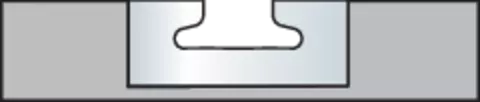

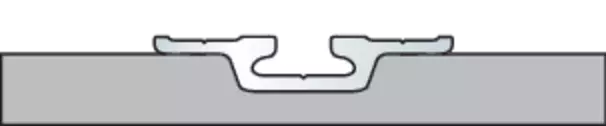

Standard recessed airline track
Base article no. 71223

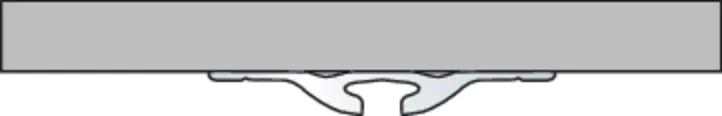

Airline track Standard Roof track
Base article no. 520377
Airline track standard round rubber cord
Base article no. 521476
Downloads
accessories
Track cover
Length freely selectable from 100 to 3000 mm.
End caps

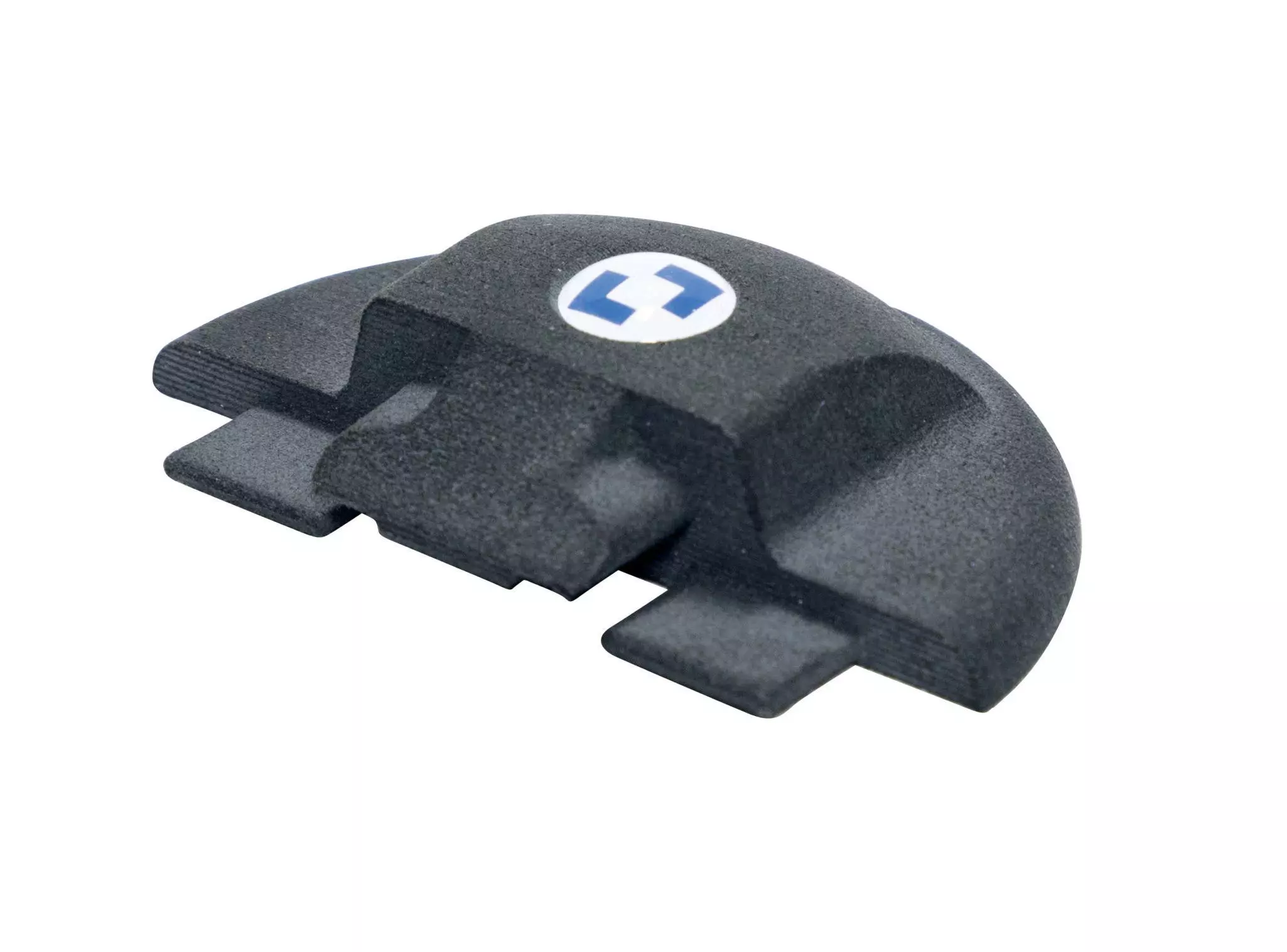

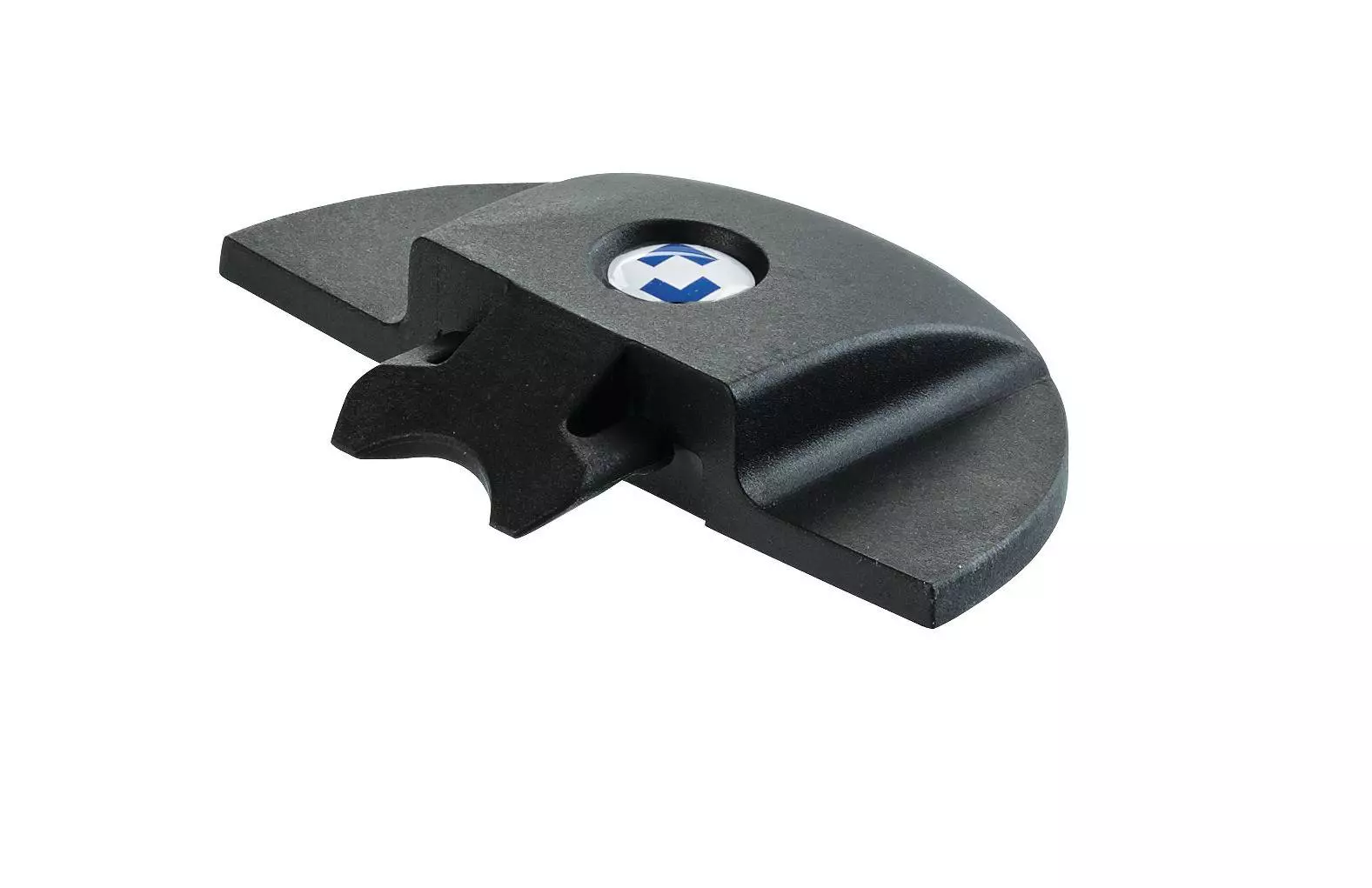

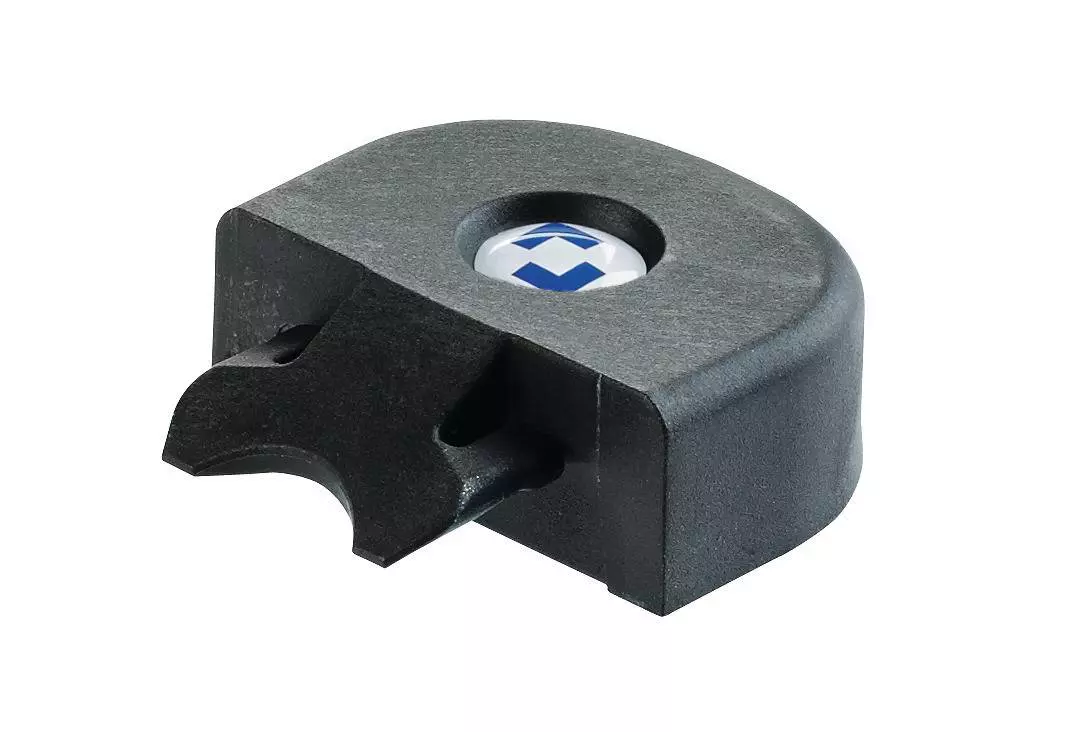

Standard square end piece (for 71206)
Base article no.: 521496
Not available in the webshop
End piece, standard flange (for 71209)
Base article no.: 521497
Not available in the webshop

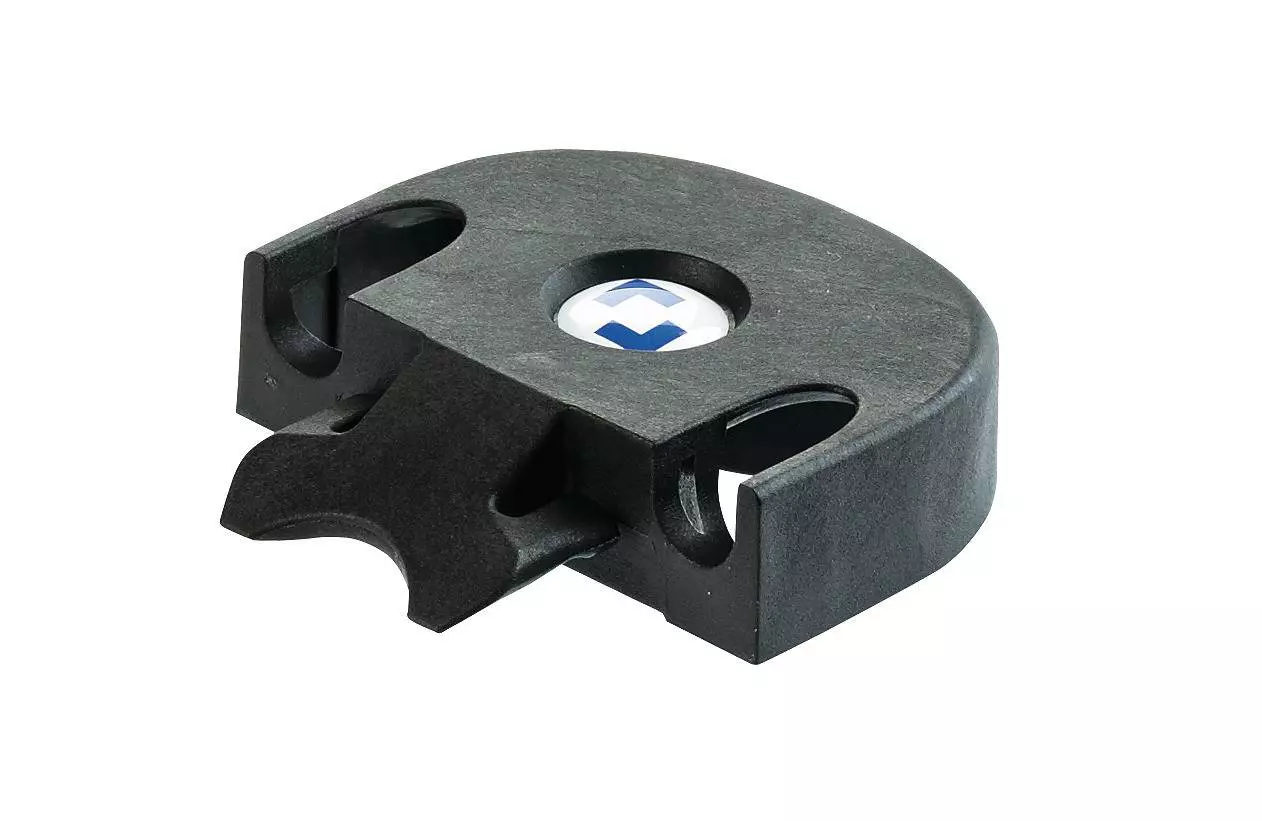

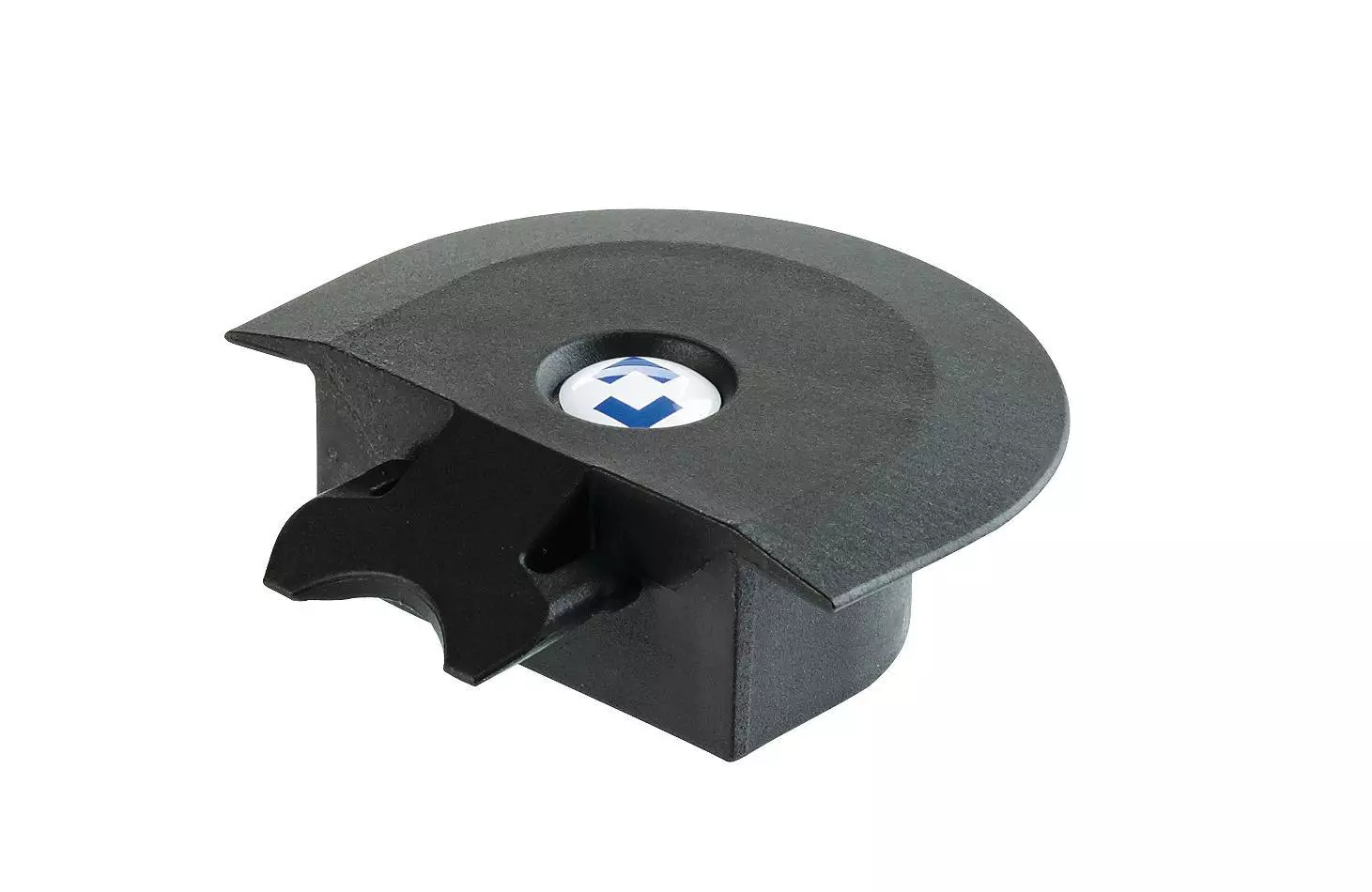

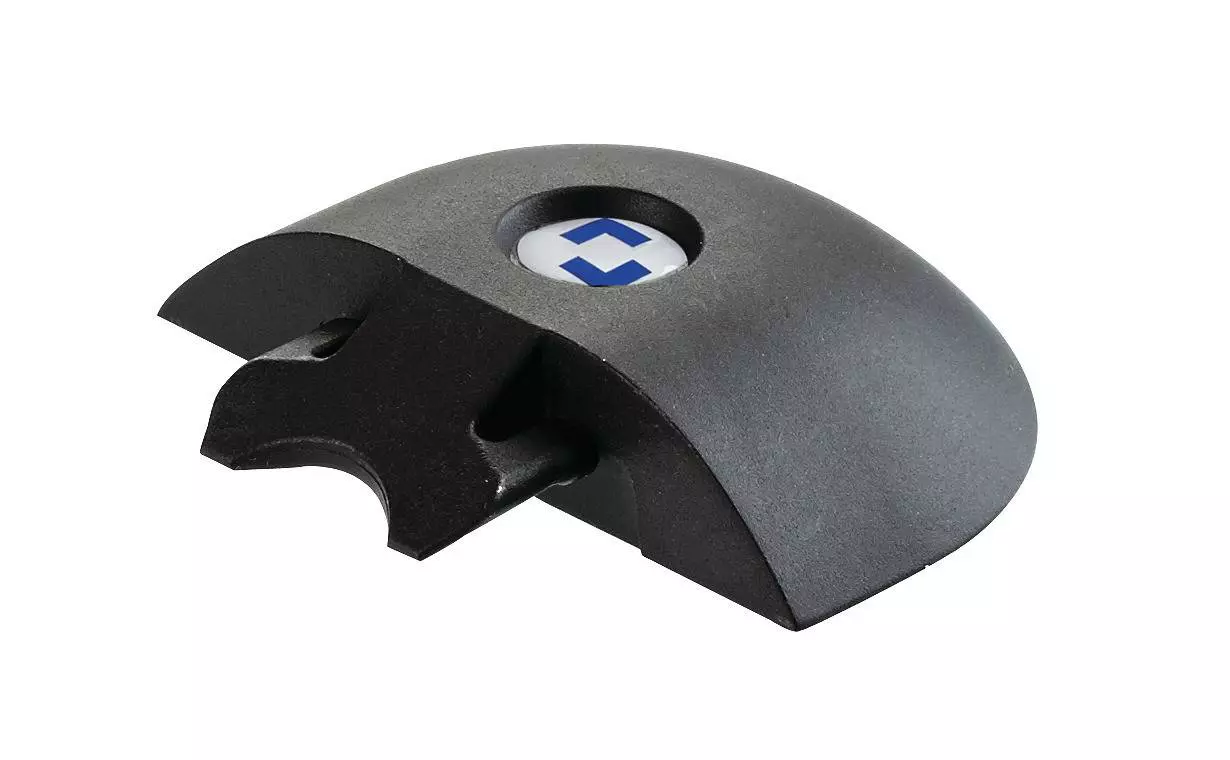

Standard half-round end piece (for 71224)
Base article no.: 521499
Not available in the webshop
Standard adhesive end piece (for 320357)
Base article no.: 522863
Not available in the webshop
End piece for standard round cord (for 521476)
Base article no.: 521477
Not available in the webshop
Standard end piece, retractable (for 71223)
Base article no.: 521498
Not available in the webshop
