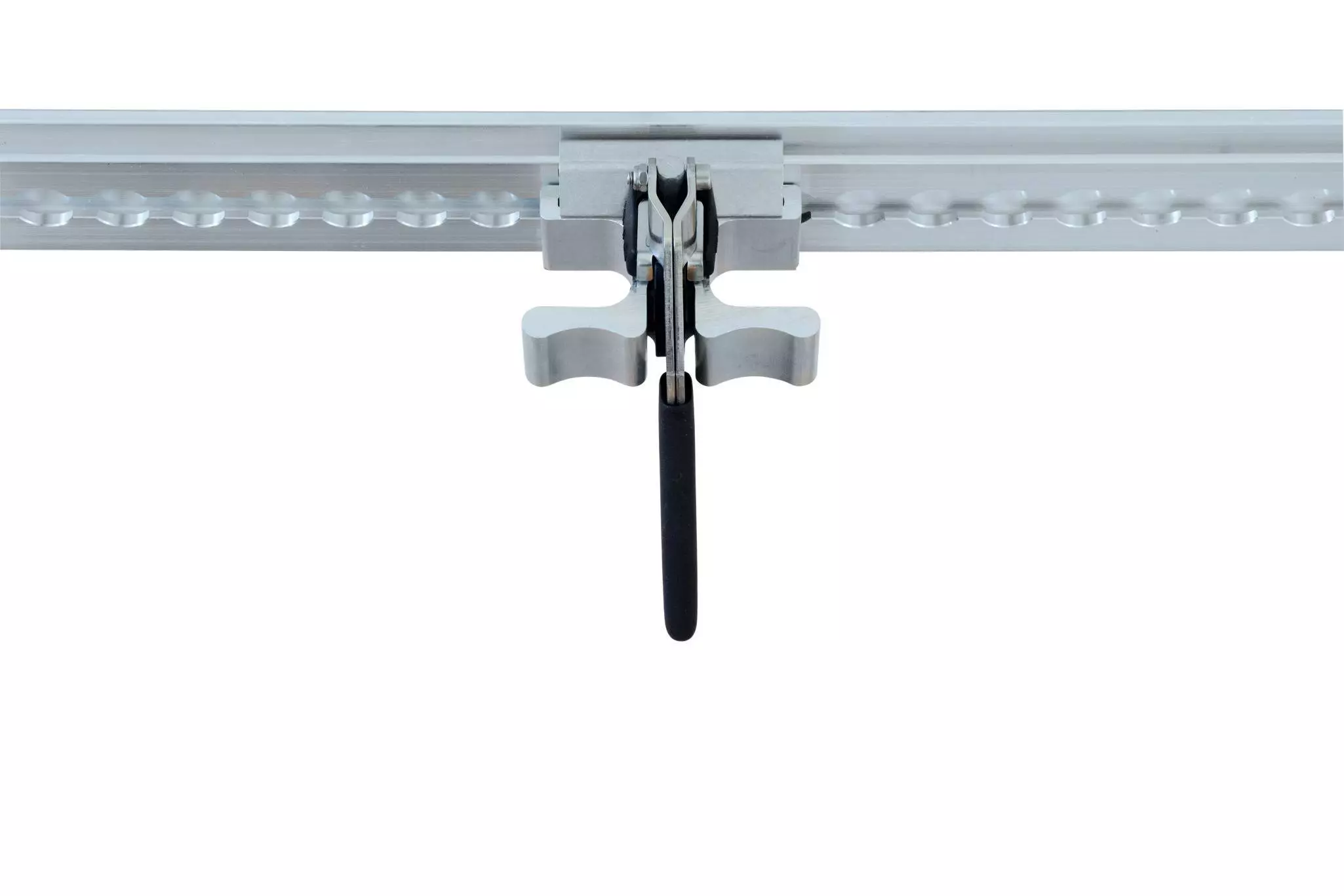

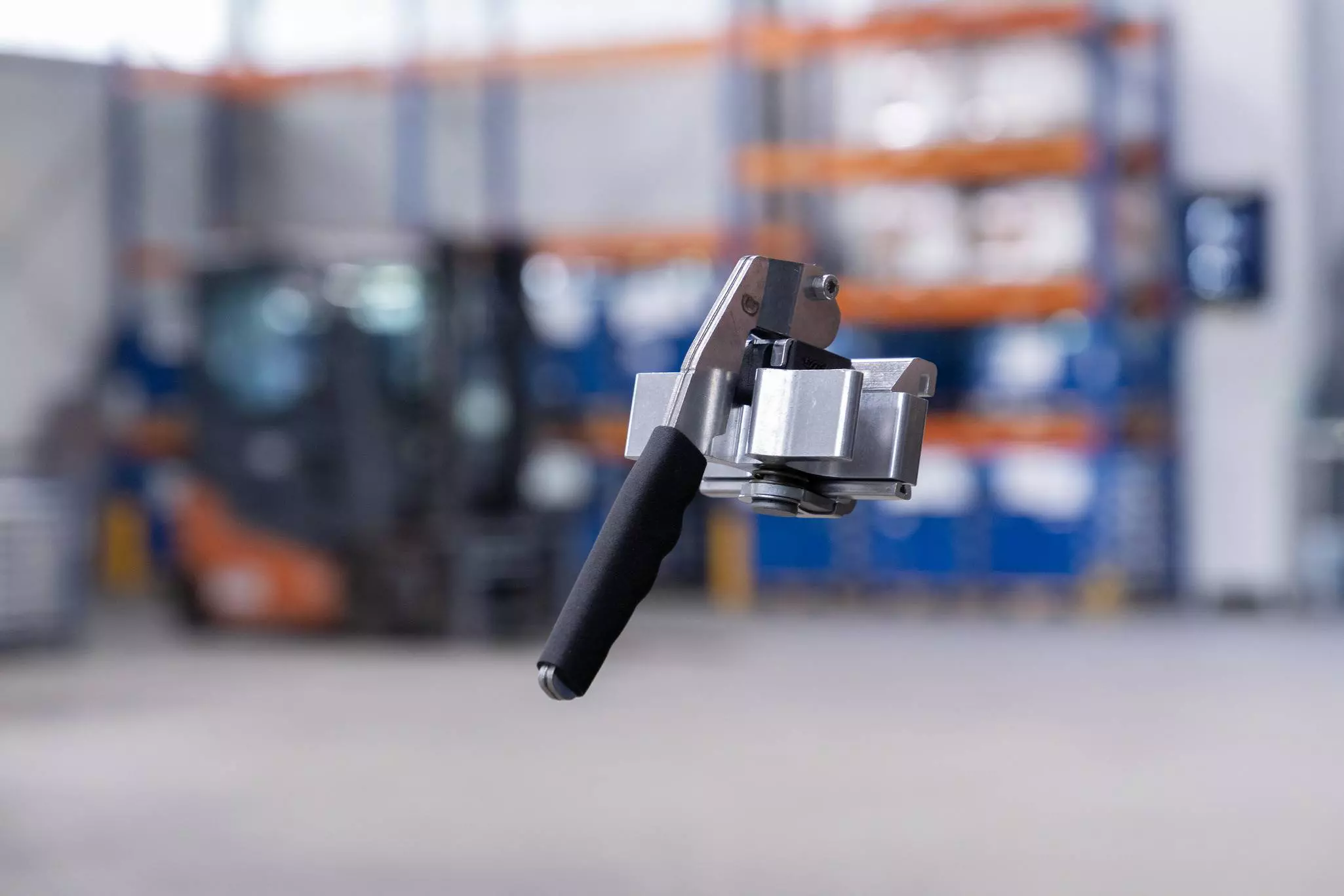

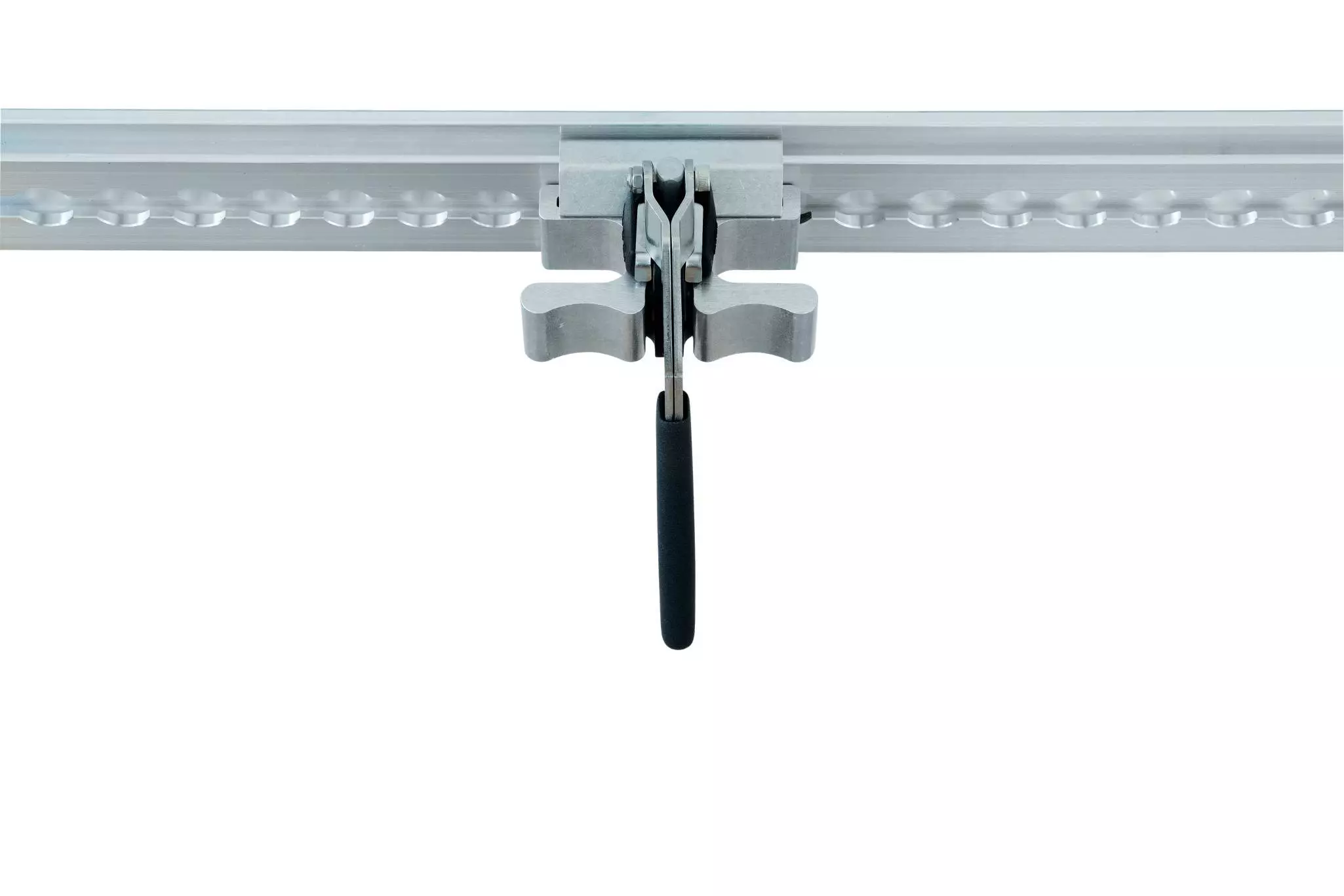

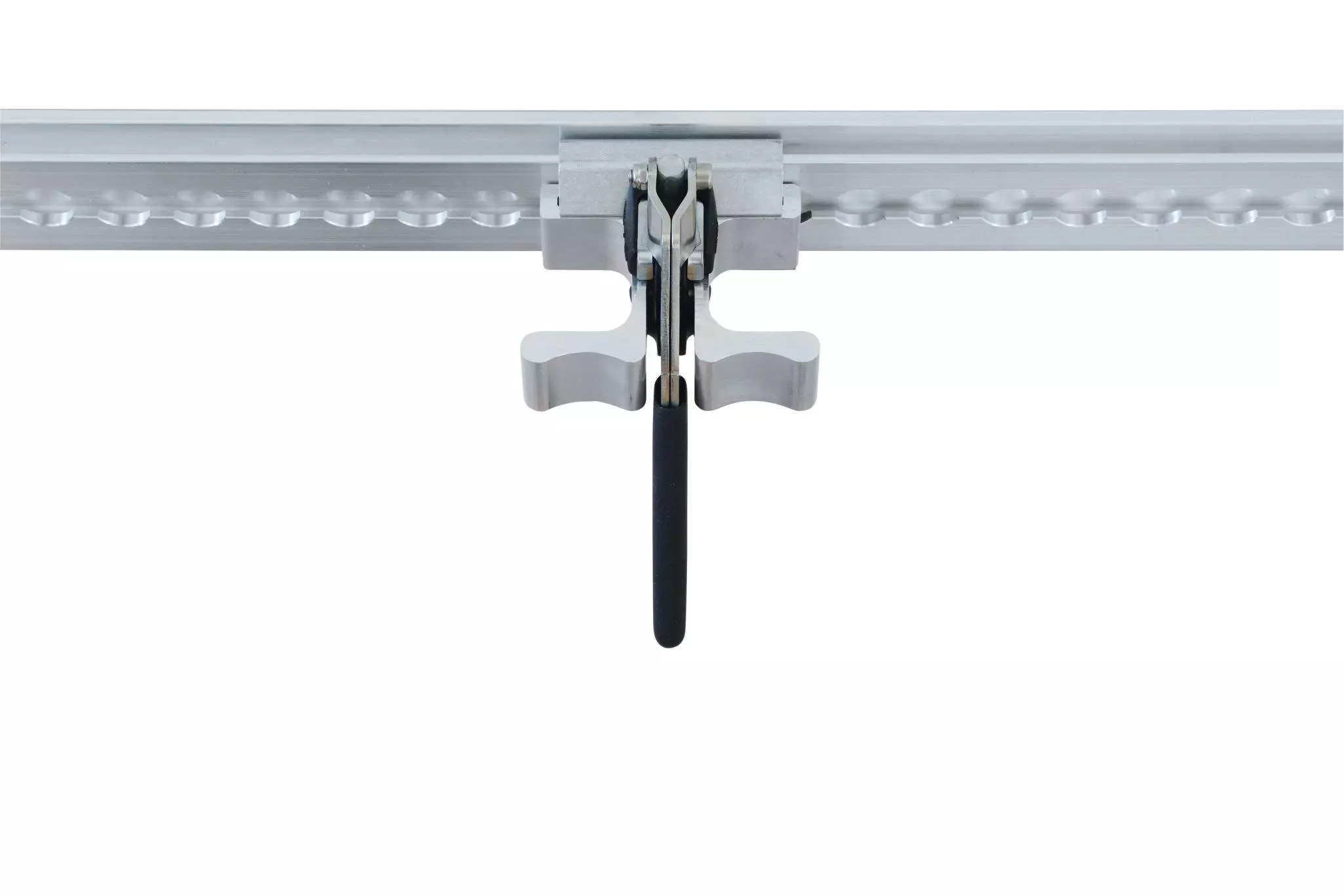

KERL JF Fitting for securing roll containers

allchange-compatibility

Made in Germany

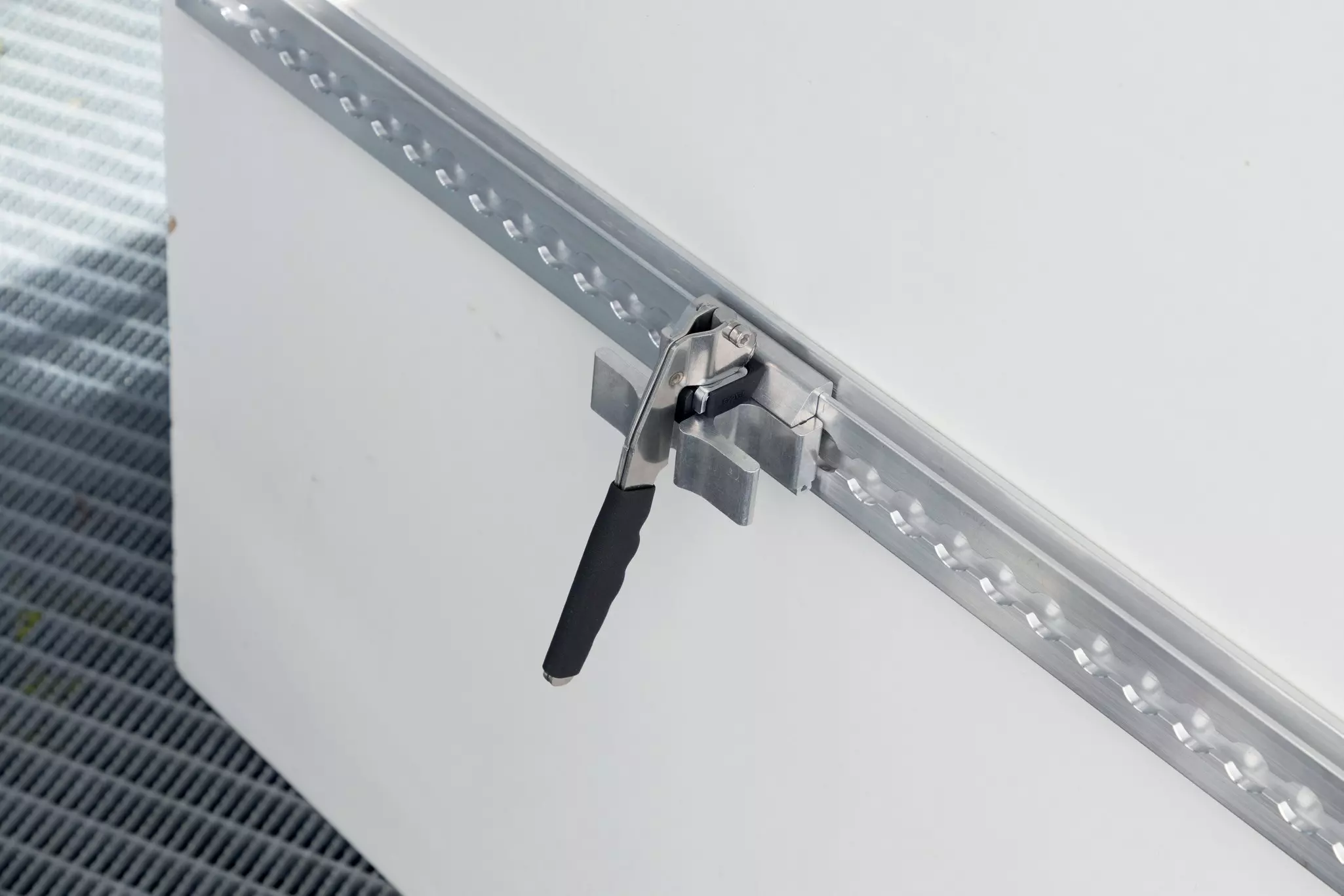

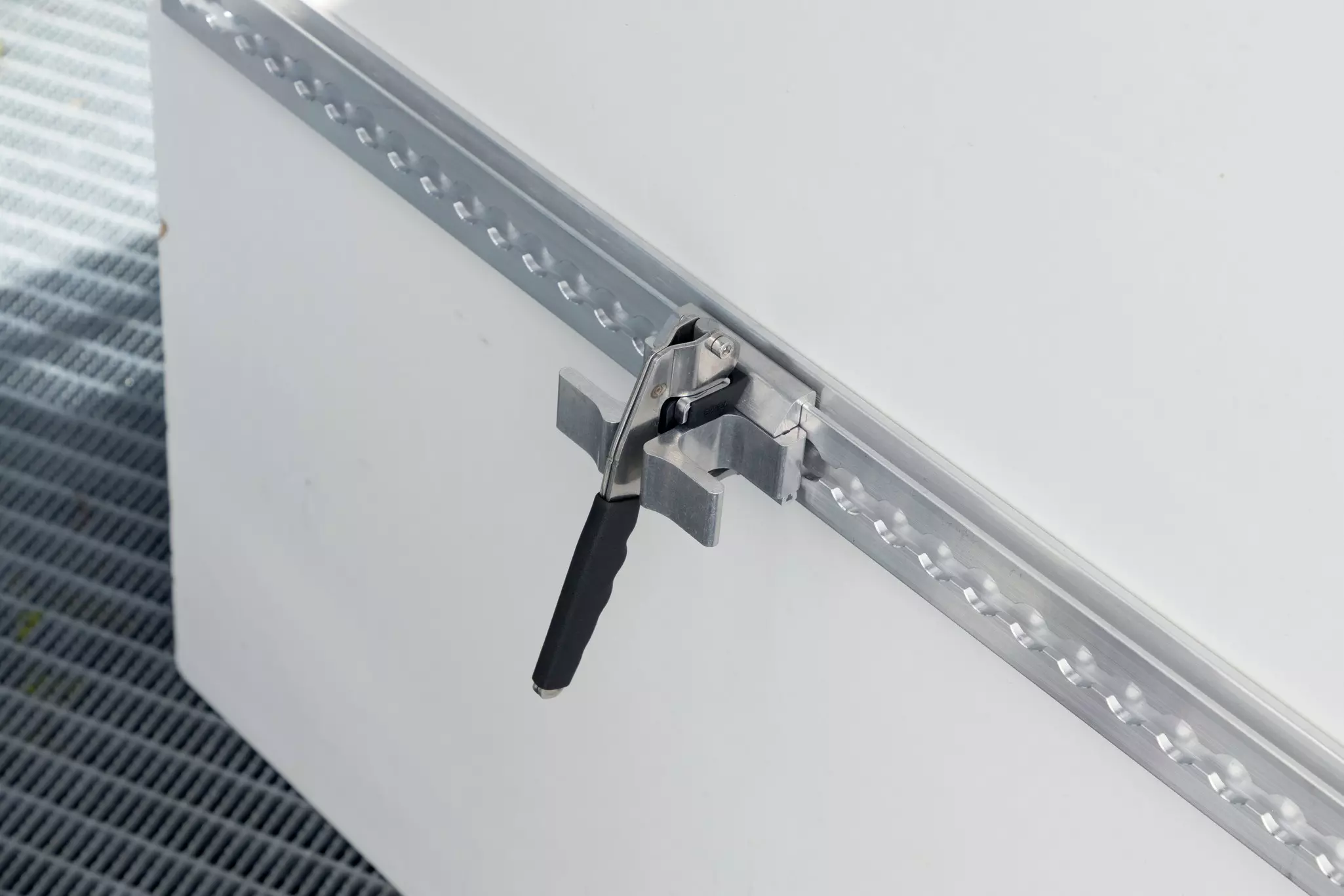

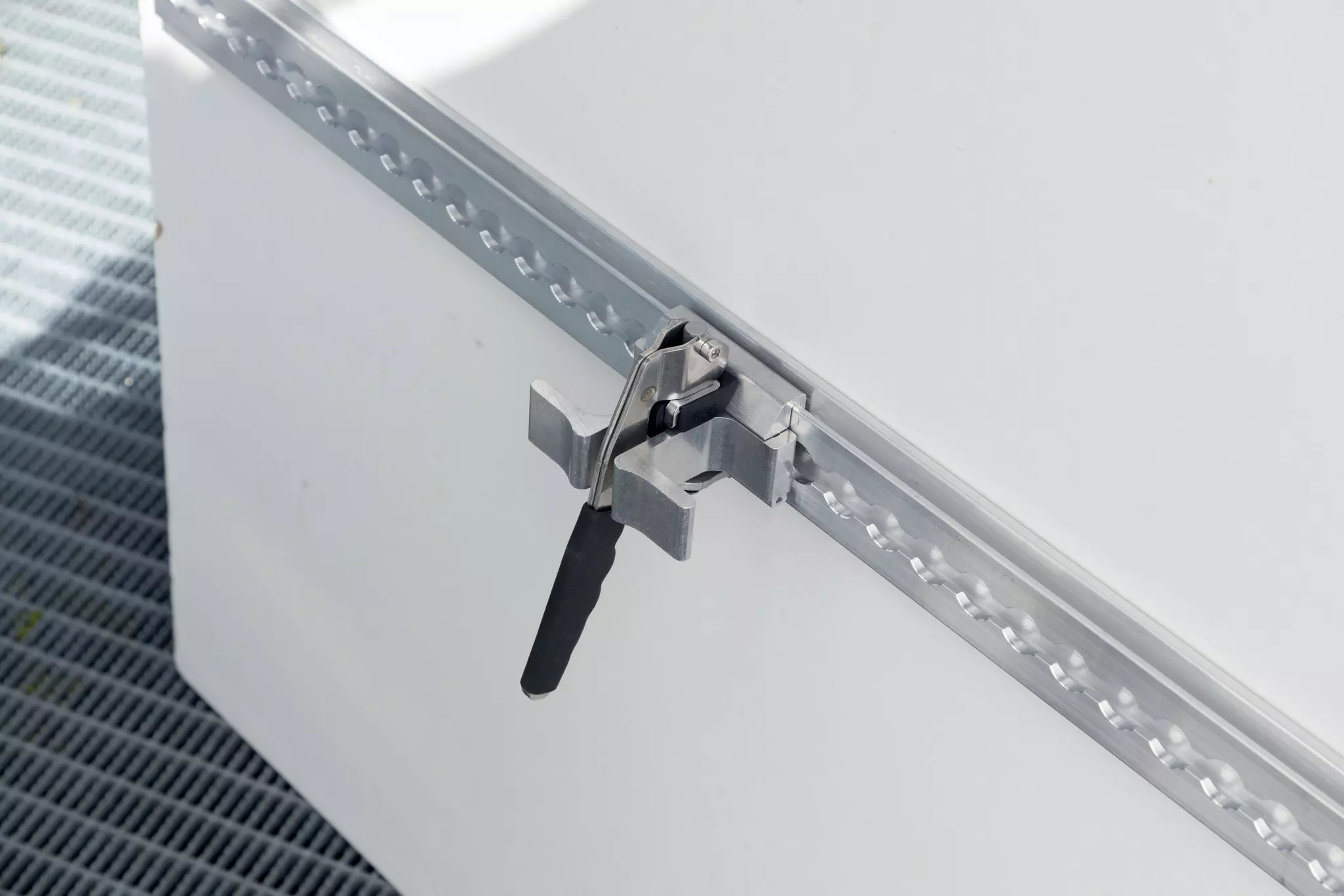

Secure fastening for roll containers in refrigerated and distribution vehicles

The KERL JF fitting provides reliable load securing for roll containers in box vehicles and distribution vehicles – even under extreme temperature conditions from -30 to +80 °C. With an impressive blocking capacity of 500 daN, it secures roll containers in all directions. Depending on requirements, it can be configured for flexible use as a removable fitting or for secure fastening as a captive version. Three selectable jaw widths offer maximum choice. The KERL JF fitting is compatible with airline systems and ideal for transporting flower containers, food, dry cleaning and other sensitive goods in the logistics and delivery industry.

Technical specifications

*Indication of the maximum value for the fitting. The usable load capacity depends on the rail used and the installation situation.

At a glance

BC 500 daN*
Removable and non-removable versions available

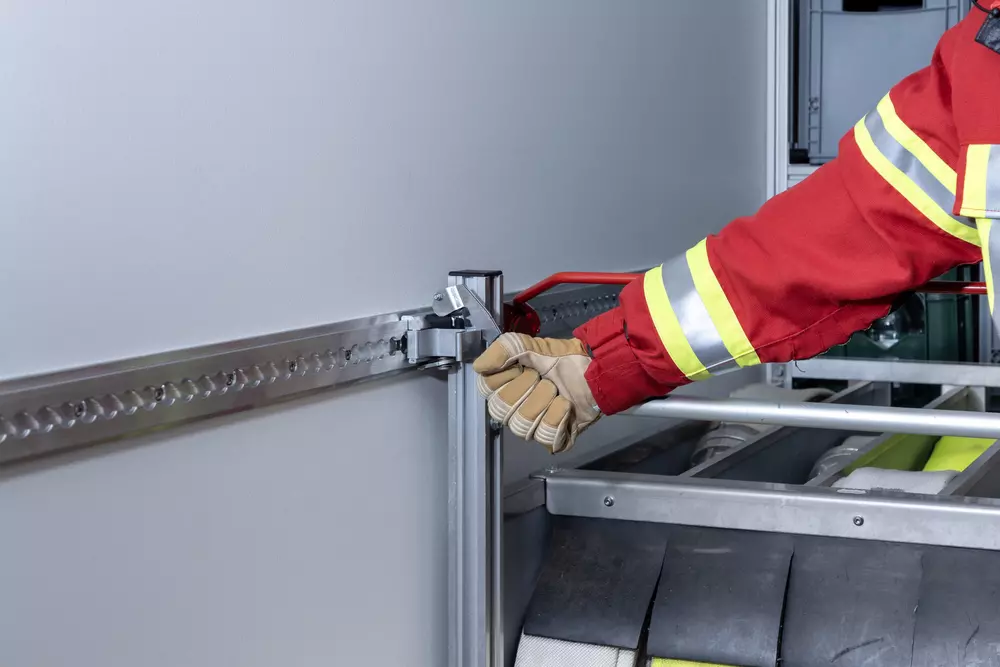

For securing roll containers
For box vehicles

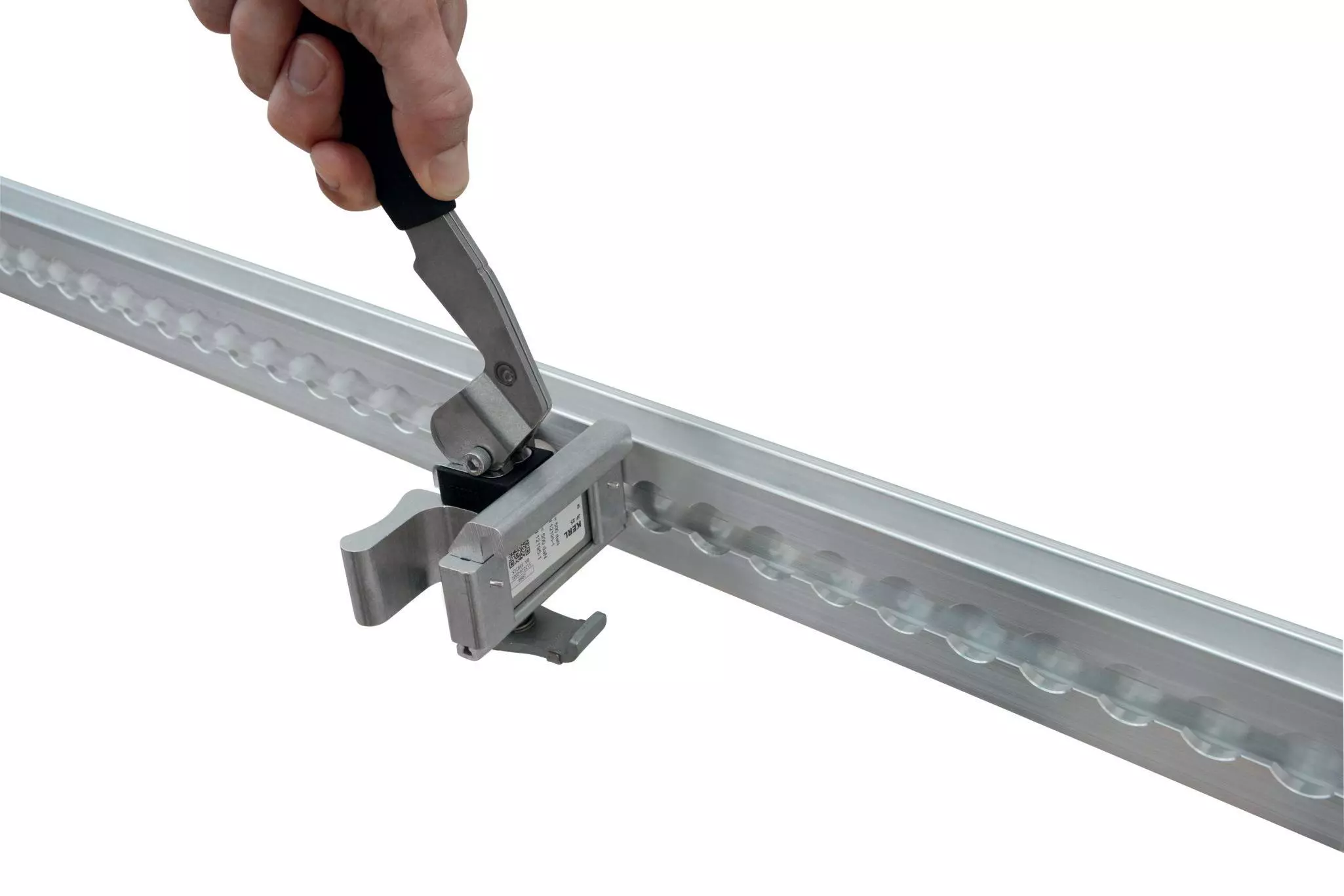

Ergonomically adjustable with lever
For our Airline guide rail

Downloads

Product configurator

Variants

KERL JF 25 mm removable

Base article no. 512014-0001

For roll containers with tubes/rails up to 25 mm
Removable

KERL JF 35 mm removable

Base article no. 512014-0002

For roll containers with tubes/rails up to 35 mm
Removable

KERL JF 25 mm non-removable

Base article no. 512014-0004

For roll containers with tubes/rails up to 25 mm
Not removable

KERL JF 35 mm non-removable

Base article no. 512014-0005

For roll containers with tubes/rails up to 35 mm
Not removable

KERL JF 45 mm removable

Base article no. 512014-0003

For roll containers with tubes/rails up to 45 mm
Removable

KERL JF 45 mm non-removable

Base article no. 512014-0006

For roll containers with tubes/rails up to 45 mm
Not removable
