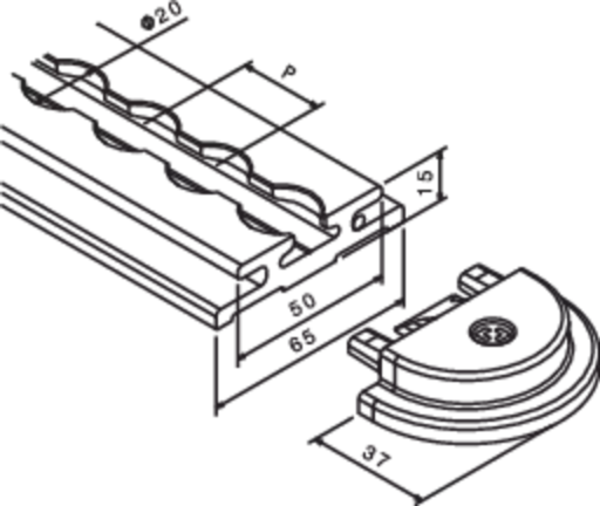

End piece for Airline track (for 522020)
Base article no.: 522891
Not available in the webshop

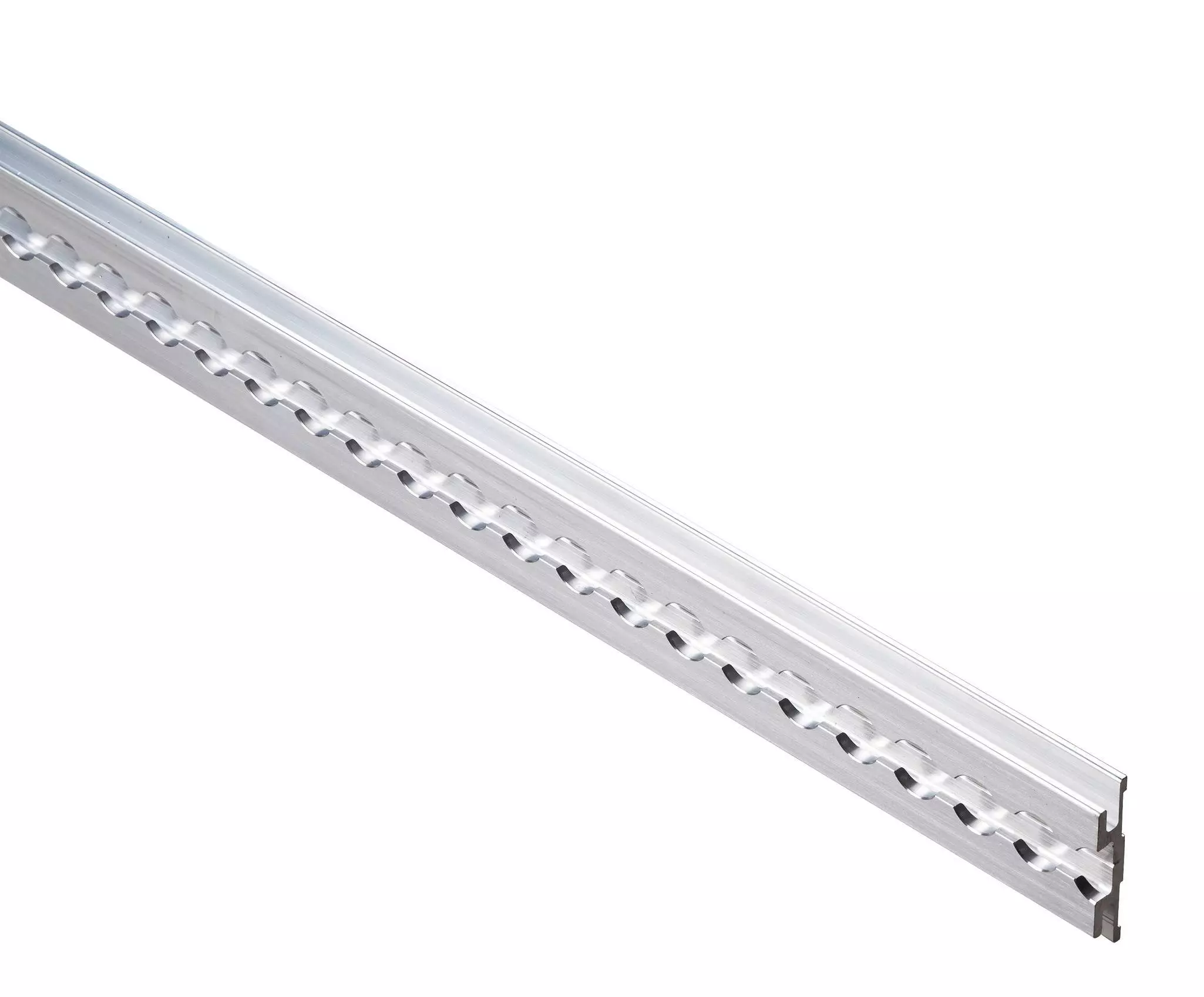

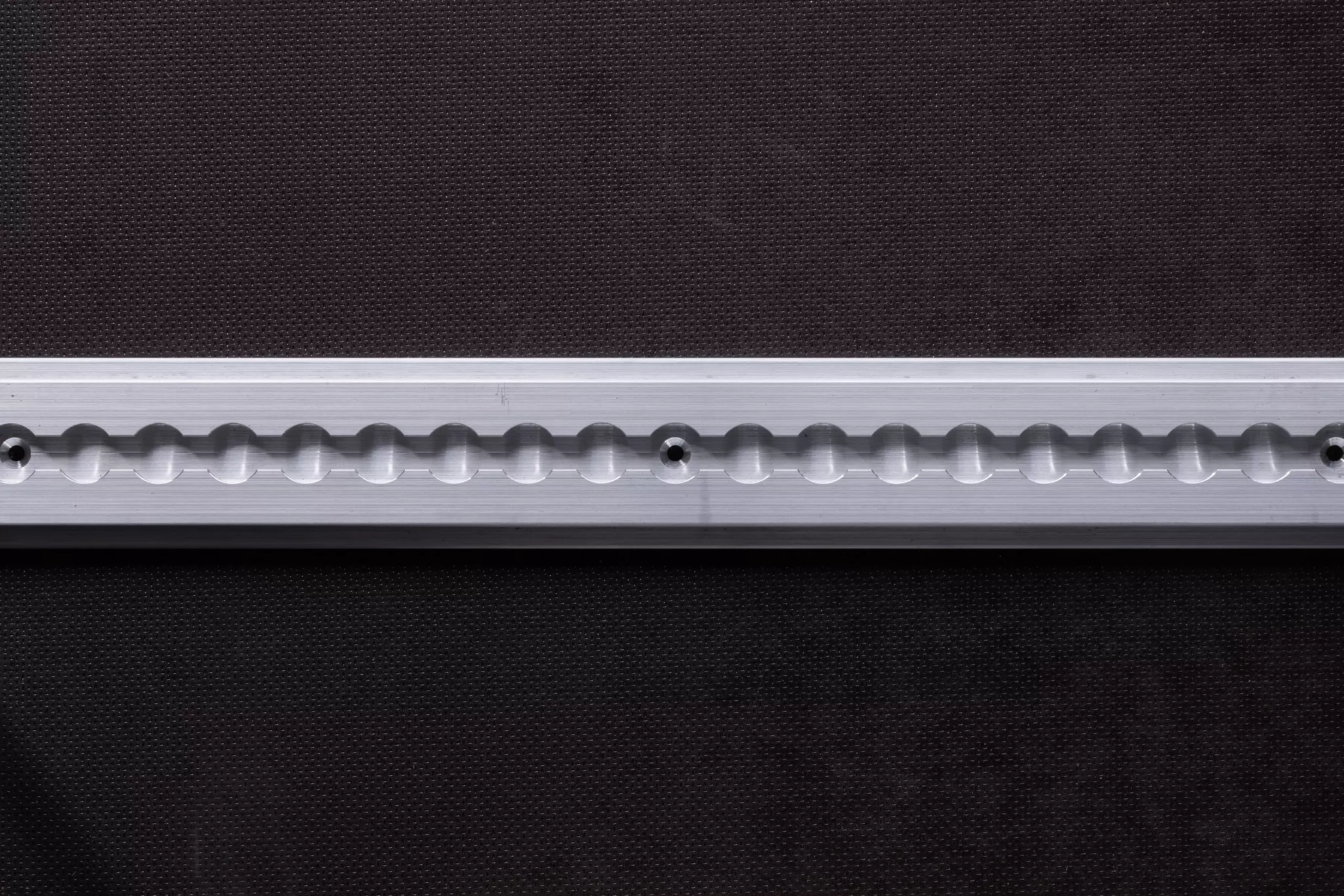

Airline guide track
allchange-compatibility
Made in Germany
Customized Airline tracks – maximum compatibility for secure loads
The airline tracks from allsafe are the perfect solution when it comes to load securing. Thanks to their high compatibility with our shoring elements, fittings, straps, and nets, your load can be secured optimally. Our airline tracks are customized according to your specifications and delivered ready for installation. A wide range of different profiles and configuration options are available.
Technical data
At a glance
- Made of aluminum
- Weight: 1.42 kg/m
- For gluing, riveting, and screwing
- For mounting on the side wall and ceiling
- For small to large box vehicles
Load capacity in conjunction with lashing points
| KERL2000* | |
|---|---|
| ISO27956 | 800daN |
| EN12640 | 1000daN |
configuration options
Starting dimension
Unless otherwise specified, the starting dimension is X = 0 mm.
Pitch
Unless otherwise specified, the pitch is P = 25.0 mm.
Mounting holes
| D5,5 | D6,6 | D8,5 | |
|---|---|---|---|
| d | 5,5 | 6,6 | 8,5 |
| M5 | M6 |
|---|
| FB5 | |
|---|---|
| D | 10,0 |
| d | 5,0 |
| S5 | S6 | S8 | |
|---|---|---|---|
| W | 90° | 90° | 90° |
| D | 11 | 13 | 17,2 |
| d | 5,5 | 6,6 | 9,0 |
| N4 | N5 | N6 | |
|---|---|---|---|
| W | 120° | 120° | 120° |
| D | 10,1 | 12,0 | 13,0 |
| d | 4,2 | 5,05 | 6,7 |

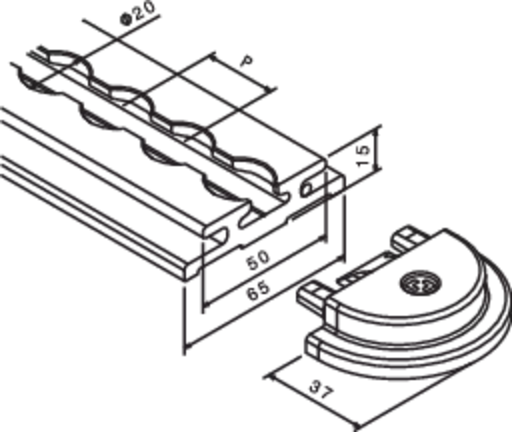

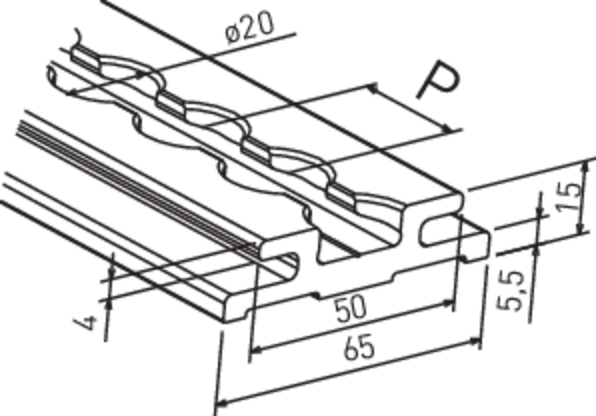

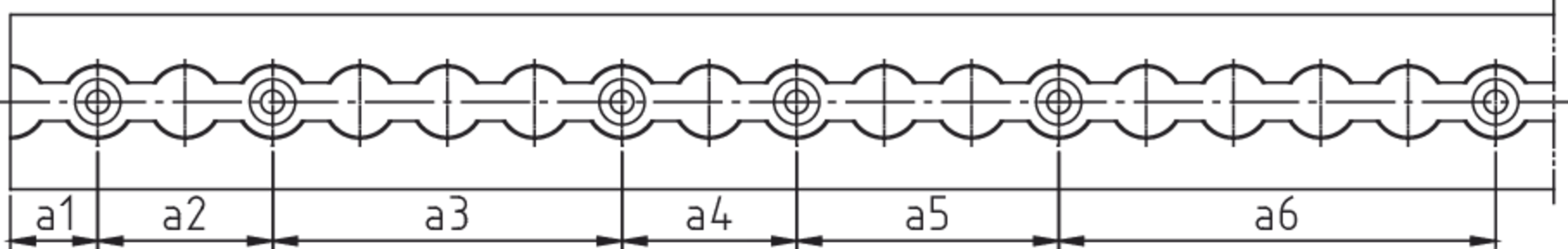

2-part rail and JF cut-out

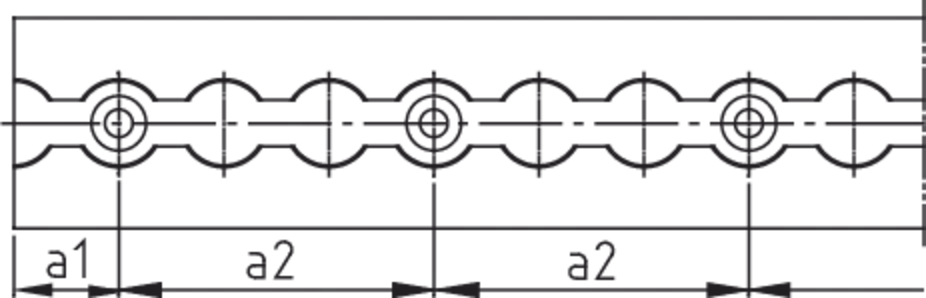

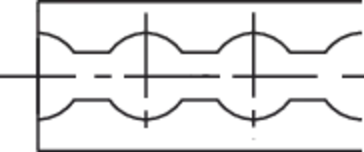

Position of mounting holes
For holes with equal spacing, please specify the hole spacing a1 and a2.
For individual hole spacing, please specify the hole spacing a1, a2, a3, a4, etc.

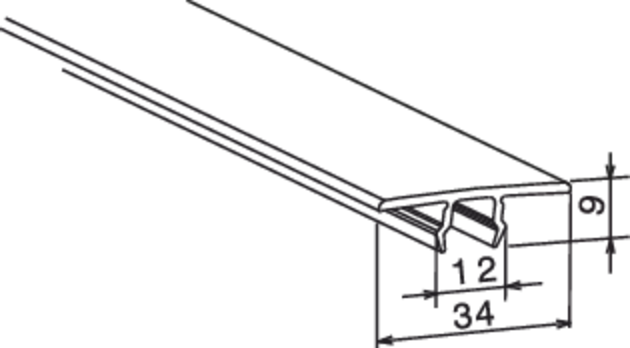

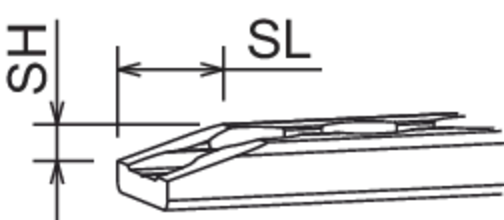

Start and end of track
Select the shape of the track start and end (max. radius or max. F2 = half track width in mm).
accessories

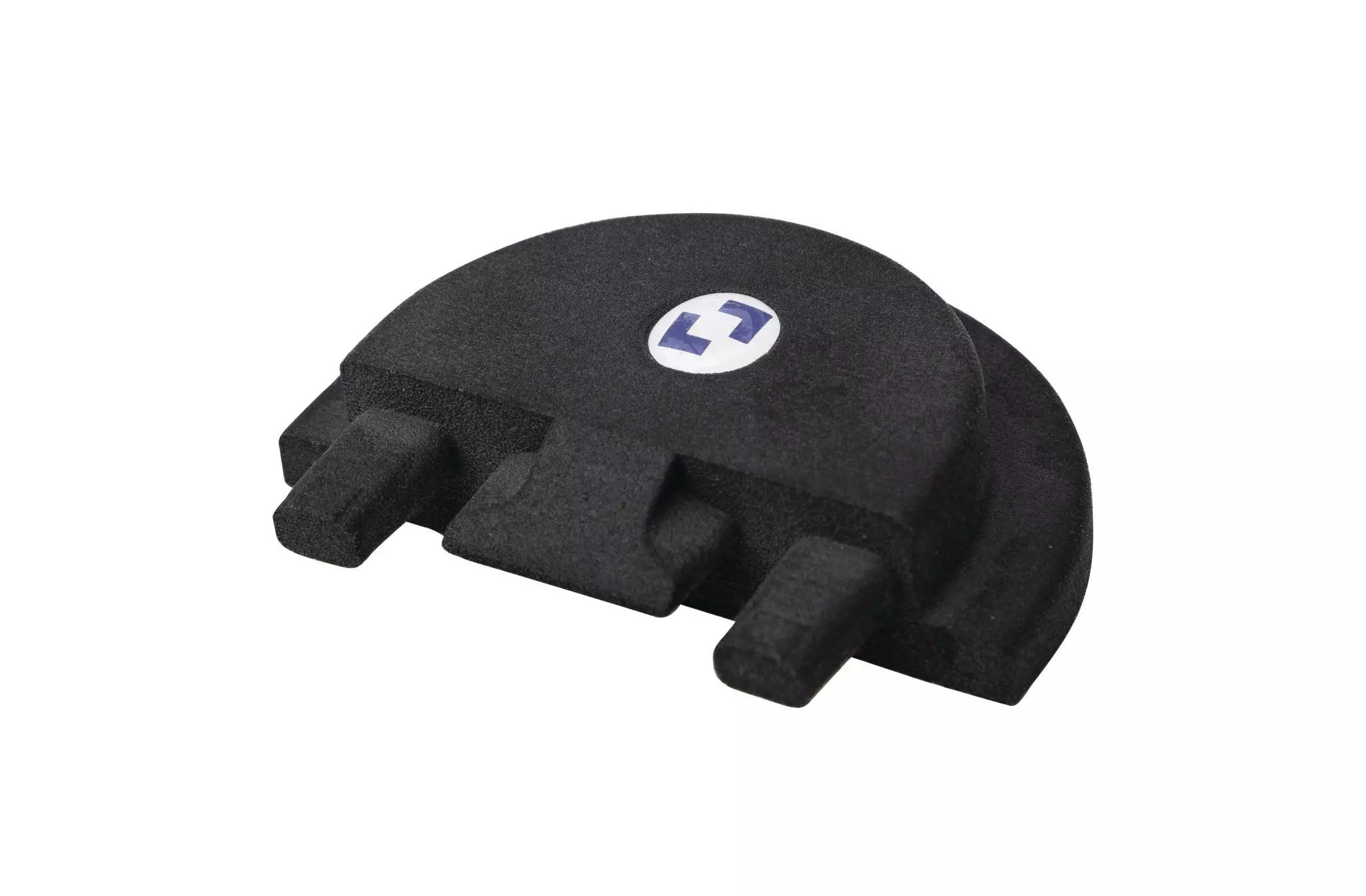

end cap

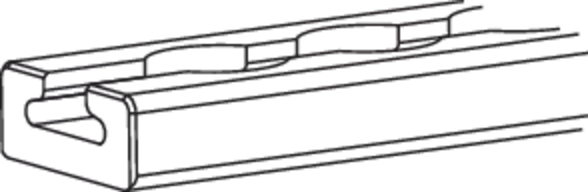

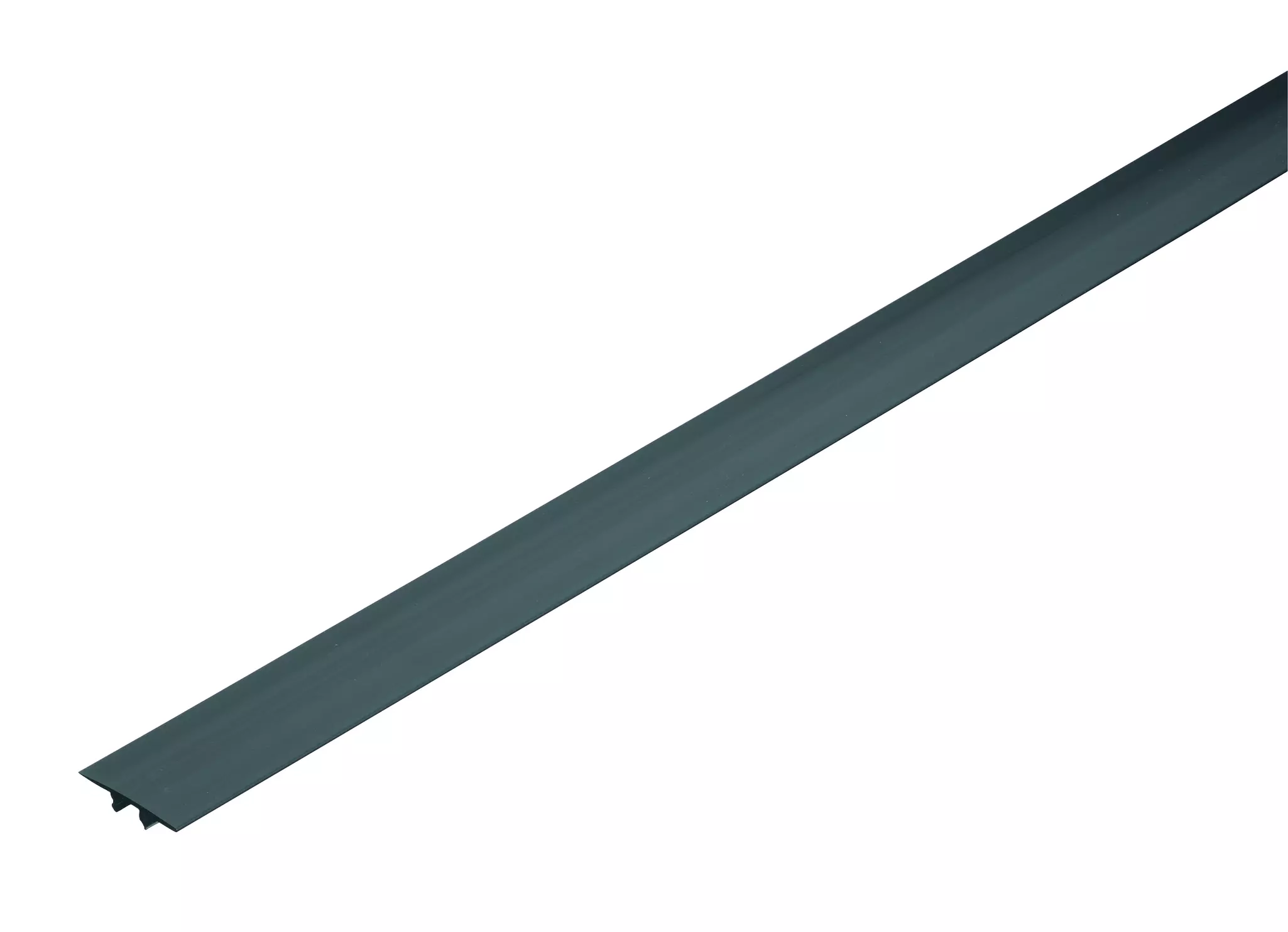

Track cover
Length freely selectable from 100 to 3000 mm.
