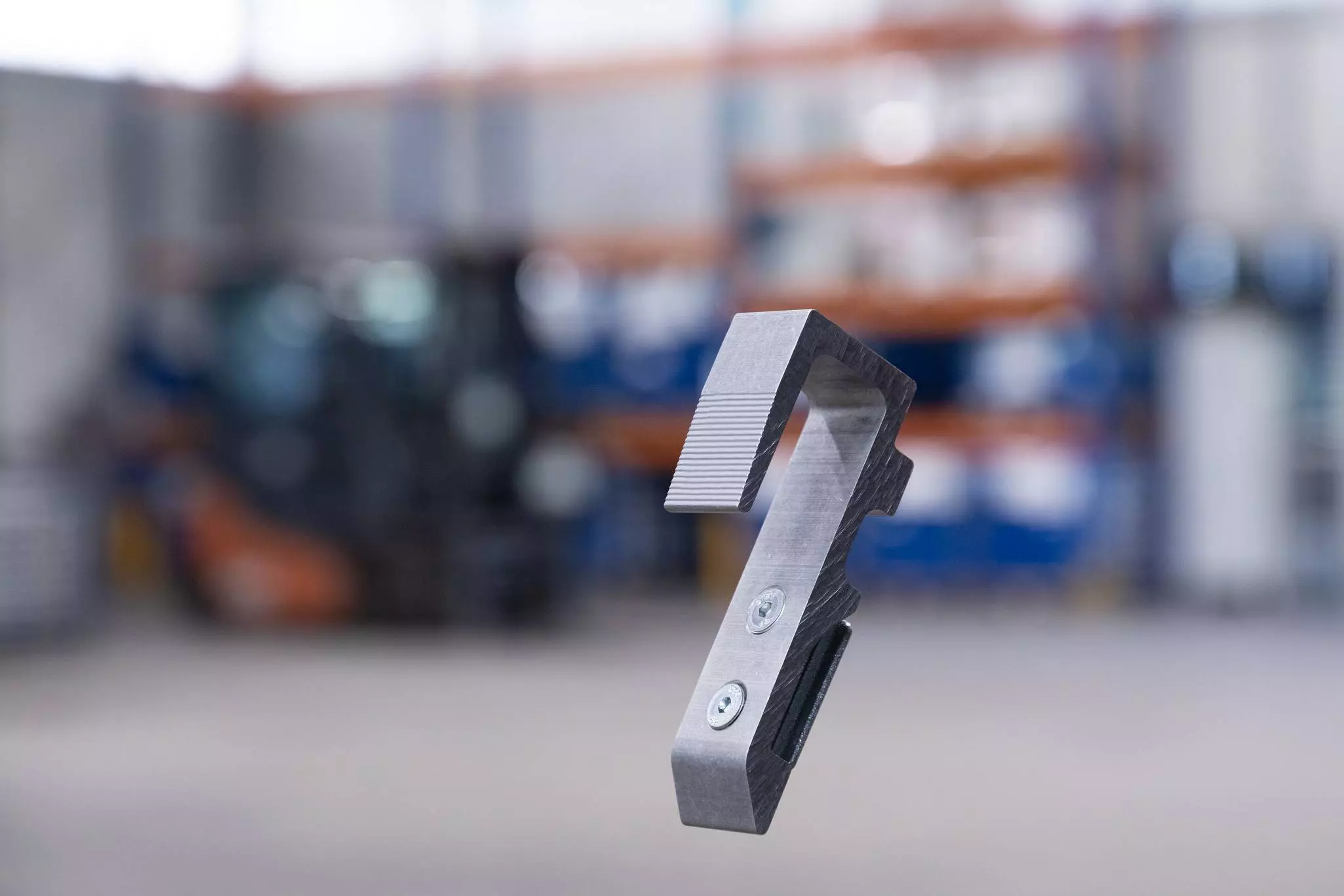

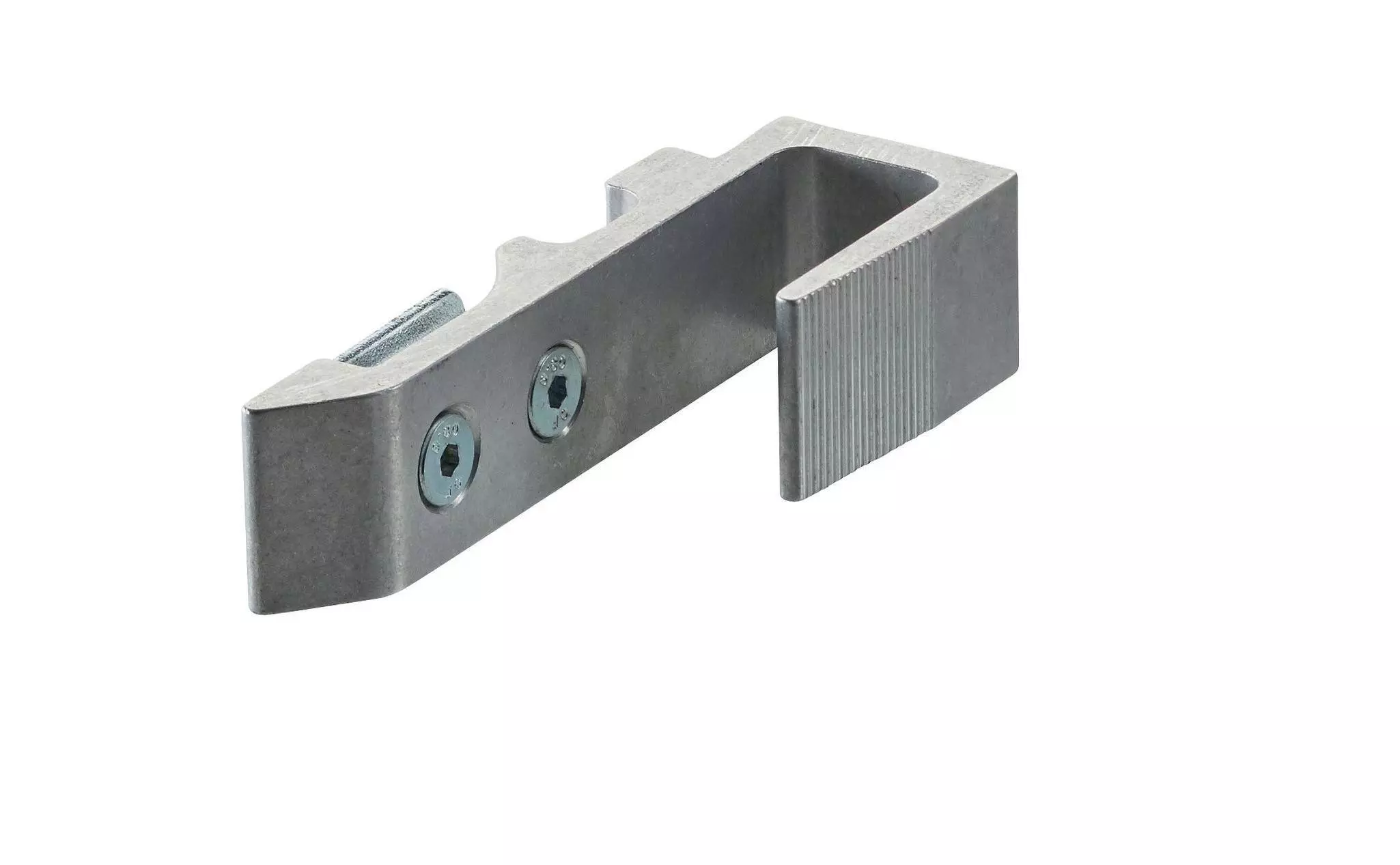

KERL JF fix fitting for securing roll containers

allchange-compatibility

Made in Germany

Secure hold for the first roll container

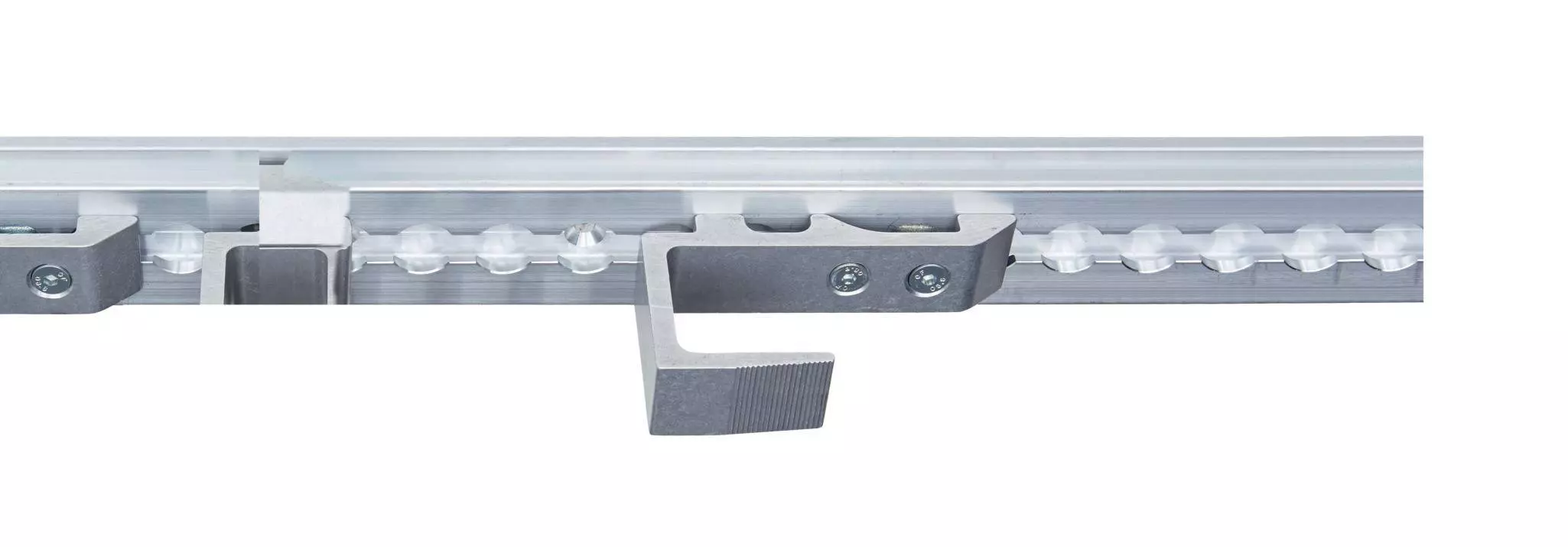

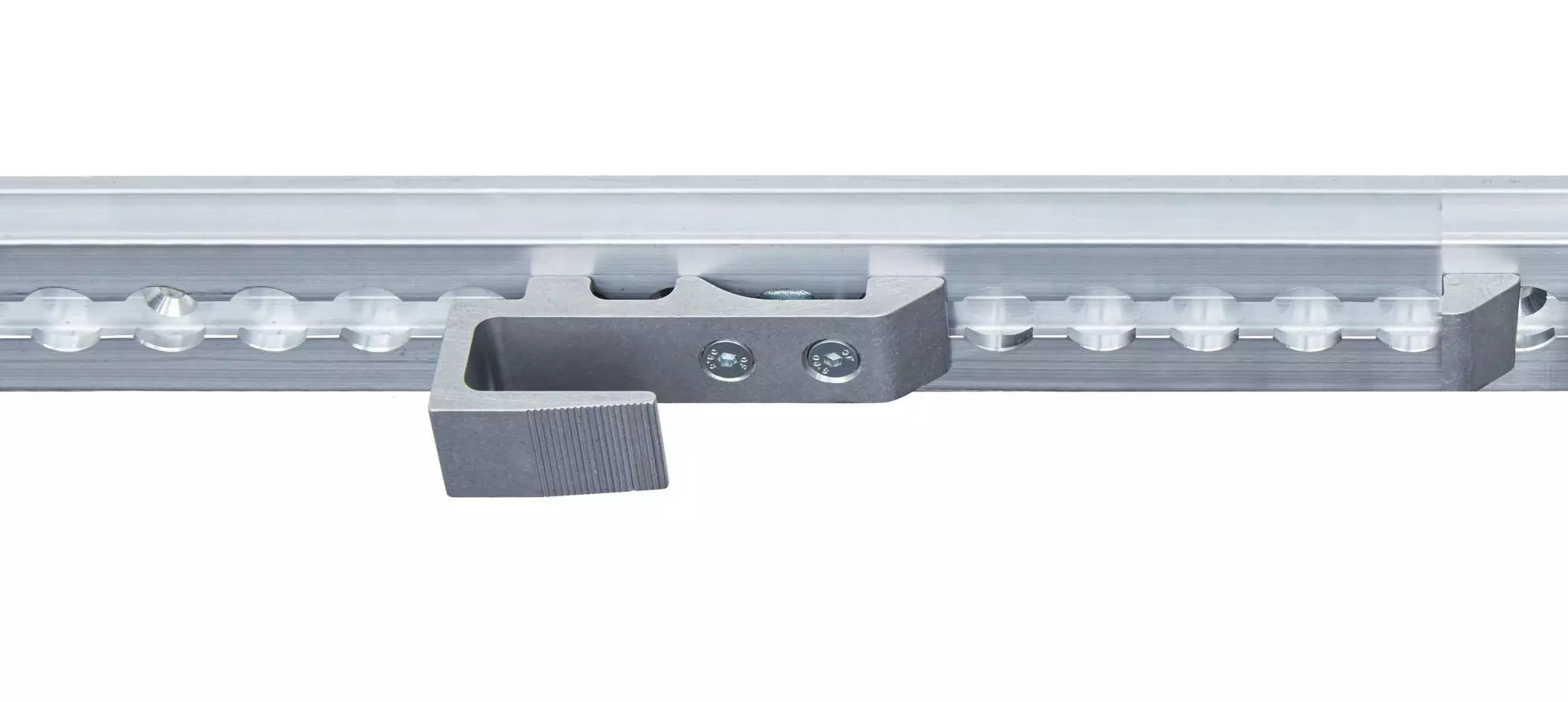

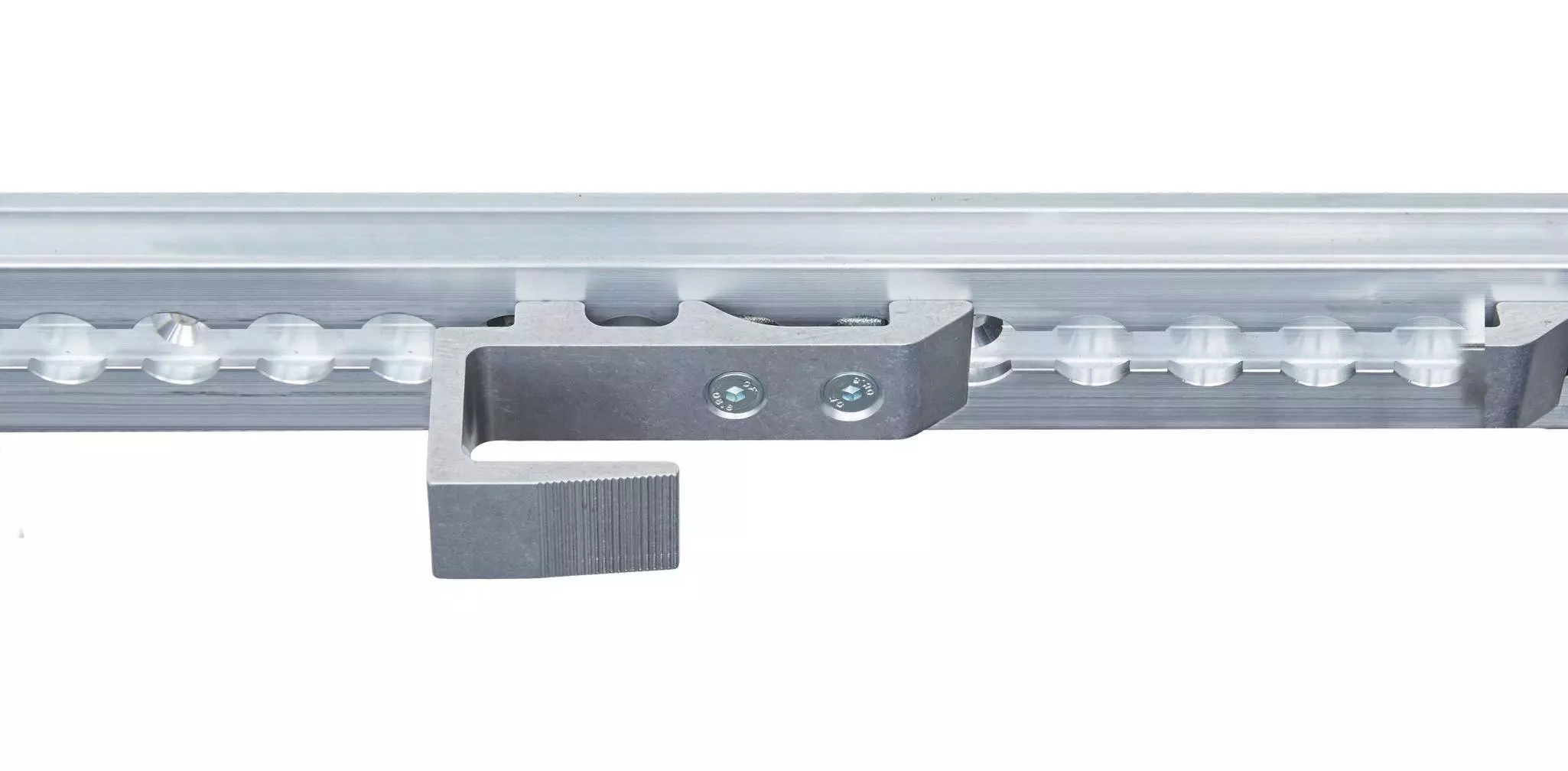

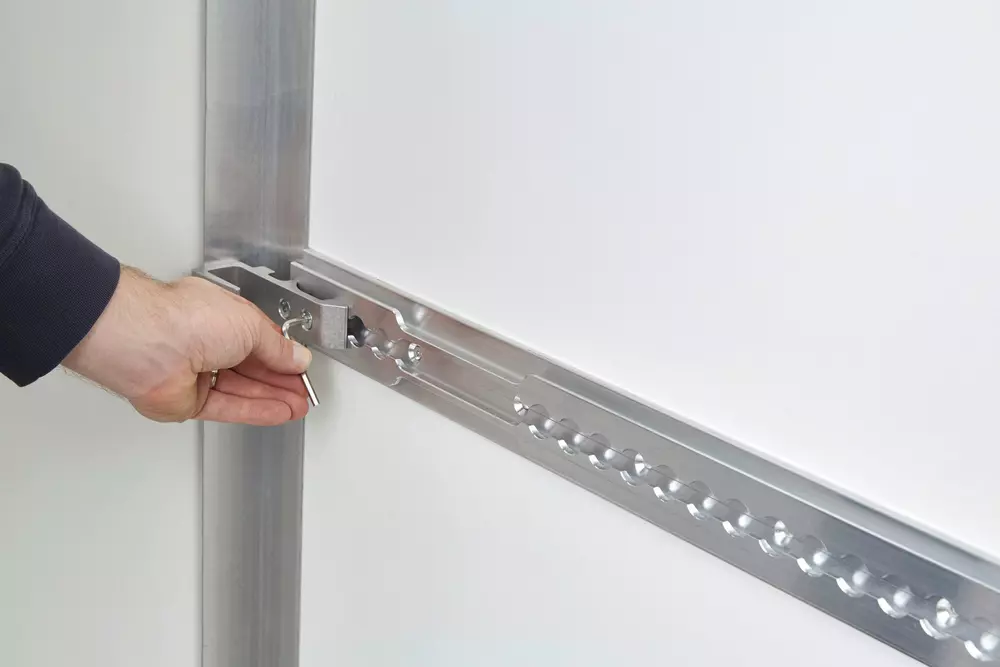

The KERL JF fix fitting provides an efficient and reliable solution for securing the first roll containers to the front wall. The end fitting can be easily mounted through the JF milling cut, even if the track ends up to 55 mm from the end wall due to reinforcement angles. As a well-designed system solution, the KERL JF fix fitting fits perfectly with the other JF fittings and enables quick, cost-saving installation.

Technical specifications

*Maximum value for the fitting. Usable load capacity depends on the rail used and the installation situation.

At a glance

BC 500 daN*
For securing roll containers to the front wall
Made of aluminum

Variants

KERL JF fix 25 mm

Base article no. 512017-0001

BC 500 daN*
For roll containers with tubes/rails up to 25 mm

KERL JF fix 35 mm

Base article no. 512017-0002

BC 500 daN*
For roll containers with tubes/rails up to 35 mm

KERL JF fix 45 mm

Base article no. 512017-0003

BC 500 daN*
For roll containers with tubes/rails up to 45 mm
