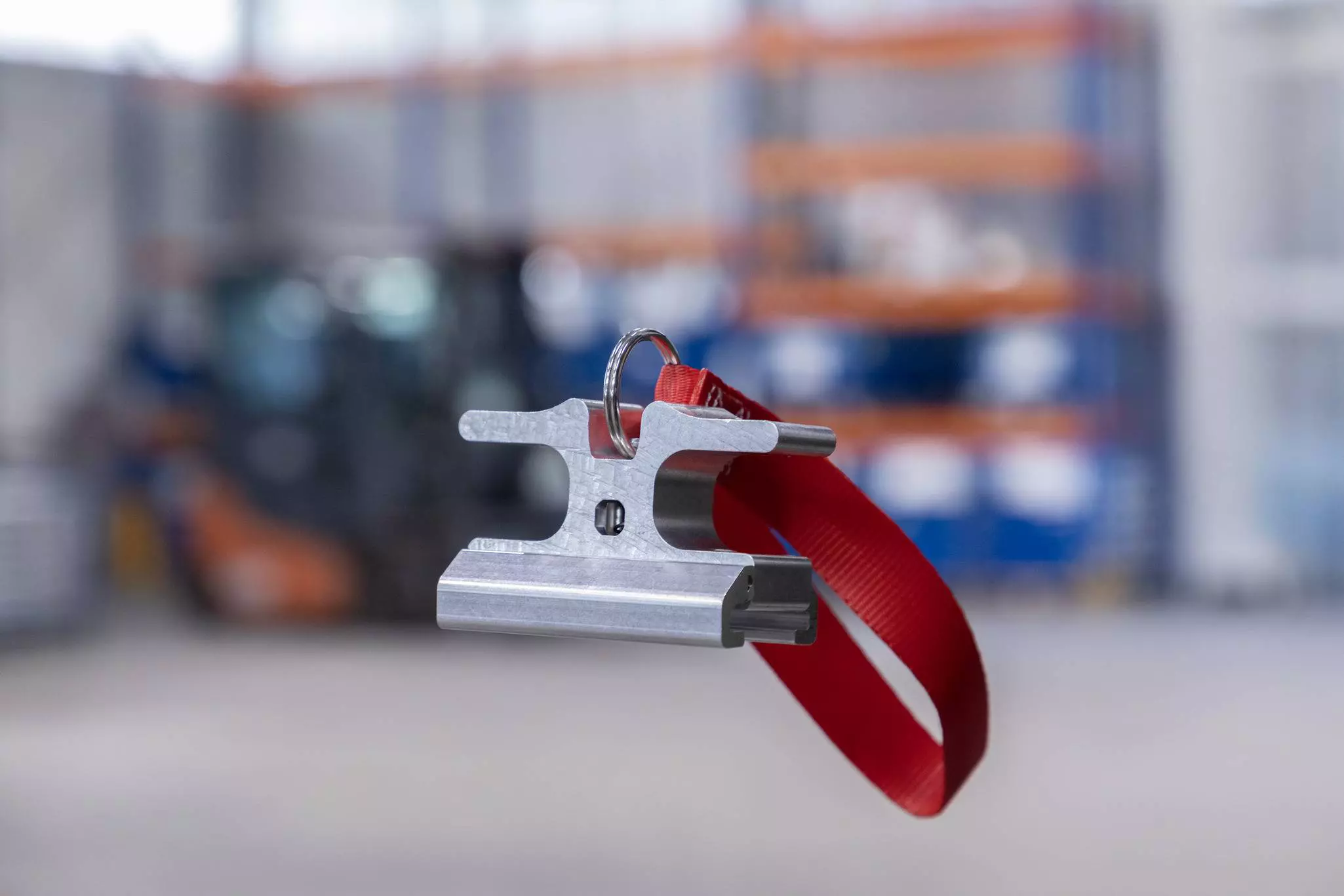

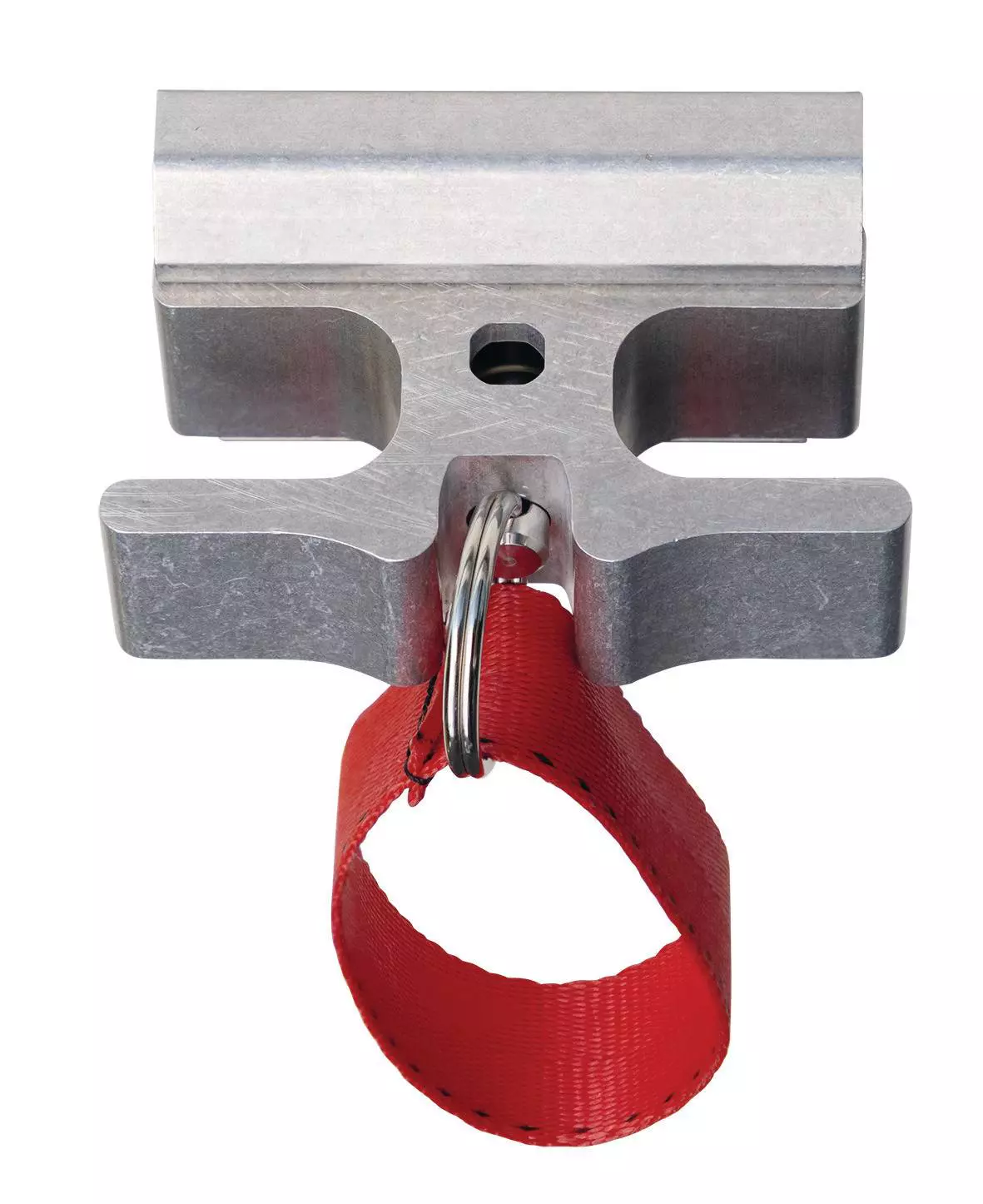

KERL JF snap fitting for securing roll containers

allchange-compatibility

Made in Germany

Maximum blocking force for roll containers with pipes

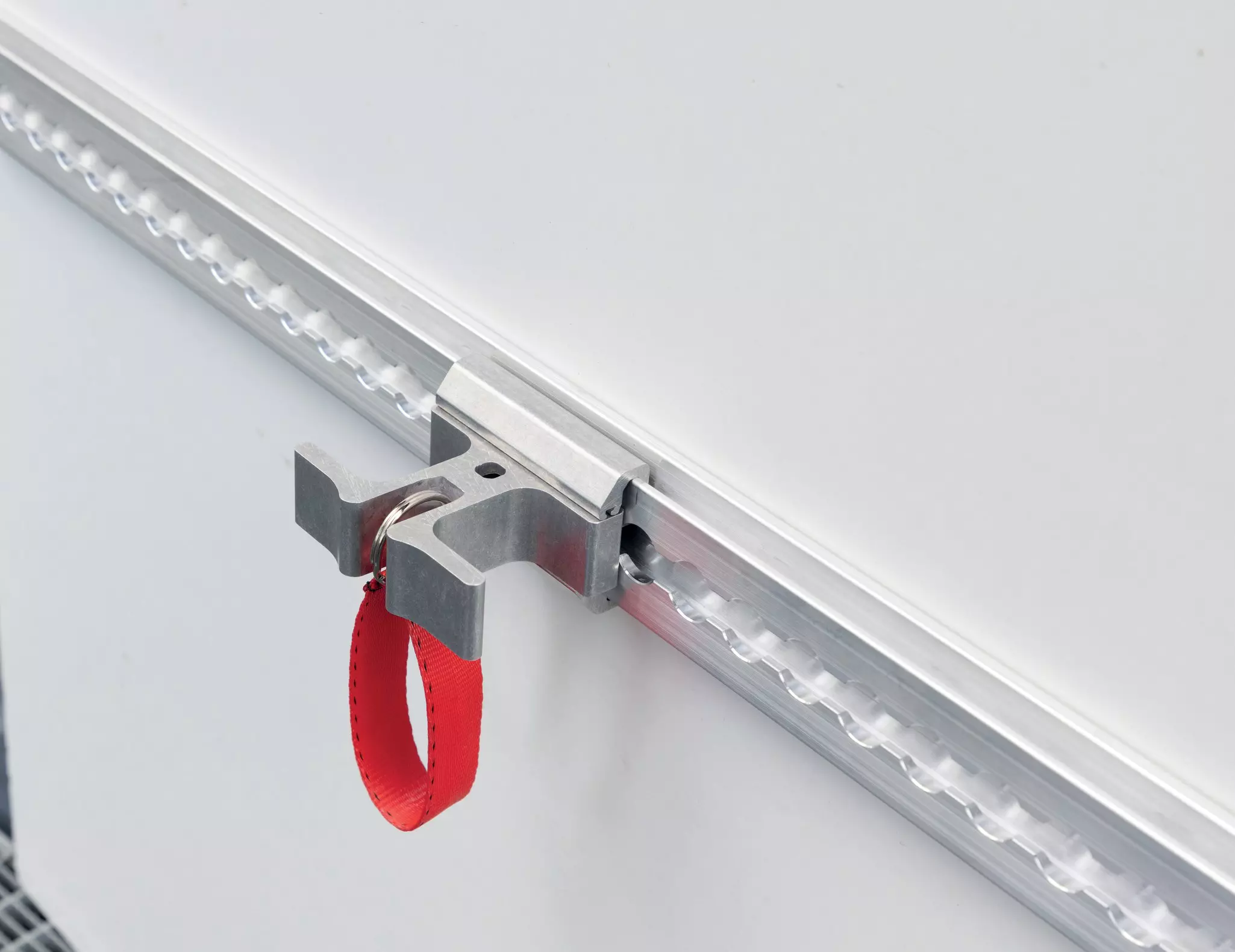

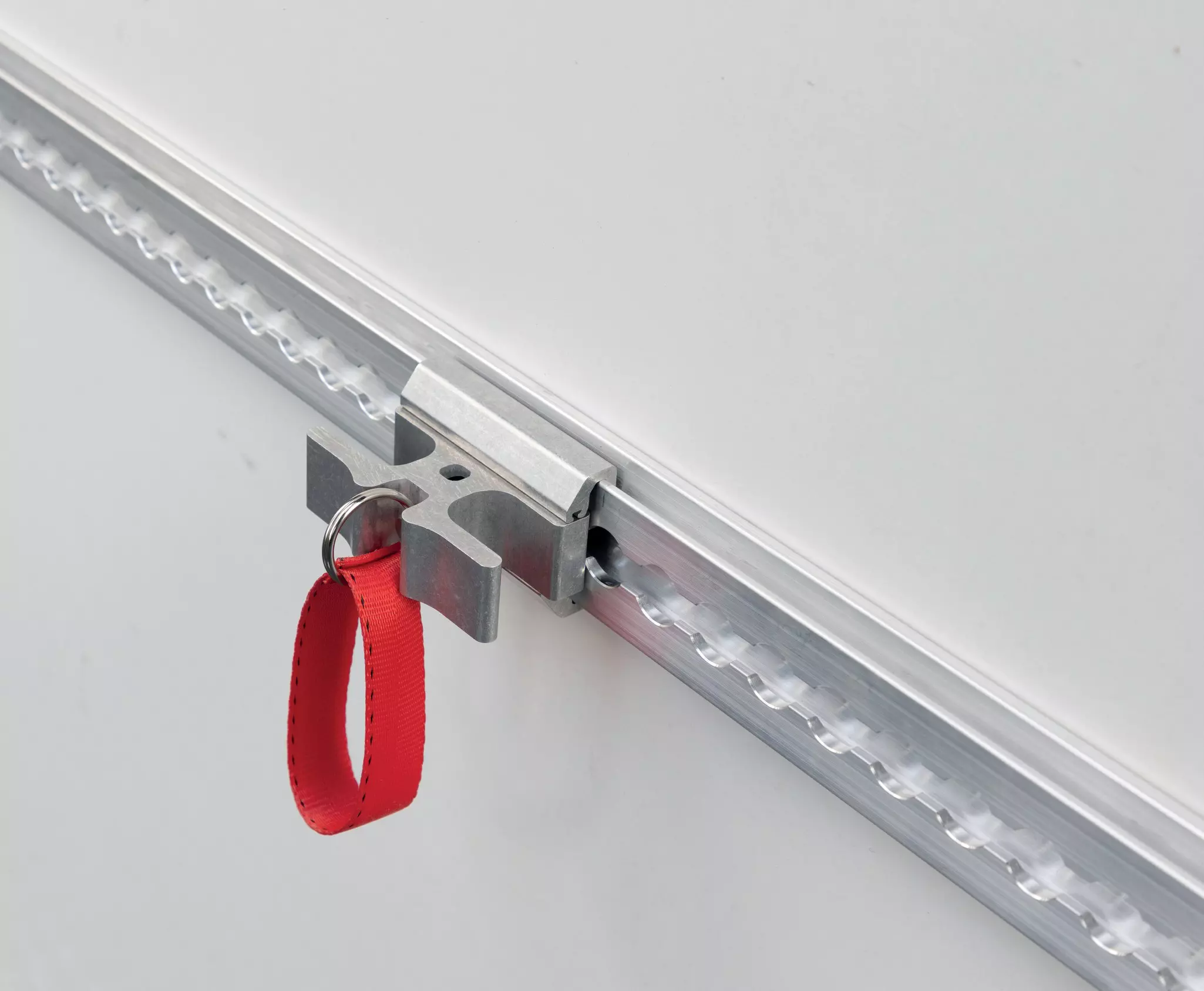

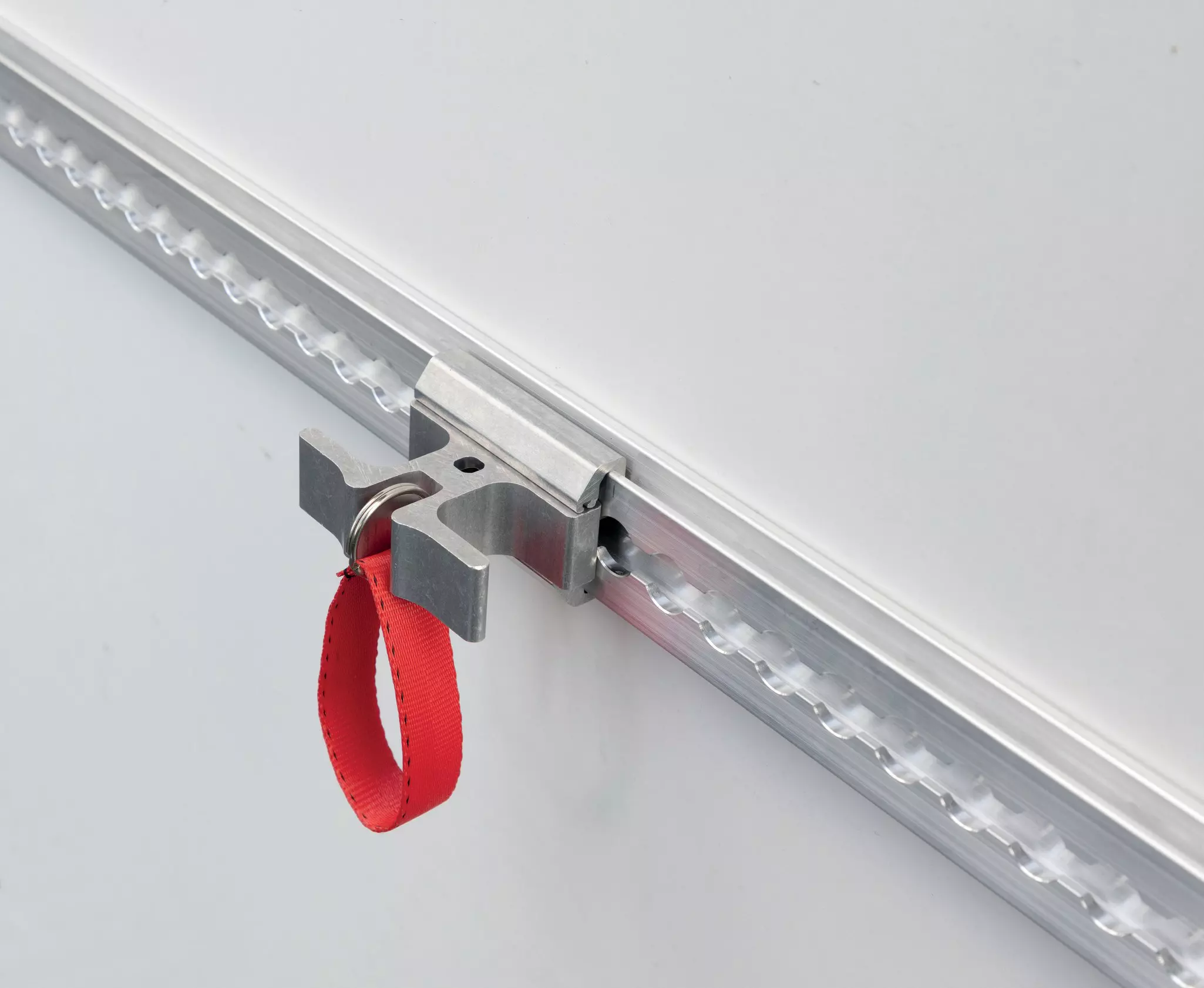

The KERL JF snap ensures form-fitting securing of roll containers directly in the Airline track – with a precise 12.5 mm grid for exact positioning. Thanks to the fixed guide in the track, it is loss-proof and remains reliably in place. The form-fitting locking mechanism guarantees maximum blocking force, so that roll containers are securely fixed in place. Perfectly matched to the JF rail (522020) – for efficient and stable load securing.

Technical specifications

*Maximum value for the fitting. Usable load capacity depends on the rail used and the installation situation.

At a glance

  • BC 600 daN* in X direction
  • BC 500 daN* in Y direction
  • For securing roll containers

Variants

KERL JF snap 25 mm

Base article no. 512285-0001
  • For roll containers with tubes/rails up to 25 mm
  • 600 daN* in X direction
  • 500 daN* in Y direction
  • BC according to EN 12195-1
Not available in the webshop

KERL JF snap 35 mm

Base article no. 512285-0002
  • For roll containers with tubes/rails up to 35 mm
  • 600 daN* in the X direction
  • 500 daN* in the Y direction
  • BC according to EN 12195-1
Not available in the webshop

KERL JF snap 45 mm

Base article no. 512285-0003
Not available in the webshop
