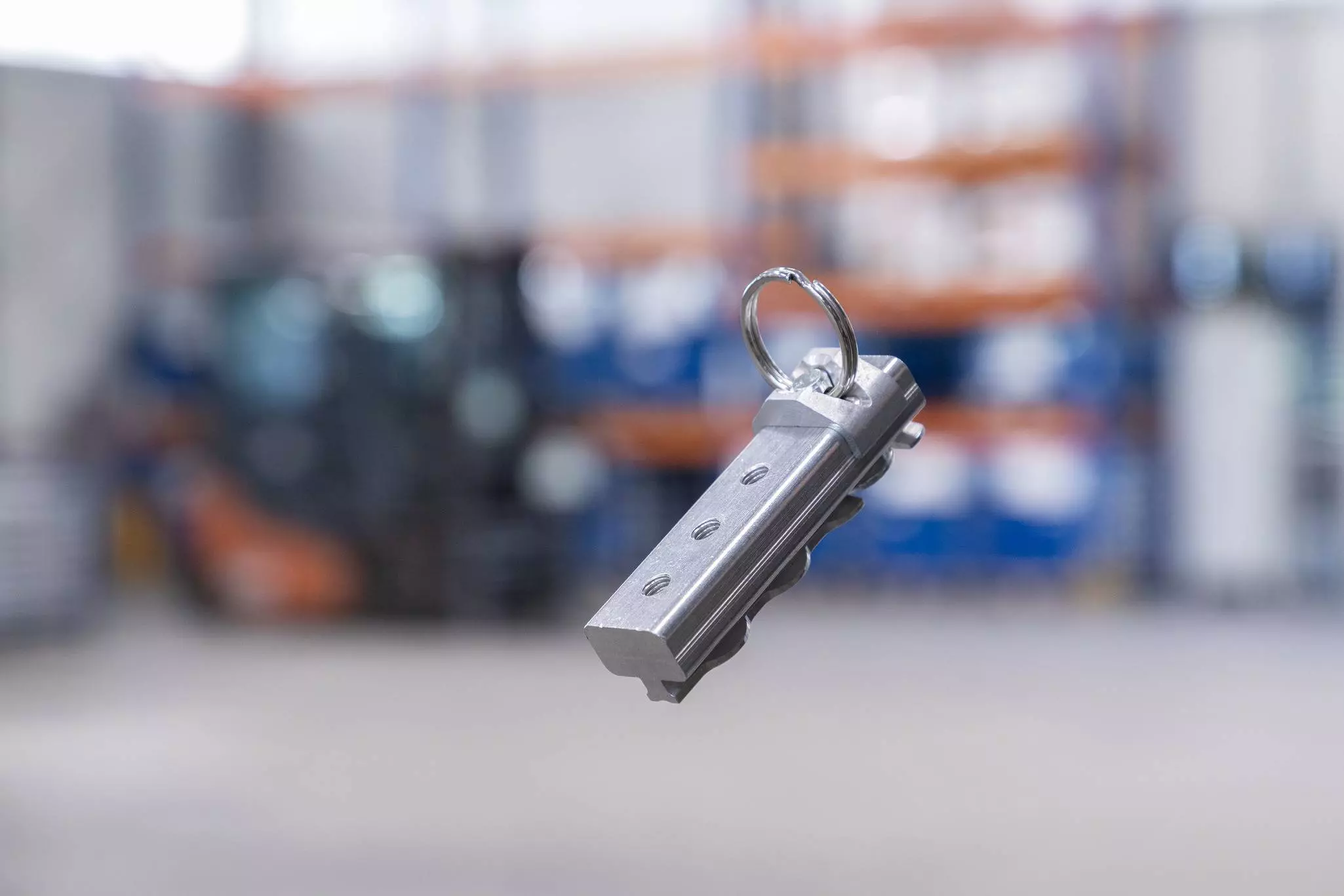

KERL universal light
Base article no. 512219
KERL universal light special fitting
allchange-compatibility
Made in Germany
The flexible mounting solution for lightweight vehicle equipment

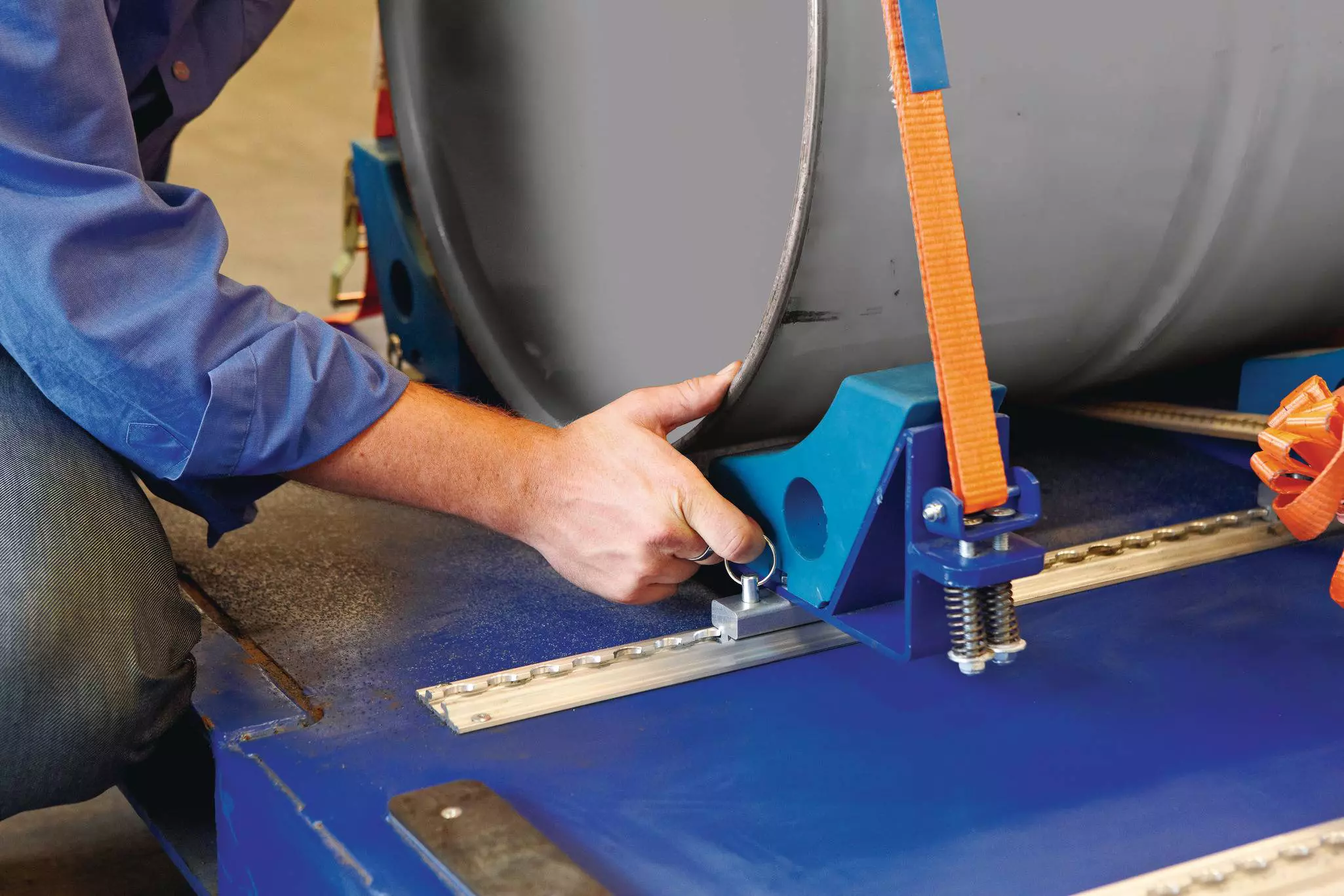

The KERL universal light fitting is the ideal solution for quickly installing and removing lightweight interior fittings in vehicles. Available as a flexible removable or theft-proof version, it offers maximum security and can be individually configured to suit your requirements. In addition, the number and spacing of the holes can be freely adjusted. For added convenience, the KERL Universal Light is available with a lock that makes it even easier to move in the airline track. With thread sizes in M6 or M8, it offers versatile mounting options and a tailor-made solution for your individual requirements.
Technical specifications
*Maximum value for the fitting. Usable load capacity depends on the rail used and the installation situation.
At a glance
- Freely configurable
- For quick installation and removal of lightweight interior fittings
- Removable and non-removable versions available
- Made of aluminum
- BC 1000 daN* in X direction
Pitch
Please select the desired grid for the feet.
- P = 25 mm
- P = 25.4 mm (inch grid)
- Not removable
Number of Mointing holes
Please select the desired number of holes and the hole spacing. This will determine the length. You can choose between M6 and M8 threads.
- max. 483 mm
- min. 20 mm

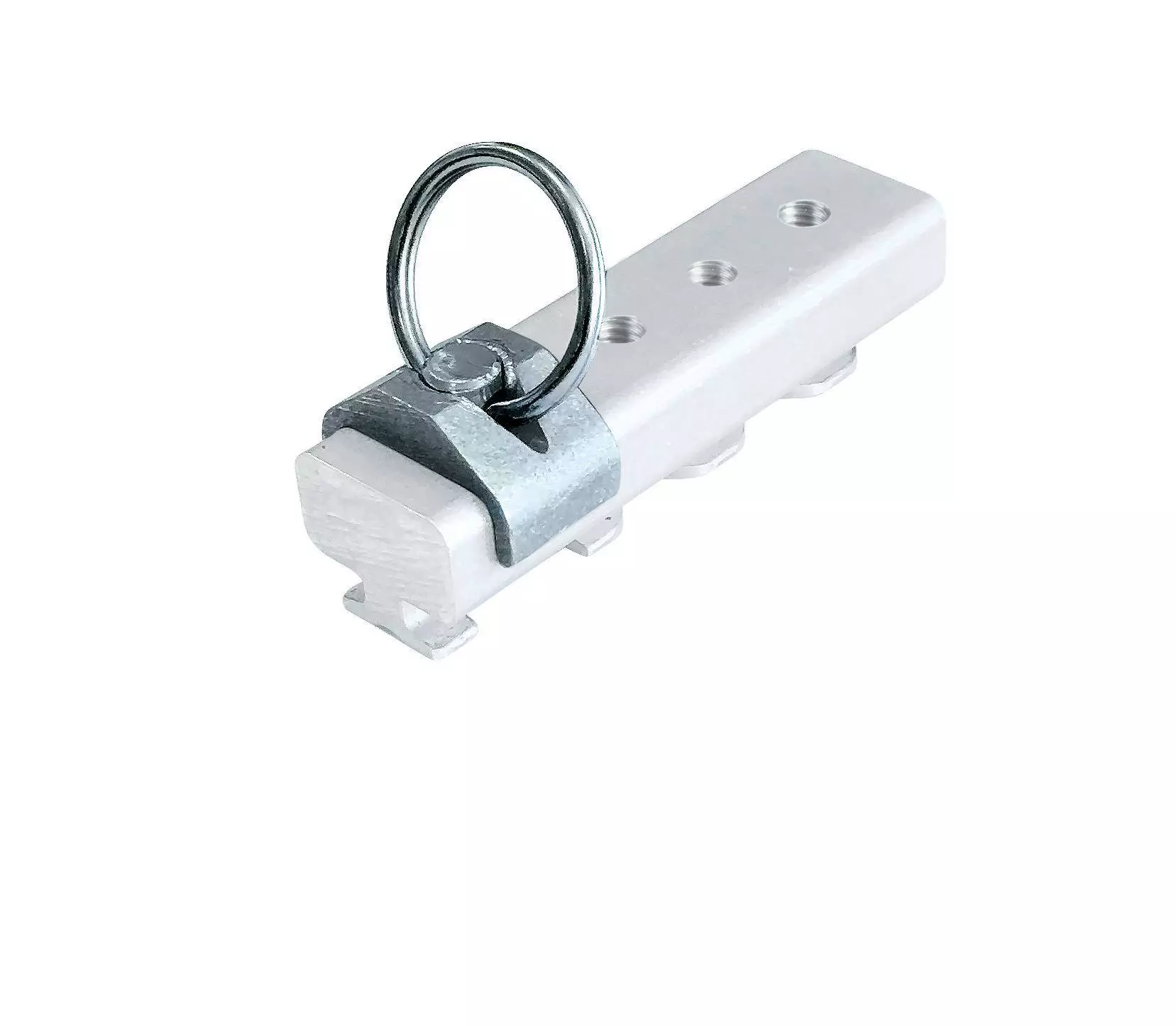

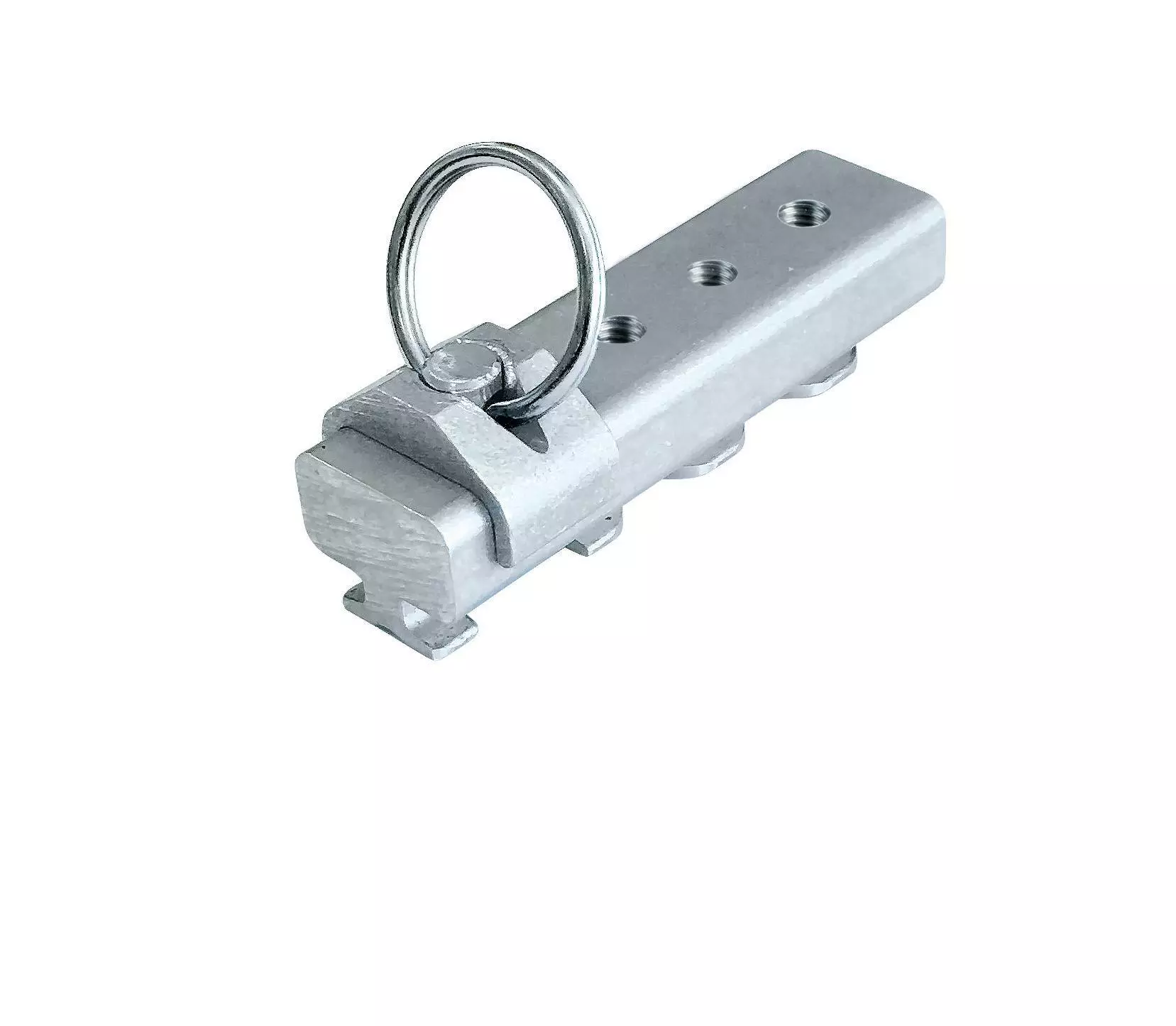

Locking device
An additional lock is available for the KERL universal.
Variants

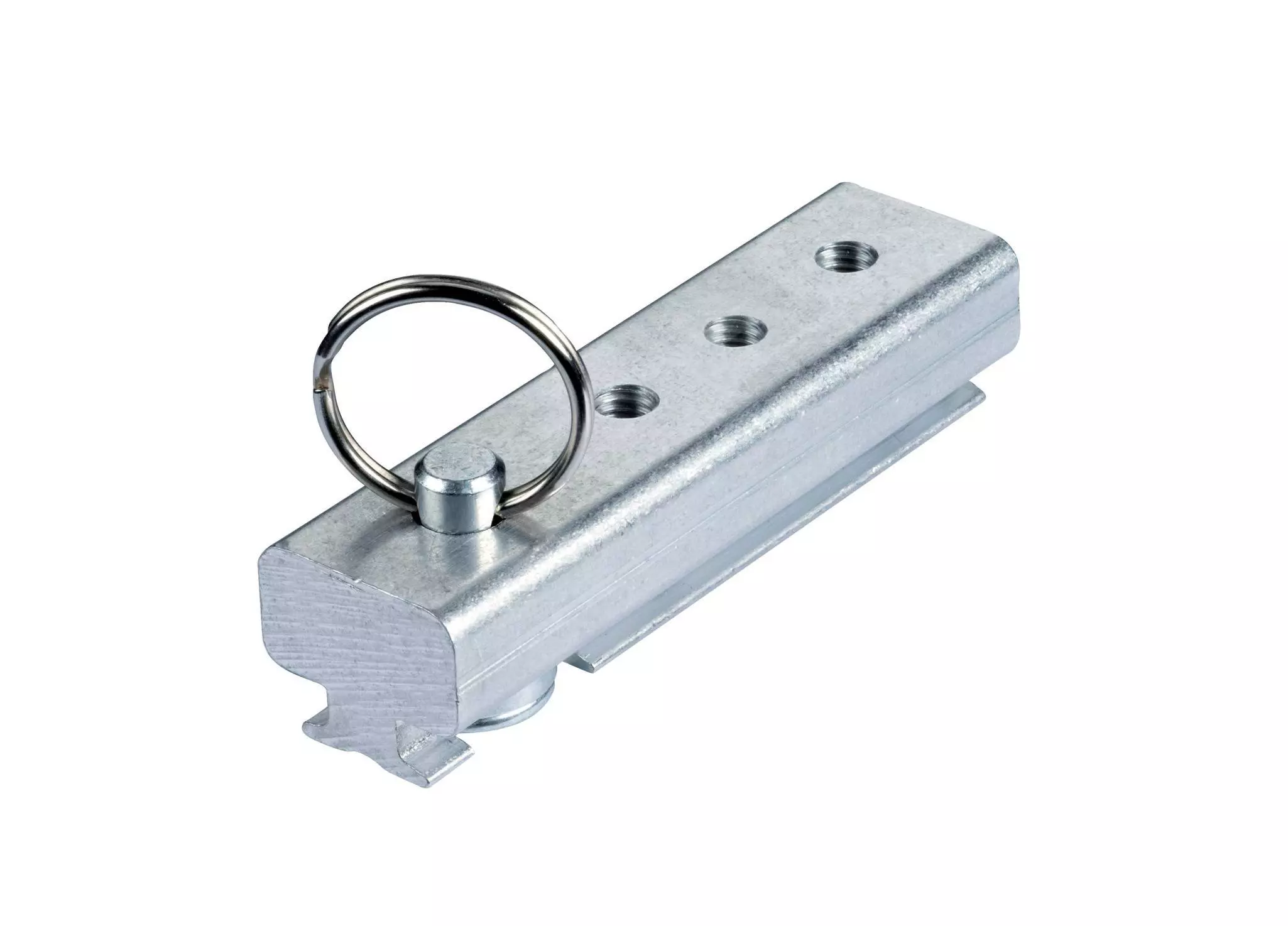

KERL universal light not removable
Base article no. 512219
