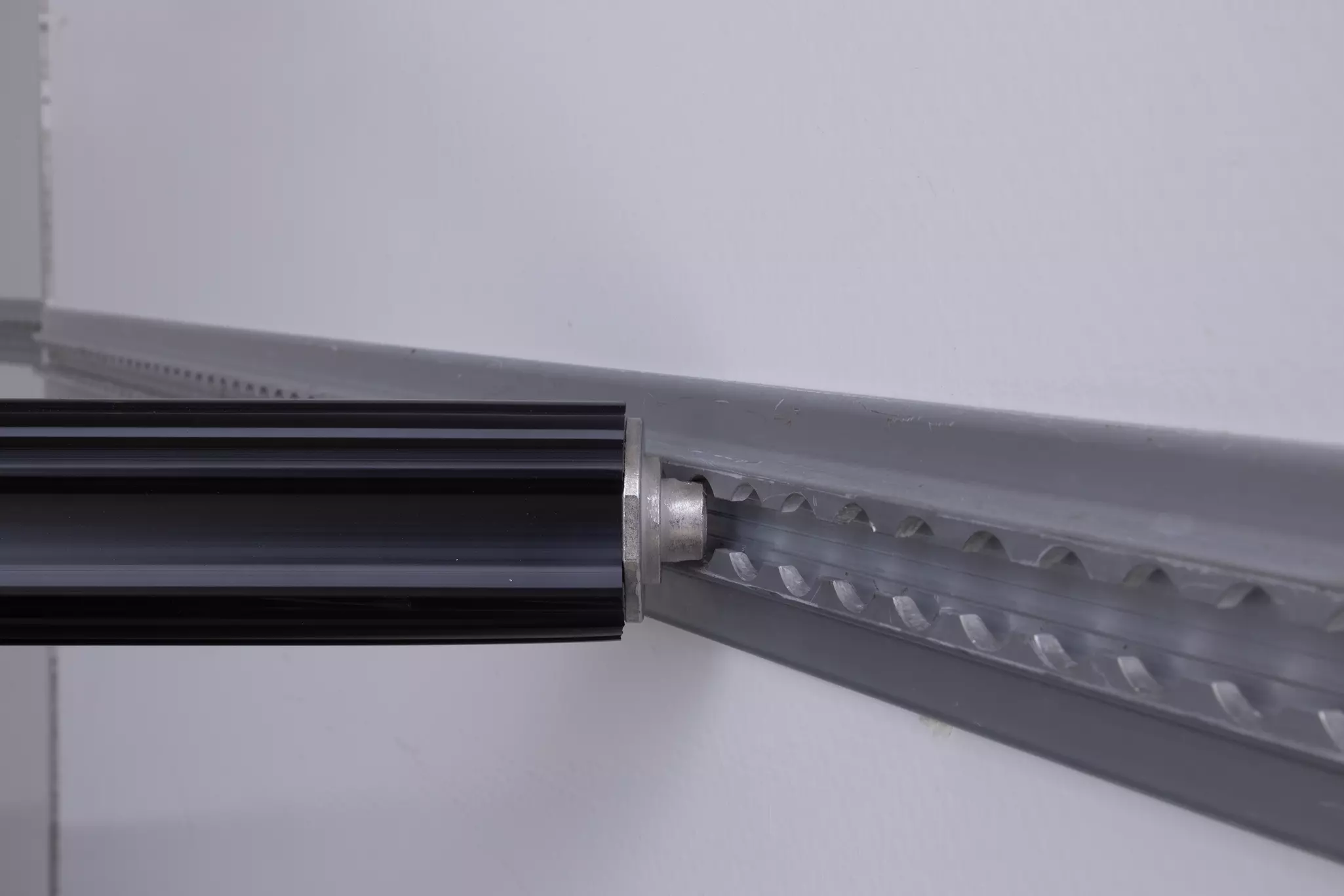

Solid bolt Ø 19 mm
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Base article no.: 512123

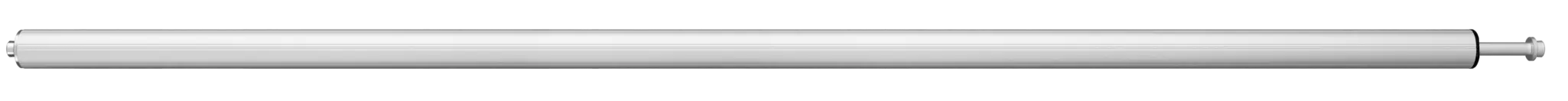

KIM 46 | Locking bar with fixed application

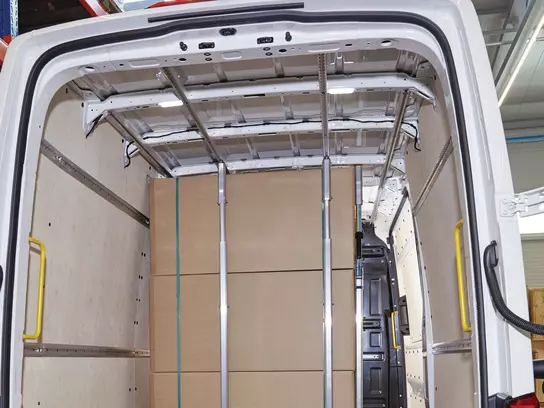

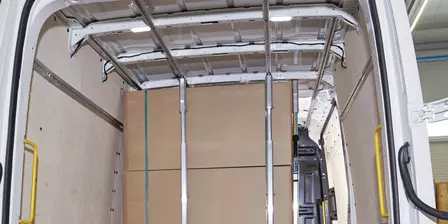

Locking bar with fixed application for use in vans, curtainsiders and box vehicles

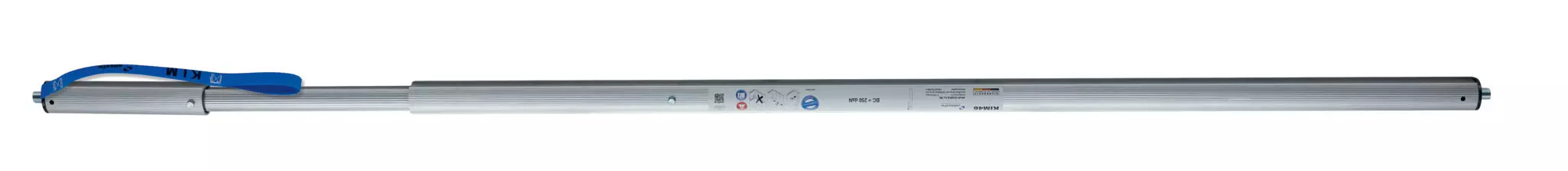

The KIM 46 locking bar offers the highest level of ergonomics and comfort when securing loads and can be configured to your requirements. The optional operating strap makes it easy to use without risk of injury. This makes the locking bar ideal for regular use, especially when speed and ease of use are crucial.
Albert's tip
The KIM 46 has a spring travel of 50 mm. Do you need a flexible area of application? No problem with KIM 46 Profi!
Technical specifications
Up to 1200 mm length: 550 daN
From 1200 to 1600 mm length: 450 daN
From 1600 to 1800 mm length: 350 daN
From 1800 to 2100 mm length: 300 daN
From 2100 mm length: 250 daN
At a glance
- Round locking bar
- Ideal for use in transporters
- Up to 320 daN BC*
Area of application KIM 46
- Application range from min. 300 – max. 2520 mm
- Fixed application range with 50 mm spring deflection
Used as a shoring pole
You can use the KIM 46 as a shoring pole. In this case, the clear internal dimension is shorter than the track dimension.
(1) The track dimension is the distance between the two tracks into which the vertical locking elements are inserted.
(2) The clear internal dimension is the distance between the two tracks on the locking elements into which the shoring pole is inserted horizontally.
End pieces
End pieces at top

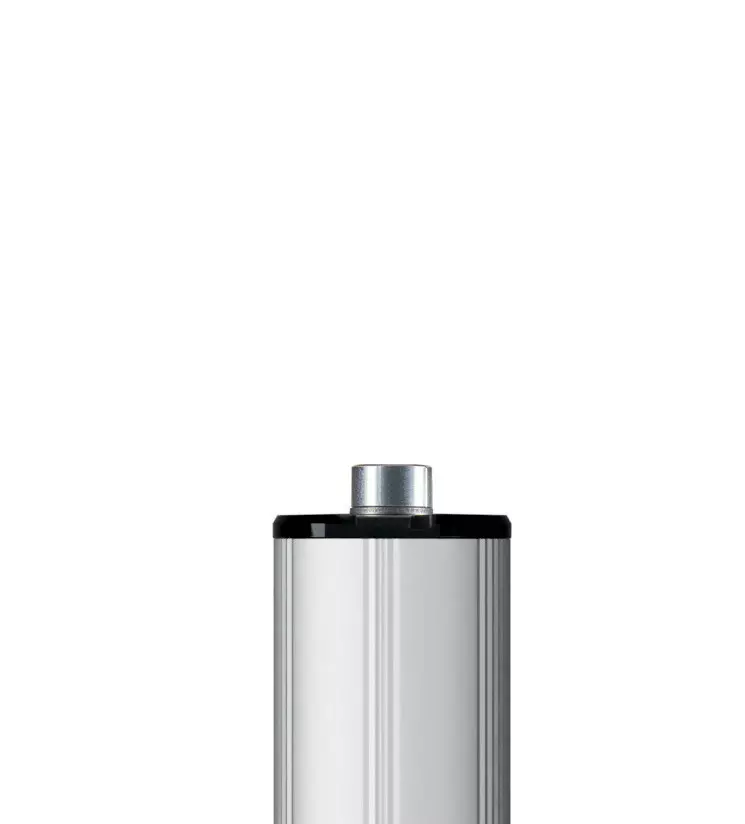

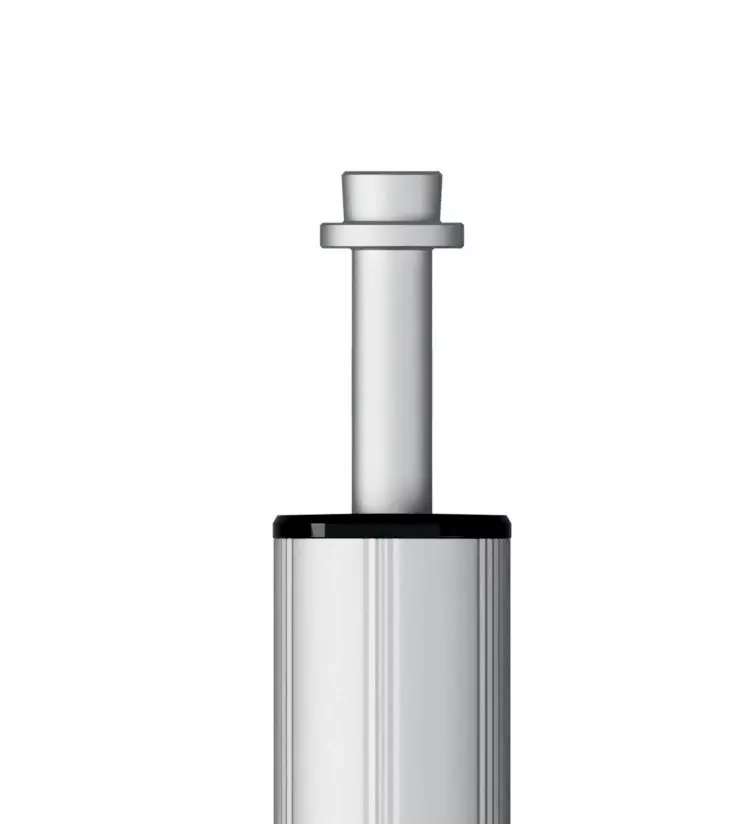

Solid bolt Ø 24 mm
Suitable for Round hole tracks Ø 25 mm

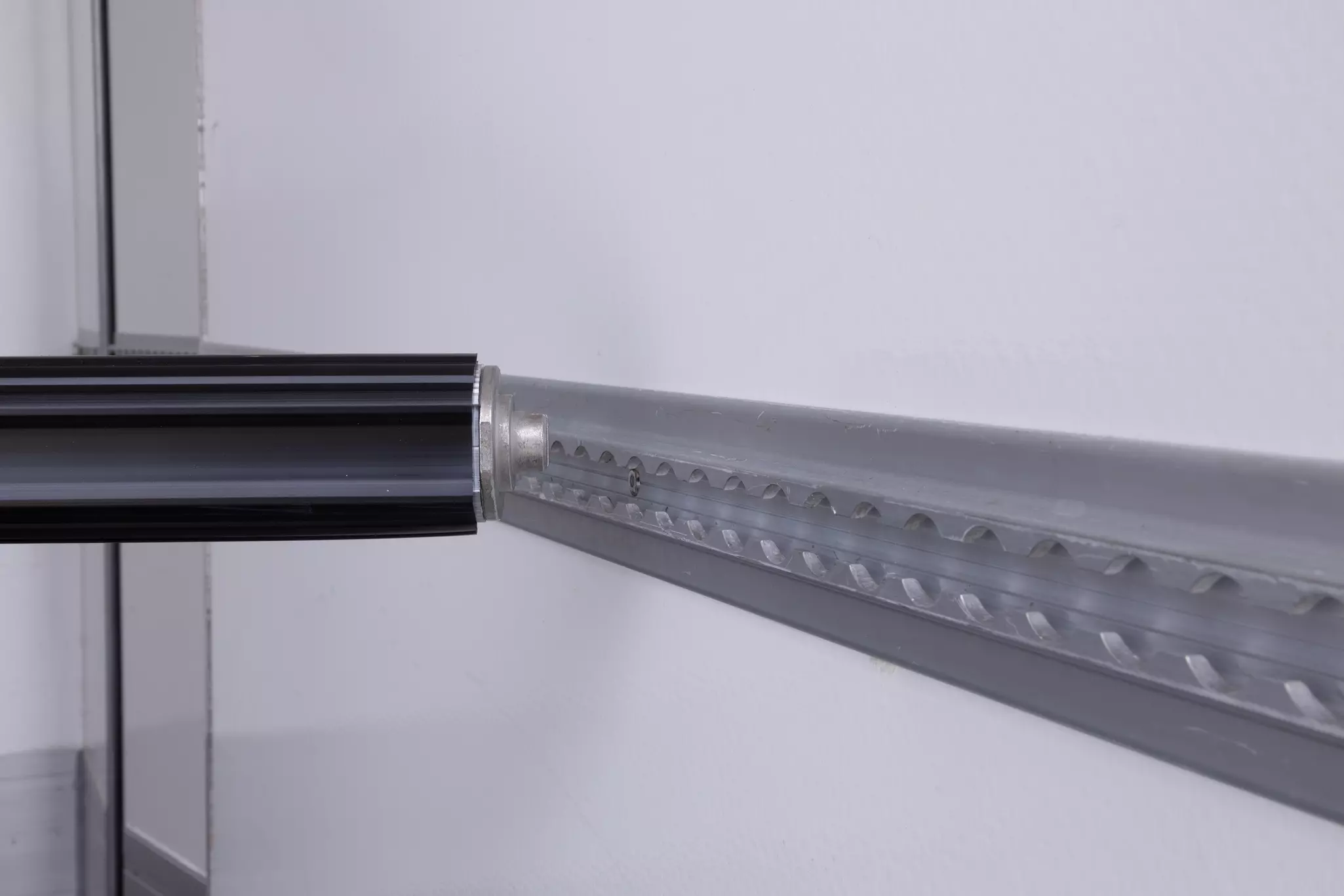

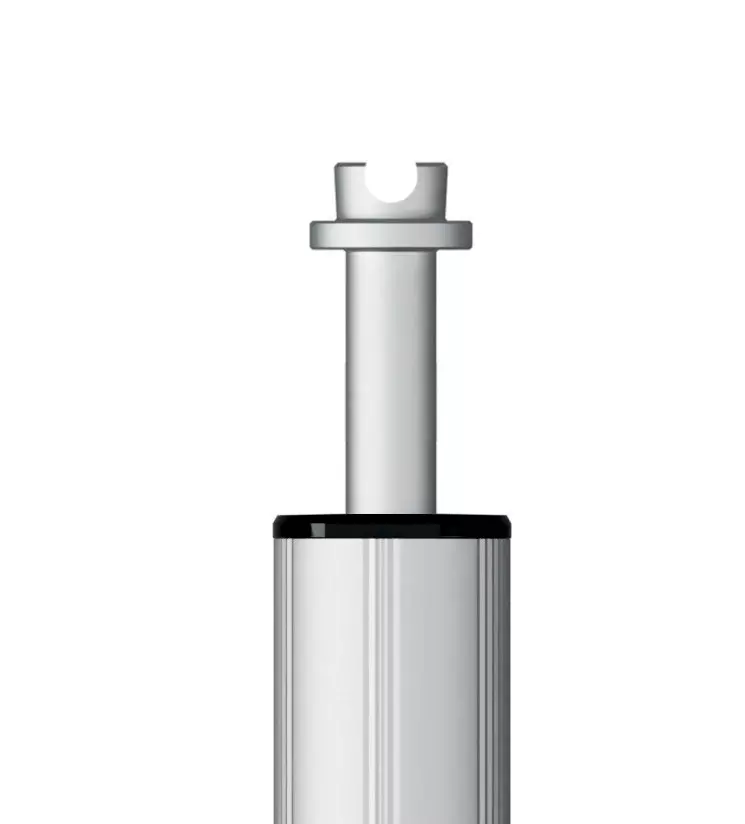

Slotted bolt Ø 19 mm
Suitable for Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm
End pieces at bottom

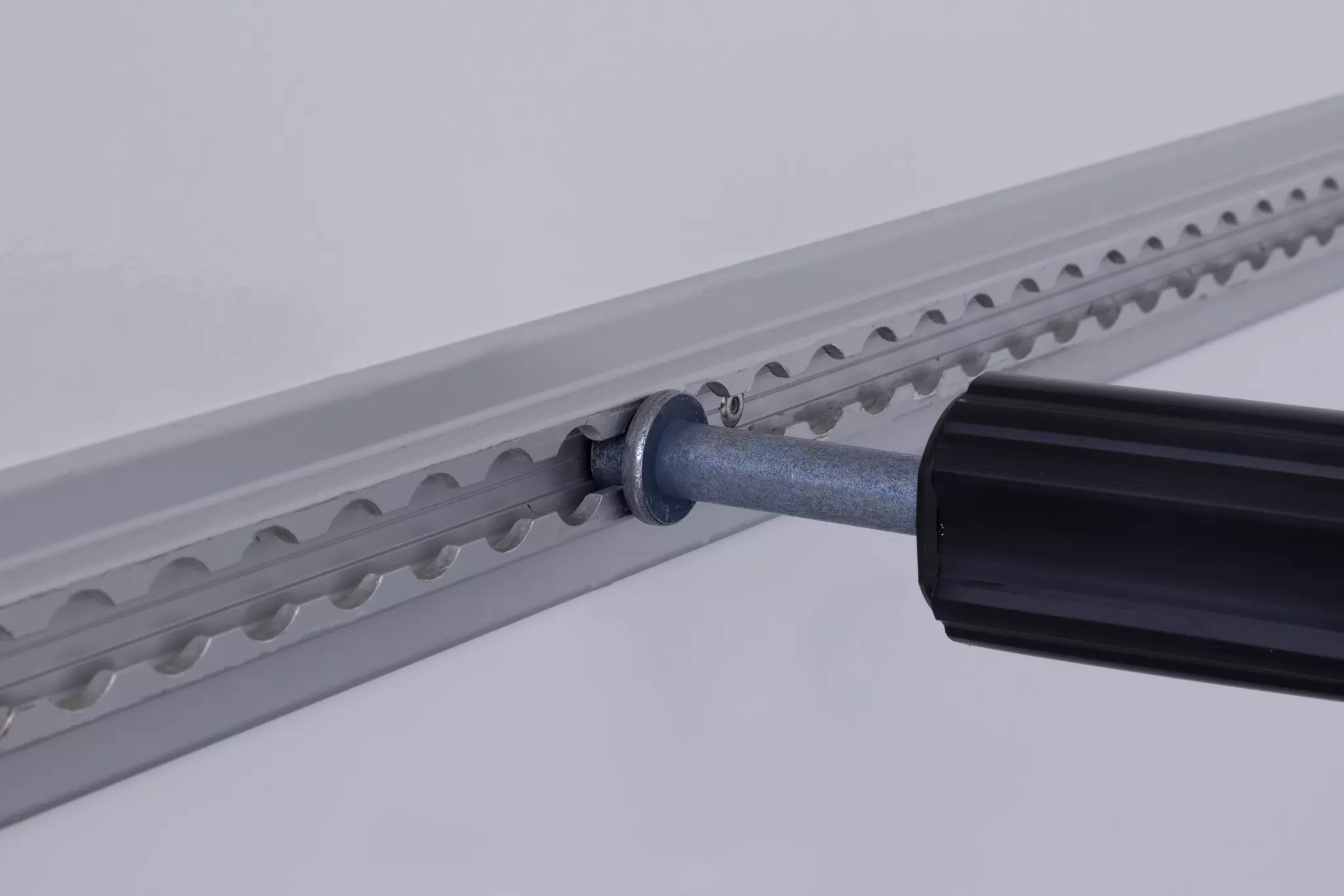

Slotted bolt Ø 19 mm
Suitable for Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm
Solid bolt Ø 24 mm
Compatible with Airline tracks / Round hole tracks / Combi tracks Ø 25 mm
Solid bolt Ø19 mm
Compatible with Airline tracks / Round hole tracks / Combi tracks Ø 20 mm
Configuration options
Protective hose
The protective sleeve can be ordered separately and protects your goods from scratches.
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Downloads
Order the KIM 46 locking bar now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
