Solid bolt, short, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Base article no.: 512061

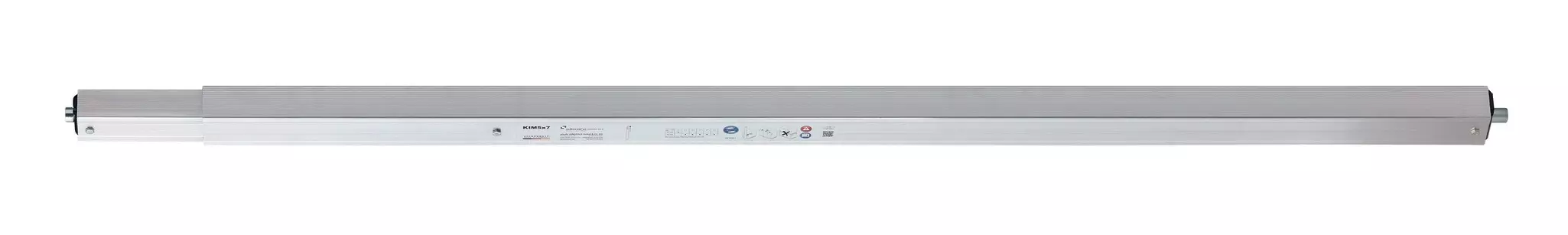

KIM 5x7 | locking bar with fixed application

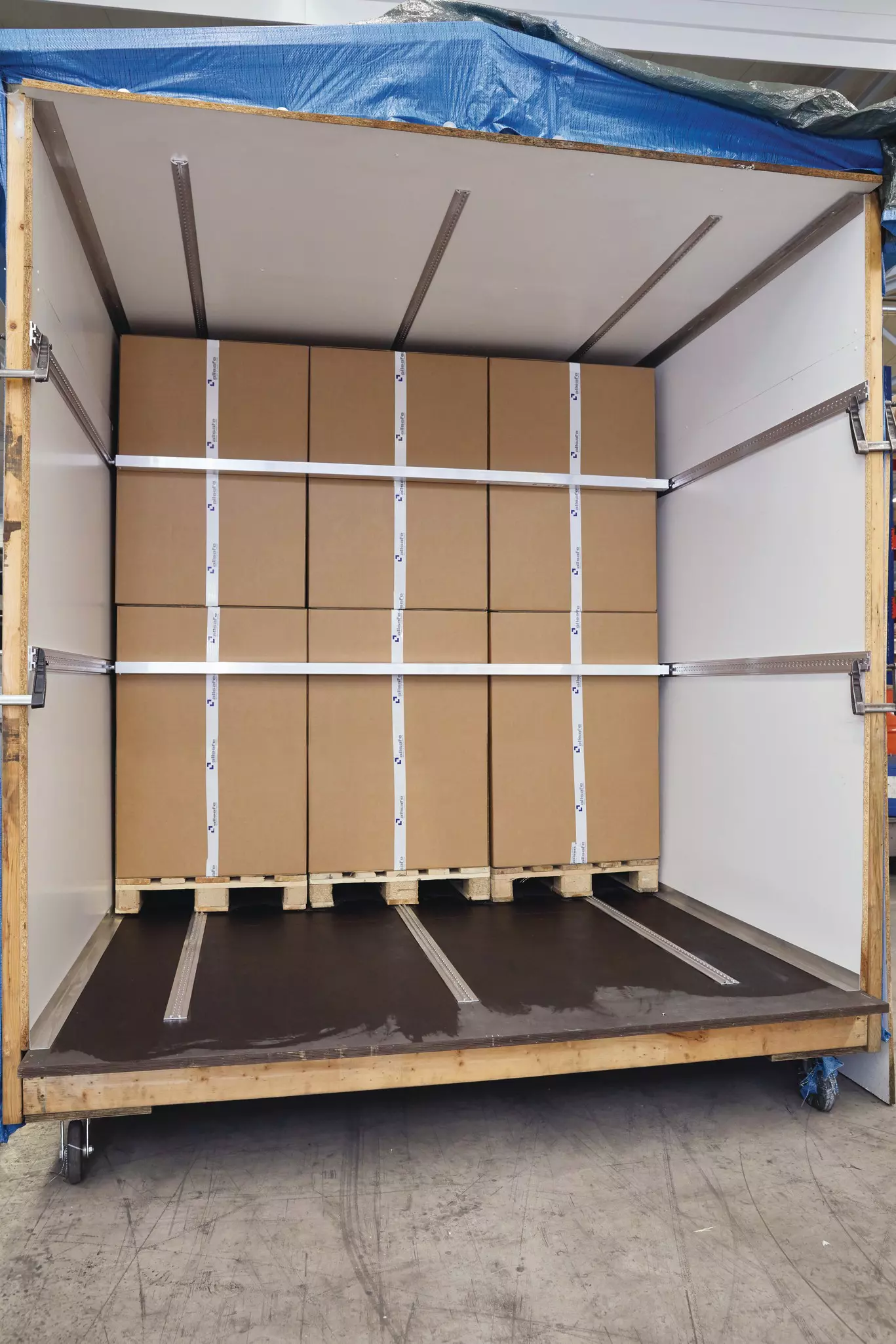

The lightweight locking bar for heavy loads in box and curtainsider vehicles
With an impressive blocking force of up to 1300 daN, the KIM 5x7 load securing bar offers maximum stability and safety even with particularly heavy loads. This high-performance locking bar can withstand the most demanding requirements and ensures that your cargo remains firmly and reliably secured even under intensive transport conditions. Thanks to its lightweight design, the rectangular locking bar can be easily mounted and quickly fixed, saving time and effort. Secure heavy loads comfortably and reliably every day – even in trucks.
Albert's tip
The KIM 5x7 has a spring travel of 70 mm. Do you need a larger adjustment range? No problem with KIM 5x7 Profi – this locking rod can be adjusted using a lever, giving it a wider range of use.
Technical specifications
At a glance
- Square locking bar
- Ideal for use in medium to large box and curtainsider vehicles
- Weight: approx. 2.0–6.0 kg depending on length
- Up to 1300 daN BC
- Optionally with operating strap or handle
Range of application
- Up to 1200 mm Length: 1300 daN
- From 1200 - 1600 mm: 1000 daN
- From 1600 - 1900 mm: 900 daN
- From 1900 - 2200 mm: 800 daN
- From 2200 mm Length: 700 daN
End pieces
End pieces at top
Solid bolt, short, Ø 24 mm, top
Compatible with Airline and round hole tracks Ø 25 mm
Roof track, top
Solid bolt, long, Ø 24 mm, top
Compatible with Airline and round hole tracks Ø 25 mm
Full bolt, long, 19 mm diameter, top
Compatible with Airline and round hole tracks Ø 20 mm
Twist-proof in Y direction, top
Suitable for Airline tracks ø 20 mm
Twist-proof in the X direction, top
Suitable for Airline tracks ø 20 mm
End pieces at bottom
Full bolt, short, ø 19 mm, bottom
Compatible with Airline and round hole tracks Ø 20 mm
Full bolt, long, 19 mm diameter, bottom
Compatible with Airline and round hole tracks Ø 20 mm
Full bolt, long, ø 24 mm, bottom
Compatible with round hole tracks Ø 25 mm
Short bolt, diameter 24 mm, bottom
Compatible with round hole tracks Ø 25 mm
Twist-proof in the X direction, bottom
Suitable for Airline tracks ø 20 mm
Twist-proof in Y direction, bottom
Suitable for Airline tracks ø 20 mm
Configuration options
Properties

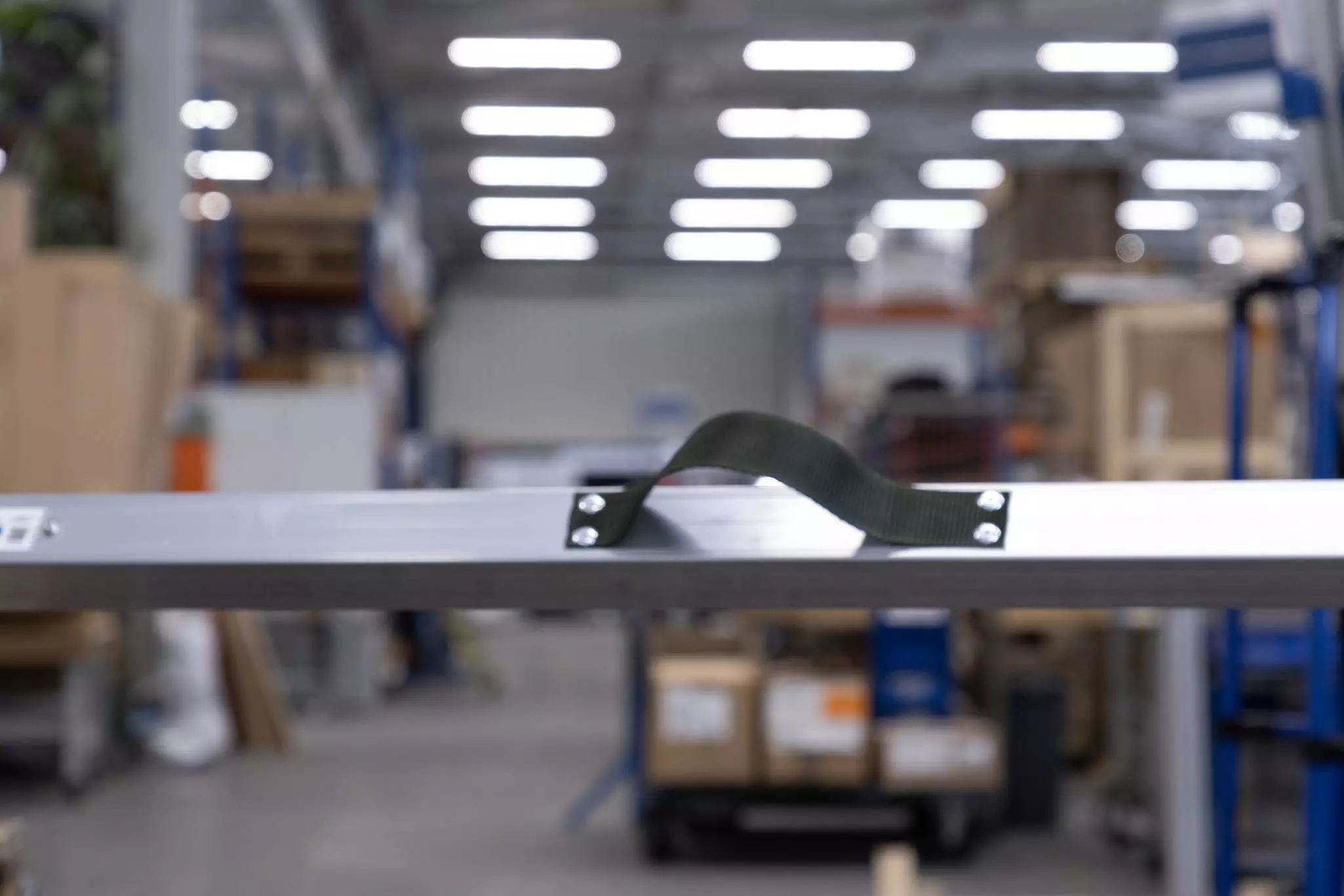

Operating strap
An optional operating strap can be selected for easier operation.
Handle
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Downloads
Order the KIM 5x7 locking bar now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
Accessories
Ceiling mount
Base article no. 522160
Not available in the webshop
This product is currently not available in our shop. To purchase, please contact us by email or give us a call.
