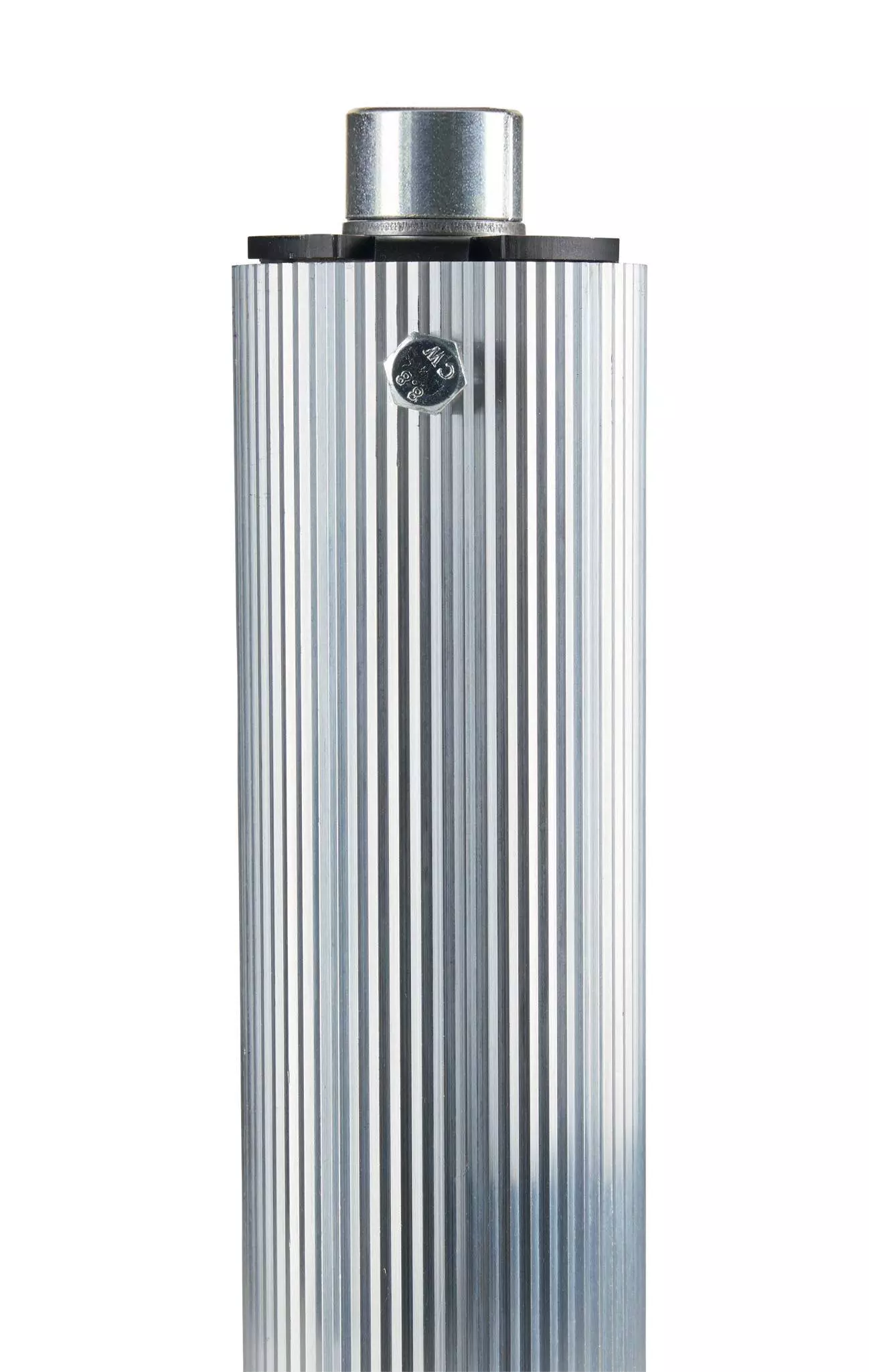

Solid bolt Ø 19 mm short, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Base article no.: 512073

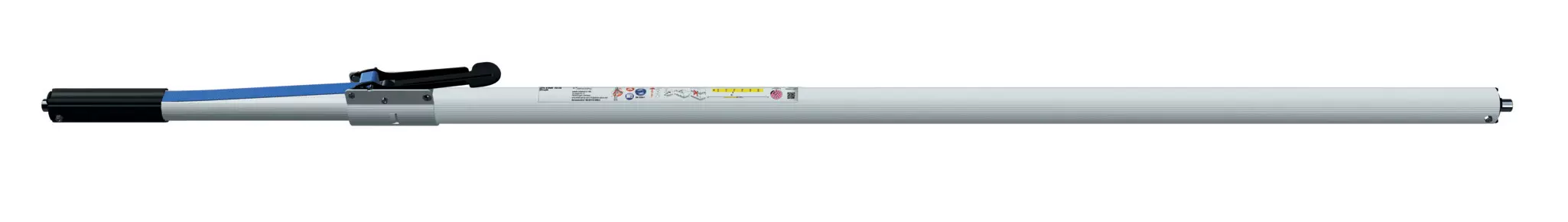

KIM 55 Profi | Telescopic locking bar
allchange-compatibility
Locking bar for maximum flexibility and load capacity in box and curtainsider vehicles
The KIM 55 Profi round locking bar combines maximum load capacity and versatility in a single product. Its telescopic function and ergonomic operating lever make it easy to use in any position in the vehicle. The robust construction of the locking bar is suitable for use in trucks and ensures maximum stability and individual adaptability. The intuitive one-handed operation enables quick and safe deployment, allowing for comfortable handling without risk of injury.
Albert's tip
Do you need a smaller operating range? No problem with the KIM 46 Profi !
Technical specifications
At a glance
- Round lock bar
- Ideal for use in medium-sized box and curtainsider vehicles
- Up to 500 daN BC

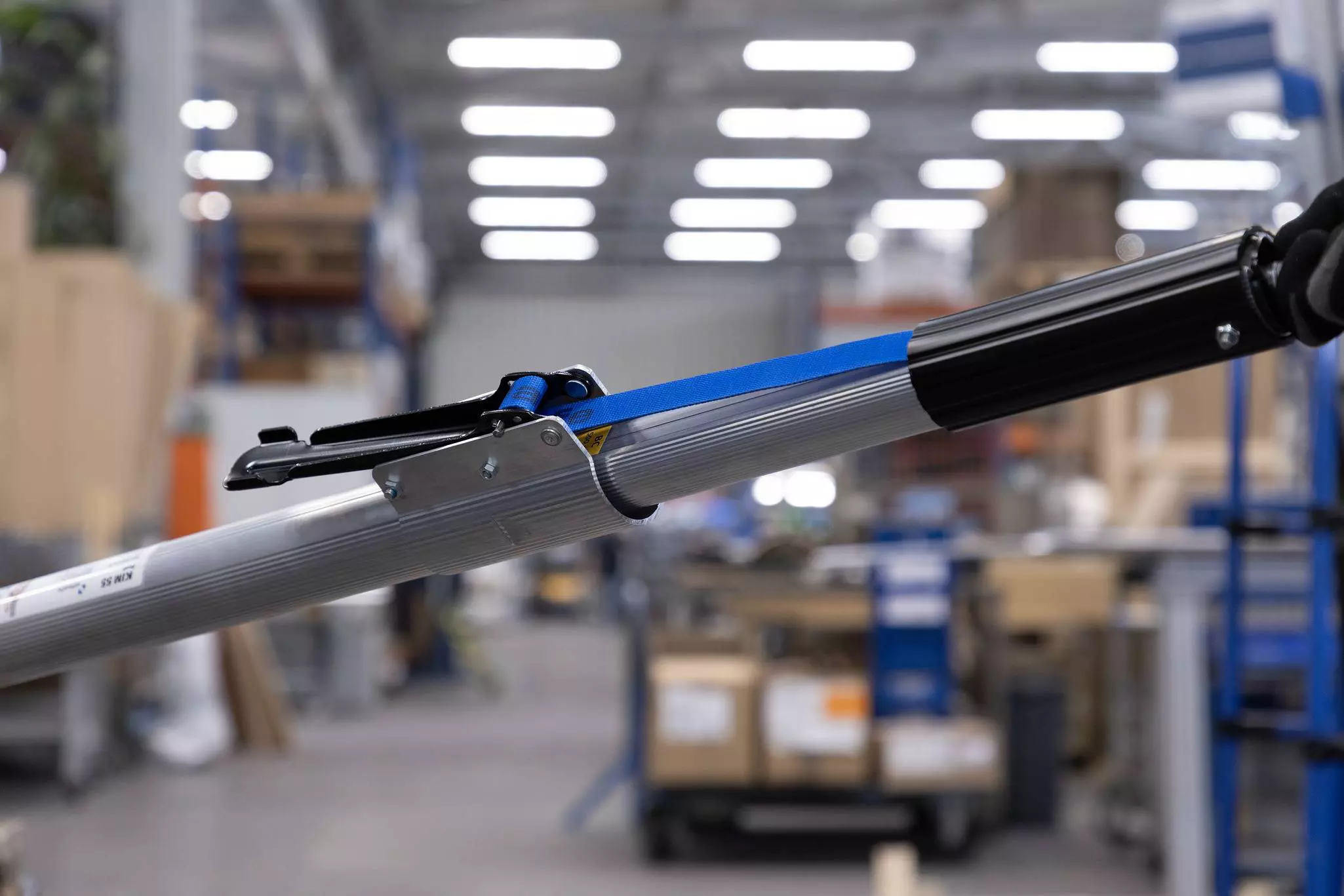

- Ergonomically adjustable with lever
Area of application
- min. 1850 – max. 2300 mm
- min. 2100 – max. 2550 mm
- min. 2100 – max. 2850 mm
End pieces
End pieces at top

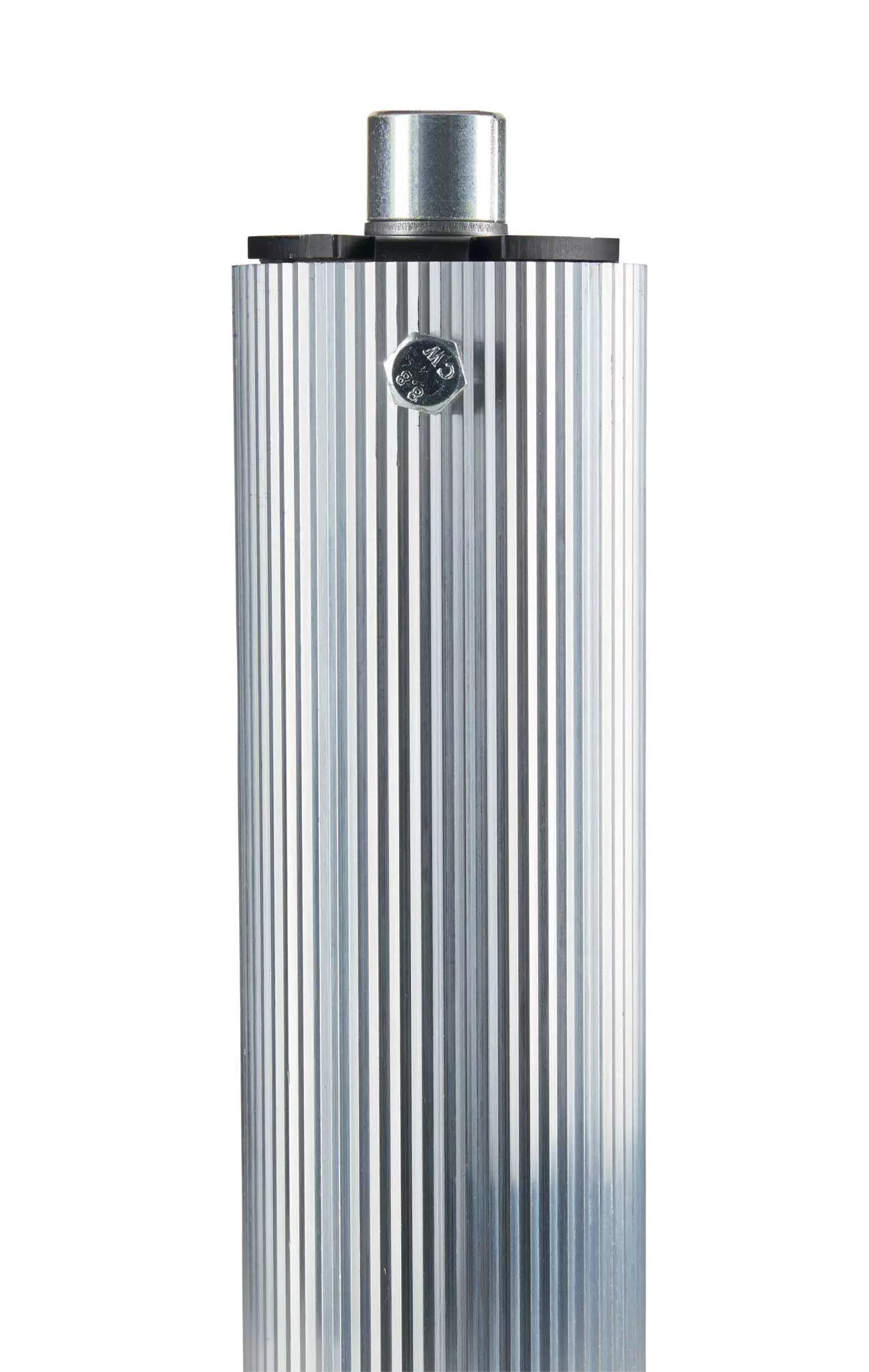

Bolt Ø 19 mm long, top
Compatible with Airline and round hole tracks Ø 20mm
Bolt Ø 24 mm long, top
Compatible with round hole tracks Ø 25 mm
Solid bolt Ø 24 mm short, top
Suitable for Round hole tracks Ø 25 mm

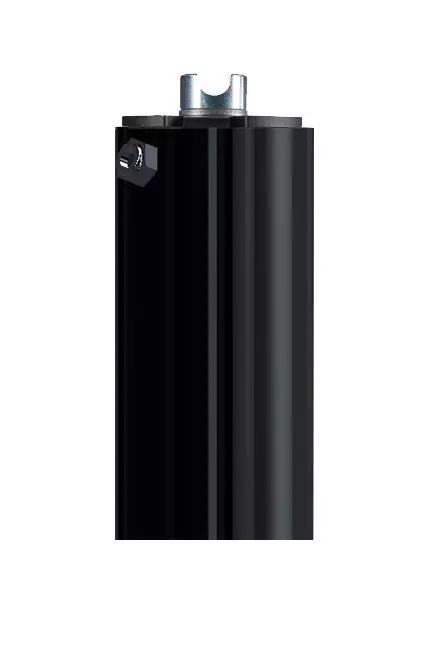

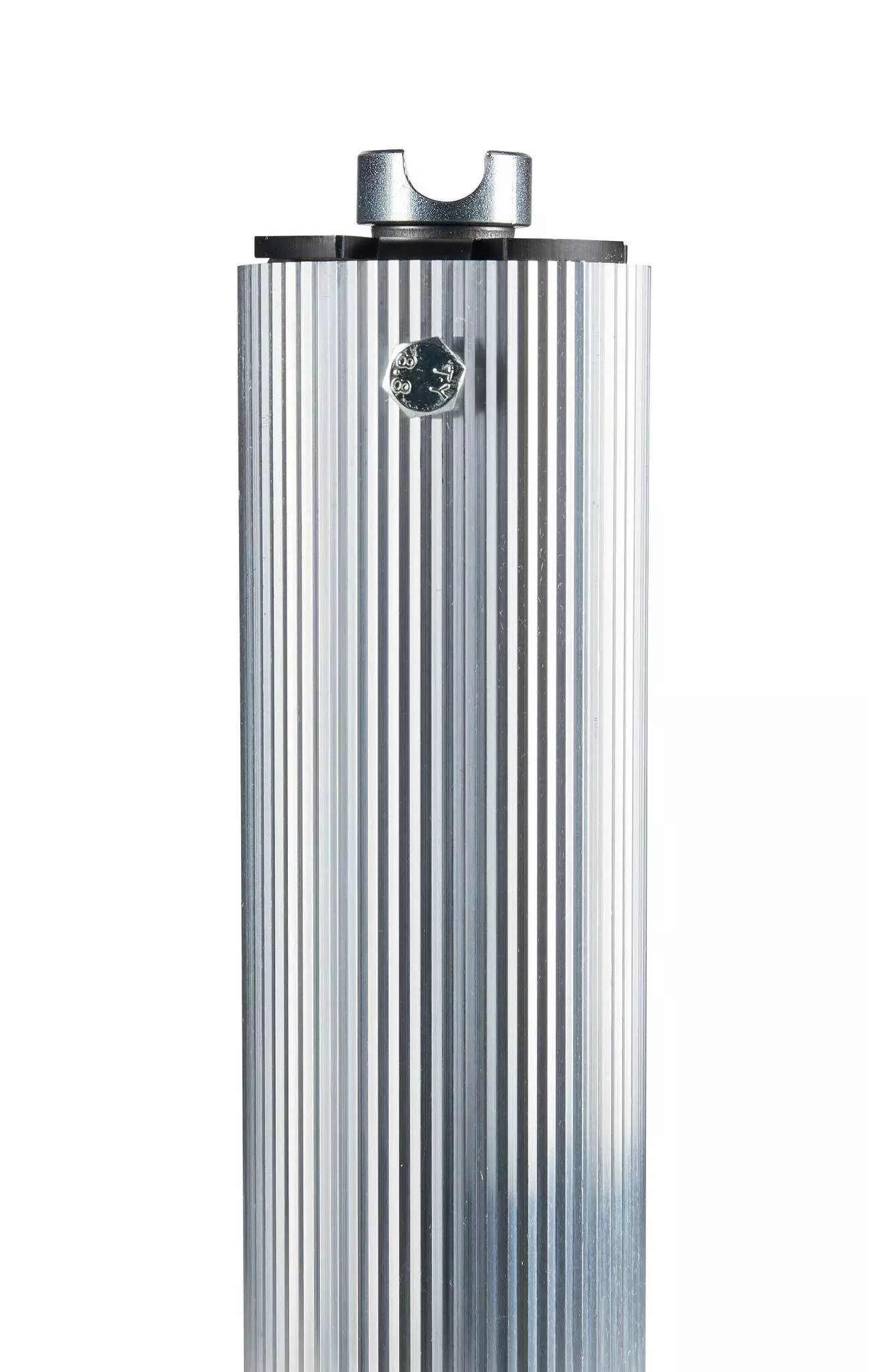

Slotted bolt Ø 19 mm, top
Suitable for Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm
Slotted bolt Ø 24 mm, top
Suitable for Airline tracks, Round hole tracks Ø 25 mm and Pin tracks Ø 10 mm
End pieces at bottom
Solid bolt, short, Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Full bolt, long, Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Full bolt, long, Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Solid bolt, short, Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Slotted bolt Ø 19 mm, bottom
Suitable for Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm
Slotted bolt Ø 24 mm, bottom
Suitable for Airline tracks, Round hole tracks Ø 25 mm and Pin tracks Ø 10 mm
Configuration options
Properties
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Downloads
Order the KIM 55 Profi locking bar now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
