Solid bolt, short, Ø 24 mm, top
Suitable for Round hole tracks Ø 25 mm
Base article no.: 512080

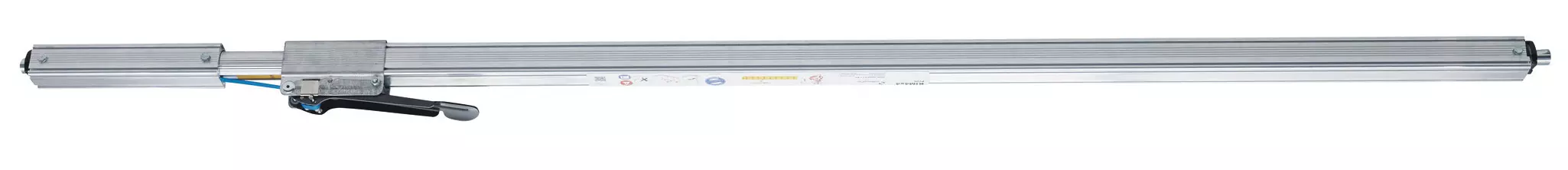

KIM 4x4 Profi | Telescopic locking bar
allchange-compatibility
The locking bar for safety, easy handling and maximum flexibility in transporters and panel vans
The KIM 4x4 Profi locking bar ensures reliable fastening and stability when securing loads. The rectangular locking bar has been specially developed to provide optimal support for every journey. Thanks to the wide contact surface, everything stays exactly where it should be – no slipping, no sliding, no matter how winding or uneven the road is. In addition to the light weight of the bar, the ergonomic operating lever makes installation even easier, so that the bar is ready for immediate use without the need for a great deal of effort or complicated adjustments. The four different length ranges offer maximum flexibility.
Albert's tip
KIM 4x4 Airline Profi – this locking bar has an attached Airline track and allows you to use round locking bars, straps and fittings in it.
Technical specifications
At a glance
- Square locking bar
- Ideal for use in transporters
- Up to 400 daN BC
- Ergonomically adjustable with lever
- Weight: approx. 3.0–5.0 kg depending on length
Adjustment range
- von min. 1250 bis max. 1650 mm
- von min. 1500 bis max. 1950 mm
- von min. 1850 bis max. 2300 mm
- von min. 2100 bis max. 2550 mm
End pieces
End pieces at top
Full bolt, long, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Full bolt, long, Ø 24 mm, top
Suitable for Round hole tracks Ø 25 mm
Solid bolt, short, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
End pieces at bottom
Short bolt Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Long bolt Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Long bolt Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Solid bolt, short, Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Anti-twist device
Bolt secured against twisting in the Y direction, bottom
Suitable for Airline tracks ø 20 mm
Bolt secured against twisting in the Y direction, bottom
Suitable for Airline tracks ø 20 mm
Configuration options
Properties
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Accessories
Airline adapter
Base article no. 512144
Downloads
Order the KIM 4x4 Professional Locking Bar now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
