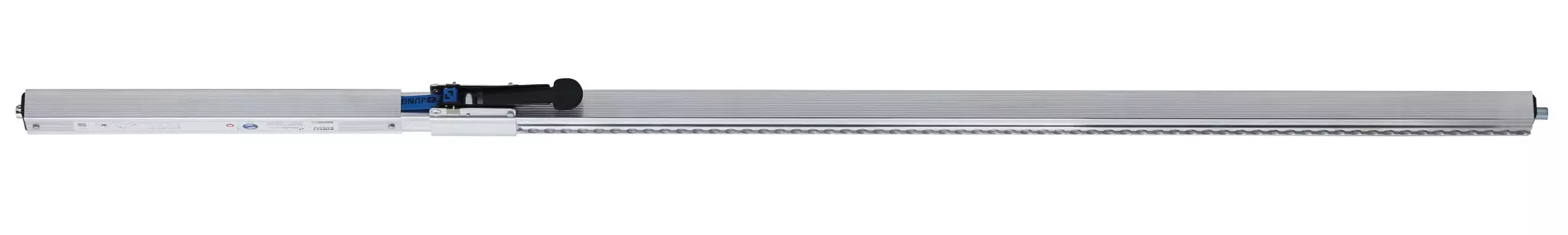

KIM 5x7 Airline Profi | Telescopic locking bar with integrated Airline tracks
allchange-compatibility
Locking bar for maximum flexibility with high locking force - for box and curtainsider vehicles
The KIM 5x7 Airline Profi locking bar meets the highest load requirements in terms of safety and stability. With an impressive locking force of up to 1000 daN, it demonstrates its extreme load-bearing capacity and is suitable for the safe transport of even the heaviest loads. This locking bar is therefore ideal for use in trucks. With its telescopic function and practical operating lever, the length of the square bar can be adjusted to any length. The integrated Airline tracks provide a variety of lashing points, which allow maximum variability when lashing. This means that loads can be secured exactly where it is needed.
Albert's tip
Do you need a smaller operating range? No problem with the KIM 4x4 Airline Profi!
Technical specifications
At a glance
- Square locking bar

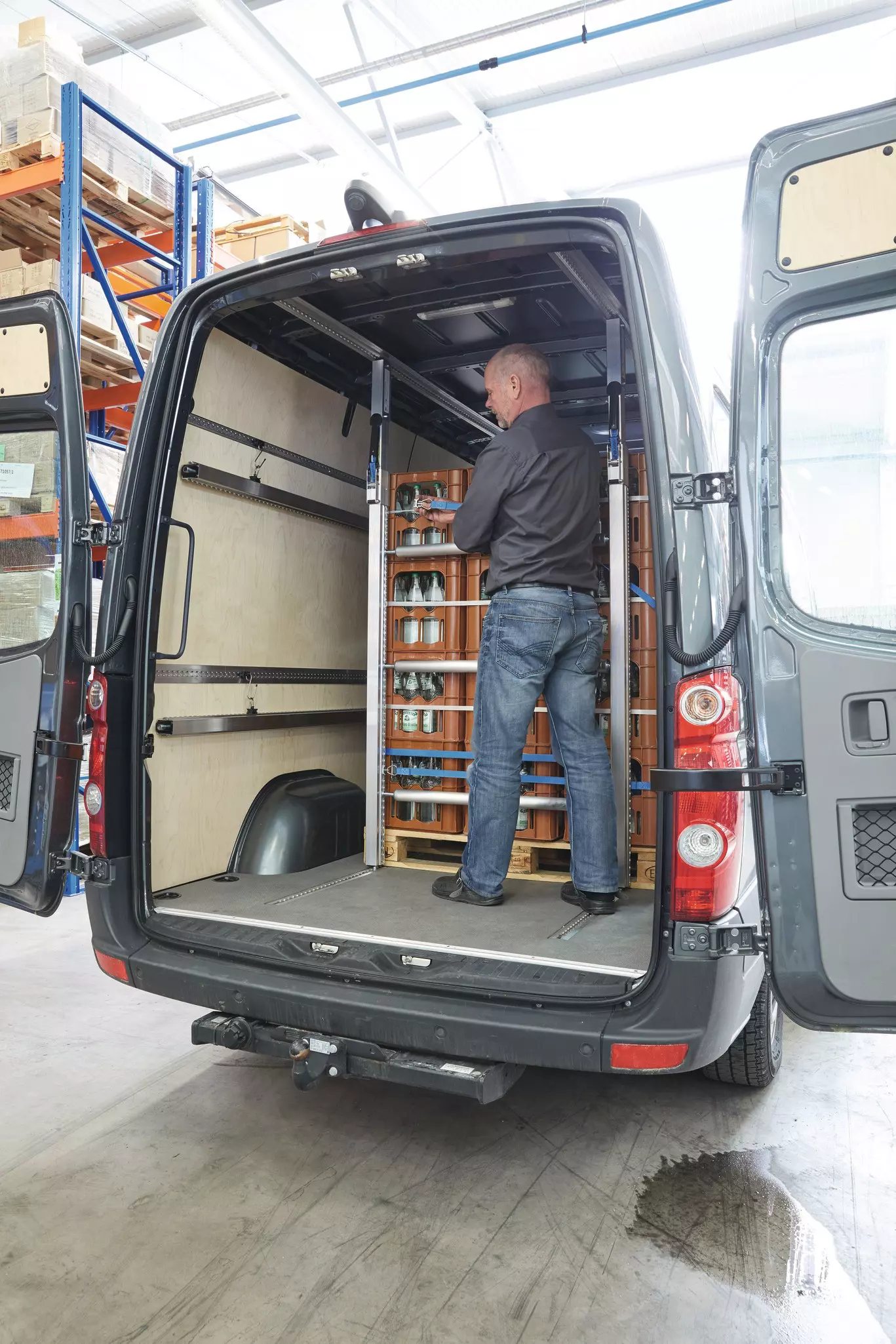

- Ideal for use in medium to large box vehicles and curtainsiders
- Up to 750 daN BC
- With attached airline tracks

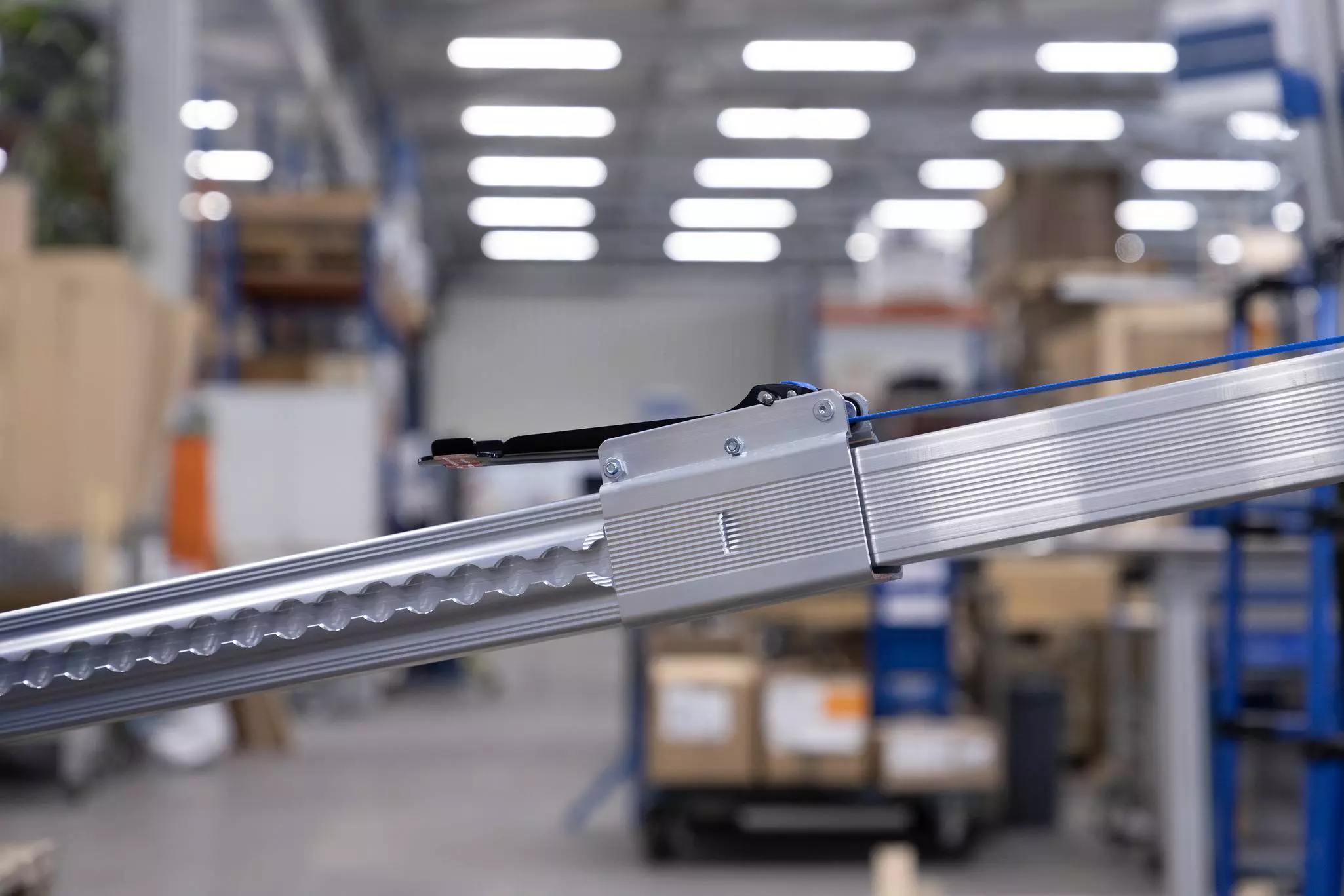

- Ergonomically adjustable with lever
- Weight: approx. 6.2 – 7.5 kg depending on length
Area of application
- min. 1800 – max. 2000 mm
- min. 2000 – max. 2500 mm
- min. 2350 – max. 2850 mm
- min. 2700 – max. 3250 mm
End pieces
End pieces at top
Full bolt, long, 19 mm diameter, top
Compatible with Airline and round hole tracks Ø 20 mm
Solid bolt, short, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Solid bolt, short, Ø 24 mm, top
Compatible with Airline and round hole tracks Ø 25 mm
Twist-proof in Y direction, top
Suitable for Airline tracks ø 20 mm
Twist-proof in the X direction, top
Suitable for Airline tracks ø 20 mm
End pieces at bottom
Twist-proof in Y direction, bottom
Suitable for Airline tracks ø 20 mm
Twist-proof in the Y direction, bottom
Suitable for Airline tracks ø 20 mm
Short bolt, diameter 24 mm, bottom
Compatible with round hole tracks Ø 25 mm
Full bolt, long, ø 24 mm, bottom
Compatible with round hole tracks Ø 25 mm
Full bolt, long, 19 mm diameter, bottom
Compatible with Airline and round hole tracks Ø 20 mm
Full bolt, short, ø 19 mm, bottom
Compatible with Airline and round hole tracks Ø 20 mm
Configuration options
Properties
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
