Solid bolt, short, Ø 24 mm, top
Suitable for Round hole tracks Ø 25 mm
Base article no.: 512081

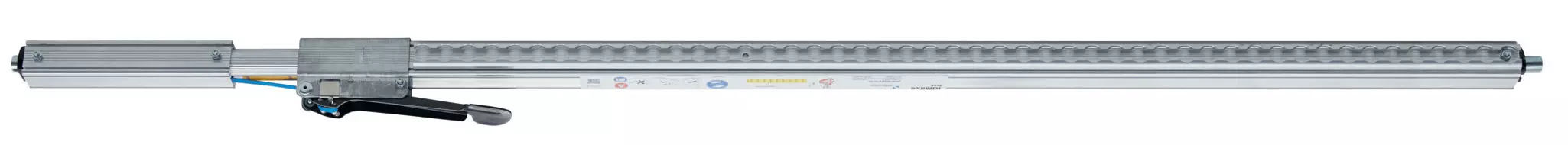

KIM 4x4 Airline Profi | Telescopic locking bar with integrated Airline tracks
allchange-compatibility

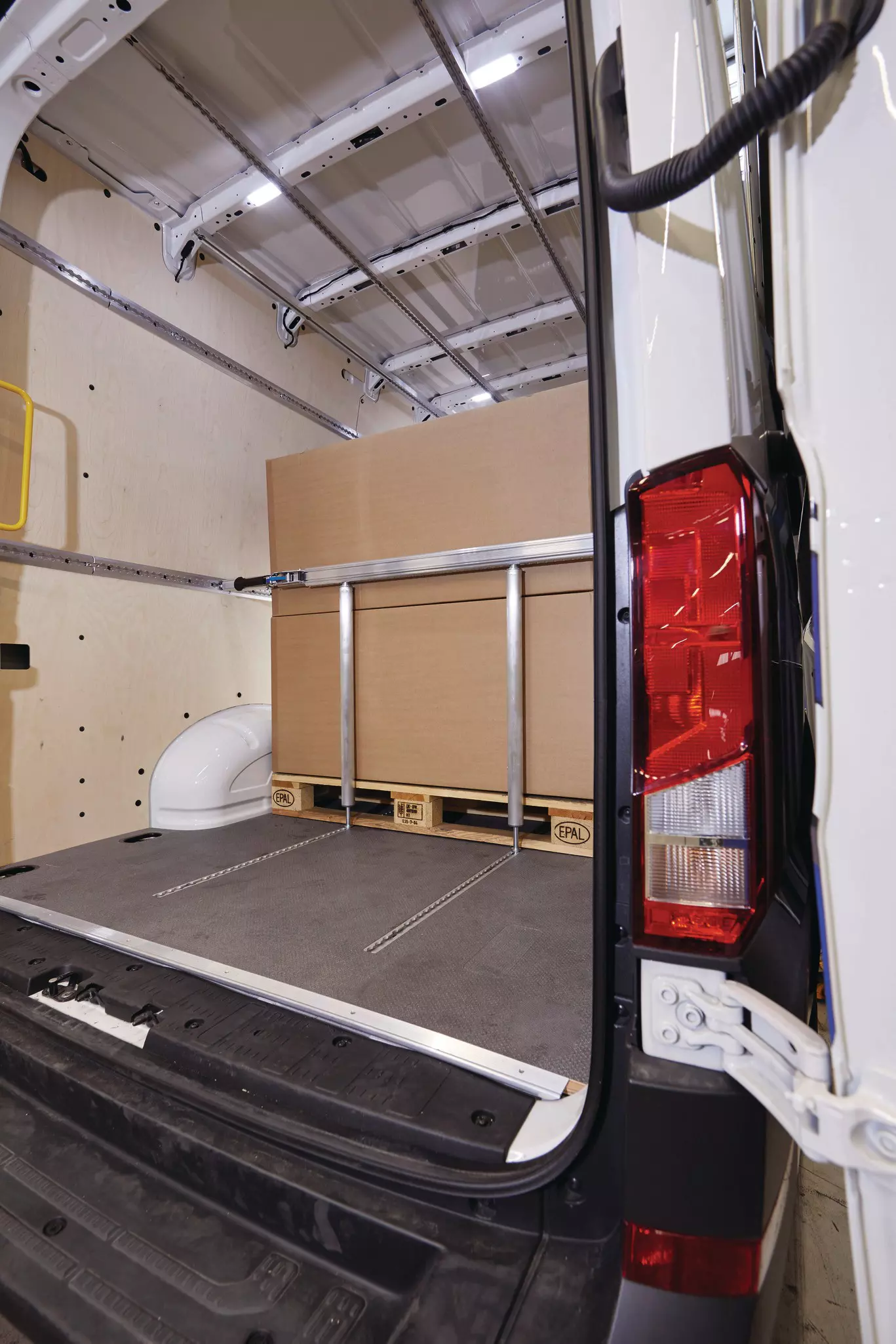

The flexible locking bar for safety and maximum flexibility thanks to the integrated Airline tracks in transporters and panel vans
The KIM 4x4 Airline Profi locking bar is equipped with a robust, durable square construction and a wide contact surface. The integrated Airline tracks provide additional lashing points in the cargo area to ensure that goods are held as securely as possible. The telescopic function also allows for easy and continuous length adjustment, so that the square bar can always be precisely matched to the load and the transport surface. Ergonomic, flexible, safe.
Albert's tip
Do you need a larger operating range? No problem with theKIM 5x7 Airline Profi!
Technical specifications
At a glance
- Square locking bar
- Ideal for use in transporters
- Up to 400 daN BC
- With attached Airline tracks

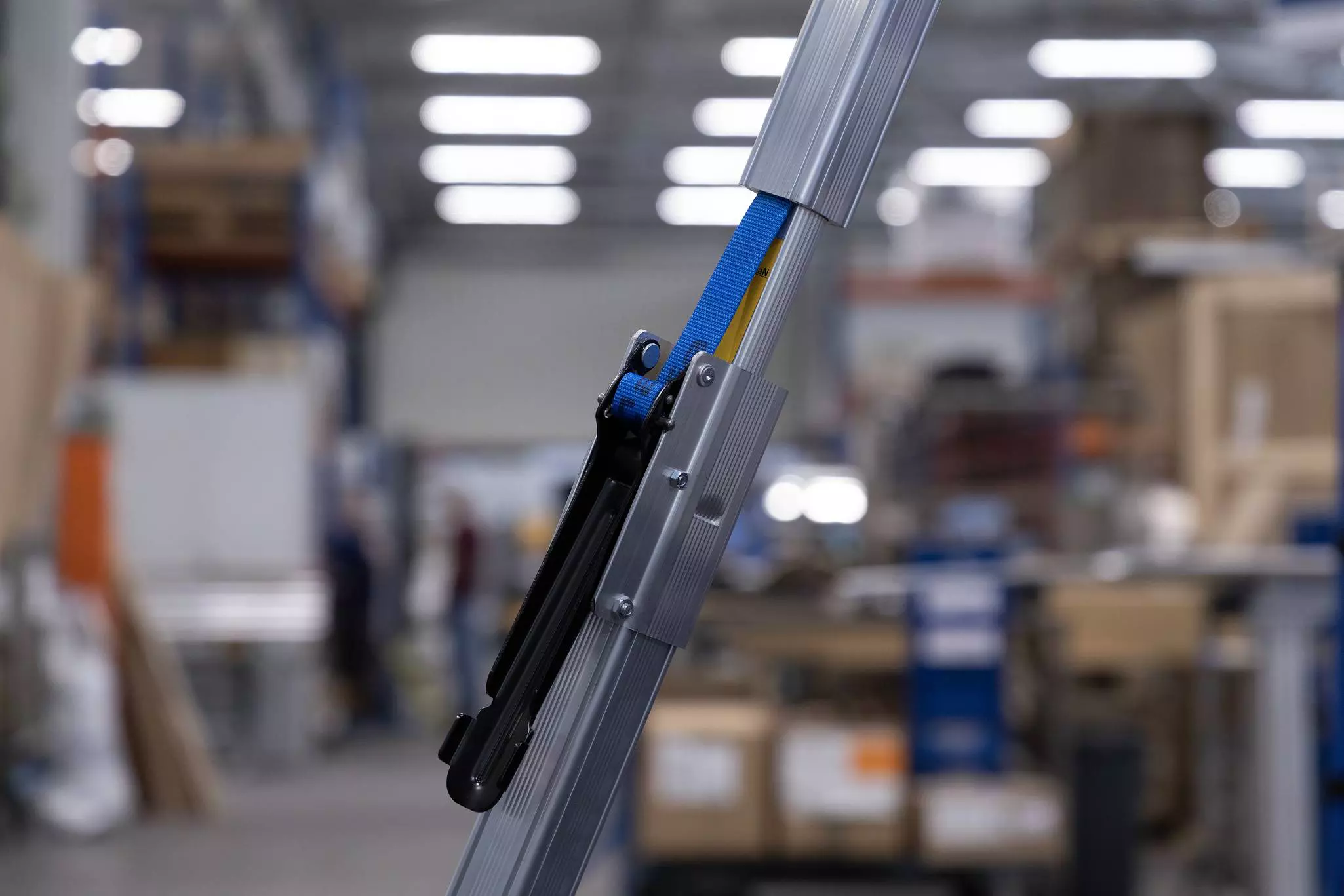

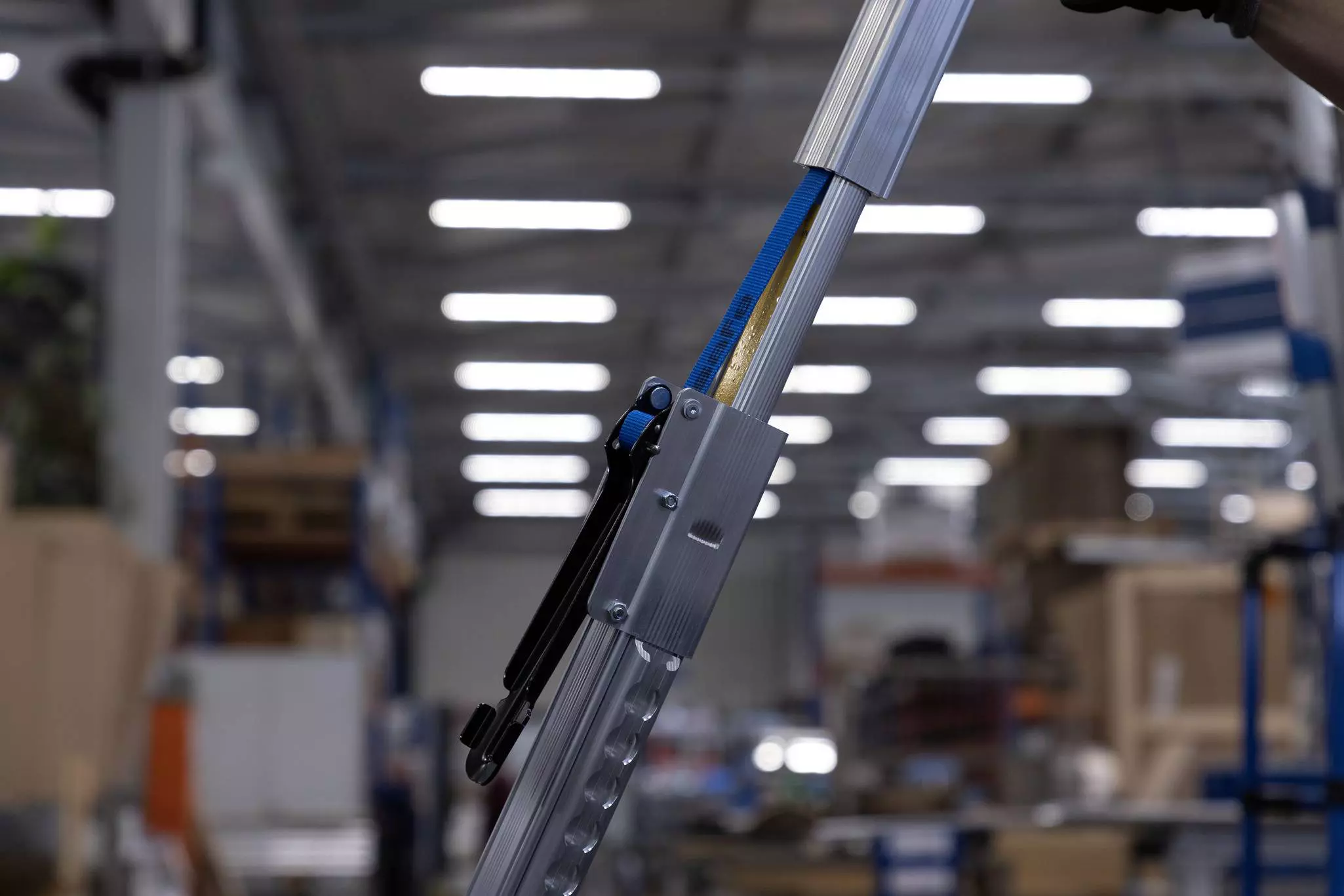

- Ergonomically adjustable with lever
- Weight: approx. 3.0–7.0 kg depending on length
Adjustment range
- Suitable for horizontal and vertical use
- min. 1250 – max. 1650 mm
- min. 1500 – max. 1950 mm
- min. 1850 – max. 2300 mm
- min. 2100 – max. 2550 mm
End pieces
End pieces at top
Full bolt, long, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Full bolt, long, Ø 24 mm, top
Suitable for Round hole tracks Ø 25 mm
Solid bolt, short, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
End pieces at bottom
Short bolt Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Long bolt Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Long bolt Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Solid bolt, short, Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Anti-twist device
Bolt secured against twisting in the Y direction, bottom
Suitable for Airline tracks ø 20 mm
Bolt secured against twisting in the Y direction, bottom
Suitable for Airline tracks ø 20 mm
Configuration options
Properties
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Accessories
Airline adapter
Base article no. 512144
Downloads
Order the KIM 4x4 Airline tracks now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
