KERL universal special fitting

allchange-compatibility

Made in Germany

The flexible basis for vehicle equipment

Whether seats, modules or vehicle equipment – the KERL Universal ensures secure and flexible fastening. Thanks to the scalable aluminium base plate, it can be individually adapted and allows quick installation and removal of equipment elements. The lockable version prevents unauthorised unlocking and provides additional security. The KERL Universal is M1-compliant and approved as a seat fixation. It fits both standard and heavy-duty airline tracks from allsafe. In addition, the length can be individually configured to provide a tailor-made solution for every application. Maximum adaptability for your vehicle equipment – exactly where you need it!

Technical specifications

At a glance

  • Suitable for securing seats
  • Configurable length
  • Lockable version available
  • M1-compatible
  • Aluminum, plastic

configuration options

Pitch

Choose between starting dimension P = 25 mm and starting dimension P = 25.4 mm (inch grid).

e.g.: P = 25 mm
e.g.: P = 50 mm

Forward length

Min. 4 grids (1 M8 thread) and max. 8 grids (5 M8 threads).

Backward length

Min. 4 grids (0 M8 threads) and max. 8 grids (4 M8 threads).

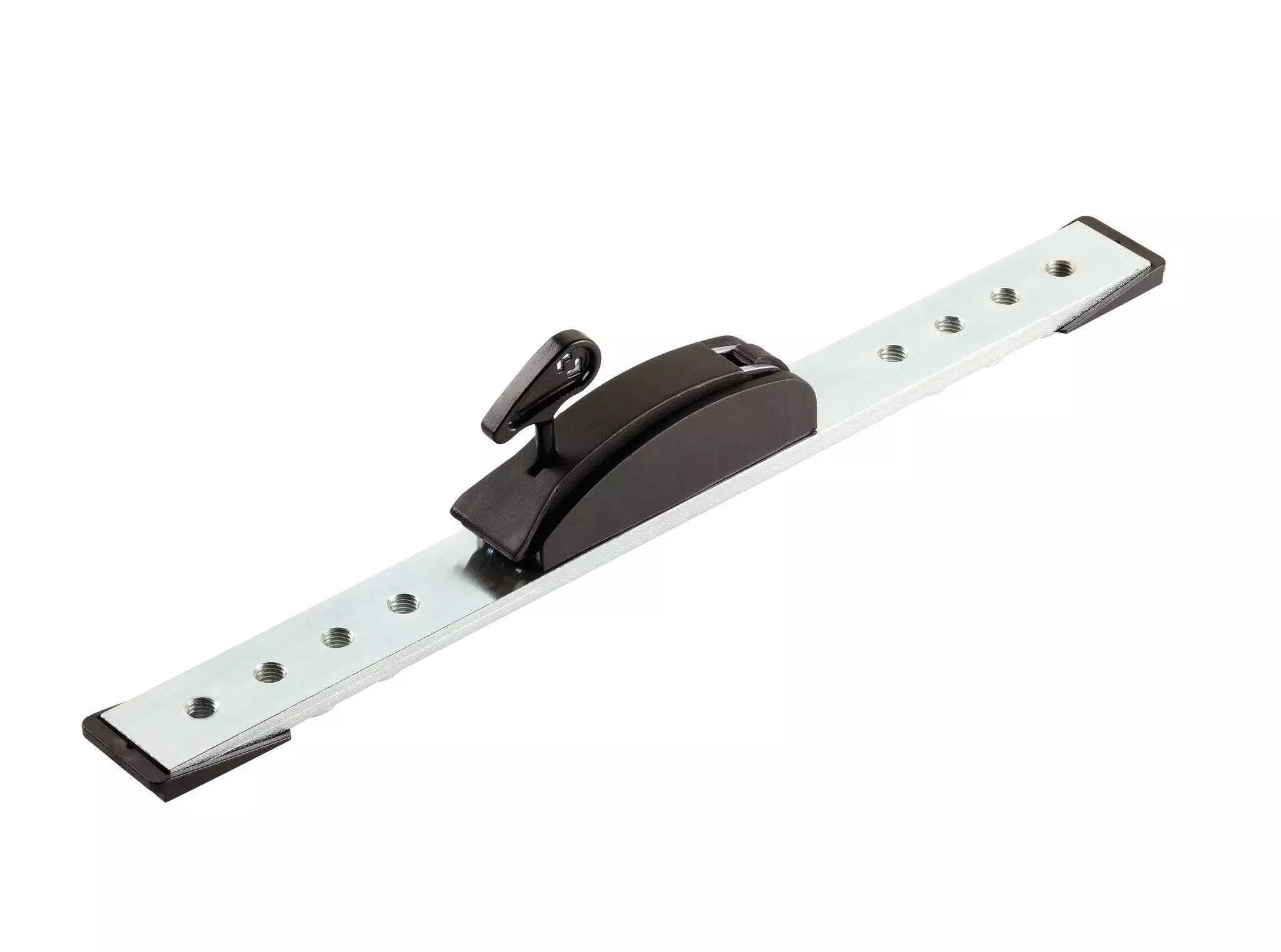

Lockable

The KERL universal can be ordered with a lockable version as an option. The required number of keys 521190-20 must be ordered separately.

accessories

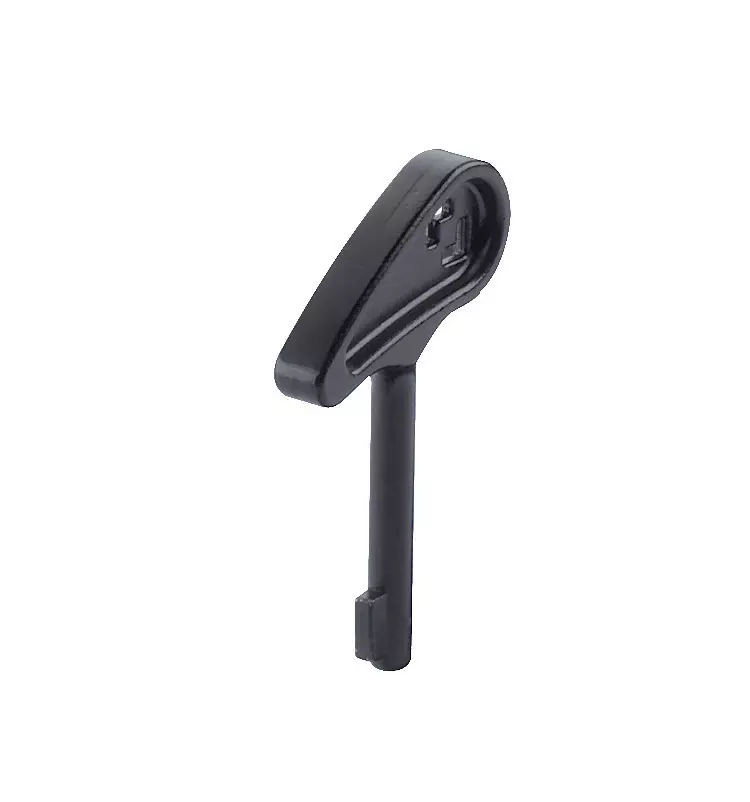

Key 521190-20

Not available in the webshop
