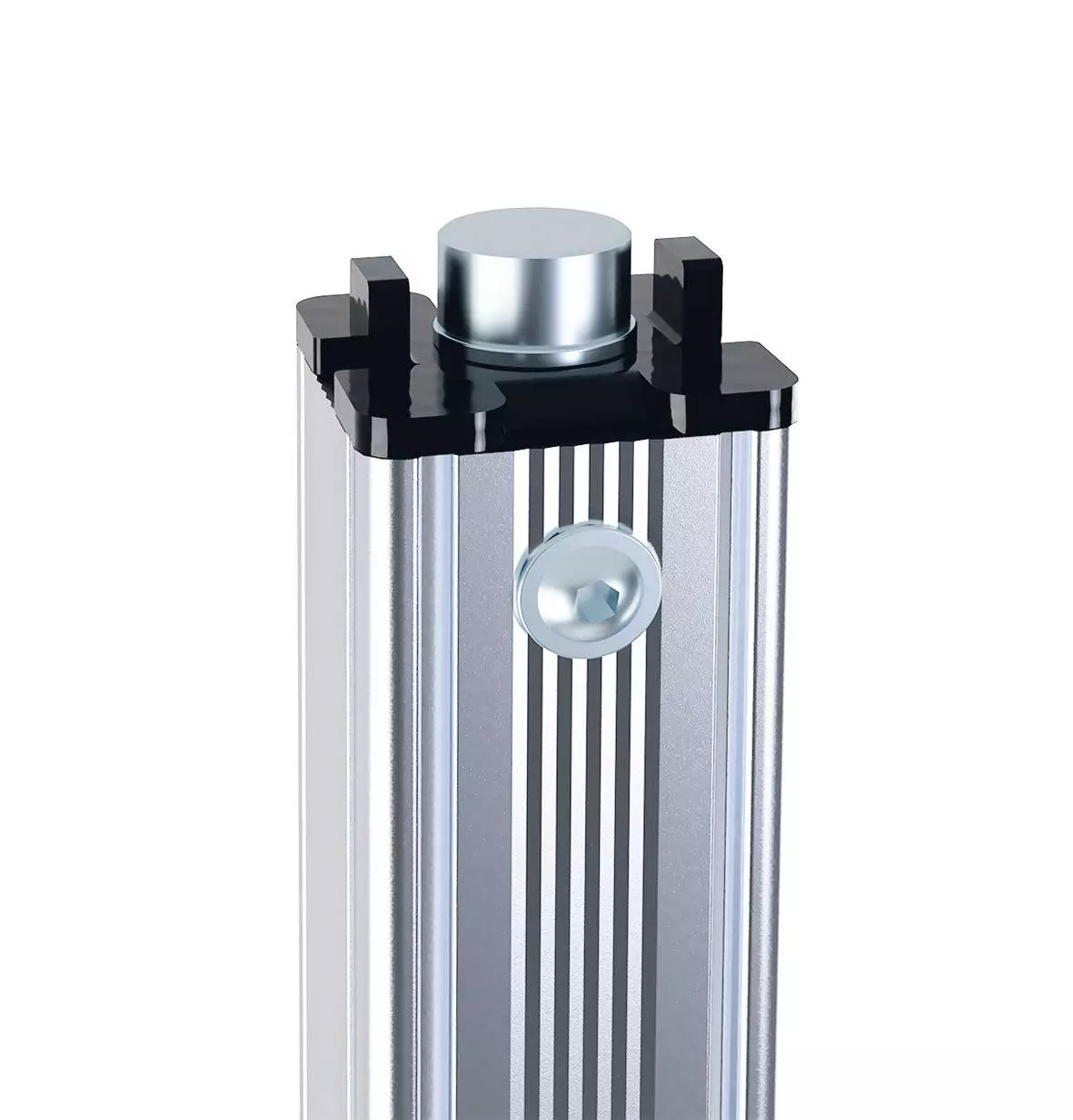

Solid bolt, short, Ø 24 mm, top
Suitable for Round hole tracks Ø 25 mm
Base article no.: 512082

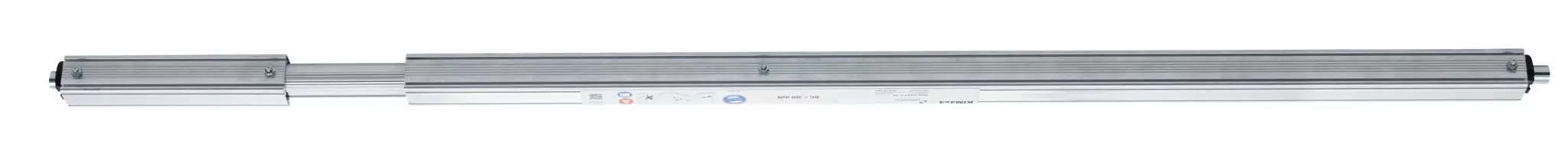

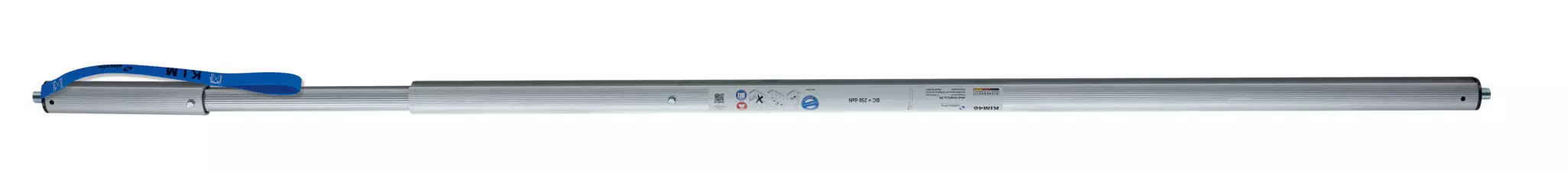

KIM 4x4 | Locking bar with fixed application
Locking bar for stable and secure cargo securing in transporters and panel vans
The KIM 4x4 locking bar impresses with its wide contact surface, which enables an even line load and optimally distributes the load. The square shape provides the locking bar with a non-slip hold and ensures that the load is secured reliably and stably in all areas of application. The flat surface also protects the load and prevents damage. The lightweight design and the integrated spring at the end of the bar make it easy to use, which is ideal when the load needs to be secured quickly and easily.
Albert Tip KIM 4x4
The KIM 4x4 has a spring travel of 70 mm. Do you need a larger adjustment range?
No problem with KIM 4x4 Profi – this locking bar can be adjusted using a lever, giving it a wider range of uses.
Technical specifications
At a glance
- Square locking bar
- Ideal for use in transporters
- Up to 550 daN BC
- Optionally with operating strap
Range of application
- Up to 1600 mm Length: 550 daN
- From 1600–1900 mm: 450 daN
- From 1900–2200 mm: 350 daN
- From 2200 mm: 300 daN
End pieces
End pieces at top

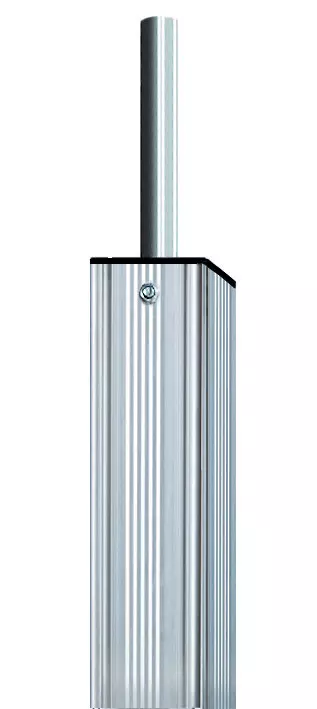

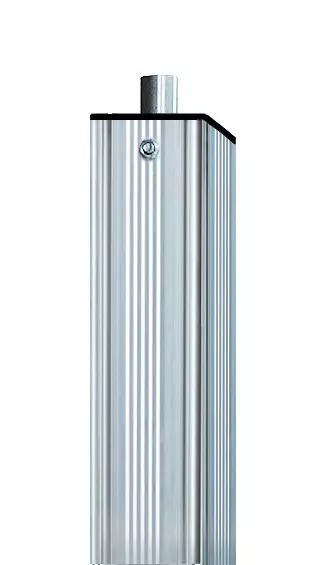

Full bolt, long, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm

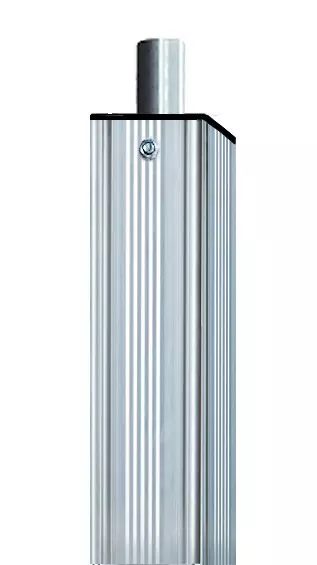

Full bolt, long, Ø 24 mm, top
Suitable for Round hole tracks Ø 25 mm
Solid bolt, short, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
End pieces at bottom

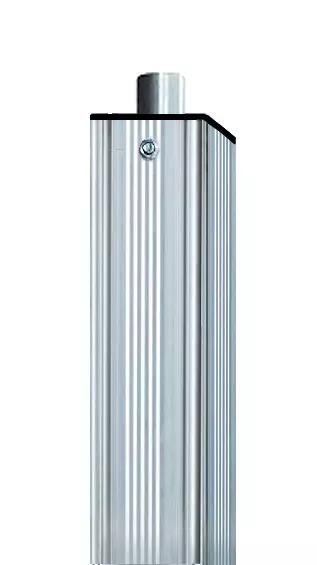

Short bolt Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm

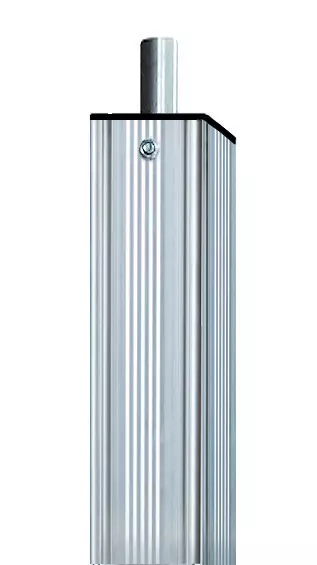

Long bolt Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Long bolt Ø 24 mm, bottom
Suitable for Round hole tracks Ø 25 mm
Extra-long bolt Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Solid bolt, short, Ø 19 mm, bottom
Suitable for Airline tracks and Round hole tracks Ø 20 mm

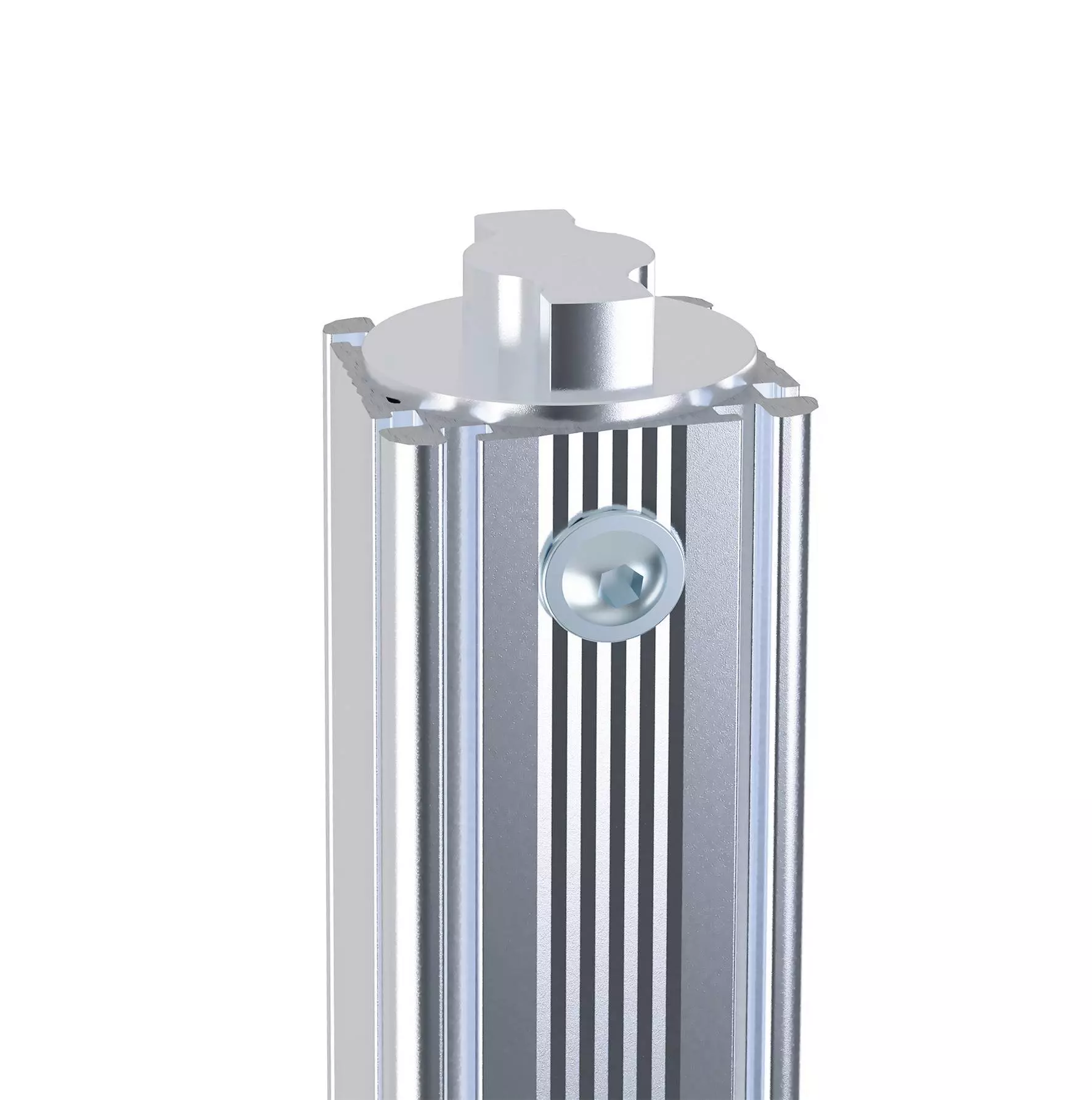

Anti-twist device
Bolt secured against twisting in the Y direction, bottom
Suitable for Airline tracks ø 20 mm
Bolt secured against twisting in the X direction, bottom
Suitable for Airline tracks ø 20 mm
Configuration options
Properties
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.

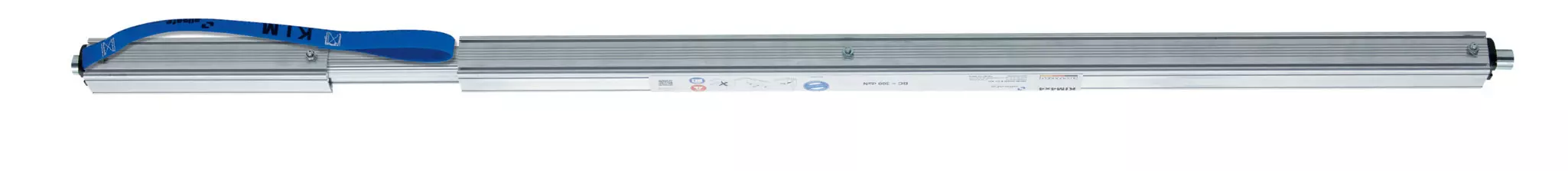

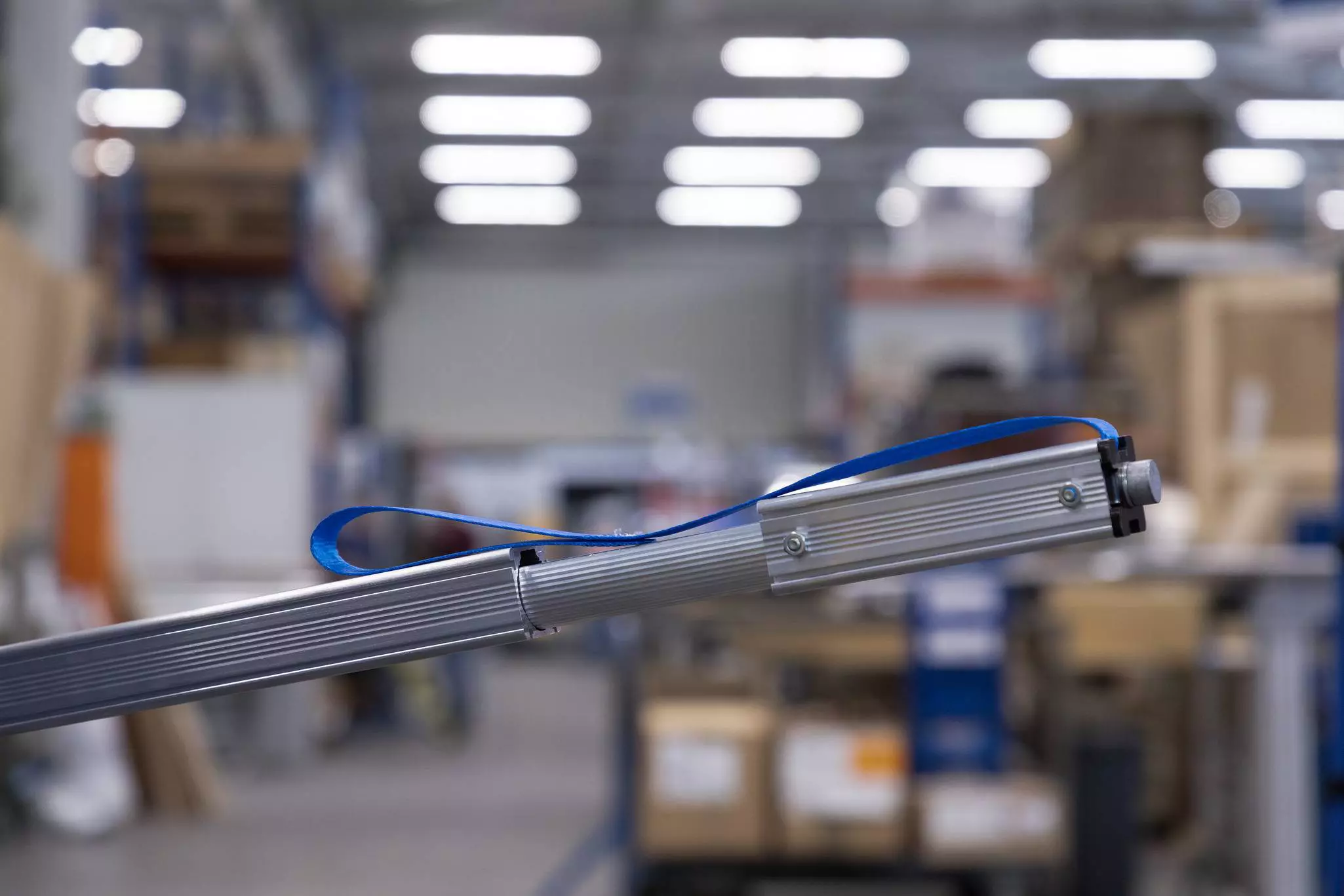

Control strap
An optional operating strap can be selected for easier operation.
Accessories

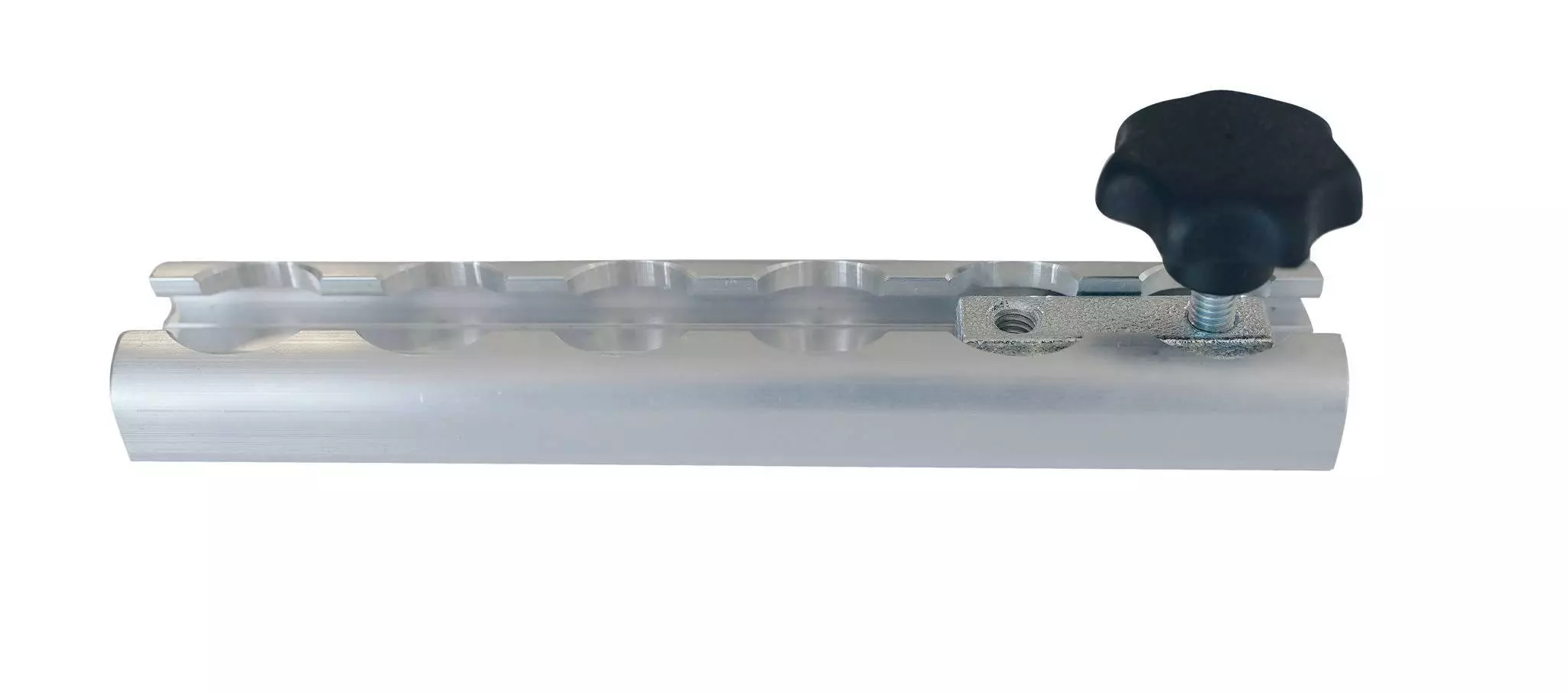

Airline adapter
Base article no. 512144
Downloads
Order the KIM 4x4 locking bar now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
