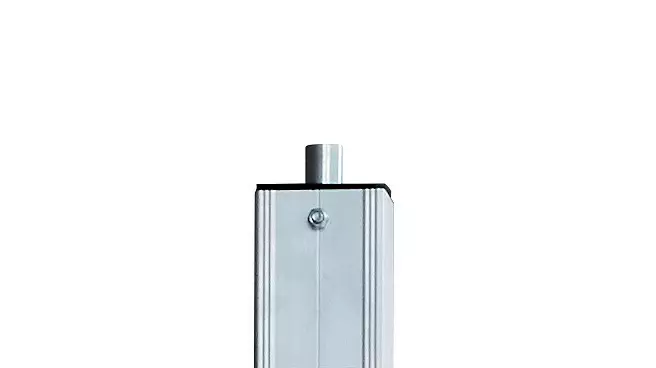

Solid bolt, short, Ø 19 mm, top
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Base article no.: 512062

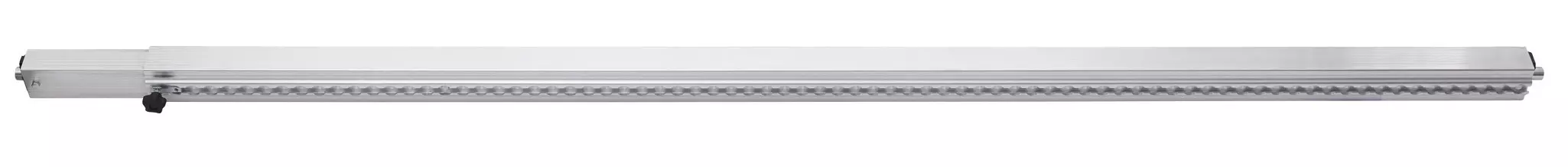

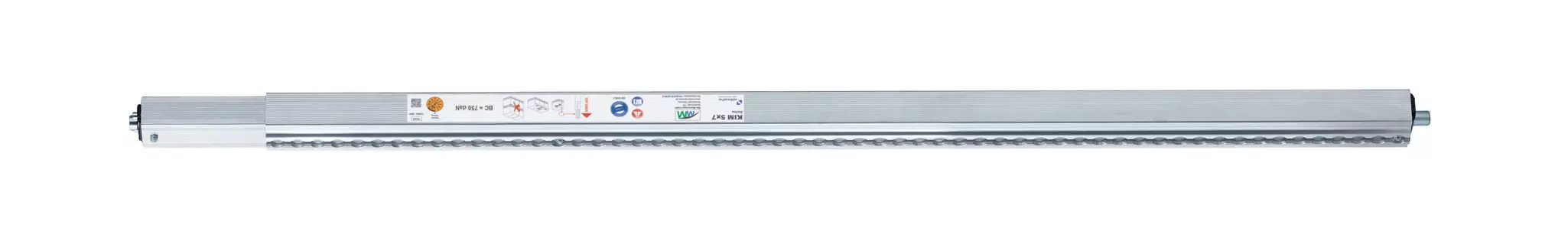

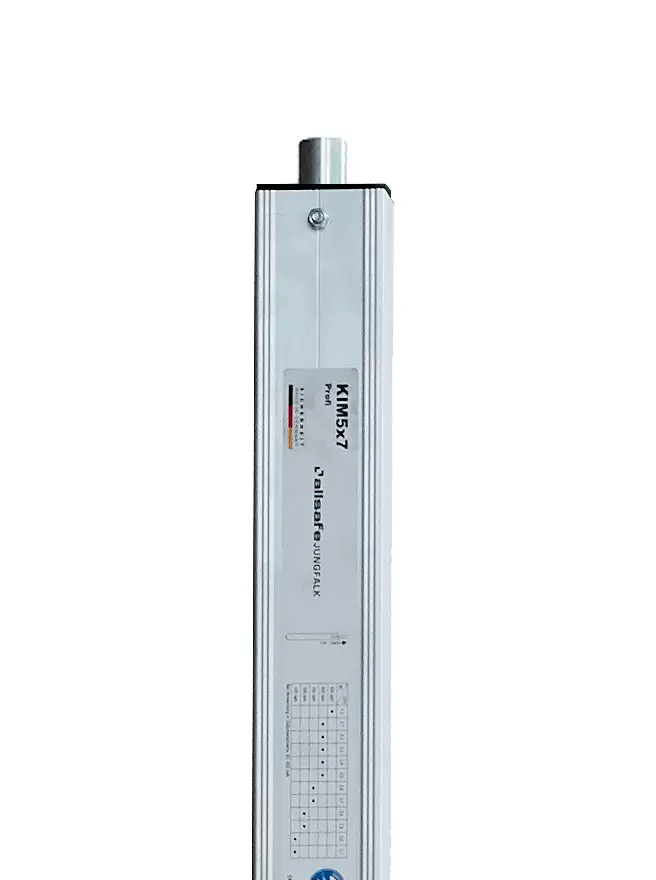

KIM 5x7 Airline | locking bar with fixed application and integrated Airline track
allchange-compatibility
The lightweight locking bar with an Airline track on top for additional load securing for box and curtainsider vehicles

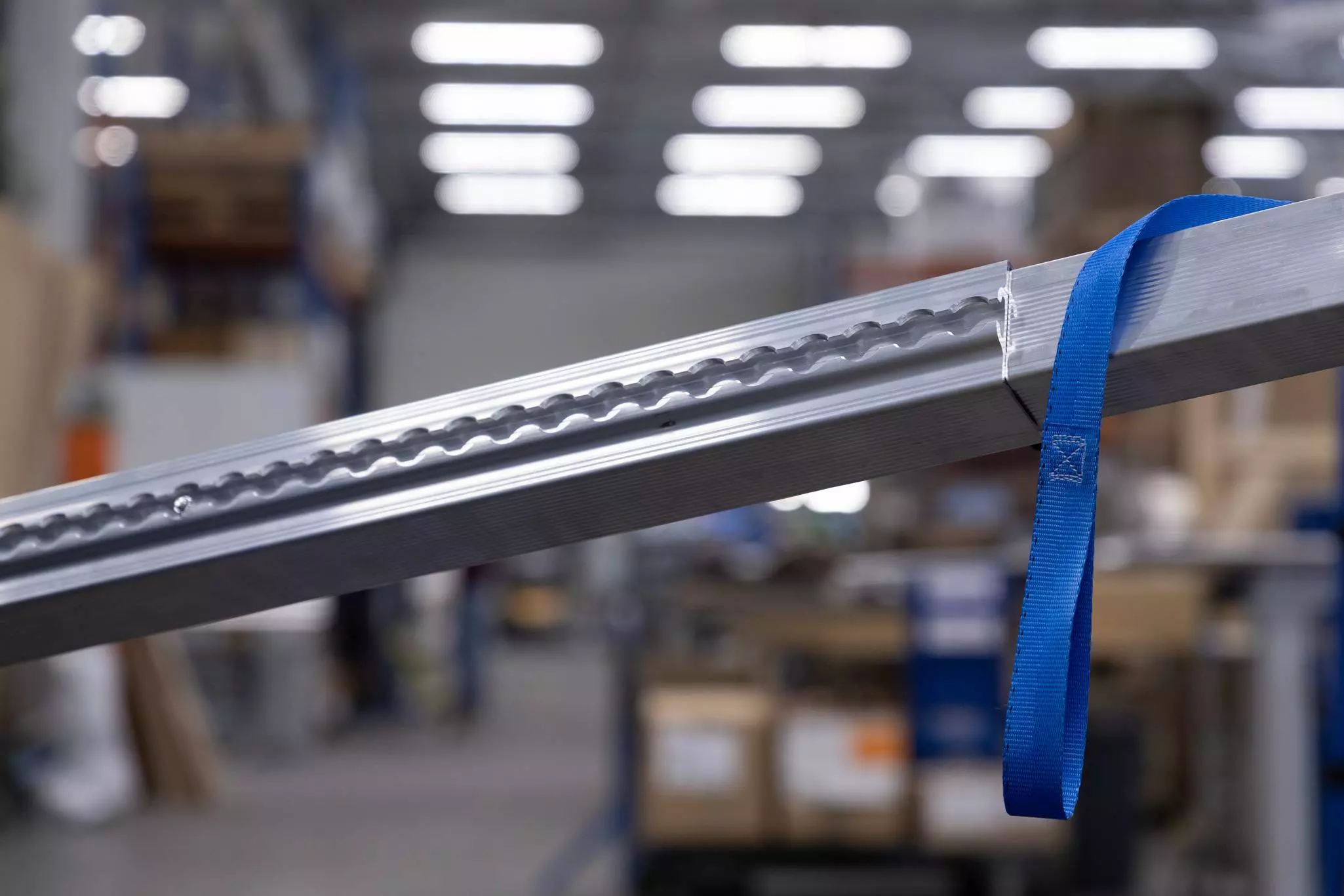

The KIM 5x7 Airline is the ideal locking bar for a particularly comfortable and versatile load securing. With Airline tracks integrated into the outer tube, it offers additional fastening options for straps, locking bars and fittings – perfect for optimally securing even demanding goods. The low weight ensures comfortable handling in everyday work. The robust rectangular construction holds loads securely and precisely in place – even in the truck. Reliable, light, safe, for countless fastening options in large loading areas.
Albert's tip

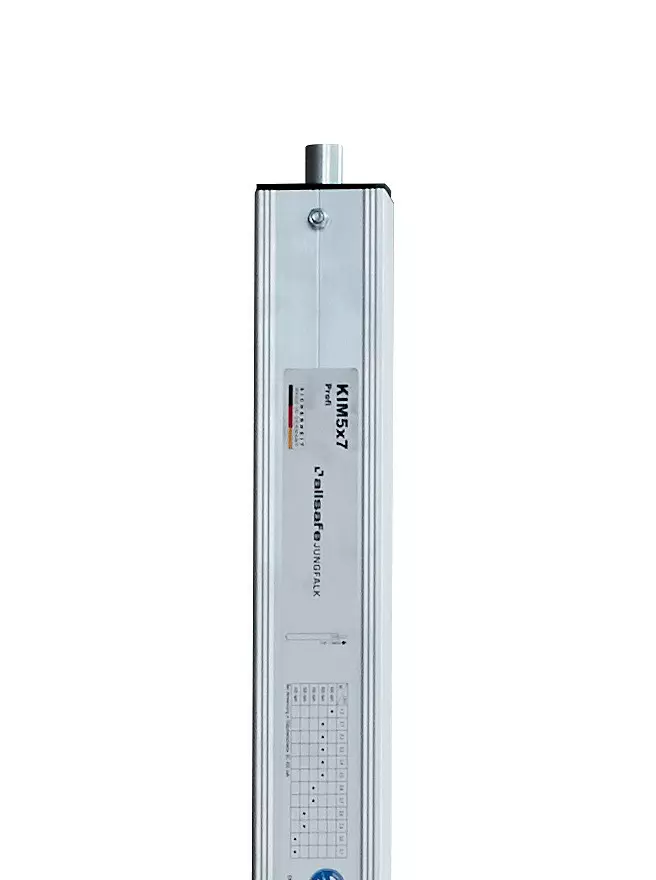

The KIM 5x7 Airline has a spring travel of 70 mm. Do you need a larger adjustment range? No problem with KIM 5x7 Airline Profi – this locking rod can be adjusted using a lever, giving it a larger range of use.
Technical specifications
At a glance
- Square locking bar
- Ideal for use in medium to large box and curtainsider vehicles
- Up to 750 daN BC
- With attached Airline tracks
- Optionally with operating strap or handle
- Weight: approx. 2.5–6.6 kg depending on length
Area of application
- Fixed application range with 70 mm spring travel
- Range of use from min. 640 – max. 2480 mm
End pieces
End pieces at top

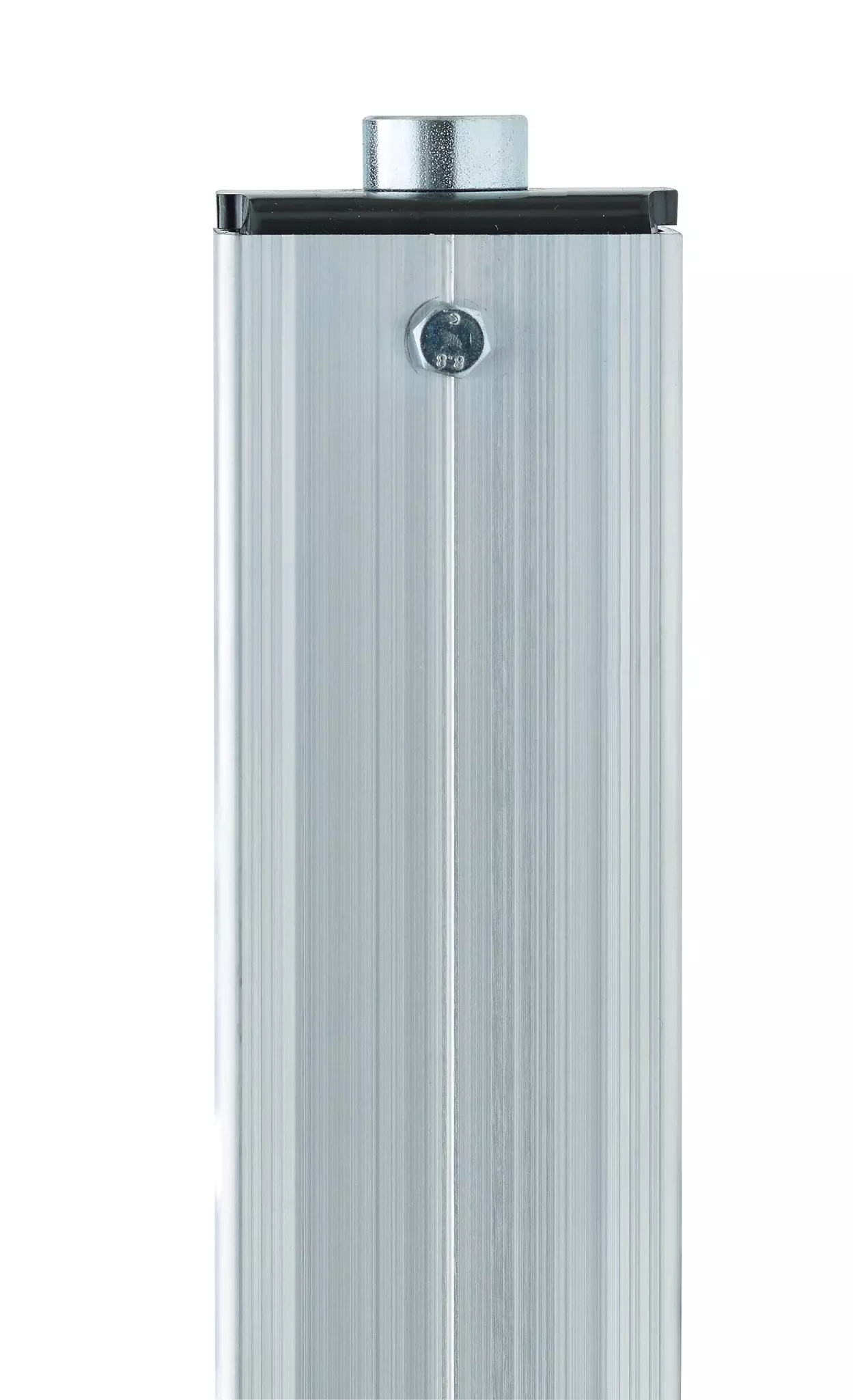

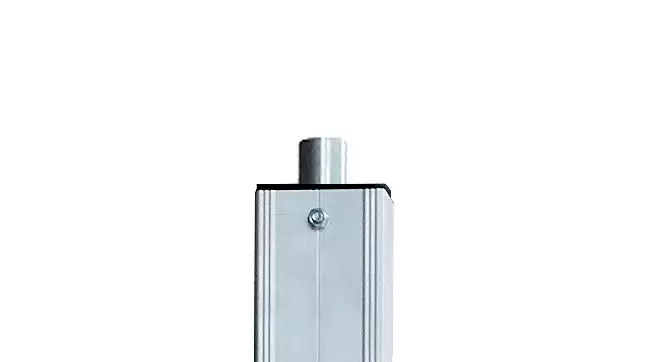

Solid bolt, short, Ø 24 mm, top
Compatible with Airline and round hole tracks Ø 25 mm
Roof track, top

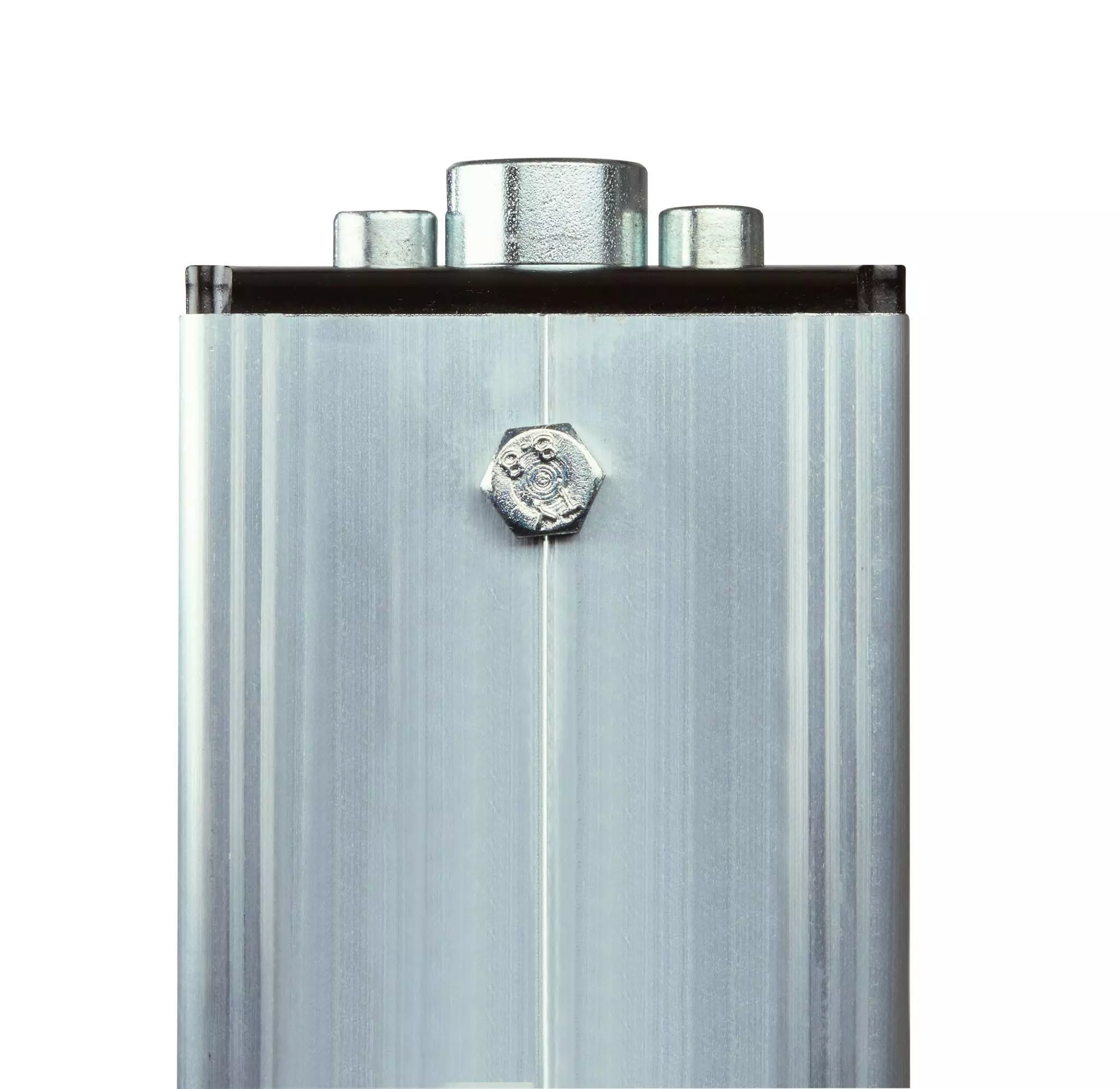

Twist-proof in Y direction, top
Suitable for Airline tracks ø 20 mm
Twist-proof in the X direction, top
Suitable for Airline tracks ø 20 mm
End pieces at bottom
Full bolt, short, ø 19 mm, bottom
Compatible with Airline and round hole tracks Ø 20 mm
Full bolt, long, 19 mm diameter, bottom
Compatible with Airline and round hole tracks Ø 20 mm
Full bolt, long, ø 24 mm, bottom
Compatible with round hole tracks Ø 25 mm
Short bolt, diameter 24 mm, bottom
Compatible with round hole tracks Ø 25 mm
Twist-proof in the X direction, bottom
Suitable for Airline tracks ø 20 mm
Twist-proof in Y direction, bottom
Suitable for Airline tracks ø 20 mm
Configuration options
Properties

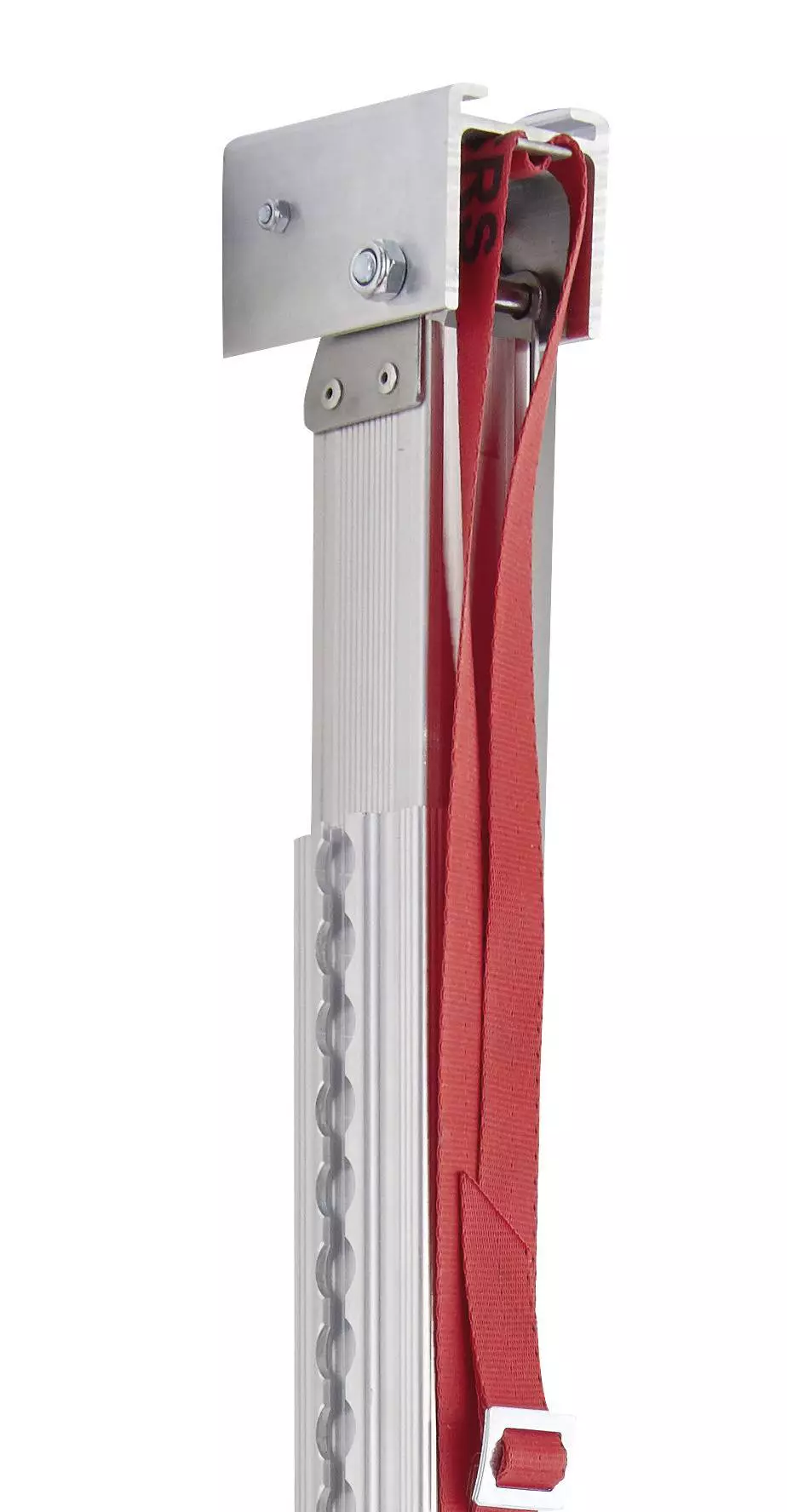

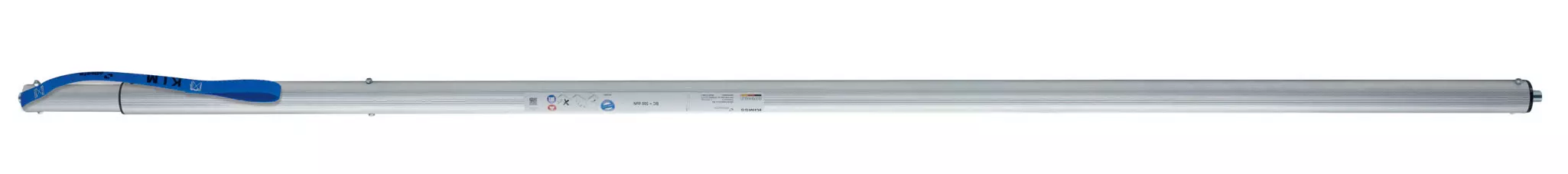

Operating strap
An optional operating strap can be selected for easier operation.

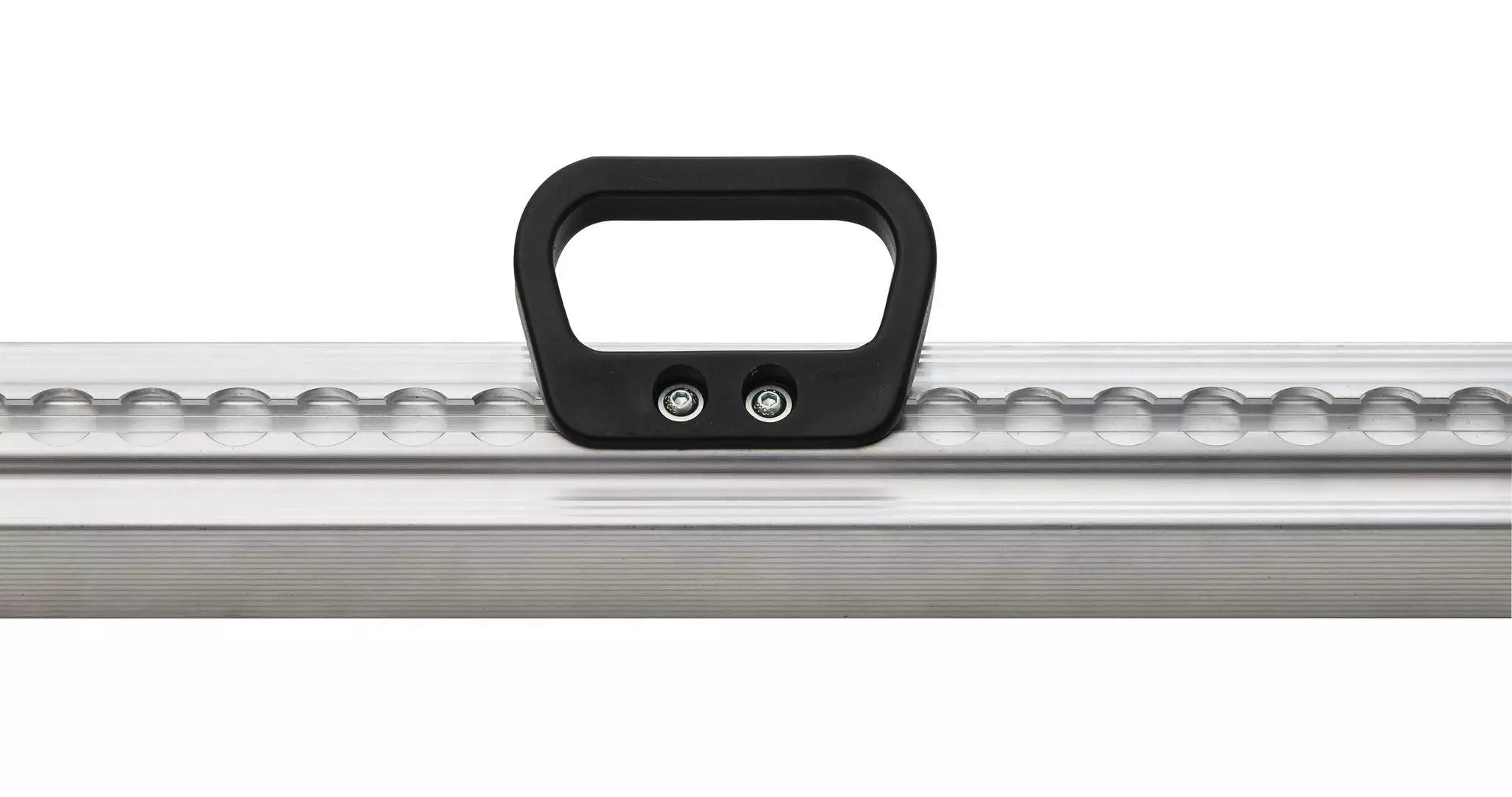

Handle
Locking handle
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Accessories

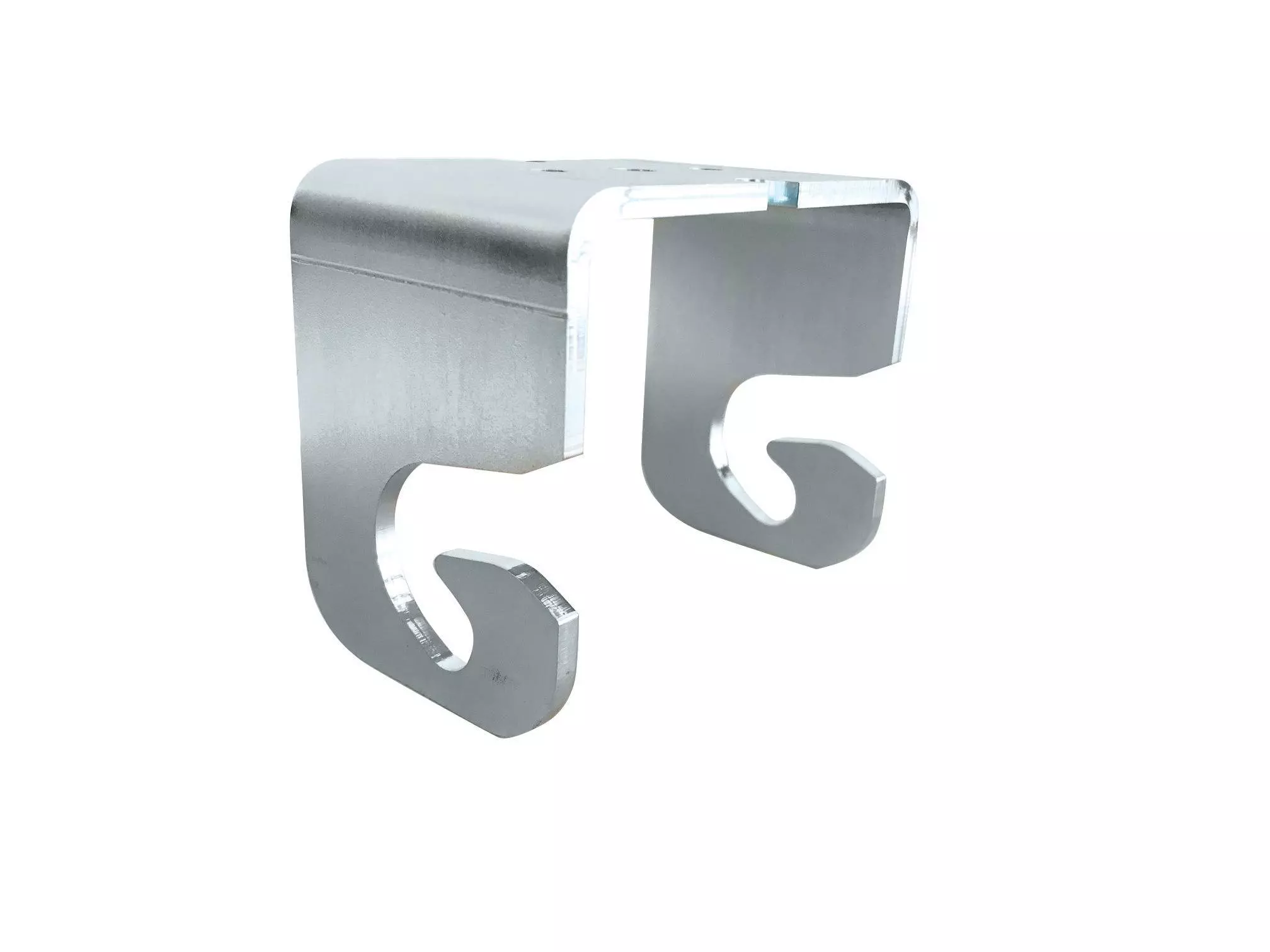

Ceiling mount
Base article no. 522160
Not available in the webshop
This product is currently not available in our shop. To purchase, please contact us by email or give us a call.
Downloads
Order the KIM 5x7 Airline track now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
