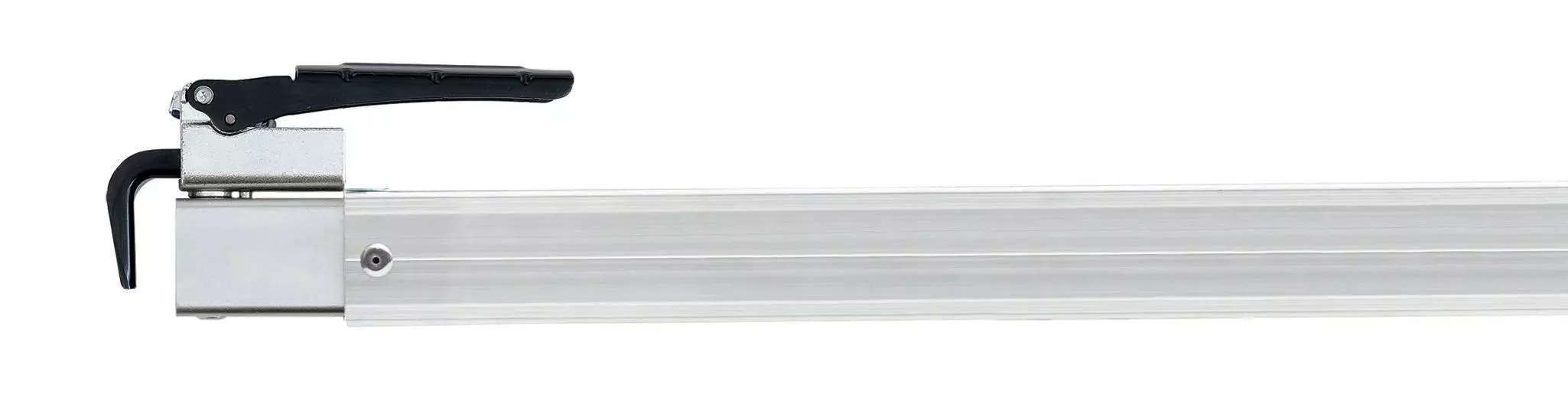

PAT tensioning boards | For trailers and curtainsiders

  • PAT one-piece | one-piece bow board

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • BC 1250 daN
    • Application range min. 1460 to max. 2460 mm: ± 60 mm telescopic.
    • Weight approx. 7,0 – 9,0 kg (depending on length)
    • For curtainsiders and car trailers
    • For side walls from 18 to 30 mm

  • PAT two-piece | two-part bowder

    Repairable
    Tested according to VDI 2700 Sheet 3.2
    • BC 1000 daN
    • Available in the application range: min. 1945 mm – max. 2405 mm, ± 115 mm telescopic
    • Weight approx. 7,5 – 9,5 kg (depending on length)
    • Two-part for space-saving storage
    • For curtainsiders and passenger car trailers
    • For side walls from 18 to 30 mm

PAT tensioning boards from allsafe

Our PAT tensioning boards are ideal for securing loads in curtainsiders and flatbed trucks. Our tensioning boards can be combined with side walls and bow boards made of wood or aluminum. These can be between 18 and 30 mm wide.

Our two-piece PAT also offers the option of storing the tensioning board in a space-saving manner when it is not in use and offers maximum flexibility thanks to its telescopic range. Our one-piece PAT is made to measure for you.

Both tensioning elements impress with their quality, durability, and blocking force of 1000 daN and 1250 daN.
