Solid bolt, short, Ø 19 mm
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Base article no.: 512083

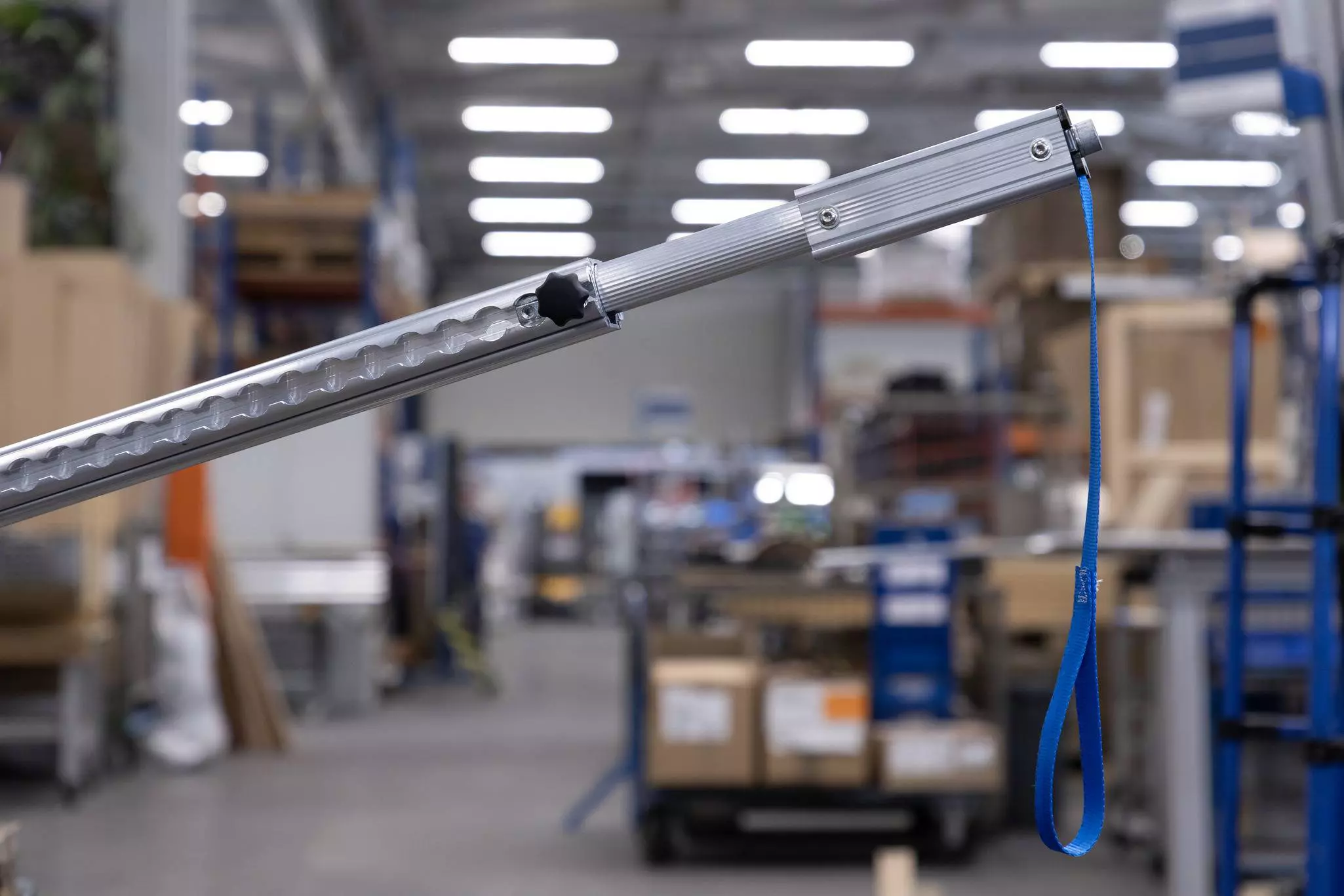

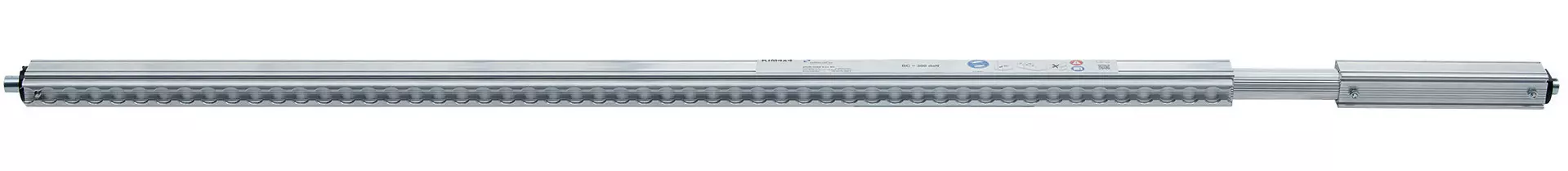

KIM 4x4 Airline | Locking bar with fixed application and integrated Airline track
allchange-compatibility
Made in Germany

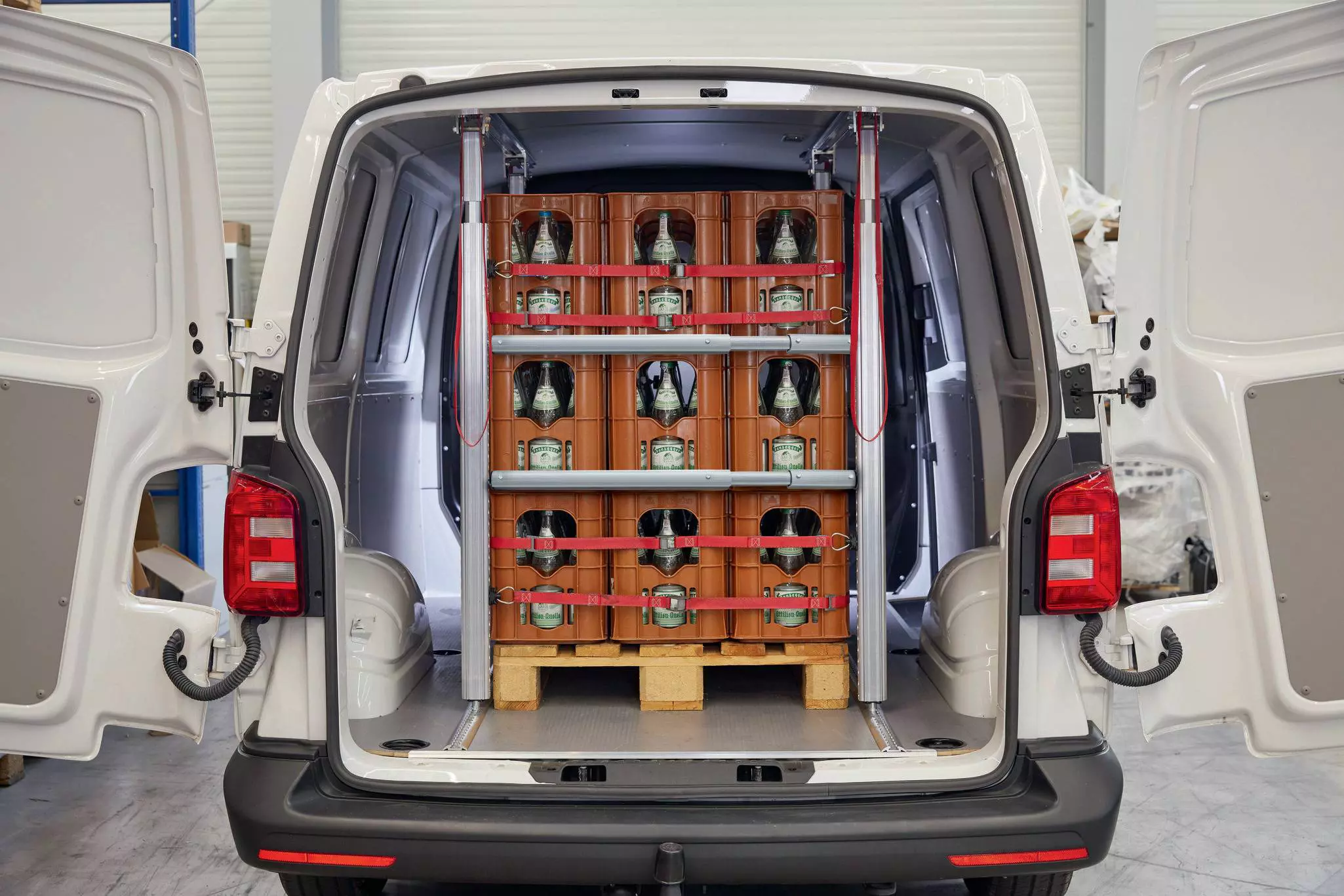

Maximum flexibility thanks to the integrated Airline tracks for securing loads in vans and box wagons
The high-quality KIM 4x4 Airline locking bar with a square profile is not only extremely stable and easy to use, but also offers maximum flexibility when securing your load thanks to the integrated Airline track. Additional locking bars, straps and fittings can be attached to the integrated Airline track to provide extra support. Ideal for particularly challenging transportation and heavy loads in vans and panel vans. The well-thought-out design saves time and allows for quick adaptation to different loads.
Albert's tip
'The KIM 4x4 Airline has a spring travel of 70 mm. Need a larger adjustment range? No problem with KIM 4x4 Airline Profii – this locking bar can be adjusted using a lever, giving it a larger range of use.
Technical specifications
*up to 780 mm length 750 daN; from 2000 mm length 300 daN
At a glance
- Square locking bar
- Ideal for use in transporters
- Weight: approx. 3.0–7.0 kg depending on length
- Up to 750 daN BC*
- Optionally with operating strap
- With attached Airline tracks
Area of application

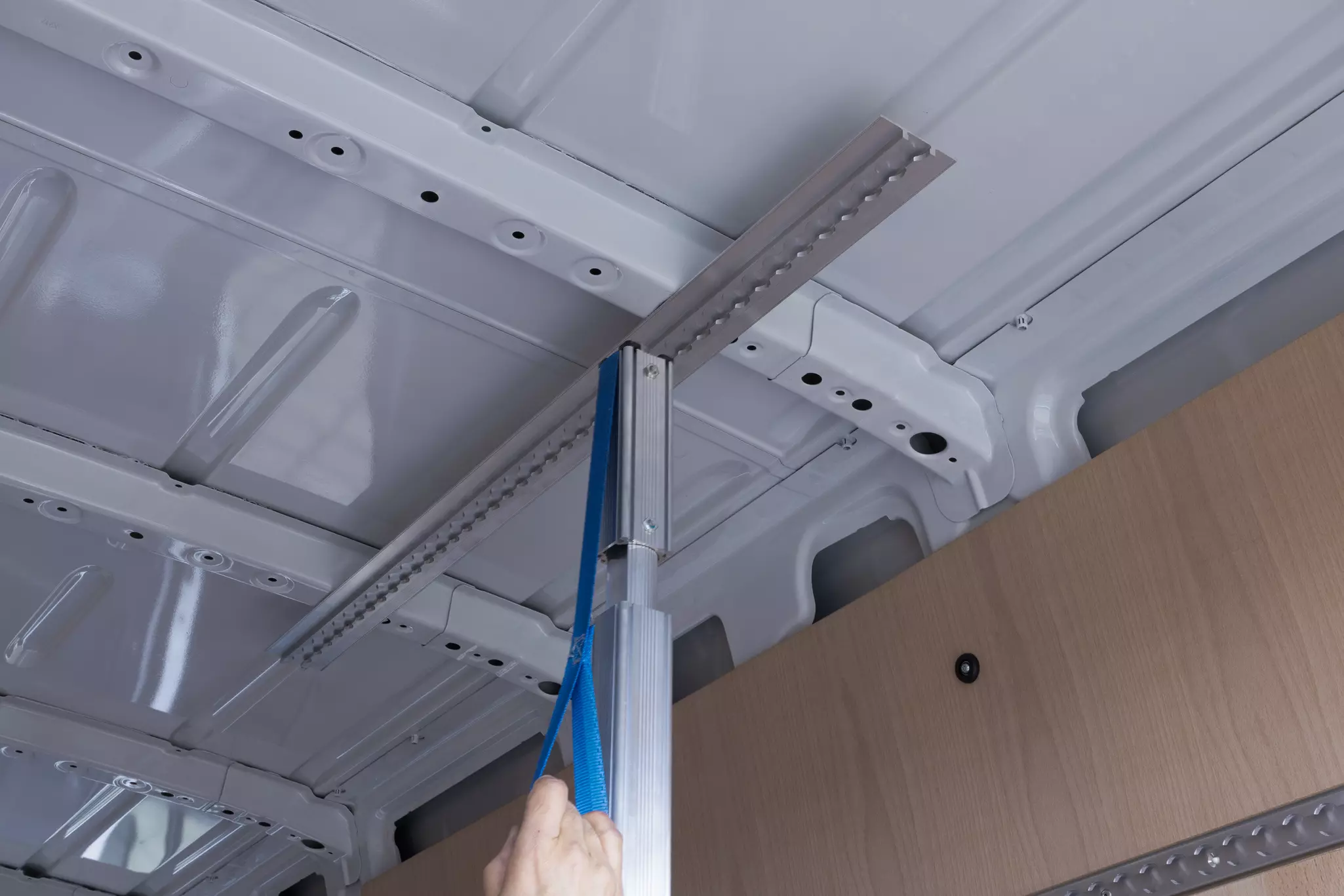

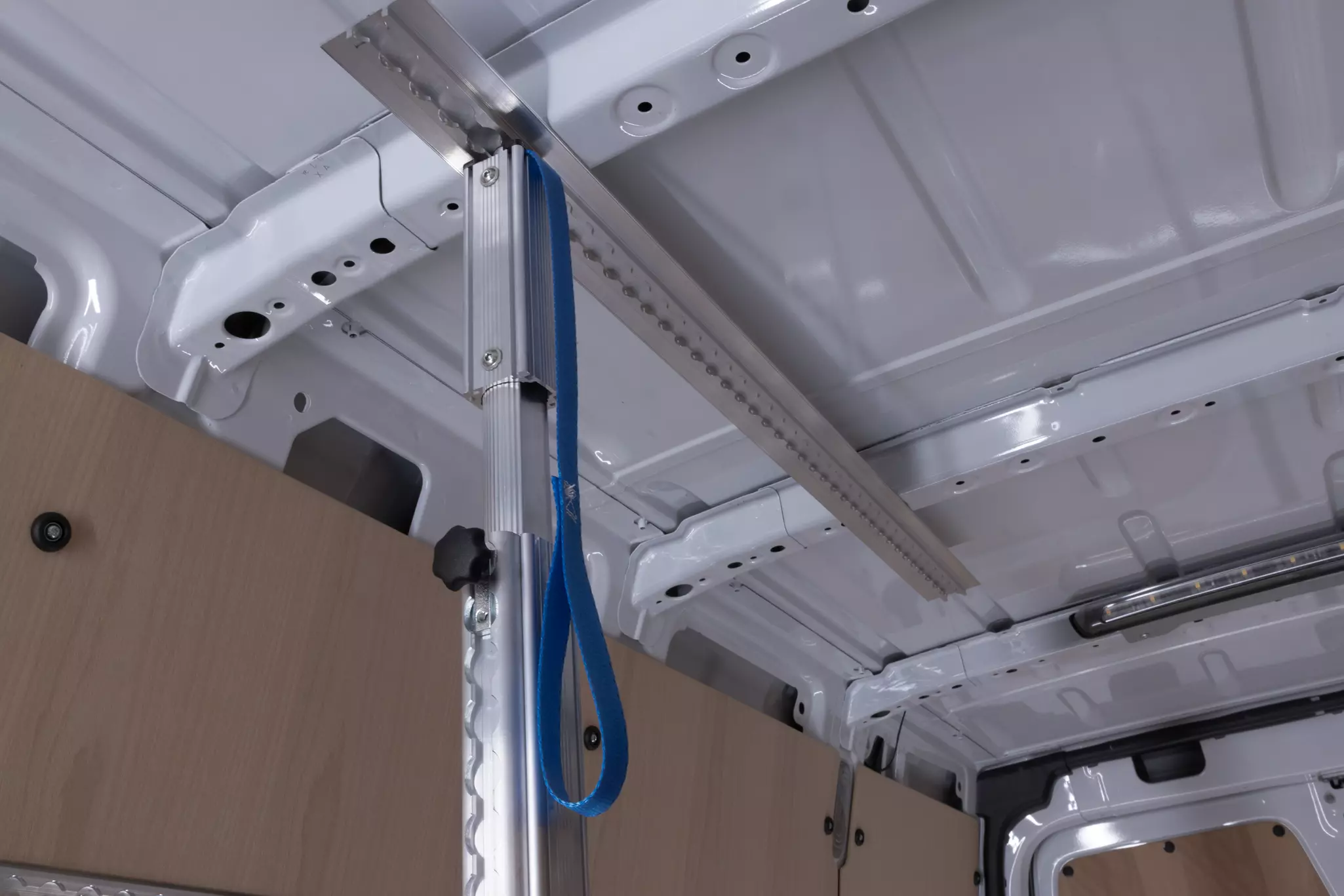

KIM 4x4 Airline is suitable for horizontal and vertical use. It is available with a fixed range of application.
- Application range from min. 640 – max. 2520 mm
End pieces
End pieces at bottom
Solid bolt, short, Ø 24 mm
Suitable for Round hole tracks Ø 25 mm
Full bolt, long, Ø 19 mm
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Full bolt, long, Ø 24 mm
Suitable for Round hole tracks Ø 25 mm
End pieces at top
Solid bolt, short, Ø 19 mm
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Short bolt Ø 24 mm
Suitable for Round hole tracks Ø 25 mm
Long bolt Ø 19 mm
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Long bolt Ø 24 mm
Suitable for Round hole tracks Ø 25 mm
Extra-long bolt Ø 19 mm
Suitable for Airline tracks and Round hole tracks Ø 20 mm
Anti-twist device
Twist-proof in the X direction
Twist-proof in Y direction
Configuration options

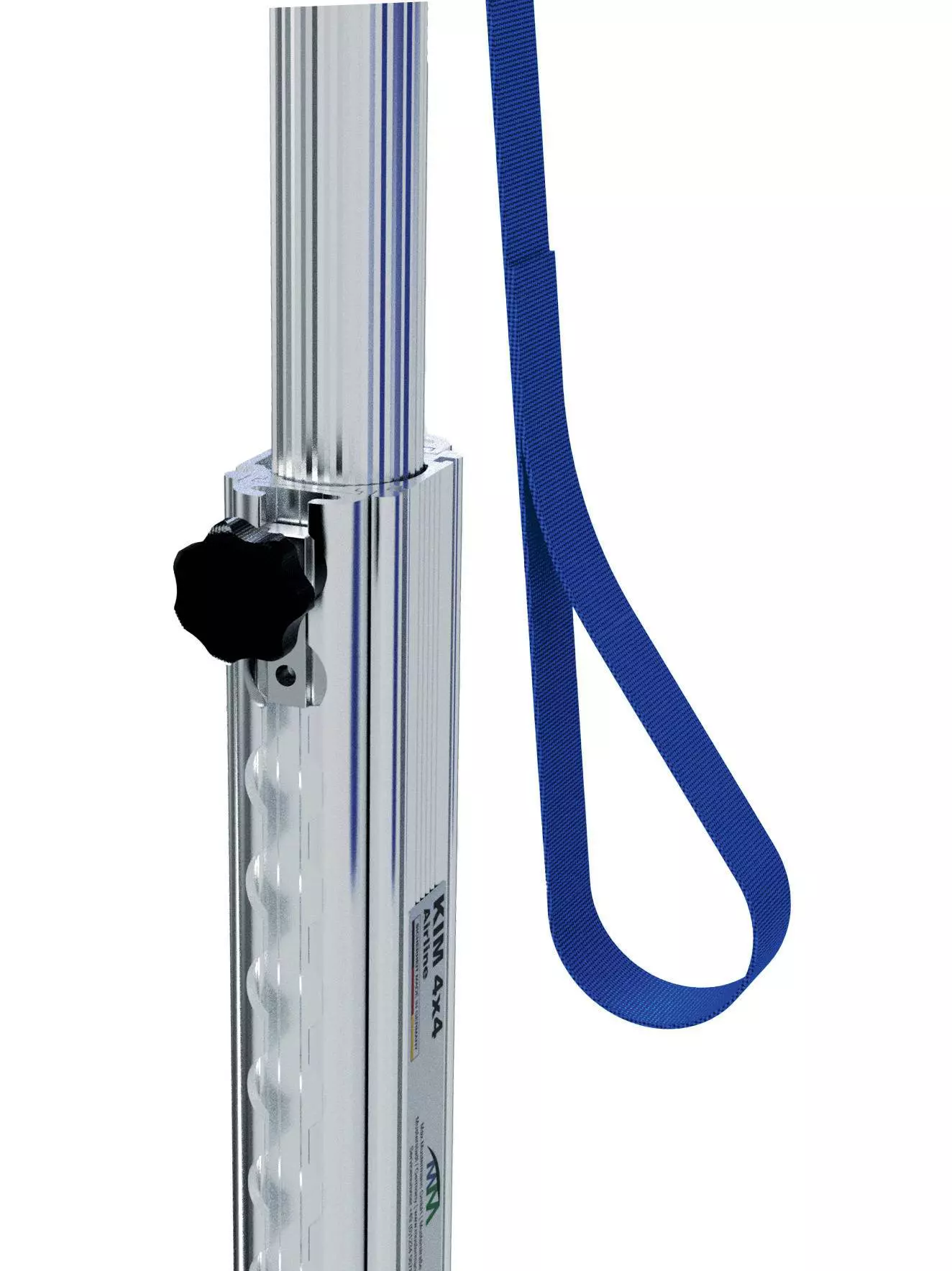

Control strap
An optional operating strap can be selected for easier operation.
Locking handle
Label printing
All allsafe Factor 4 products can be fitted with a customized product type label.
Accessories
Base article no. 512144
Downloads
Order the KIM 4x4 Airline track now
Configure our products according to your requirements.
Custom-made and delivered ready for installation.
