Base article no.: 512075

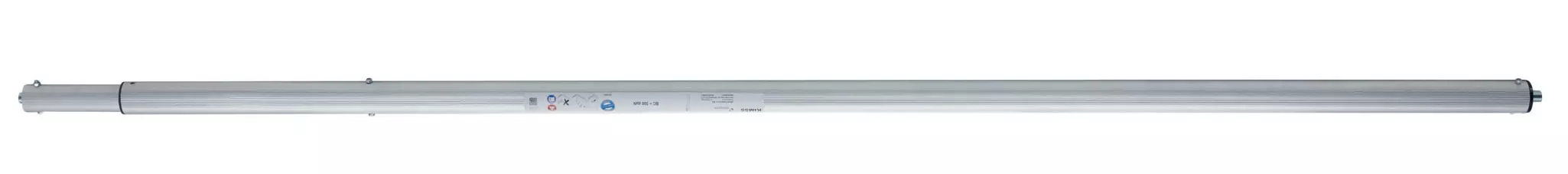

KIM 55 | Locking bar with fixed application

allchange-compatibility

Made in Germany

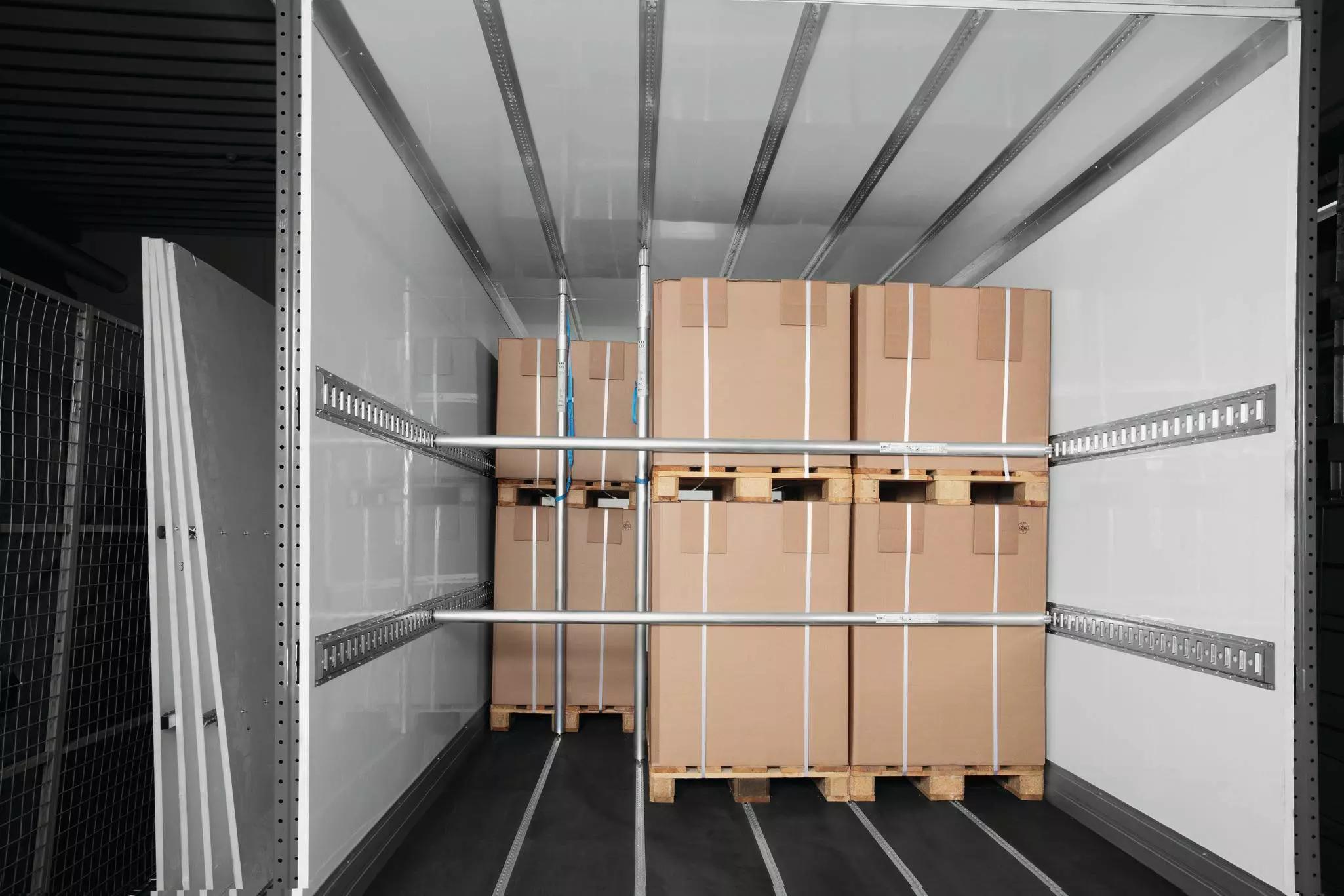

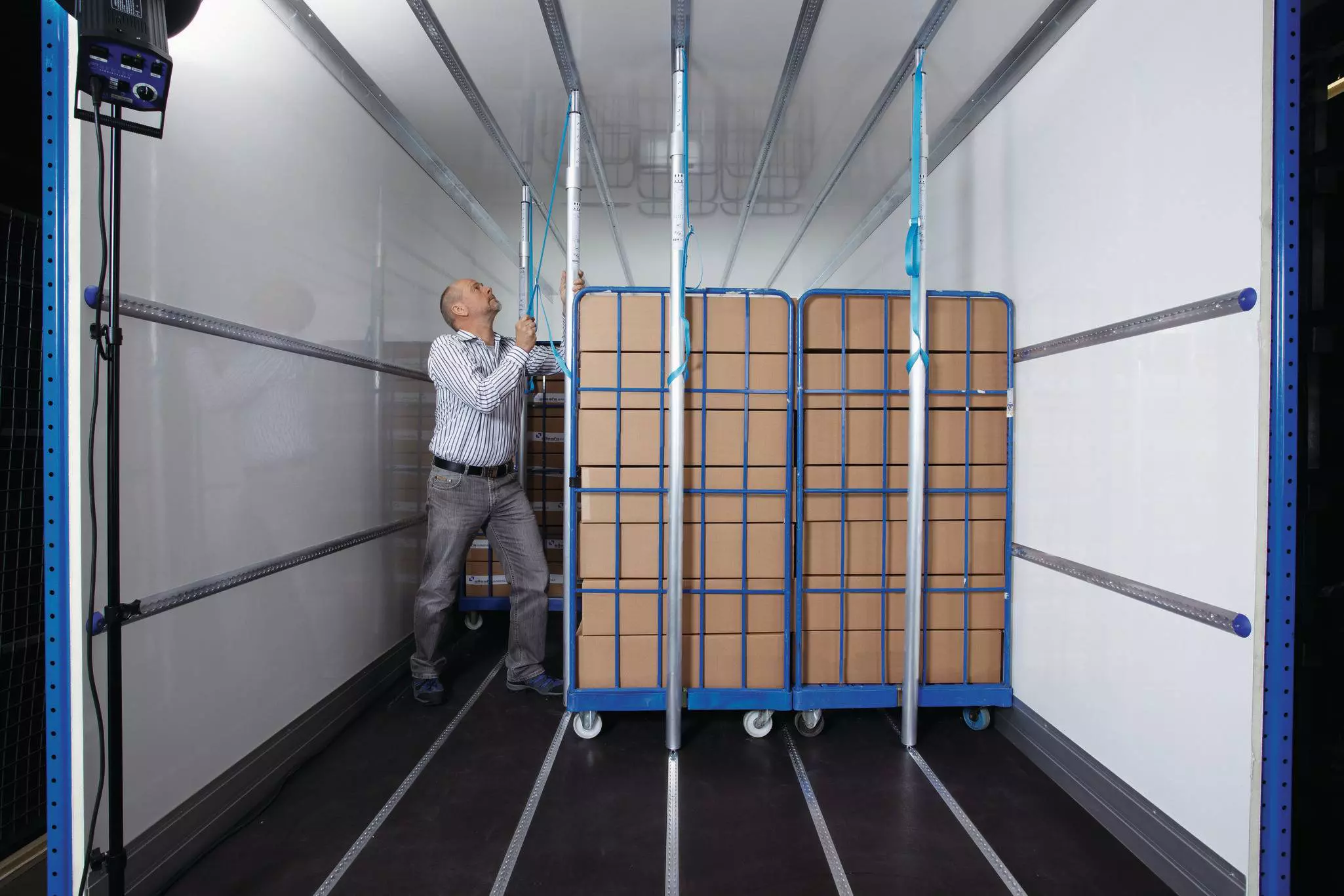

Round locking bar for maximum load capacity in box vehicles and curtainsiders

The KIM 55 round locking bar combines maximum load capacity with convenient and safe handling for securing loads in box and curtainsider vehicles. The lightweight, robust construction ensures maximum stability and reliability, even in challenging loading situations. The optional operating strap allows for quick and easy fastening of the locking bar without the need for great force, increasing comfort in daily use. Made from high-quality materials, the KIM 55 locking bar also offers a long-lasting solution for secure and durable needs in trucks.

Albert's tip

The KIM 55 has a spring travel of 70 mm. Do you need a larger adjustment range? No problem with KIM 55 Profi!

Technical specifications

At a glance

  • Round locking bar
  • Ideal for use in medium-sized box and curtainsider vehicles
  • Up to 450 daN BC
  • Optionally with operating strap
  • Weight: approx. 2.5–3.8 kg depending on length

Area of application

  • Application range from min. 640 – max. 2520 mm
  • Fixed application range with 70 mm spring travel

End pieces

End pieces at top

Solid bolt Ø 19 mm

Suitable for Airline tracks and Round hole tracks Ø 20 mm

Solid bolt Ø 24 mm

Suitable for Round hole tracks Ø 25 mm

Slotted bolt Ø 19 mm

Suitable for Airline tracks, Round hole tracks Ø 20 mm and Pin tracks Ø 8 mm

Slotted bolt Ø 24 mm

Suitable for Airline tracks, Round hole tracks Ø 25 mm and Pin tracks Ø 10 mm

End pieces at bottom

Full bolt, short, Ø 19 mm, bottom KIM 55

Suitable for Airline tracks and Round hole tracks Ø 20 mm

Solid bolt, short, Ø 24 mm

Suitable for Round hole tracks Ø 25 mm

Full bolt, long, Ø 19 mm

Suitable for Airline tracks and Round hole tracks Ø 20 mm

Full bolt, long, Ø 24 mm

Suitable for Round hole tracks Ø 25 mm

Slotted solder plugs Ø 19 mm

passend zu Airline-, Rundloch- Ø 20 mm und Stäbchen-Schienen Ø 8 mm

Slotted solder plugs Ø 24 mm

Suitable for Airline tracks, Round hole tracks Ø 25 mm and Pin tracks Ø 10 mm

Configuration options

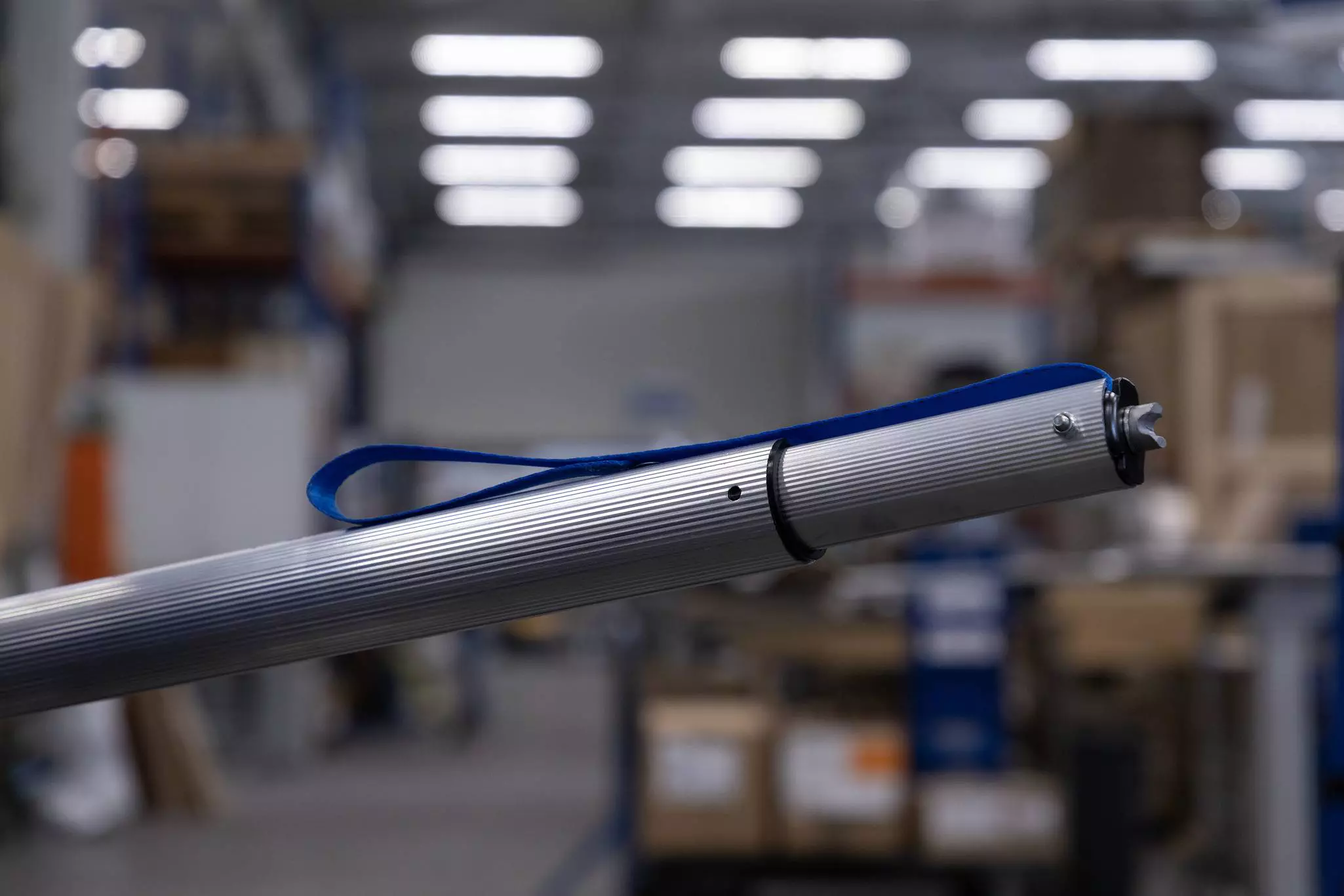

Control strap

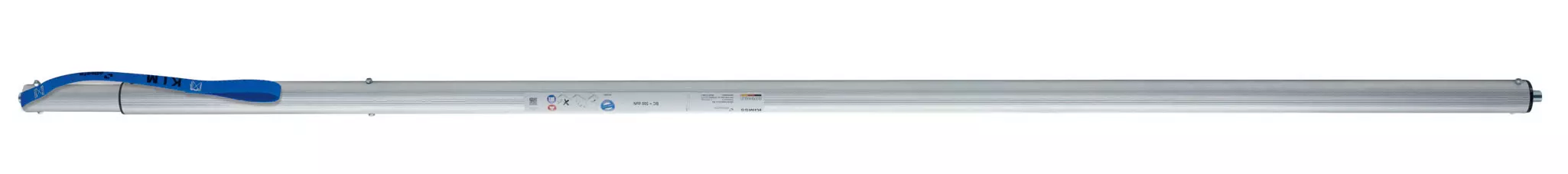

An optional operating strap can be selected for easier operation.

Label printing

All allsafe Factor 4 products can be fitted with a customized product type label.
